Euroboor TUBE.100S+/T Magnetic Drilling Machine Applications
- Pipe construction and pipeline fabrication
- Structural steel pipe frameworks and tubular systems
- Industrial maintenance and on-site metalworking
- Drilling and tapping operations on curved surfaces
- Steel fabrication shops and mechanical installations
Designed specifically for drilling and tapping on pipes where conventional flat-surface magnetic drills cannot operate safely or efficiently.
Euroboor TUBE.100S+/T Magnetic Drilling Machine Specifications
| Model | TUBE.100S+/T |
|---|---|
| Maximum Annular Cutter Diameter | 4" (100 mm) |
| Maximum Tapping Capacity | M3 – M30 (1/8" – 1 3/16") |
| Maximum Twist Drill Diameter | 1 1/4" |
| Maximum Countersinking Diameter | 4 1/8" |
| Motor Power | 1,900 W |
| Gearbox | 4-Speed Oil Lubricated Gearbox |
| Spindle | MT3 – Weldon 31.75 mm (1 1/4") |
| Rotation Direction | Bidirectional (Right / Left Rotation) |
| Magnetic Force | 5,280 lbs |
| Minimum Pipe Diameter | 5 1/2" (140 mm) |
| Minimum Material Thickness | 1/8" (3.5 mm) |
| Stroke | 10 1/4" |
| Power Supply | 110 – 120 Volt • 60 Hz • AC |

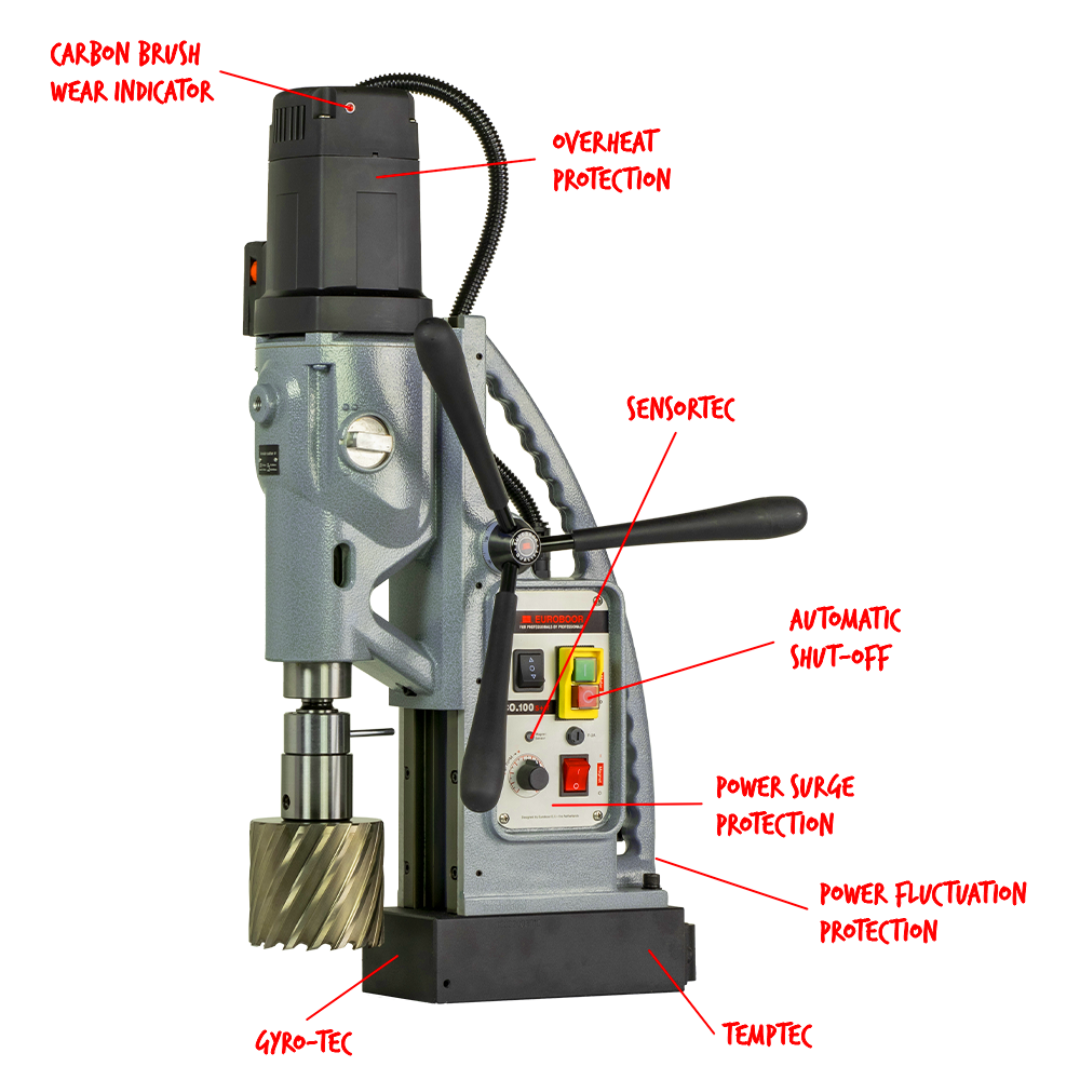

Euroboor TUBE.100S+/T Magnetic Drilling Machine Performance & Safety Features

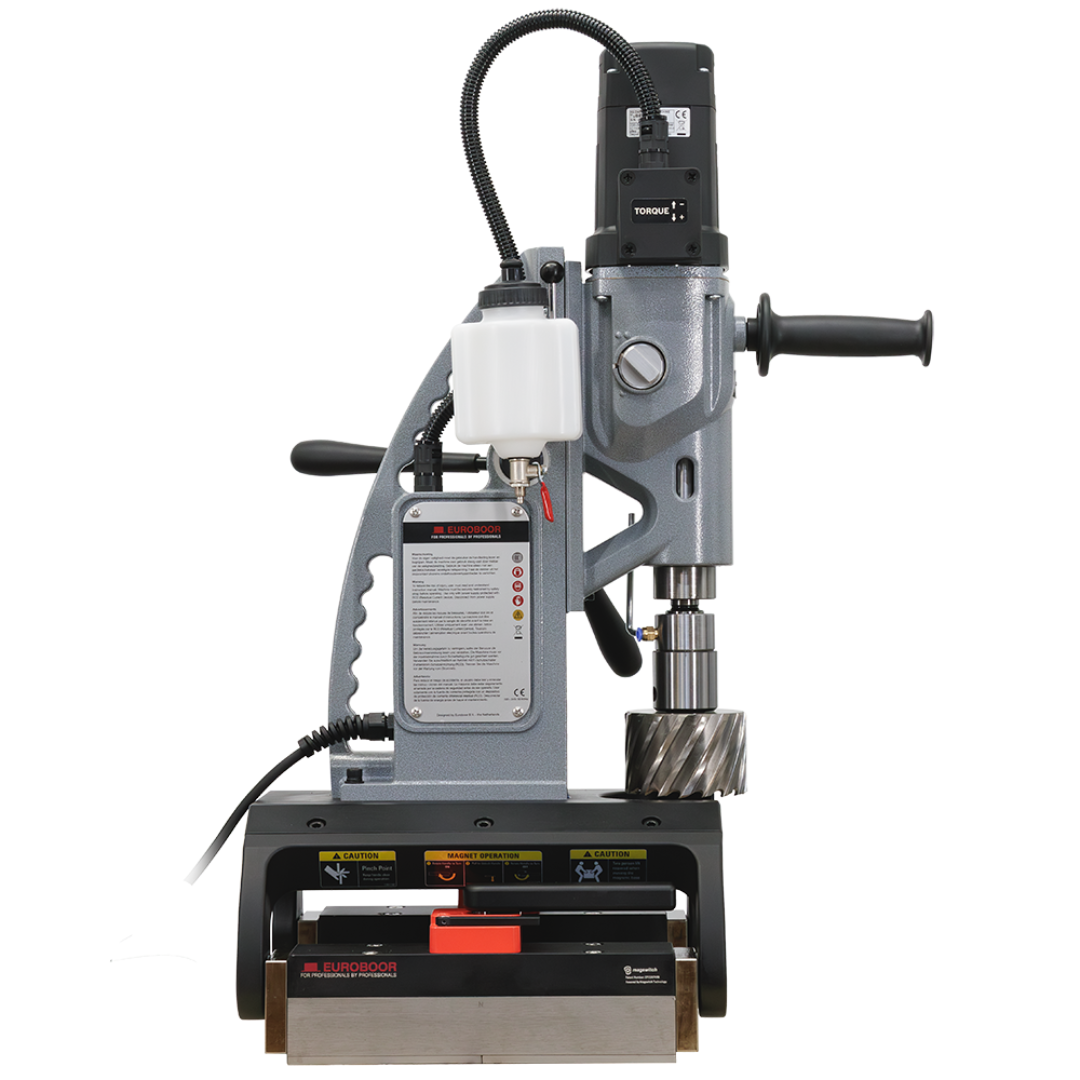

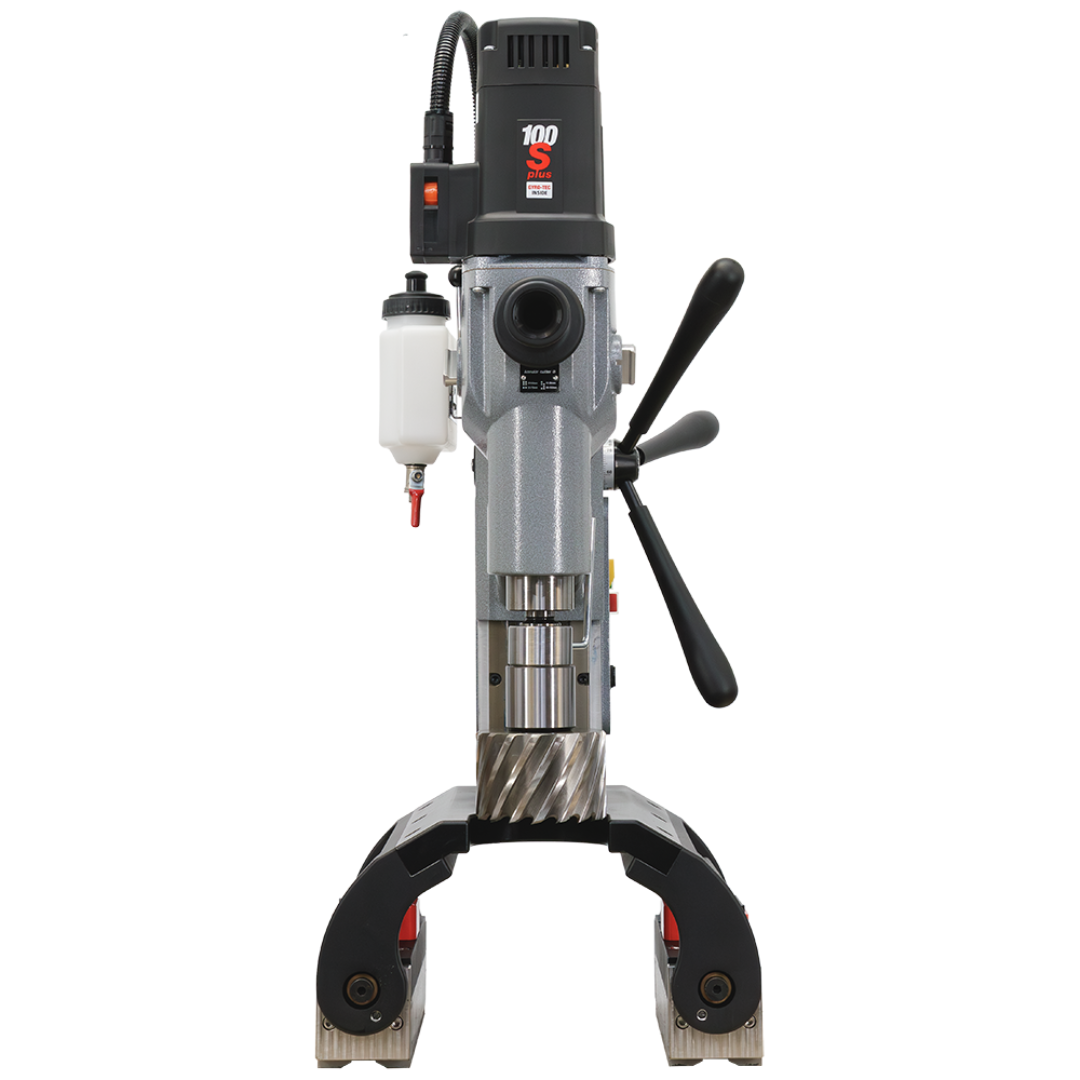

- Pivoting permanent magnet base allows stable mounting on round pipe surfaces and curved materials.
- 4-speed oil-lubricated gearbox ensures smooth operation, long service life, and consistent drilling performance.
- Electronic speed adjustment allows operators to match drill speed with cutter size and material hardness.
- Right / left rotation enables accurate tapping operations for threaded holes up to M30.
- GYRO-TEC safety technology automatically shuts down the machine in case of sudden movement or excessive vibration.
- Advanced electronic protection systems help prevent damage to the motor, tools, and workpiece when operating under unstable power conditions.
- Integrated torque control provides improved control when drilling large holes or tapping threads.
- Morse Taper 3 spindle with integrated cooling and lubrication improves cutter life and drilling efficiency.
Euroboor TUBE.100S+/T Magnetic Drilling Machine Package Contents
- 1 × Metal case
- 1 × Euroboor TUBE.100S+/T Magnetic drilling machine
- 3 × Capstan hub handles
- 1 × Spindle holder MT3 – Weldon 1 1/4" (31.75 mm) with cooling/lubrication ring
- 1 × Adapter Weldon 1 1/4" to 3/4" (31.75 mm to 19.05 mm)
- 1 × Drift key
- 1 × Side handle M12
- 1 × Lubrication / cooling system
- 1 × Allen key 3/32" (2.5 mm)
- 1 × Allen key 1/8" (3 mm)
- 1 × Allen key 5/32" (4 mm)
- 1 × Allen key 13/64" (5 mm)
- 1 × Protection guard
- 1 × Safety chain
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor TUBE.100S+/T Magnetic Drilling Machine
- Designed specifically for drilling and tapping on pipes and curved surfaces.
- Powerful 1,900 W motor with four-speed oil-lubricated gearbox.
- Up to 4" annular cutting capacity and tapping up to M30.
- Advanced safety electronics including GYRO-TEC shutdown protection.
- Adjustable speed and bidirectional rotation for precise drilling and tapping.
- Reliable performance for steel fabrication, pipe construction, and maintenance work.
The Euroboor TUBE.100S+/T Magnetic Drilling Machine provides controlled drilling power, safety, and versatility for professionals working on pipe structures and curved metal surfaces.
