Euroboor SM Carbide Burr Applications
- Cutting out holes in metal components and fabricated parts
- Deburring sharp edges after machining or cutting operations
- Leveling weld seams and preparing welded joints for finishing
- Milling out small cavities or irregular shapes
- Surfacing rough metal areas and removing imperfections
- Smoothing welds for clean professional finishes
- Precision shaping of metal surfaces and contours
- General grinding and finishing in fabrication shops
The Euroboor SM Carbide Burr is widely used in metal fabrication, welding preparation, automotive repair, mold making, and industrial maintenance where precise metal removal and surface finishing are required.
Euroboor SM Carbide Burr Specifications
| Product Name | Euroboor SM Carbide Burr |
|---|---|
| Rotary Burr Model | M |

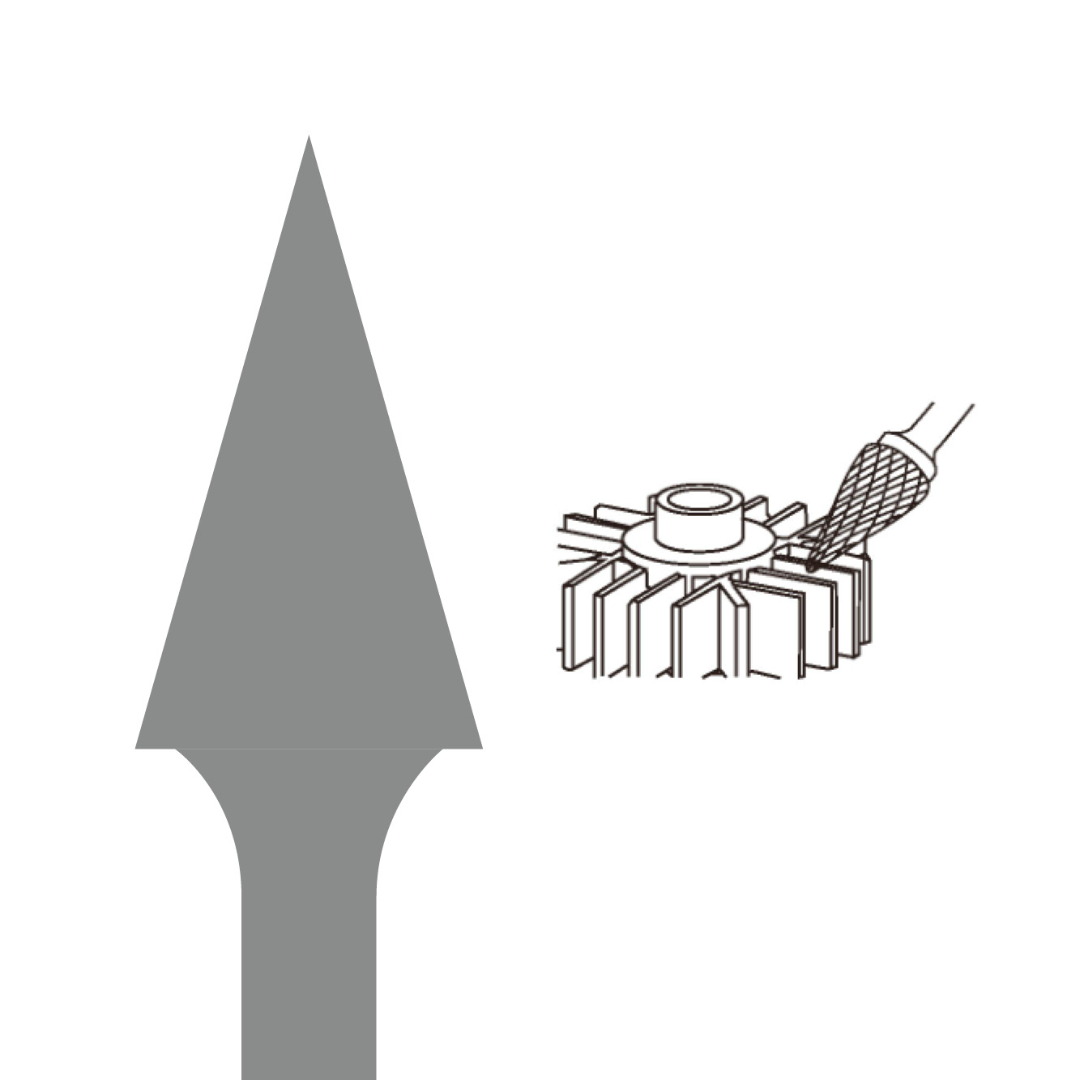

| Burr Shape | Cone |
| Connection Type | Straight Shank |
| Connection Model | Outside |
| Cut Type | Double Cut |
| System of Measurement | Inch (Imperial) |

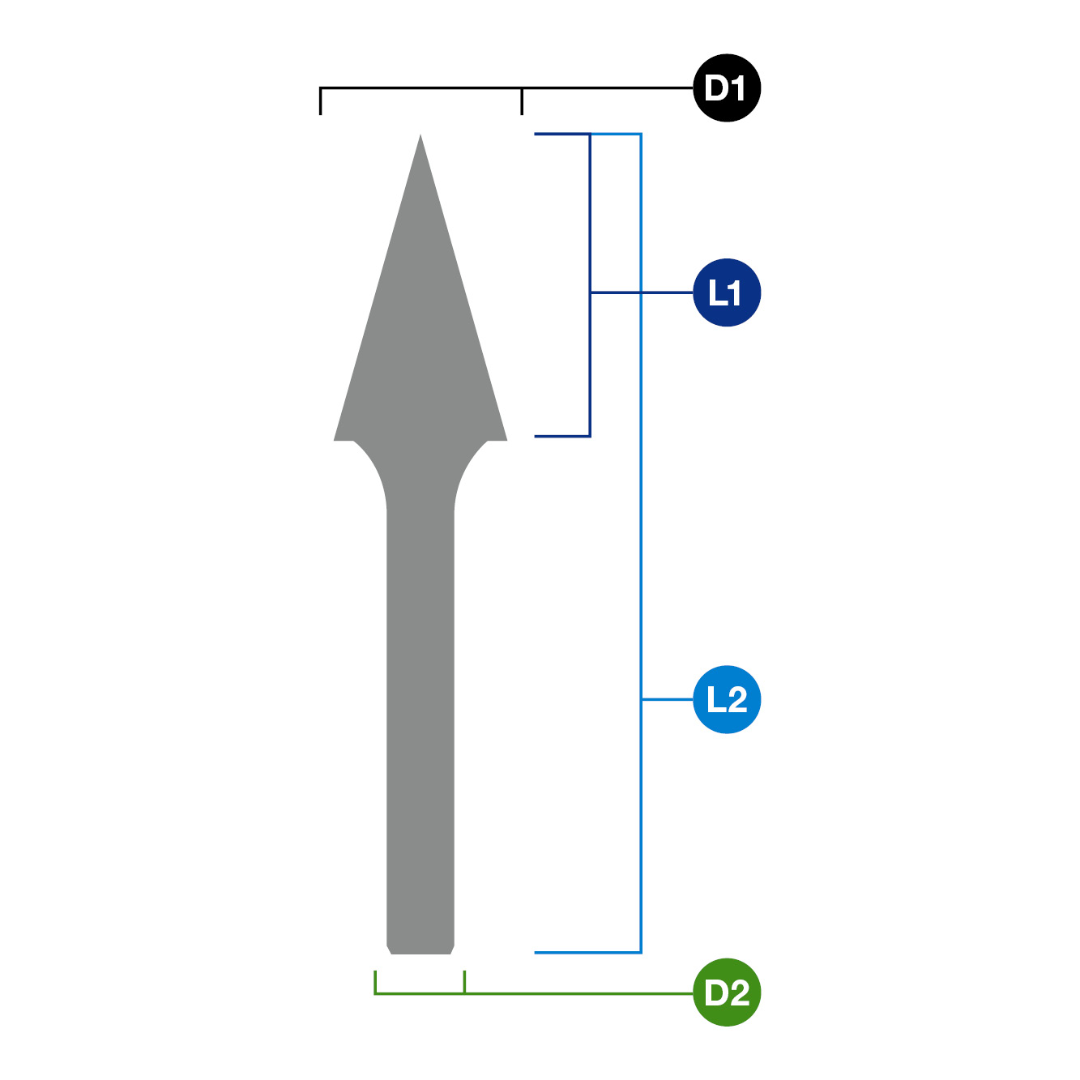

| Head Diameter Options | 1/4", 3/8", 1/2", 5/8" |
| Head Length Options | 5/8", 3/4", 7/8", 1" |
| Shaft Diameter | 1/4" |
| Shaft Length Options | 1-14/16", 1-49/64" |
| Overall Length Options | 2-1/2", 2-3/4", 2-8/9" |
| Primary Application | Grinding and precision metal finishing |
Euroboor SM Carbide Burr Performance & Construction
- Solid carbide construction provides exceptional hardness and heat resistance, ensuring long tool life even under heavy grinding conditions.
- Precision cone-shaped cutting head allows access to tight corners, angled surfaces, and intricate metalwork details.
- Double-cut flute geometry improves chip control and reduces vibration, resulting in smoother finishes and improved operator control.
- 1/4" straight shank ensures compatibility with most die grinders, rotary tools, and high-speed air grinders used in metal fabrication.
- Multiple head diameter and length options provide flexibility for different applications, allowing operators to choose the best size for their workpiece.
- High-speed cutting performance designed for efficient grinding, shaping, and surface finishing across a wide range of metals.
- Professional-grade machining quality ensures consistent cutting performance for demanding industrial environments.

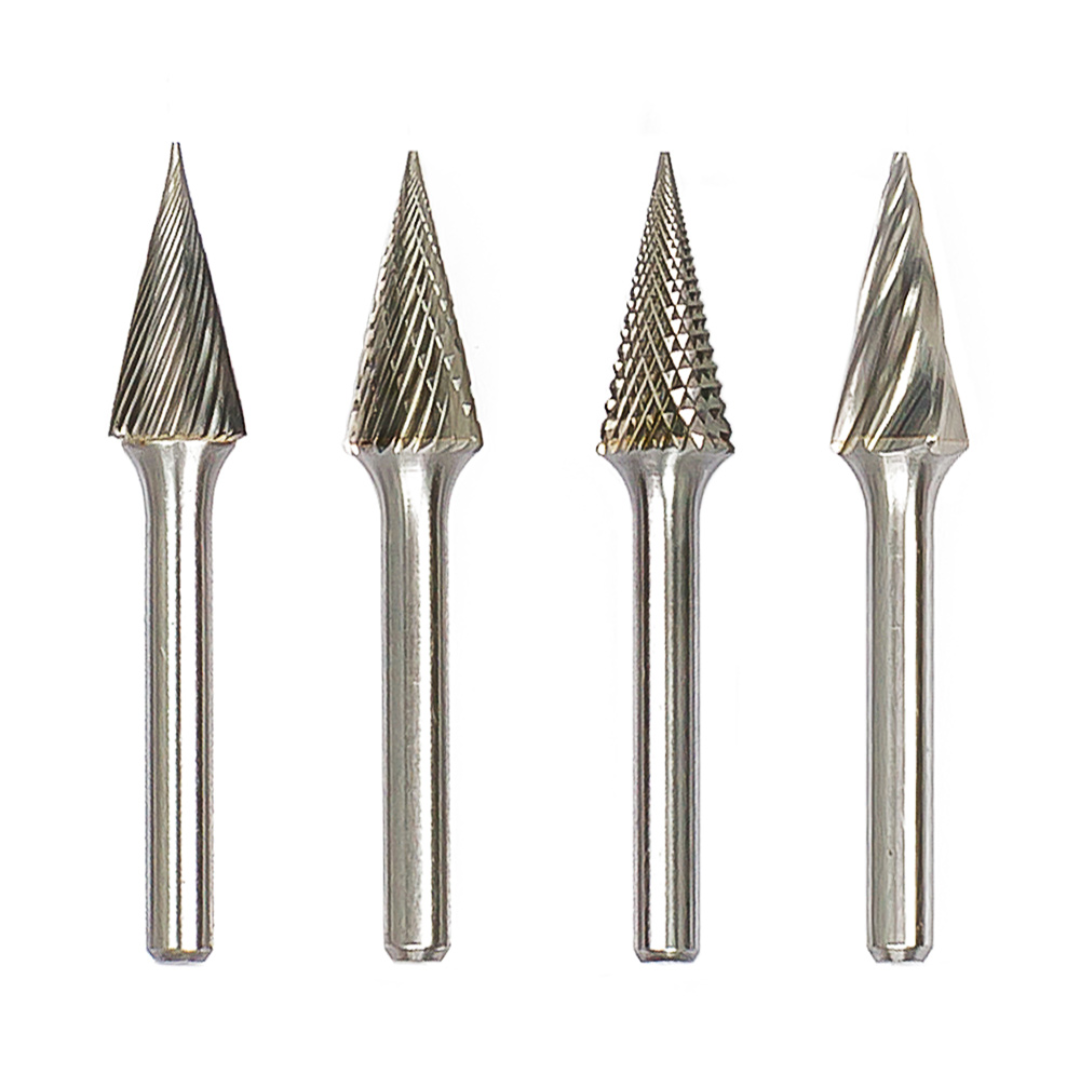

Euroboor SM Carbide Burr Cut Options & Material Compatibility
-
Single Cut Euroboor SM Carbide Burr
Ideal for cast iron, cast steel, unhardened steels, low alloy steels, stainless steel, brass, and bronze/copper. -
Double Cut Euroboor SM Carbide Burr
Provides smoother cutting and improved chip control when working with cast iron, cast steel, stainless steel, brass, bronze, and copper alloys. -
Diamond Cut Euroboor SM Carbide Burr
Designed for tougher materials including hardened steels, heat-treated steels, titanium alloys, and high alloy steels while still performing well on common metals. -
Alu Cut Euroboor SM Carbide Burr
Optimized for softer materials such as aluminum, plastics, and zinc alloys where efficient chip removal is required.
Selecting the proper cut style ensures the Euroboor SM Carbide Burr delivers the best cutting efficiency, surface finish quality, and tool lifespan for your specific material.
Why Choose the Euroboor SM Carbide Burr
- Professional-grade solid carbide rotary burr for industrial metalworking.
- Precision cone shape ideal for grinding, shaping, and weld finishing.
- Multiple cutting geometries available for different materials.
- High durability and long service life under demanding conditions.
- Compatible with standard die grinders and rotary tools.
- Designed for accurate metal removal and smooth finishing.
The Euroboor SM Carbide Burr is a versatile, high-performance rotary burr engineered for professionals who demand precision, durability, and reliable cutting performance in metal fabrication and finishing operations.
