Euroboor SH Carbide Burr Applications
- Cutting out holes in metal components and fabricated assemblies
- Deburring sharp edges after machining or cutting operations
- Leveling uneven surfaces during fabrication or repair
- Milling out cavities, grooves, and internal areas
- Surfacing and finishing metal components
- Smoothing and blending welded joints
- Shaping and contouring complex metal surfaces
The Euroboor SH Carbide Burr is widely used in fabrication shops, welding environments, machining operations, and industrial maintenance departments requiring reliable grinding and shaping tools.
Euroboor SH Carbide Burr Material Compatibility

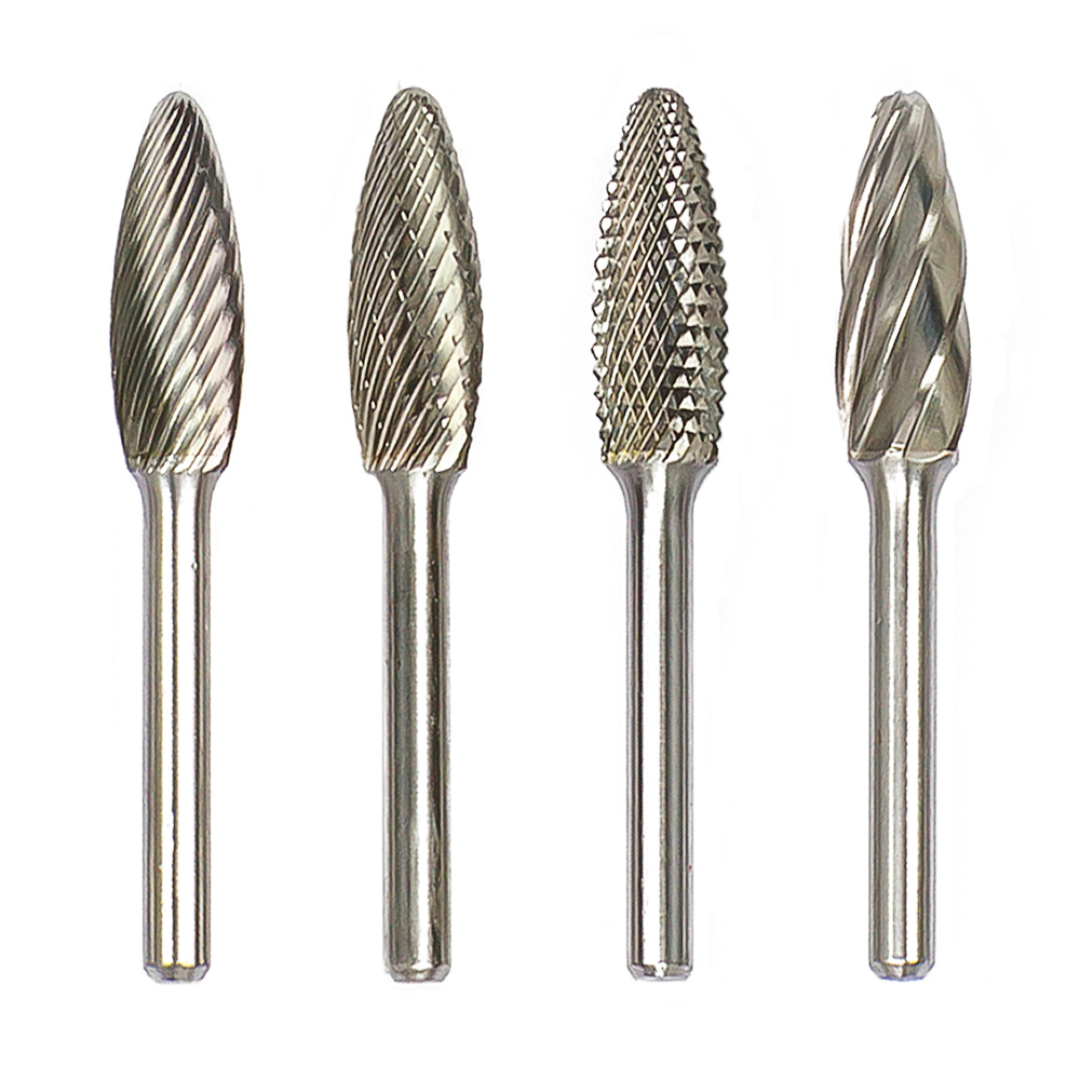

- Single Cut: Ideal for cast iron, cast steel, unhardened steels, low alloy steels, stainless steel, brass, and bronze/copper.
- Double Cut: Designed for smoother finishes and improved chip control when working with cast iron, cast steel, unhardened steels, low alloy steels, stainless steel, brass, and bronze/copper.
- Diamond Cut: Suitable for hardened steels, high alloy steels, heat-treated steels, stainless steel, titanium alloys, cast iron, and non-ferrous metals.
- Aluminum Cut: Ideal for softer materials such as aluminum, plastics, and zinc alloys where rapid chip removal is required.
Selecting the correct burr cut configuration ensures optimal cutting performance, longer tool life, and improved surface finishing depending on the material being processed.

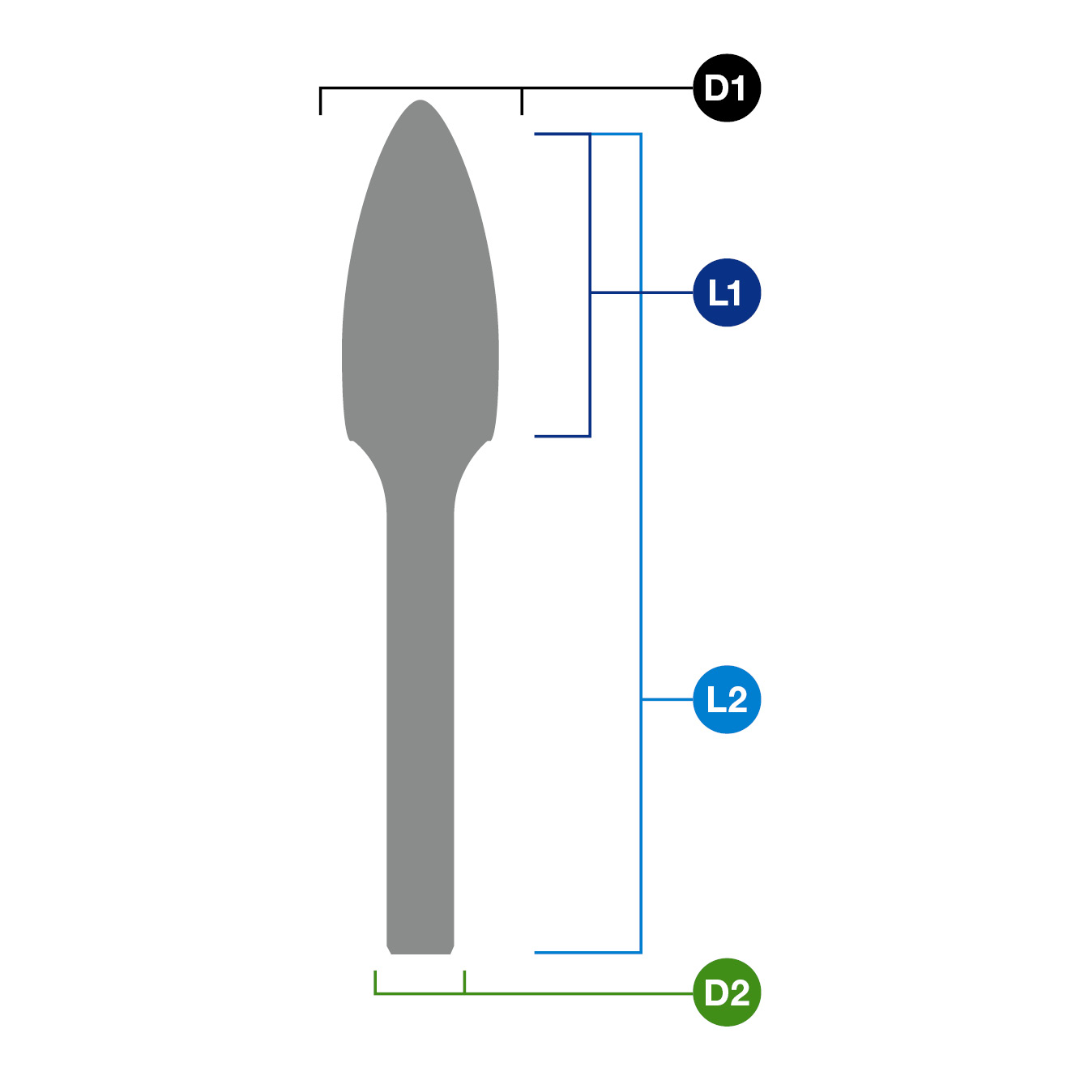

Euroboor SH Carbide Burr Specifications
| Product Type | Carbide Burr |
|---|---|
| Rotary Burr Model | Type H |
| Burr Shape | Flame |
| Connection Model | Outside |
| Connection Type | Straight Shank |
| Rotary Burr Teeth Type | Double Cut |
| Diameter Shaft | 1/4" |
| Shaft Length | 1-49/64" |
| Head Diameter Options | 3/8", 1/4", 5/16", 5/8", 1/2" |
| Head Length Options | 5/8", 3/4", 1", 1-1/4", 1-7/16" |
| Total Length Options | 2-3/4", 2-3/8", 2-1/2", 3-1/5", 3" |
| System of Measurement | Inch (Imperial) |
| Primary Application | Grinding |
Euroboor SH Carbide Burr Performance & Construction
- High-quality carbide construction ensures exceptional durability and wear resistance in heavy-duty grinding applications.

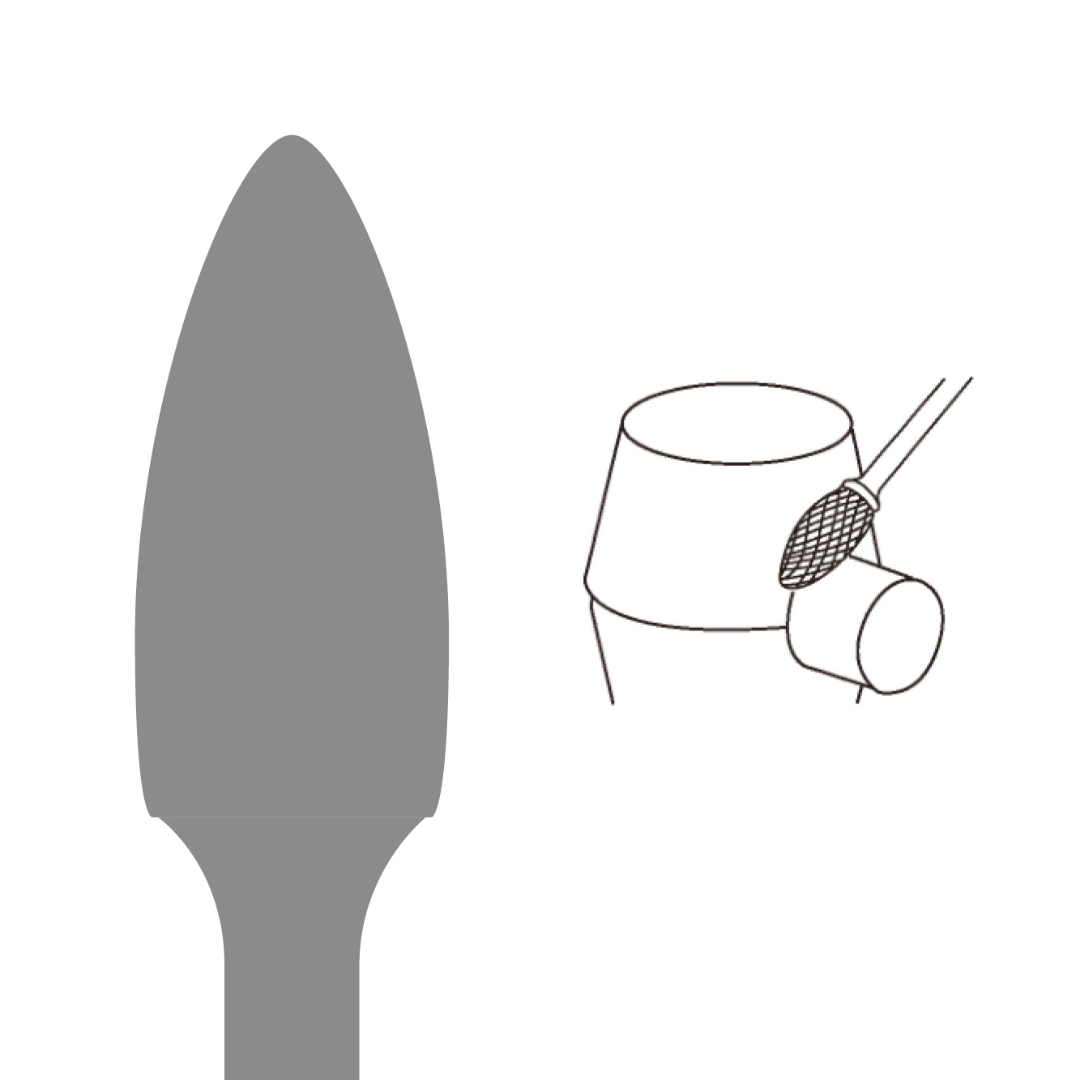

- Flame-shaped burr geometry allows precise shaping and finishing of curved surfaces and tight contours.
- Double cut flute pattern improves chip evacuation while producing smoother finishes during grinding operations.
- Standard 1/4" straight shank ensures compatibility with most die grinders, pneumatic grinders, and high-speed rotary tools.
- Precision-ground cutting flutes deliver consistent performance during deburring, shaping, and material removal tasks.
- Multiple head size options allow users to select the optimal burr for specific grinding depths and finishing requirements.
- Industrial-grade design suitable for fabrication shops, welding operations, machining facilities, and maintenance environments.
Why Choose the Euroboor SH Carbide Burr
- Flame-shaped burr design ideal for contour shaping and detailed grinding.
- Durable carbide construction designed for professional metalworking applications.
- Multiple cut styles available for different materials and finishing requirements.
- Compatible with standard die grinders using a 1/4" straight shank.
- Excellent for deburring, weld blending, contour shaping, and precision grinding.
The Euroboor SH Carbide Burr provides reliable cutting performance, excellent durability, and precise shaping capability for demanding grinding and finishing operations.
