Euroboor SG Carbide Burr Applications
- Cutting out holes in metal components and fabricated assemblies
- Deburring sharp edges after machining or cutting operations
- Leveling uneven surfaces during fabrication or repair
- Milling out cavities, grooves, and internal openings
- Surfacing and finishing metal parts
- Smoothing and blending welded joints
- Shaping and contouring complex metal surfaces
The Euroboor SG Carbide Burr is widely used in fabrication shops, machining facilities, welding environments, and industrial maintenance applications where precision grinding and shaping are required.
Euroboor SG Carbide Burr Material Compatibility
- Single Cut: Ideal for cast iron, cast steel, unhardened steels, low alloy steels, stainless steel, brass, and bronze/copper.
- Double Cut: Provides improved chip control and smoother finishes when working with cast iron, cast steel, unhardened steels, low alloy steels, stainless steel, brass, and bronze/copper.
- Diamond Cut: Suitable for hardened steels, high alloy steels, heat-treated steels, stainless steel, titanium alloys, cast iron, and non-ferrous metals.
- Aluminum Cut: Designed for softer materials including aluminum, plastics, and zinc alloys where rapid chip removal is required.
Selecting the appropriate burr cut type helps optimize tool life, improve cutting efficiency, and produce smoother surface finishes depending on the material being processed.

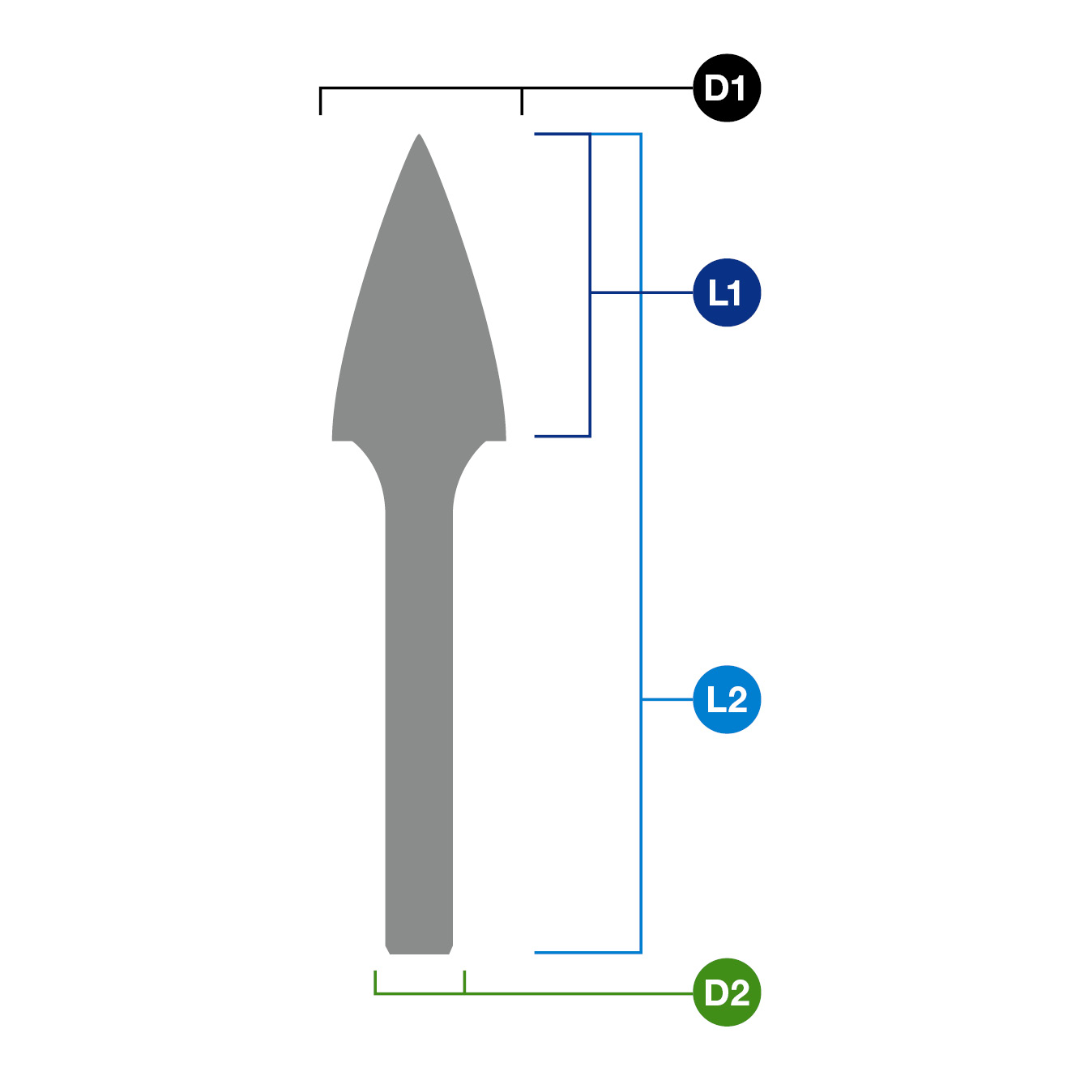

Euroboor SG Carbide Burr Specifications
| Product Type | Carbide Burr |
|---|---|
| Rotary Burr Model | Type G |
| Burr Shape | Arc Pointed Tree |
| Connection Model | Outside |
| Connection Type | Straight Shank |
| Rotary Burr Teeth Type | Double Cut |
| Diameter Shaft | 1/4" |
| Shaft Length | 1-49/64" |
| Head Diameter Options | 3/8", 1/4", 5/16", 5/8", 1/2" |
| Head Length Options | 5/8", 3/4", 1" |
| Total Length Options | 2-3/4", 2-3/8", 2-1/2" |
| System of Measurement | Inch (Imperial) |
| Primary Application | Grinding |
Euroboor SG Carbide Burr Performance & Construction
- High-quality carbide construction ensures exceptional durability and long service life in heavy-duty grinding applications.

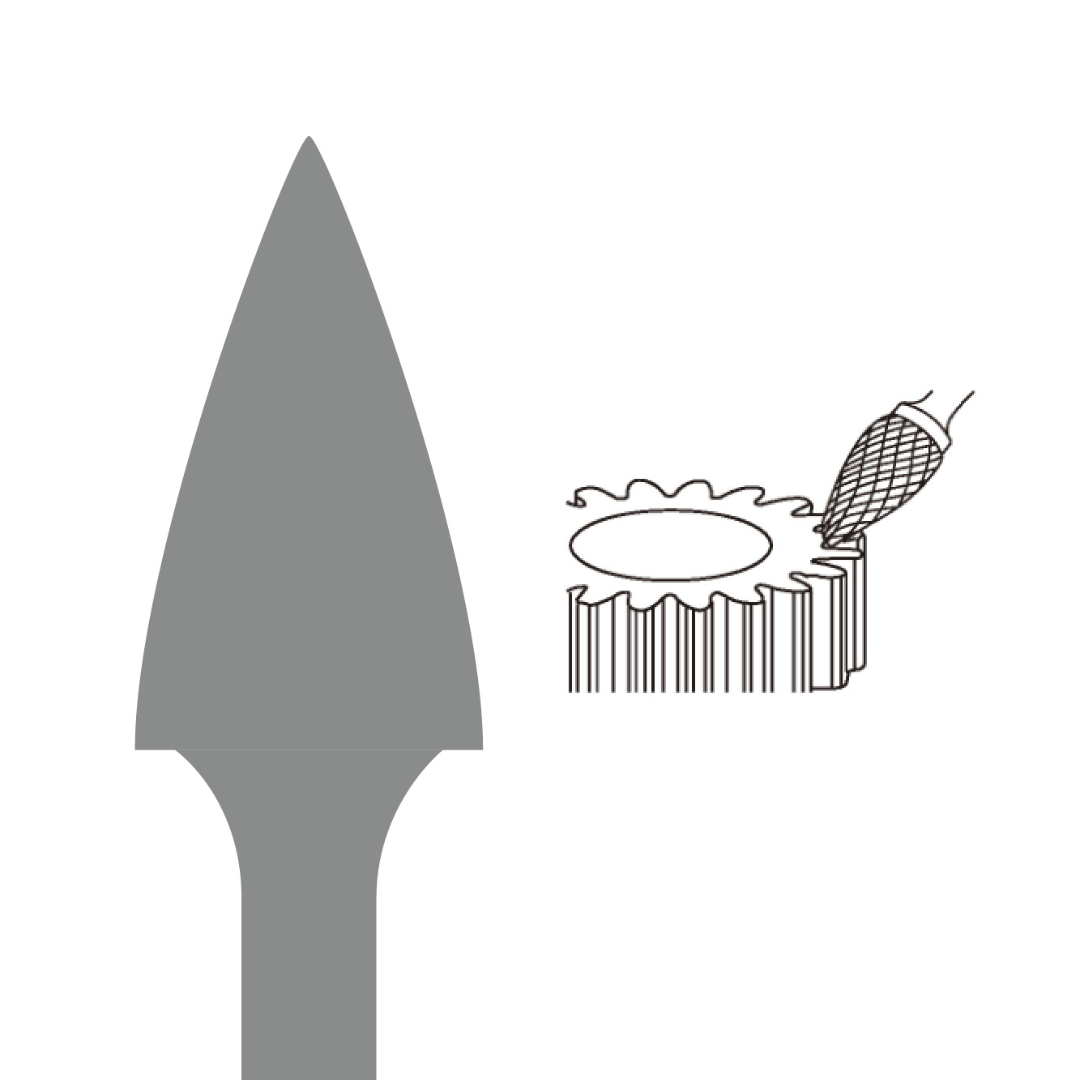

- Arc pointed tree geometry allows precise shaping and easy access to tight corners, grooves, and detailed contours.
- Double cut flute pattern improves chip evacuation while producing smoother finishes during grinding operations.
- Standard 1/4" straight shank ensures compatibility with most die grinders, pneumatic grinders, and rotary tools.
- Precision-ground cutting edges deliver consistent performance during deburring, shaping, and material removal tasks.
- Multiple head size options allow users to select the optimal burr for different grinding depths and applications.
- Industrial-grade design suitable for fabrication shops, welding environments, machining centers, and maintenance departments.
Why Choose the Euroboor SG Carbide Burr
- Arc pointed tree burr design ideal for detailed shaping and contour grinding.
- Durable carbide construction designed for professional metalworking applications.

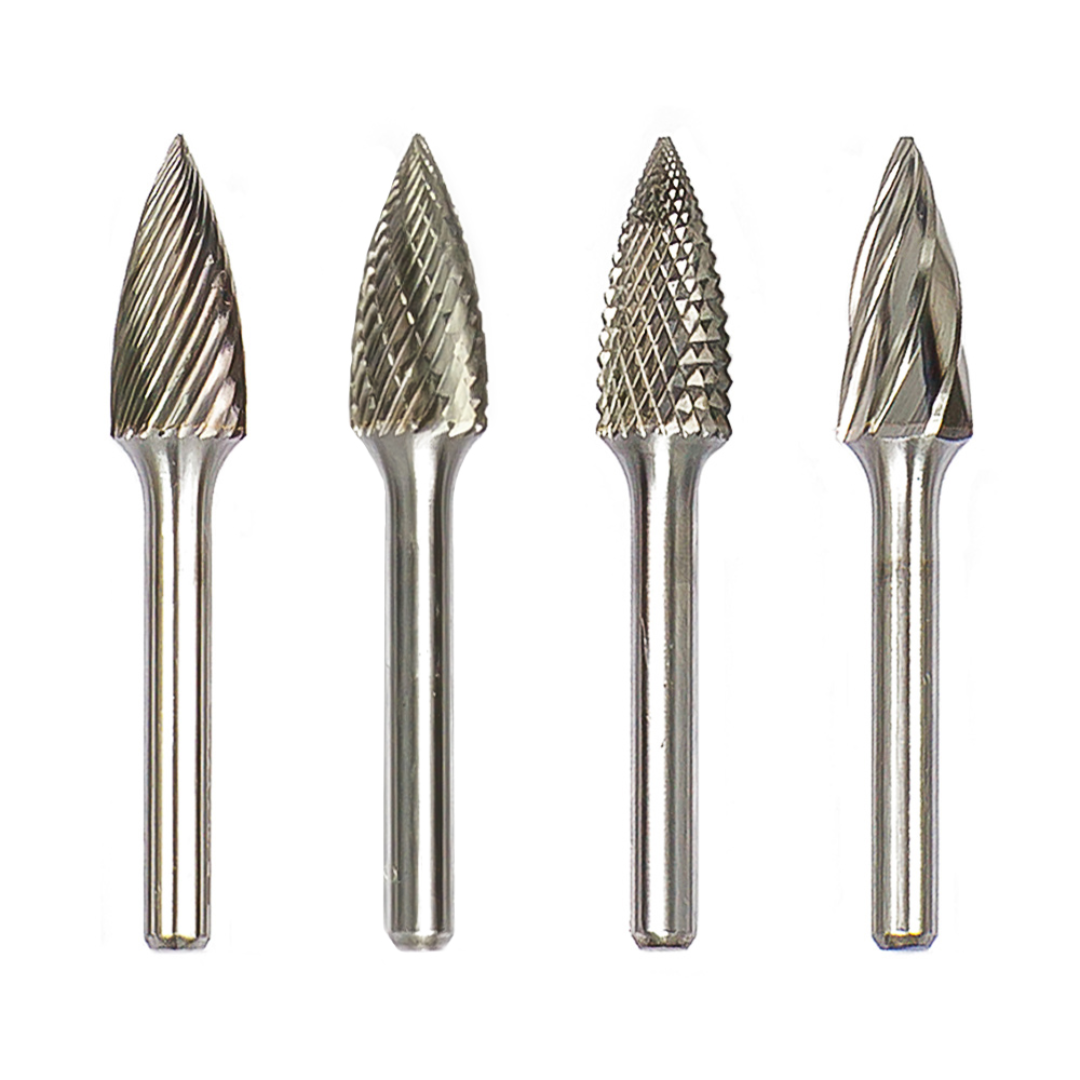

- Multiple cut styles available for different materials and finishing requirements.
- Compatible with standard die grinders using a 1/4" straight shank.
- Excellent for deburring, weld blending, contour shaping, and precision grinding.
The Euroboor SG Carbide Burr provides reliable cutting performance, excellent durability, and precise shaping capability for demanding grinding and finishing applications.
