Euroboor SF Carbide Burr Applications
- Cutting out holes in metal components and fabricated assemblies
- Deburring sharp edges after machining or cutting processes
- Leveling uneven surfaces during fabrication and repair
- Milling out internal cavities and slots
- Surfacing and finishing metal parts
- Smoothing and blending welded joints
- Shaping and contouring complex metal surfaces
The Euroboor SF Carbide Burr is widely used in fabrication shops, machining facilities, welding operations, and industrial maintenance environments where precision grinding and shaping are required.
Euroboor SF Carbide Burr Material Compatibility
- Single Cut: Ideal for cast iron, cast steel, unhardened steels, low alloy steels, stainless steel, brass, and bronze/copper.
- Double Cut: Provides improved chip control and smoother finishes when working with cast iron, cast steel, unhardened steels, low alloy steels, stainless steel, brass, and bronze/copper.
- Diamond Cut: Suitable for hardened steels, high alloy steels, heat-treated steels, stainless steel, titanium alloys, cast iron, and non-ferrous metals.
- Aluminum Cut: Designed for softer materials including aluminum, plastics, and zinc alloys where rapid chip removal is required.
Choosing the correct burr cut type ensures optimal performance, improved surface finish quality, and extended tool life depending on the material being processed.

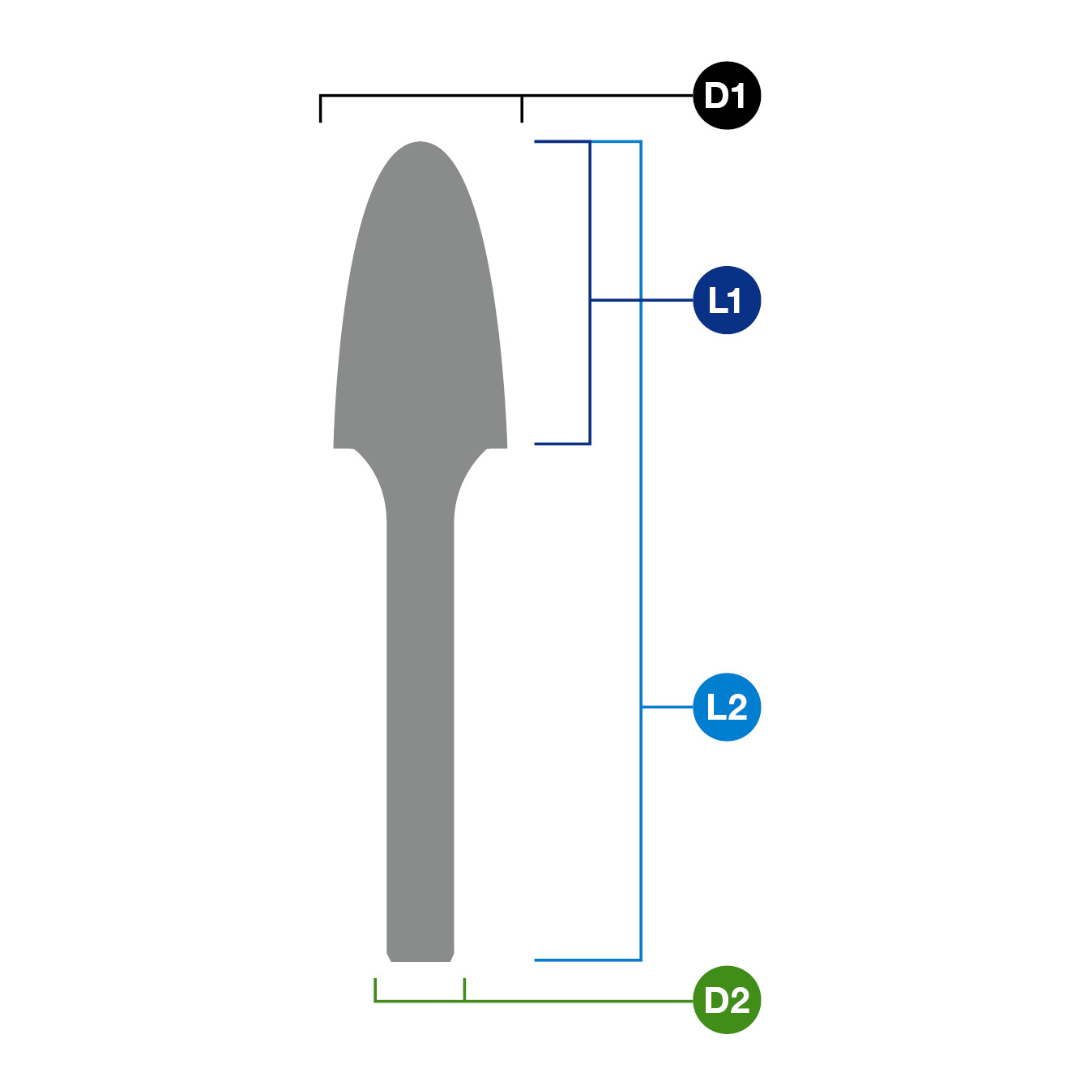

Euroboor SF Carbide Burr Specifications
| Product Type | Carbide Burr |
|---|---|
| Rotary Burr Model | Type F |
| Burr Shape | Ball Nosed Tree |
| Connection Model | Outside |
| Connection Type | Straight Shank |
| Rotary Burr Teeth Type | Double Cut |
| Diameter Shaft | 1/4" |
| Shaft Length | 1-49/64" |
| Head Length Options | 5/8", 3/4", 1" |
| Total Length Options | 2-3/4", 2-3/8", 2-1/2" |
| Head Diameter | See technical size table |
| System of Measurement | Inch (Imperial) |
| Primary Application | Grinding |
Euroboor SF Carbide Burr Performance & Construction
- Solid carbide construction provides excellent durability and resistance to wear in demanding grinding applications.

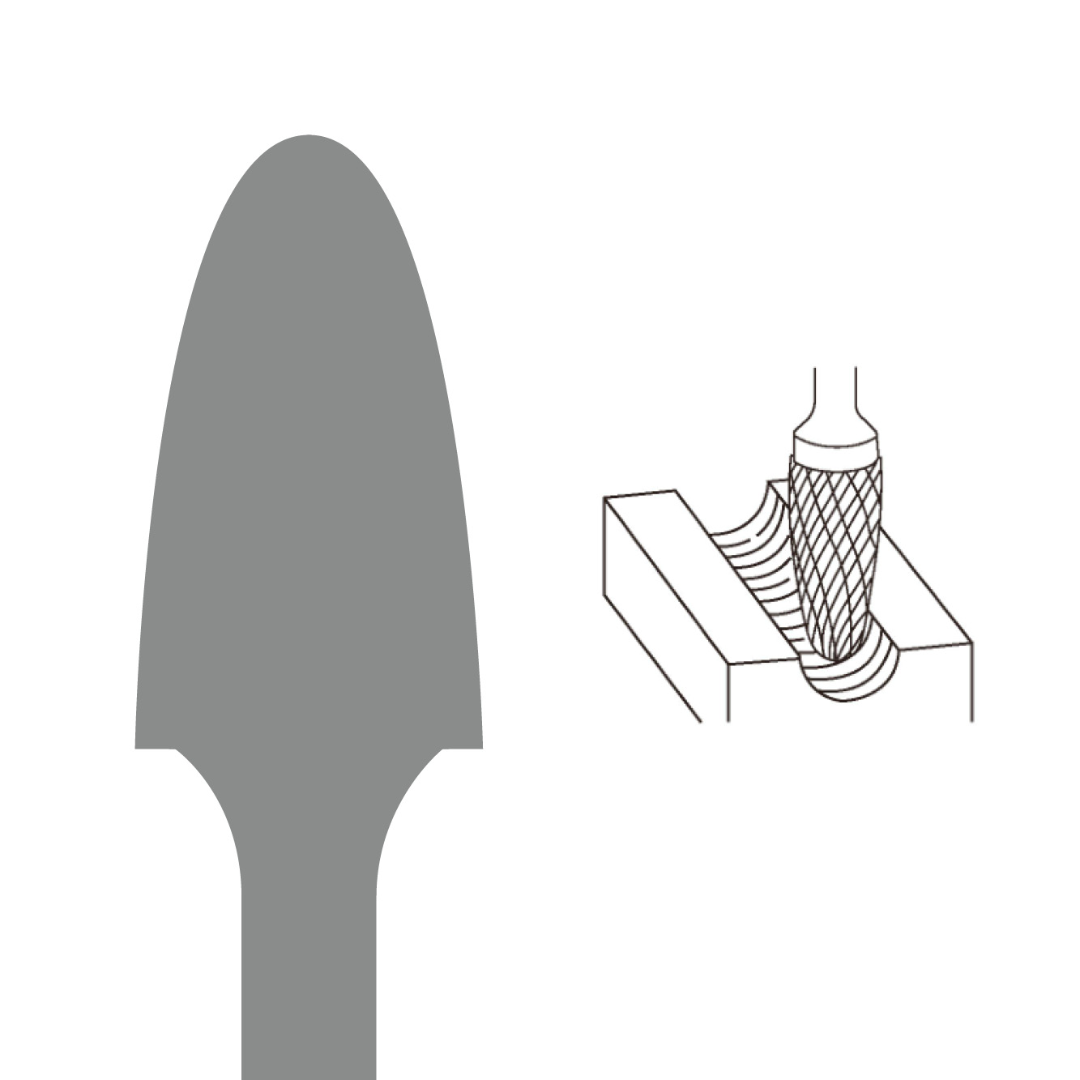

- Ball-nosed tree geometry allows precise shaping, contouring, and finishing of curved and irregular metal surfaces.
- Double cut flute pattern improves chip evacuation and produces smoother finishes during grinding operations.
- Standard 1/4" straight shank ensures compatibility with most die grinders, pneumatic grinders, and rotary tools.
- Precision-ground cutting edges deliver consistent performance during deburring, shaping, and surface finishing tasks.
- Multiple size options allow users to select the optimal burr for specific grinding depths and finishing requirements.
- Industrial-grade design suitable for fabrication shops, welding operations, machining centers, and maintenance environments.
Why Choose the Euroboor SF Carbide Burr
- Ball-nosed tree burr ideal for shaping curved and complex surfaces.
- Durable carbide construction designed for professional metalworking applications.

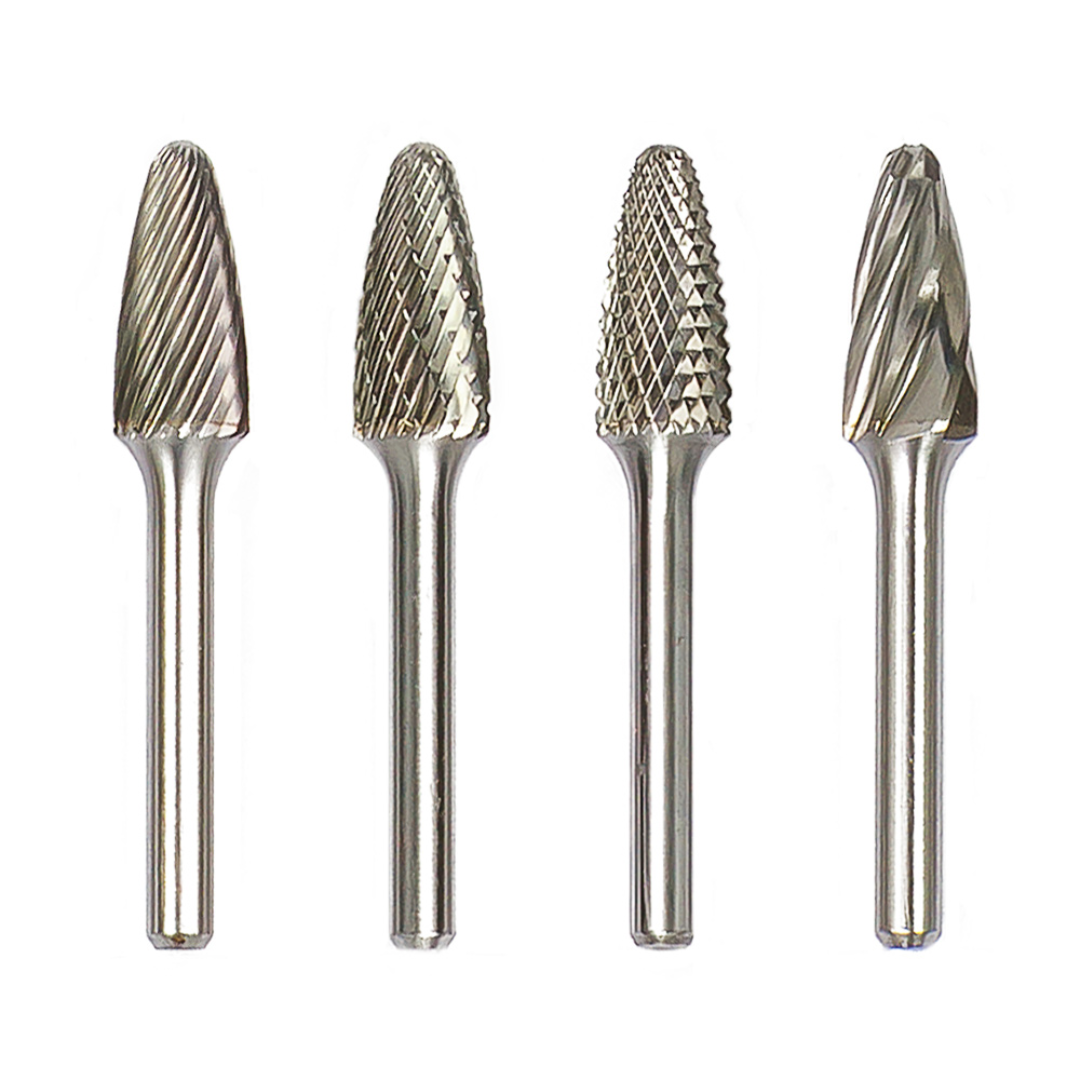

- Multiple cut styles available for different materials and finishes.
- Compatible with standard die grinders using a 1/4" straight shank.
- Excellent for deburring, weld blending, contour shaping, and precision grinding.
The Euroboor SF Carbide Burr delivers precise cutting control, long tool life, and reliable grinding performance for demanding metal fabrication and machining applications.
