Euroboor SD Carbide Burr Applications
- Cutting out holes in metal components and fabricated assemblies
- Deburring sharp edges after machining or cutting processes
- Leveling surfaces and correcting uneven material areas
- Milling out cavities and internal contours
- Surfacing and refining metal parts
- Smoothing and blending welded joints
- Shaping complex curved metal surfaces
The Euroboor SD Carbide Burr is widely used in fabrication shops, machining environments, welding operations, and industrial maintenance applications requiring precise grinding and shaping.

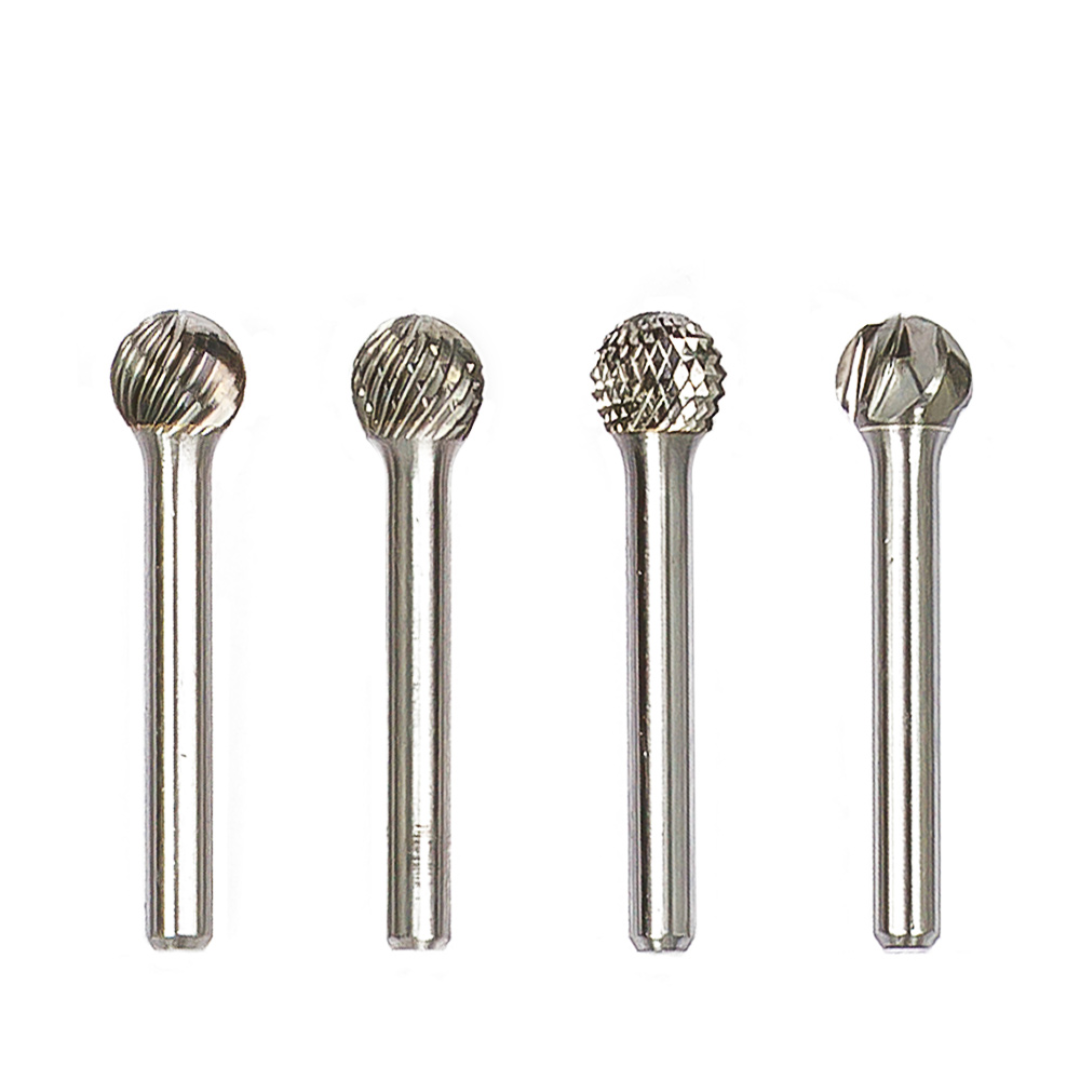

Euroboor SD Carbide Burr Material Compatibility
- Single Cut: Ideal for cast iron, cast steel, unhardened steels, low alloy steels, stainless steel, brass, and bronze/copper.
- Double Cut: Provides smoother finishes and improved chip control when working with cast iron, cast steel, unhardened steels, low alloy steels, stainless steel, brass, and bronze/copper.
- Diamond Cut: Suitable for hardened steels, high alloy steels, heat-treated steels, stainless steel, titanium alloys, cast iron, and non-ferrous metals.
- Aluminum Cut: Designed for softer materials including aluminum, plastics, and zinc alloys where rapid chip removal is required.
Selecting the correct burr cut configuration ensures optimal cutting efficiency, improved surface finish, and extended tool life depending on the material being processed.
Euroboor SD Carbide Burr Specifications
| Product Type | Carbide Burr |
|---|---|
| Rotary Burr Model | Type D |
| Burr Shape | Ball |
| Connection Model | Outside |
| Connection Type | Straight Shank |
| Rotary Burr Teeth Type | Double Cut |
| Diameter Shaft | 1/4" |
| Shaft Length | 1-49/64" |

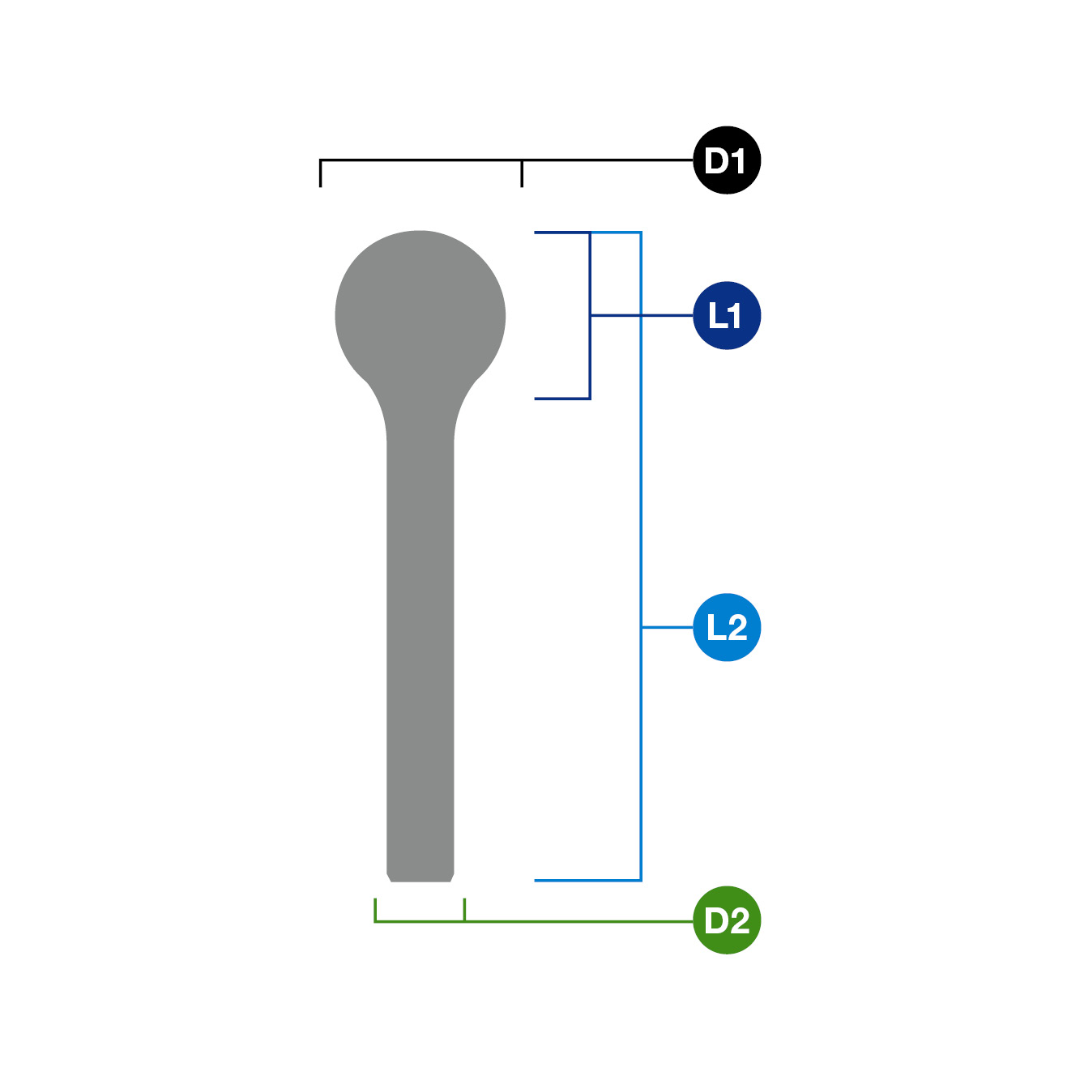

| Head Diameter | See technical size table |
| Head Length | See technical size table |
| Total Length | See technical size table |
| System of Measurement | Inch (Imperial) |
| Primary Application | Grinding |
Euroboor SD Carbide Burr Performance & Construction
- High-grade carbide construction ensures exceptional durability and resistance to wear in heavy-duty grinding applications.

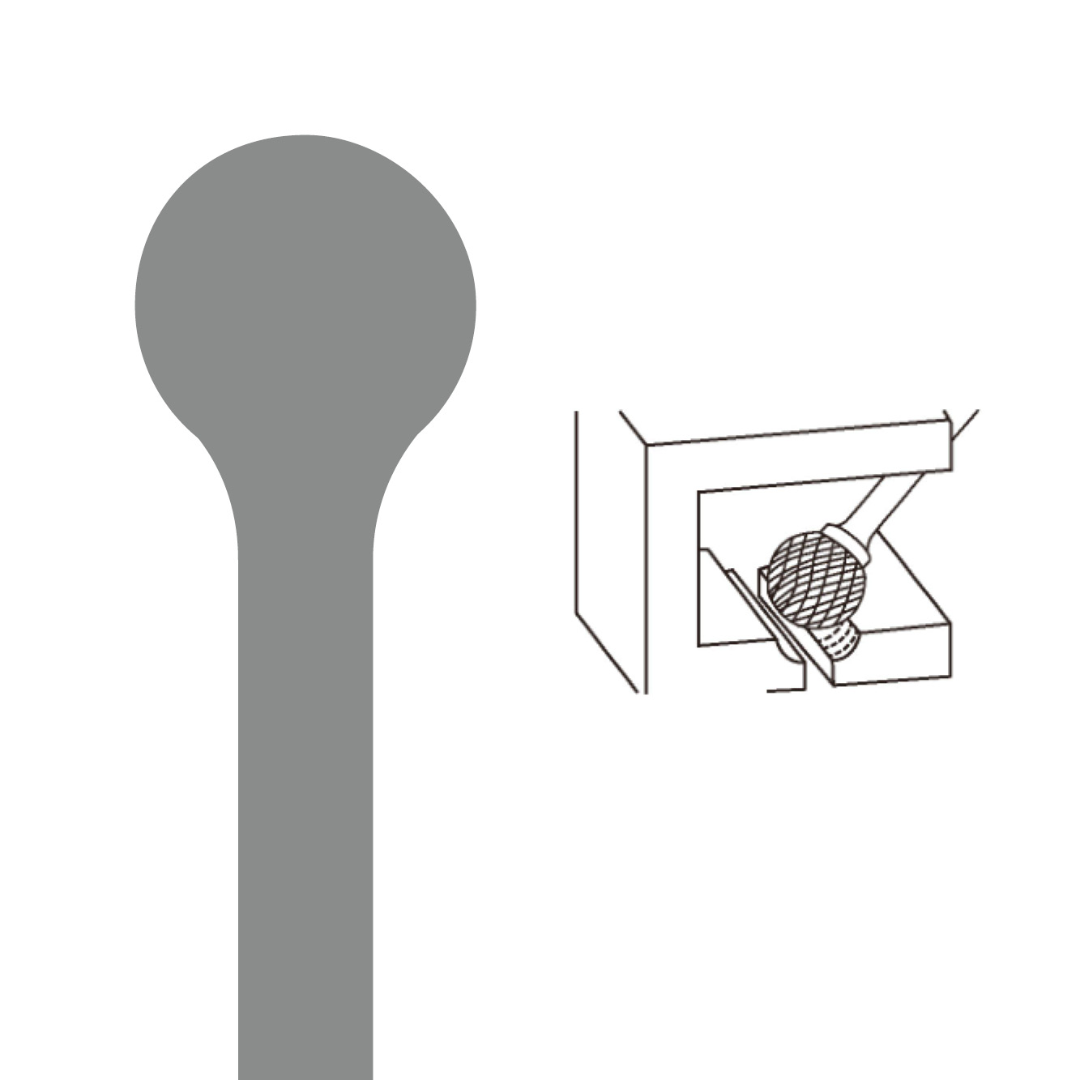

- Spherical burr geometry provides excellent control when shaping curved surfaces and internal contours.
- Double cut tooth design allows efficient chip removal and produces smoother finishes during grinding operations.
- Standard 1/4" straight shank fits most die grinders, pneumatic grinders, and high-speed rotary tools.
- Precision-ground cutting edges deliver consistent performance for deburring, shaping, and surface finishing.
- Industrial-grade design supports demanding fabrication, machining, and maintenance environments.
Why Choose the Euroboor SD Carbide Burr
- Ball-shaped burr ideal for contouring and curved surface grinding.
- Durable carbide construction designed for professional metalworking.
- Multiple cut styles available for different materials and finishes.
- Compatible with standard die grinders using a 1/4" straight shank.
- Excellent for deburring, shaping, weld blending, and precision grinding.
The Euroboor SD Carbide Burr delivers precise control, long tool life, and reliable performance for professional grinding and shaping applications in metal fabrication and machining environments.
