Euroboor SC Carbide Burr Applications
- Cutting out holes and enlarging openings in metal components
- Deburring machined edges and removing sharp material
- Leveling uneven surfaces in fabrication and repair work
- Milling out cavities, grooves, and internal contours
- Surfacing and finishing metal parts
- Smoothing and blending welded joints
- Shaping and contouring curved metal surfaces
The Euroboor SC Carbide Burr is ideal for detailed shaping work and grinding applications where a rounded burr profile allows better access to curved surfaces and internal radiuses.

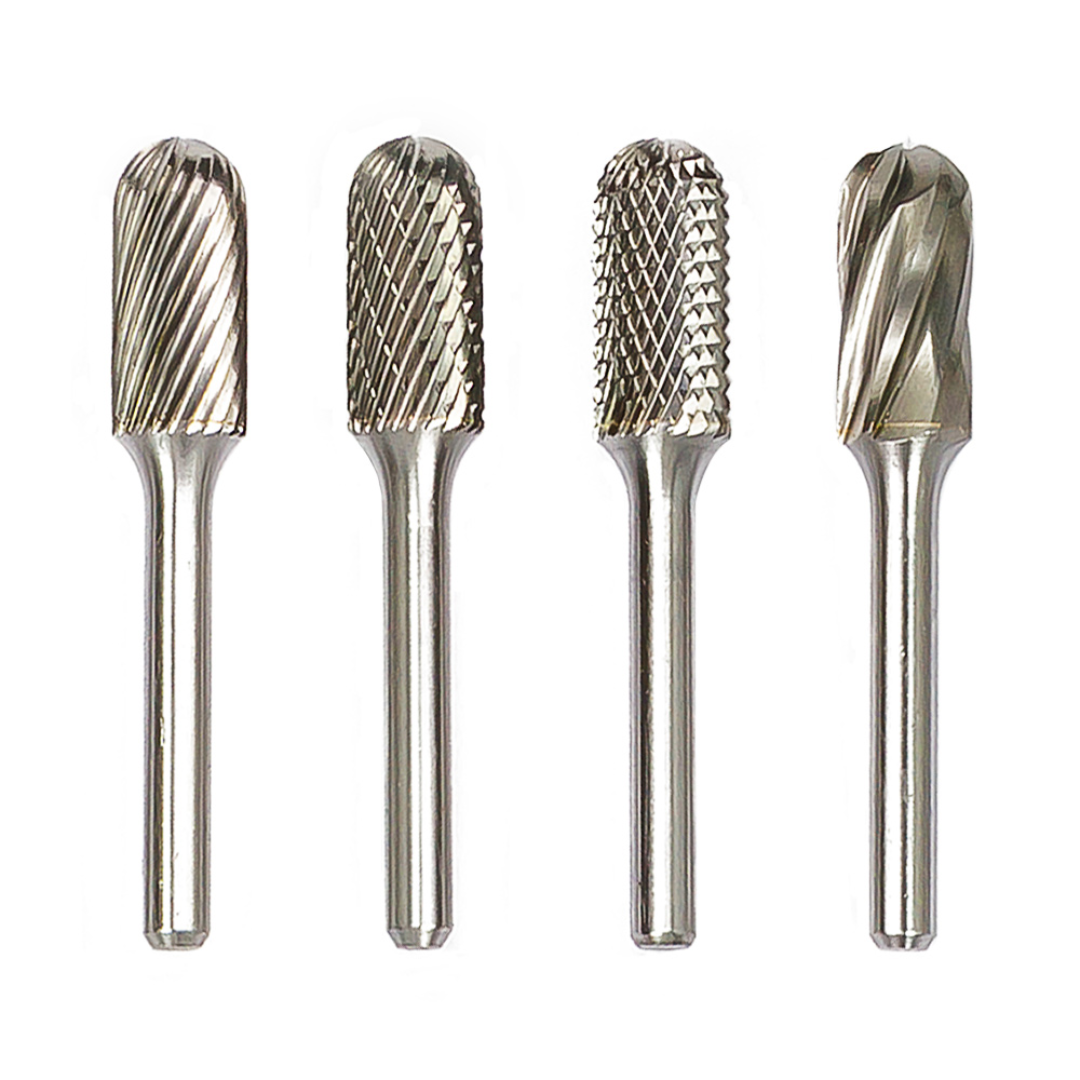

Euroboor SC Carbide Burr Material Compatibility
- Single Cut: Ideal for cast iron, cast steel, unhardened steels, low alloy steels, stainless steel, brass, and bronze/copper.
- Double Cut: Provides improved chip control and smoother finishes for cast iron, cast steel, unhardened steels, low alloy steels, stainless steel, brass, and bronze/copper.
- Diamond Cut: Suitable for hardened steels, high alloy steels, heat-treated steels, stainless steel, titanium alloys, cast iron, and non-ferrous metals.
- Aluminum Cut: Designed for softer materials including aluminum, plastics, and zinc alloys where rapid chip evacuation is required.
Selecting the correct burr cut type helps optimize cutting efficiency, surface finish quality, and tool life depending on the material being processed.

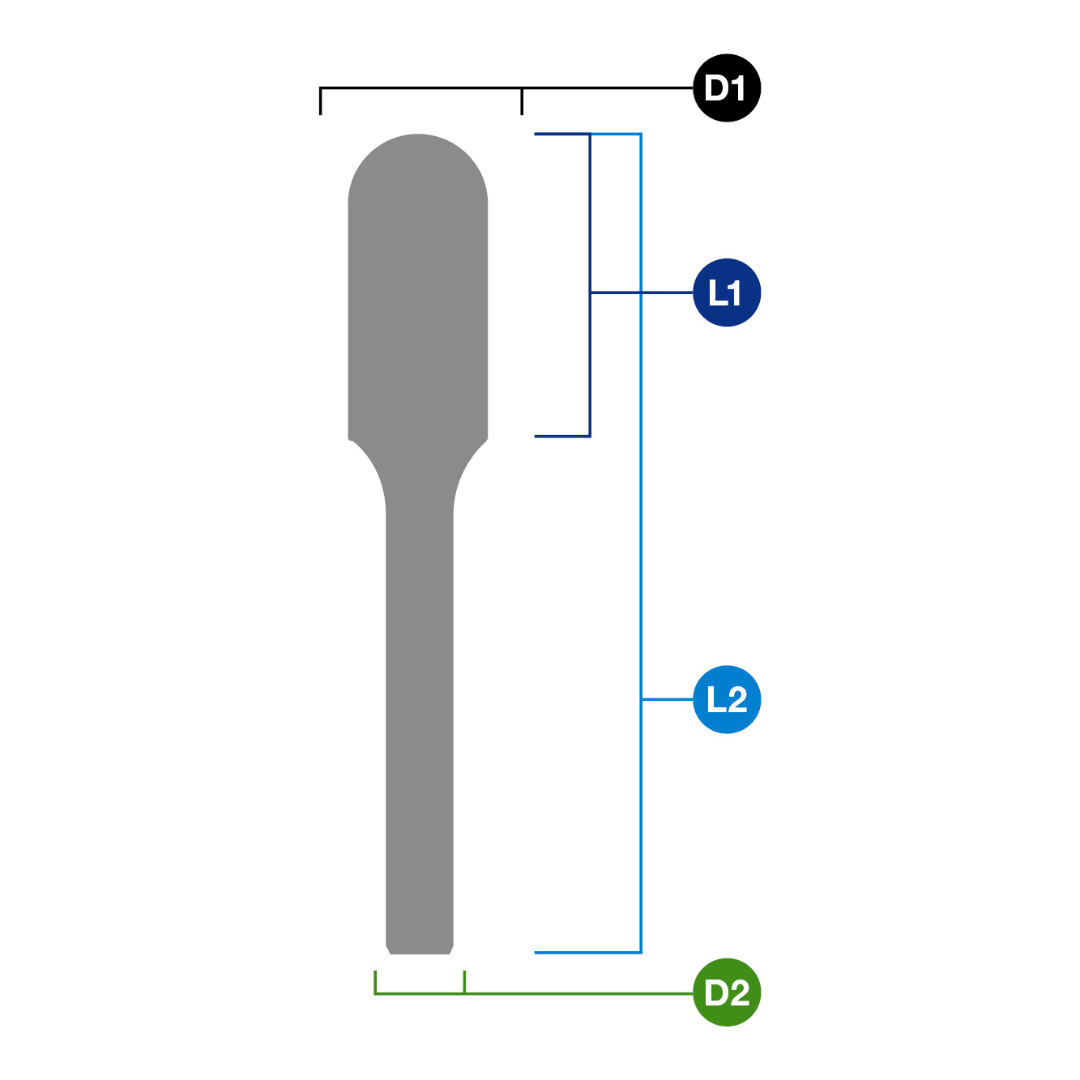

Euroboor SC Carbide Burr Specifications
| Product Type | Carbide Burr |
|---|---|
| Rotary Burr Model | Type C – Ball Nosed Cylinder |
| Connection Model | Outside |
| Connection Type | Straight Shank |
| Burr Shape | Ball Nosed Cylinder |
| Rotary Burr Teeth Type | Double Cut |
| Diameter Shaft | 1/4" |
| Shaft Length | 1-49/64" |
| Head Length Options | 5/8", 3/4", 1" |
| Total Length Options | 2-3/4", 2-3/8", 2-1/2" |
| Head Diameter | See technical size table |
| System of Measurement | Inch (Imperial) |
| Primary Application | Grinding |
Euroboor SC Carbide Burr Performance & Construction
- Solid carbide construction ensures long-lasting durability and excellent resistance to wear when grinding metals and alloys.

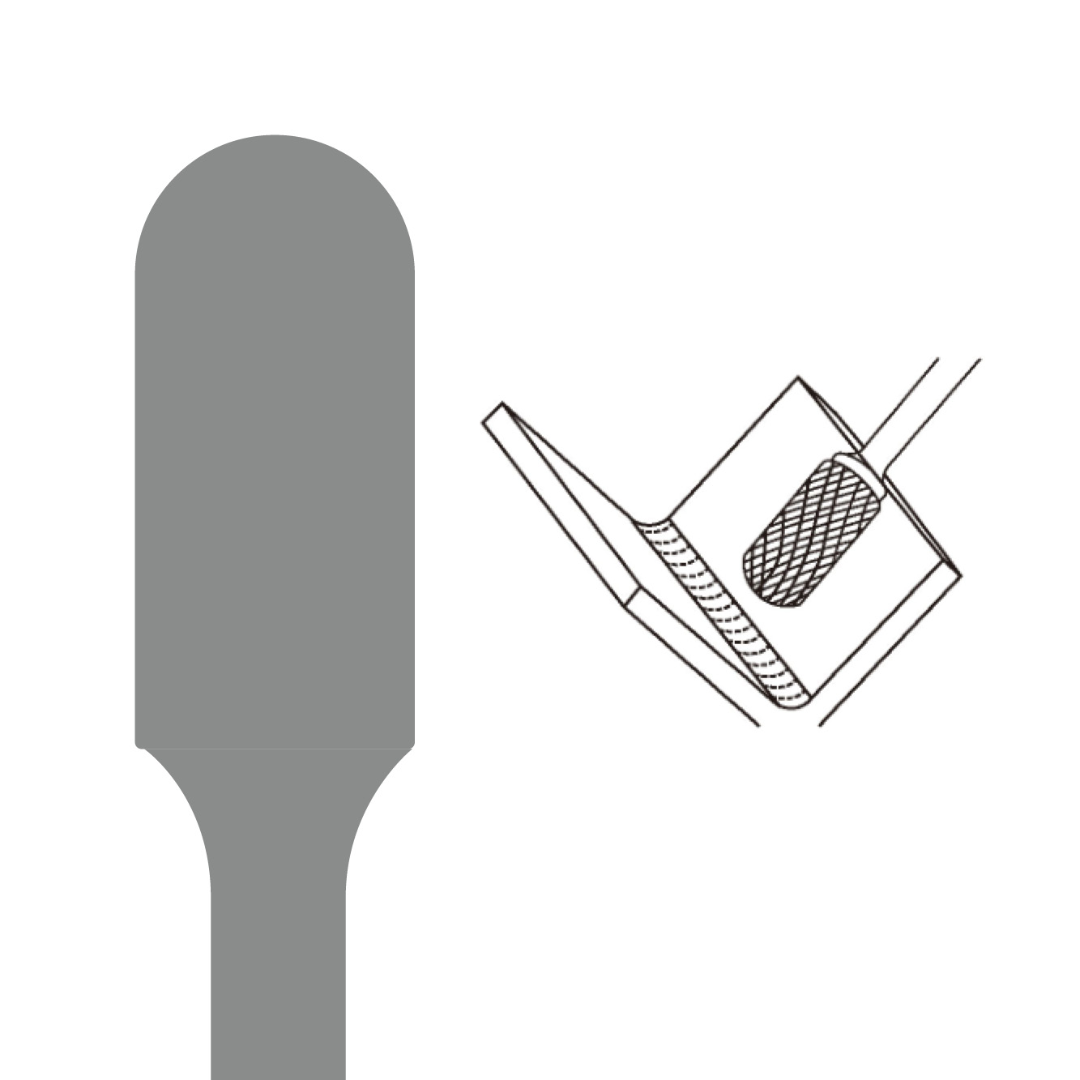

- Ball nose cylindrical geometry allows precise contouring, shaping, and finishing of curved surfaces and internal radiuses.
- Double cut tooth design provides efficient chip removal and improved surface finish during grinding operations.
- Standard 1/4" straight shank fits most die grinders, rotary tools, and pneumatic grinding equipment.
- Precision ground cutting flutes ensure consistent performance during shaping, deburring, and material removal tasks.
- Multiple head and length options allow the tool to be matched to different grinding depths and finishing requirements.
- Industrial-grade reliability makes the burr suitable for fabrication shops, welding operations, and professional machining environments.
Why Choose the Euroboor SC Carbide Burr
- Ball nose cylindrical design ideal for contouring and curved surface shaping.
- Durable carbide construction designed for heavy-duty metalworking.
- Multiple cutting styles available for different materials and finishes.
- Compatible with standard die grinders using a 1/4" straight shank.
- Excellent for deburring, shaping, weld blending, and precision grinding.
The Euroboor SC Carbide Burr delivers precise control, excellent cutting performance, and professional durability for demanding grinding and shaping applications.
