Euroboor SB Carbide Burr Applications
- Cutting out holes in metal components and fabricated assemblies
- Deburring sharp edges after machining or cutting operations
- Leveling surfaces and correcting uneven metal areas
- Milling out slots, pockets, and internal openings
- Surfacing and finishing metal parts during fabrication
- Smoothing and blending welded joints
- Shaping metal components in production and repair environments
The Euroboor SB Carbide Burr is widely used in metal fabrication shops, welding environments, industrial maintenance departments, and machining operations requiring precision grinding and shaping.

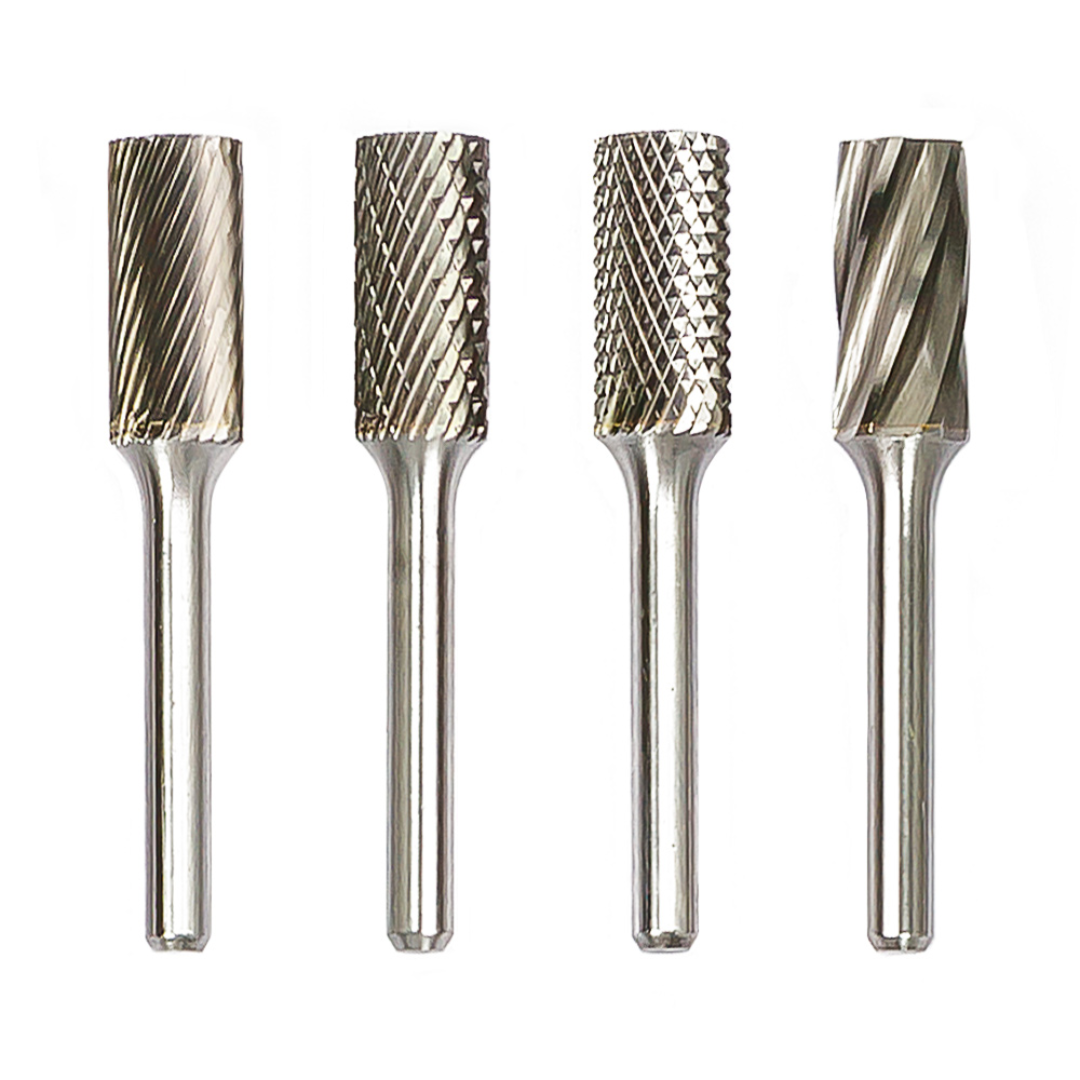

Euroboor SB Carbide Burr Material Compatibility
- Single Cut: Ideal for cast iron, cast steel, unhardened steels, low alloy steels, stainless steel, brass, and bronze/copper.
- Double Cut: Provides smoother finishes and improved chip control when working with cast iron, cast steel, unhardened steels, low alloy steels, stainless steel, brass, and bronze/copper.
- Diamond Cut: Suitable for hardened steels, high alloy steels, heat-treated steels, stainless steel, titanium alloys, cast iron, and non-ferrous metals.
- Aluminum Cut: Designed for softer materials including aluminum, plastics, and zinc alloys where rapid chip removal is required.
Selecting the correct cut configuration for your material ensures optimal cutting efficiency, improved surface finish, and extended tool life.
Euroboor SB Carbide Burr Specifications
| Product Type | Carbide Burr |
|---|---|
| Rotary Burr Model | Type B – Cylindrical With End Cut |
| Connection Model | Outside |
| Connection Type | Straight Shank |
| Burr Shape | Cylindrical With End Cut |
| Rotary Burr Teeth Type | Double Cut |
| Diameter Shaft | 1/4" |
| Shaft Length | 1-49/64" |
| Head Length Options | 5/8", 3/4", 1" |
| Total Length Options | 2-3/4", 2-3/8", 2-1/2" |

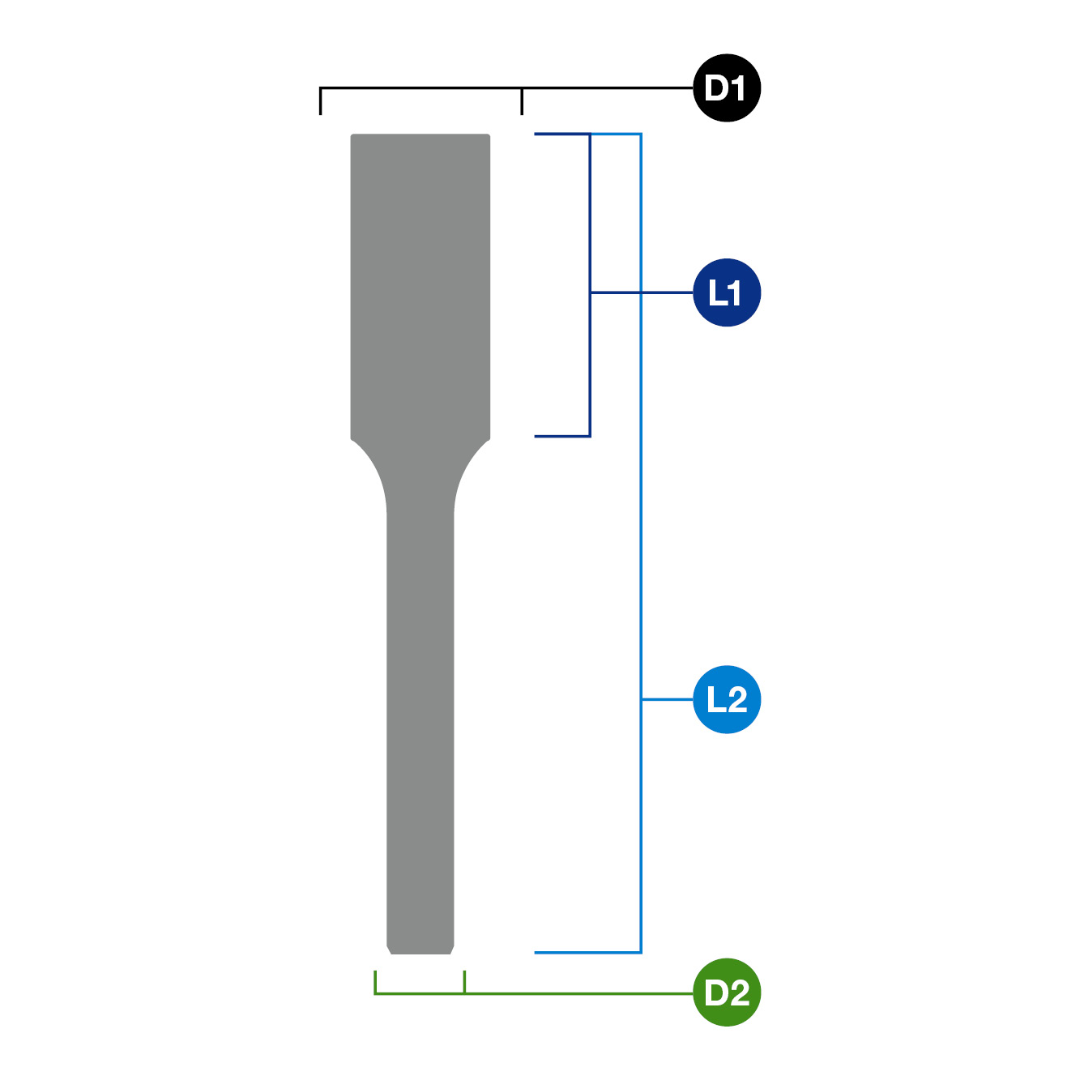

| Head Diameter | See technical size table |
| System of Measurement | Inch (Imperial) |
| Primary Application | Grinding and material removal |
Euroboor SB Carbide Burr Performance & Construction
- High-grade carbide construction ensures long tool life and consistent cutting performance in demanding metalworking environments.

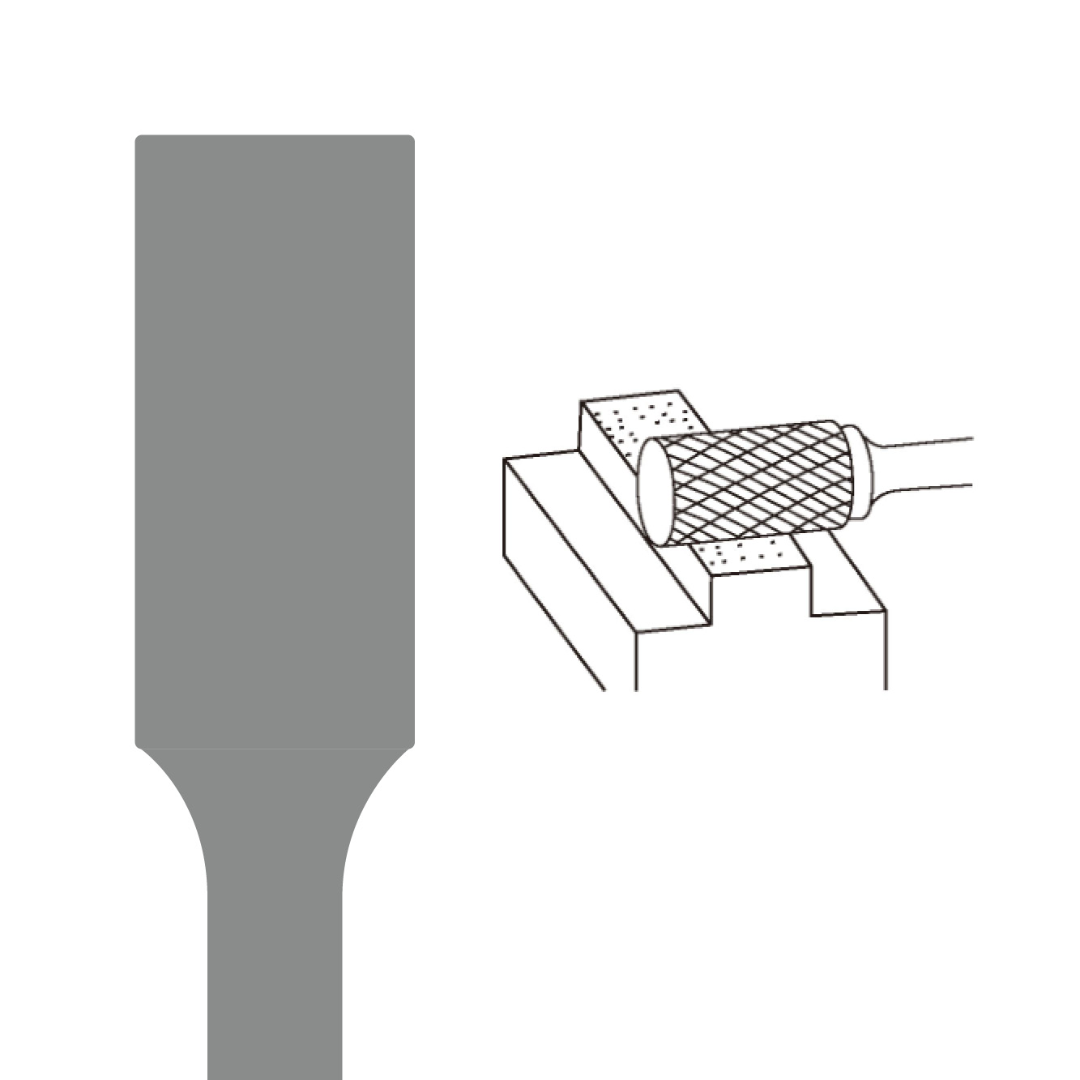

- Cylindrical burr with end-cut design allows both lateral grinding and plunge cutting for greater machining versatility.
- Double cut tooth geometry improves chip evacuation and produces smoother finishes during grinding and shaping operations.
- Standard 1/4" straight shank fits most pneumatic die grinders, electric grinders, and rotary tool systems.
- Precision-ground cutting flutes ensure accurate material removal and controlled grinding performance.
- Multiple head and overall length options allow the tool to be selected for specific grinding depths and finishing requirements.
- Engineered for professional use in fabrication shops, welding environments, and industrial maintenance operations.
Why Choose the Euroboor SB Carbide Burr
- Cylindrical burr with end-cut capability for increased machining flexibility.
- Durable carbide construction designed for industrial metalworking applications.
- Multiple cutting styles available for different materials and finishes.
- Compatible with standard die grinders using a 1/4" straight shank.
- Ideal for deburring, shaping, weld removal, milling, and grinding operations.
The Euroboor SB Carbide Burr delivers reliable cutting performance, long-lasting durability, and versatile grinding capability for professional metalworking, fabrication, and maintenance applications.
