Euroboor F16+ Magnetic Drill Stand Applications
- High-precision small diameter drilling tasks
- Reaming and countersinking applications
- On-site fabrication and installation work
- Maintenance and repair operations
- Work environments with fluctuating or lower-quality power supply
Enables perfectly straight drilling with enhanced stability and reduced risk of vibration-related damage.
Euroboor F16+ Magnetic Drill Stand Specifications
| Twist Drill Capacity | Ø 1 – 16 mm (1/16" – 5/8") |
|---|---|
| Stroke | 170 mm (6 11/16") |
| Height (Adjustable) | 325 – 495 mm (12 13/16" – 19 1/2") |
| Length | 310 mm (12 3/16") |
| Width | 170 mm (6 11/16") |
| Magnet Dimensions (L × W × H) | 160 × 80 × 36 mm |
| Magnetic Force | 2,645 lbs |
| Weight | 16.7 lbs (7.5 kg) |
| Power Supply | 110 – 120V / 60 Hz |
| Connection | Plug according to NEMA 5-15 |

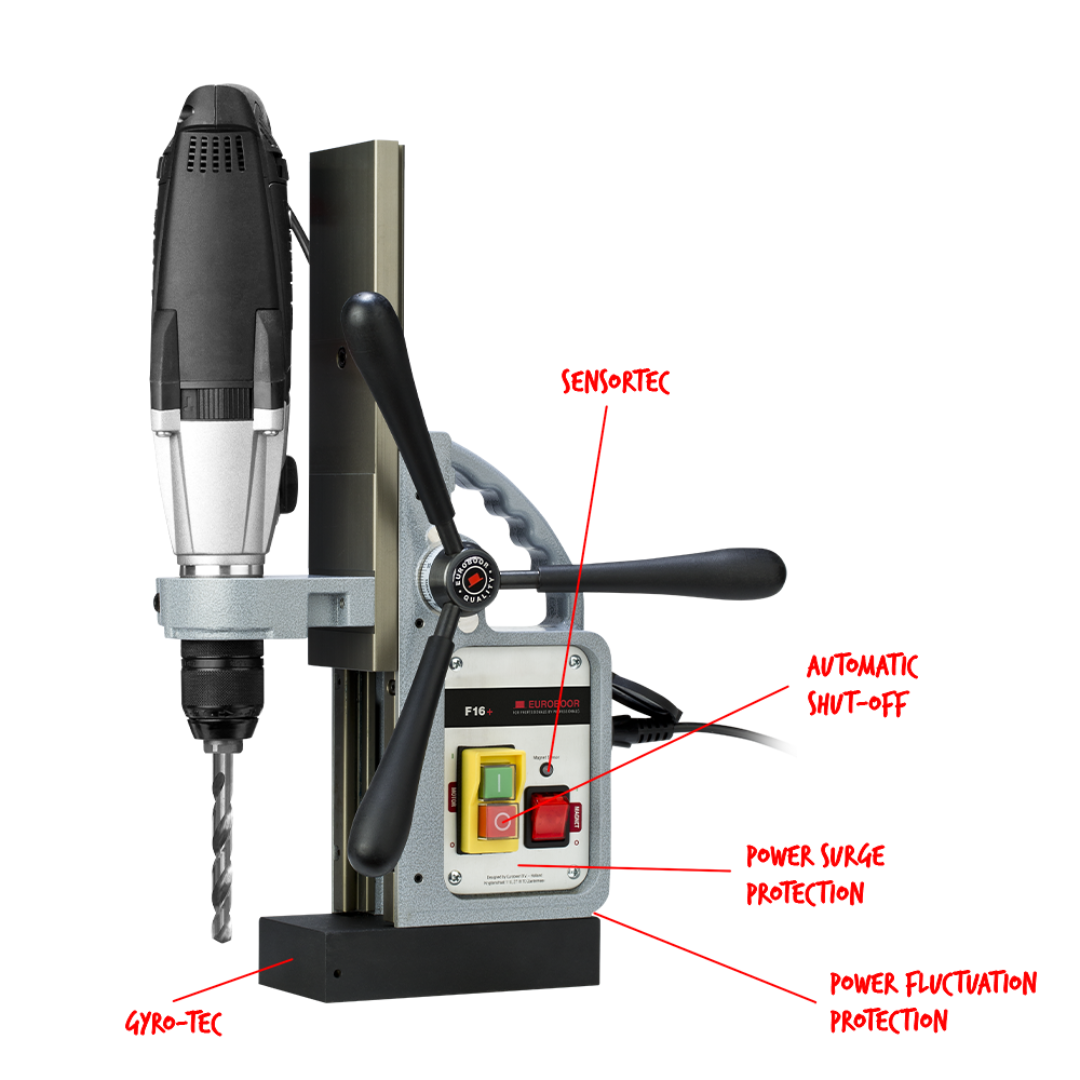

Euroboor F16+ Magnetic Drill Stand Performance & Safety Features
- 43 mm Euro Collar Connection with 33 mm and 38 mm filler rings included for versatile drill compatibility.

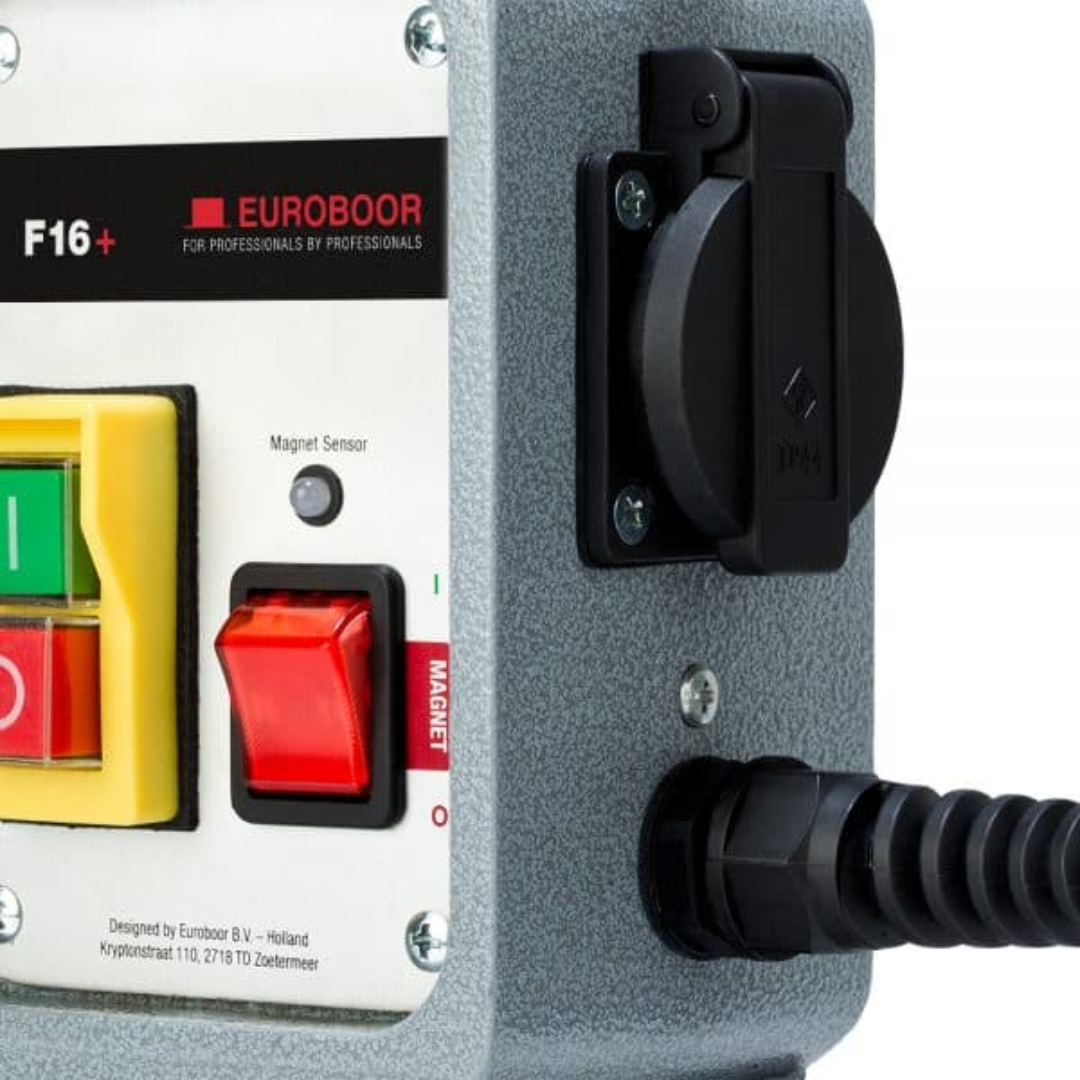

- Safe Rear Mounted Socket for secure and convenient power access.
- High-Accuracy Capstan Hub ensures smooth, controlled feed for precise drilling.
- High-Precision Height Adjustment minimizes wear correction and reduces maintenance requirements.
- Reversible Feed Handles allow operation side adjustment in confined or restricted spaces.
- Strong Dual Coil CNC Machined 2-Way Magnet uses less energy, generates less heat, and extends overall service life.
- Innovative Electronic Protection reduces risk of armature and control unit damage.
- Power Surge & Fluctuation Protection ensures reliable performance in unstable power environments.
- Reduced Risk of Machine, Tool & Workpiece Damage enhances operator safety.
- No Unexpected Downtime prevents unnecessary part replacement and costly interruptions.
Euroboor F16+ Magnetic Drill Stand Package Contents
- 1x Carrying Case
- 1x Universal Magnetic Drill Stand F16+
- 1x Spacer Ring Inner Ø 38 mm (1 1/2")
- 1x Spacer Ring Inner Ø 33 mm (1 5/16")
- 3x Capstan Hub Handles
- Allen Keys: 2.5 mm (3/32"), 3 mm (1/8"), 4 mm (5/32"), 5 mm (13/64")
- 1x Safety Chain
- 1x Ear Protection
- 1x Safety Goggles
- 1x Safety Gloves
- 1x User Manual
Why Choose the Euroboor F16+ Magnetic Drill Stand
- Perfect solution for high-precision drilling up to Ø 16 mm.
- Portable, compact, and easy to handle.
- Advanced safety electronics for extended lifespan.
- Energy-efficient dual-coil magnet with 2,645 lbs holding force.
- Low maintenance design with minimal wear correction.
The Euroboor F16+ Magnetic Drill Stand delivers precision, stability, and enhanced safety in a compact universal drilling solution—ideal for professionals who demand reliable straight drilling performance in demanding environments.
