Euroboor ETC.3 Tapping Chuck Applications
- Precision threading and tapping in steel and structural metals
- Heavy-duty fabrication and metalworking environments
- Construction and structural steel installation
- Industrial maintenance and repair operations
- Workshop tapping operations using magnetic drilling machines
- Large diameter thread cutting applications up to M30
The Euroboor ETC.3 Tapping Chuck is engineered for heavy-duty tapping operations where accuracy, torque control, and tool protection are critical.

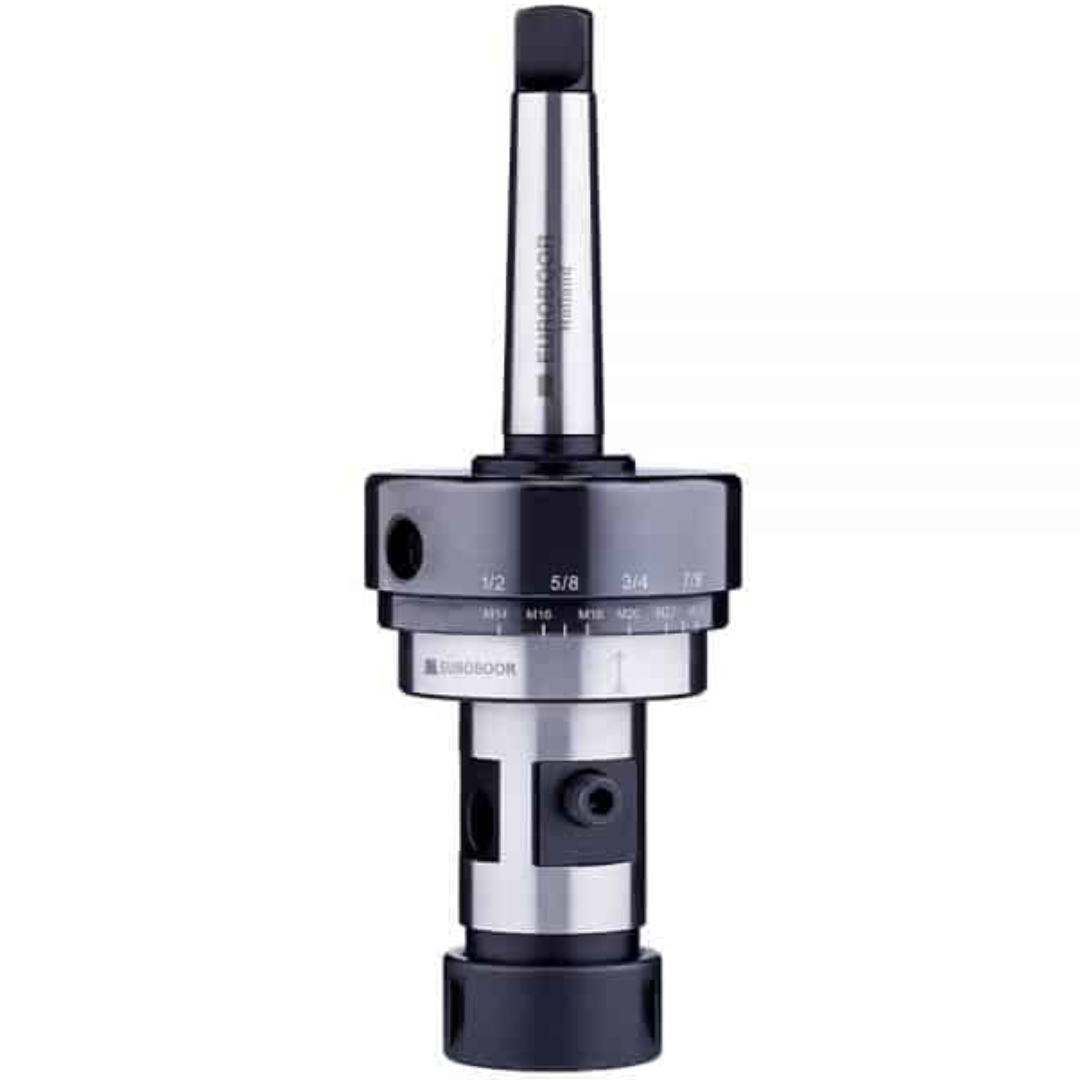

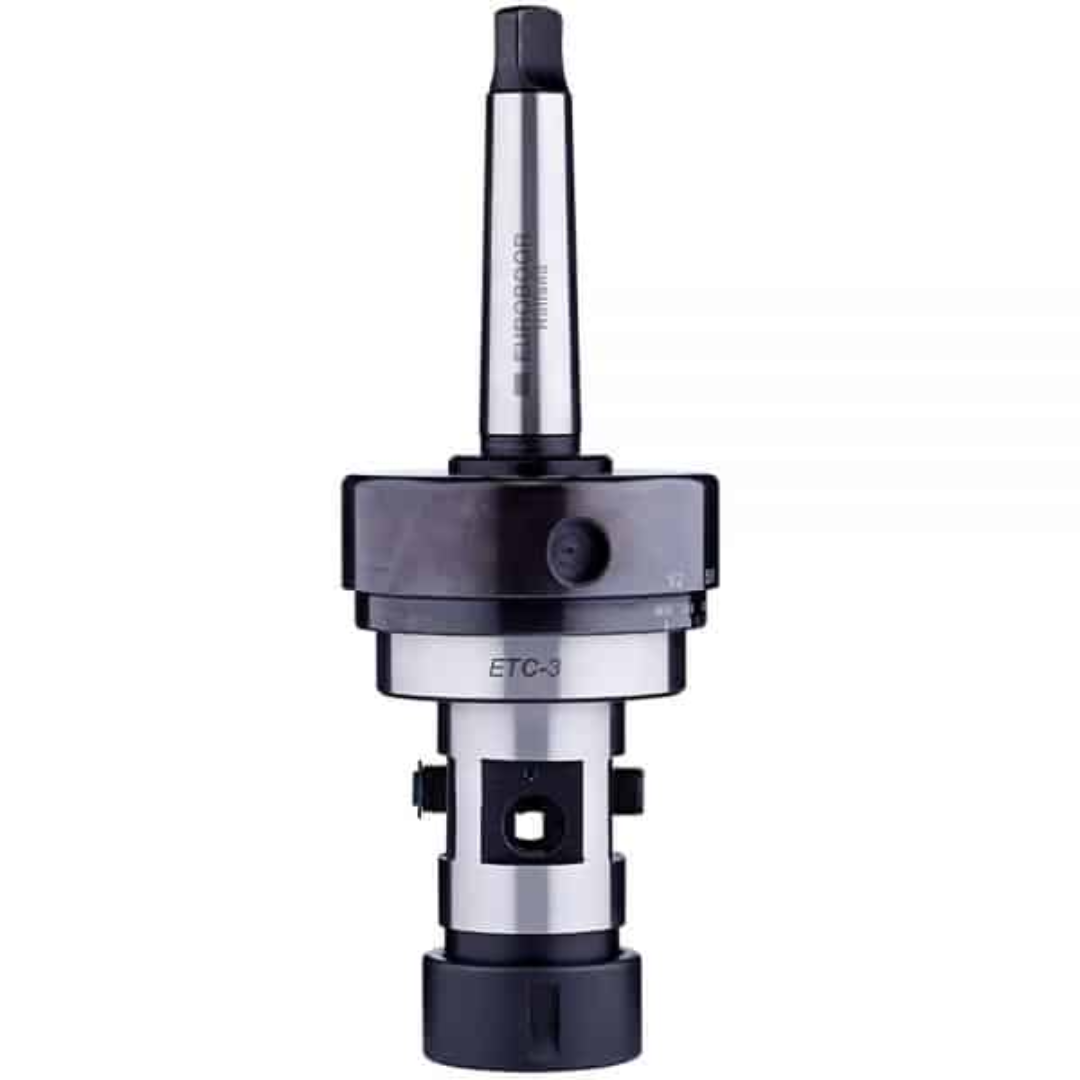

Euroboor ETC.3 Tapping Chuck Specifications
| Model | ETC.3 |
|---|---|
| Type | Tapping Chuck with Slip Clutch |
| Tap Capacity | M14 – M30 (DIN 376) |
| Maximum Tap Size | M30 |
| Connection Type | Morse Taper |
| Morse Taper Size | MT3 |
| Torque Protection | Slip Clutch Torque Limiter |
| Application | Threading / Tapping |
| Measurement System | Metric (mm) |
Euroboor ETC.3 Tapping Chuck Compatible Machines
- Euroboor ECO.55S/T
- Euroboor ECO.55S+/T
- Euroboor ECO.55S+/TA
- Euroboor ECO.100/4
- Euroboor ECO.100S+/T
- Euroboor ECO.100S+/TD
- Euroboor TUBE.55S/T
- Euroboor ECO.100/4D
- Euroboor ECO.55/TA
- Euroboor ECO.55S+TA
- Euroboor TUBE.55S+/T
Euroboor ETC.3 Tapping Chuck Features
- Slip clutch torque limiter protects taps and workpieces from overload.
- MT3 Morse taper connection ensures secure compatibility with magnetic drilling machines.
- Supports tap sizes M14 – M30 for large industrial threading operations.
- Precision torque control improves thread quality and consistency.
- Quick tap installation allows fast setup and reduced downtime.
- High operational accuracy for professional threading results.
- Reduced risk of tap breakage thanks to automatic torque limitation.
- Designed for magnetic drilling machines used in fabrication and heavy industry.
Why Choose the Euroboor ETC.3 Tapping Chuck
- Heavy-duty tapping capacity up to M30.
- Integrated slip clutch protects tooling and threads.
- MT3 Morse taper compatibility with Euroboor mag drills.
- Improves threading accuracy and installation speed.
- Reliable performance for industrial fabrication and maintenance.
The Euroboor ETC.3 Tapping Chuck is a professional threading solution designed for large tap sizes and demanding metalworking environments, delivering precise tapping performance while protecting tools and workpieces.
