Euroboor ETC.2 Tapping Chuck Applications
- Thread cutting in steel, stainless steel, and other metals
- Metal fabrication and machining operations
- Construction and structural steel fabrication
- Industrial maintenance and equipment repair
- Workshop tapping and threading applications
- Precision threading using portable magnetic drilling machines

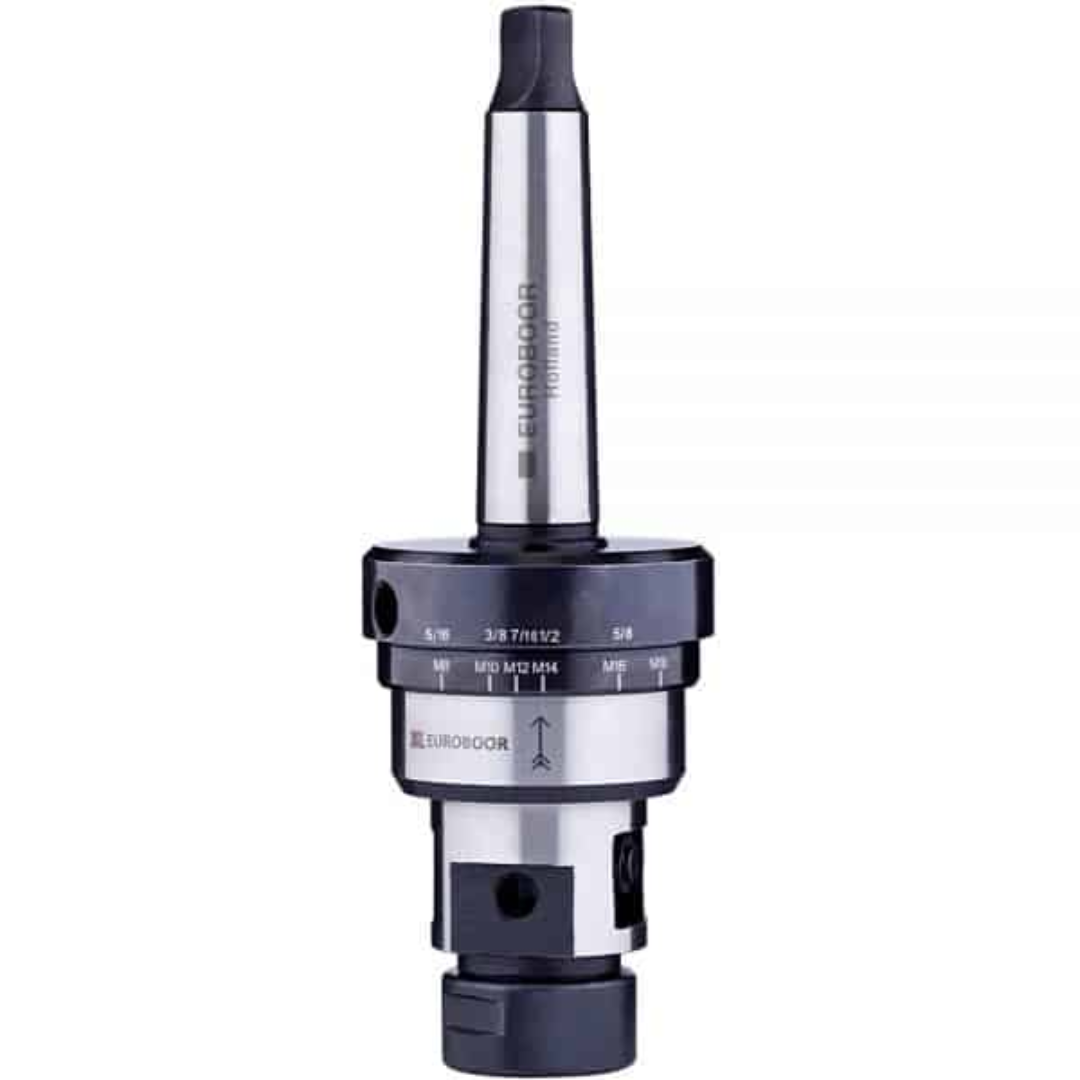

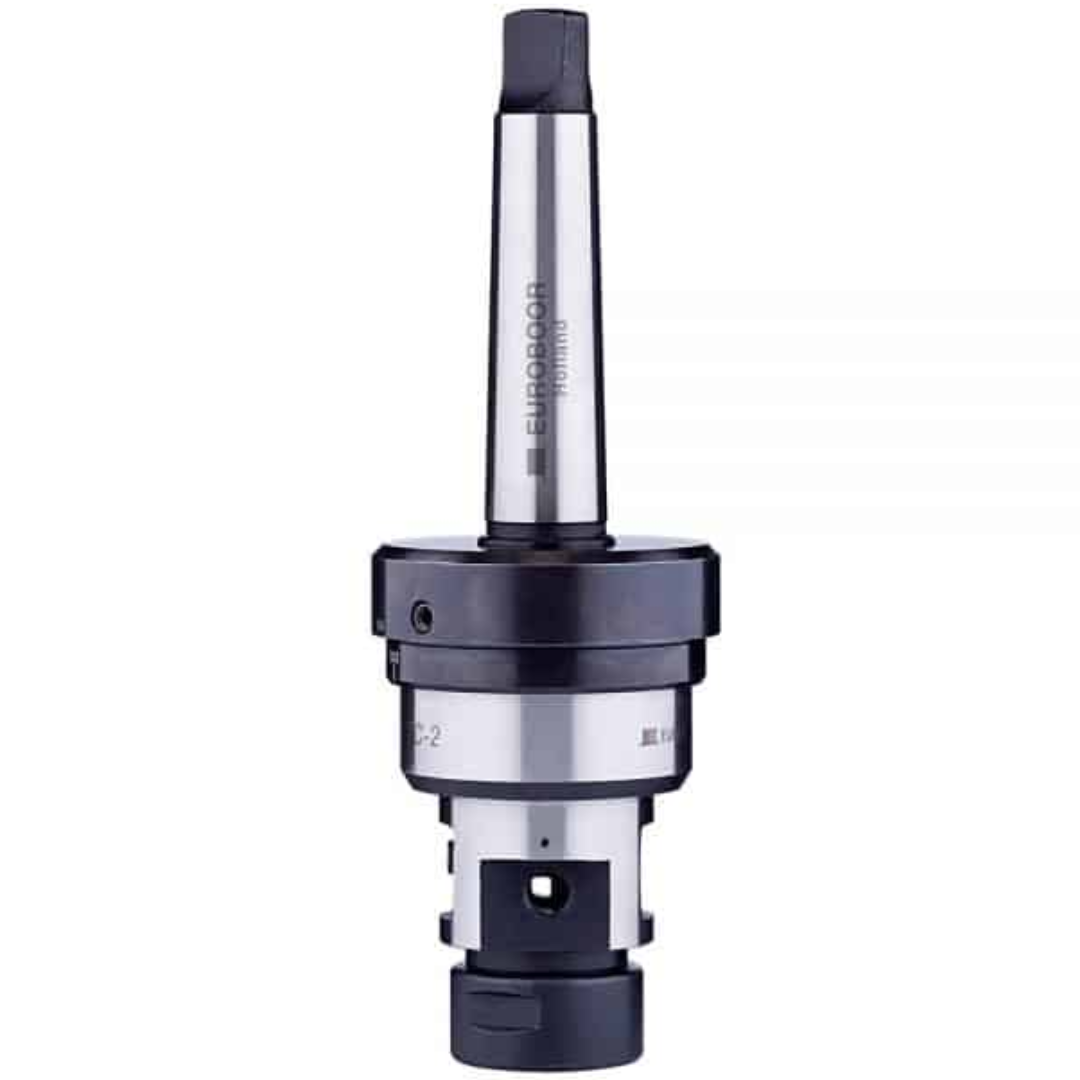

The Euroboor ETC.2 Tapping Chuck is designed to deliver accurate, controlled tapping performance when used with compatible magnetic drilling machines.
Euroboor ETC.2 Tapping Chuck Specifications
| Model | ETC.2 |
|---|---|
| Type | Tapping Chuck with Slip Clutch |
| Maximum Tap Size | M20 |
| Tap Capacity | M8 – M20 (DIN 371 / DIN 376) |
| Connection Type | Morse Taper |
| Morse Taper Size | MT3 |
| Torque Protection | Slip Clutch Torque Limiter |
| Application | Threading / Tapping |
| Measurement System | Metric (mm) |
Euroboor ETC.2 Tapping Chuck Compatible Machines
- Euroboor ECO.55S/T
- Euroboor ECO.55S+/T
- Euroboor ECO.55S+/TA
- Euroboor ECO.100/4
- Euroboor ECO.100S+/T
- Euroboor ECO.100S+/TD
- Euroboor TUBE.55S/T
- Euroboor ECO.55/TA
- Euroboor ECO.55S+TA
- Euroboor TUBE.55S+/T
Euroboor ETC.2 Tapping Chuck Features
- Integrated slip clutch torque limiter protects taps and workpieces from excessive torque.
- Universal Morse Taper MT3 connection for compatibility with magnetic drilling machines.
- Supports tap sizes M8 – M20 according to DIN 371 and DIN 376 standards.
- Precision tapping performance ensures accurate internal thread cutting.
- Quick and secure tap installation reduces setup time and improves productivity.
- Improved operational accuracy for consistent thread quality.
- Reduced risk of broken taps thanks to automatic torque limitation.

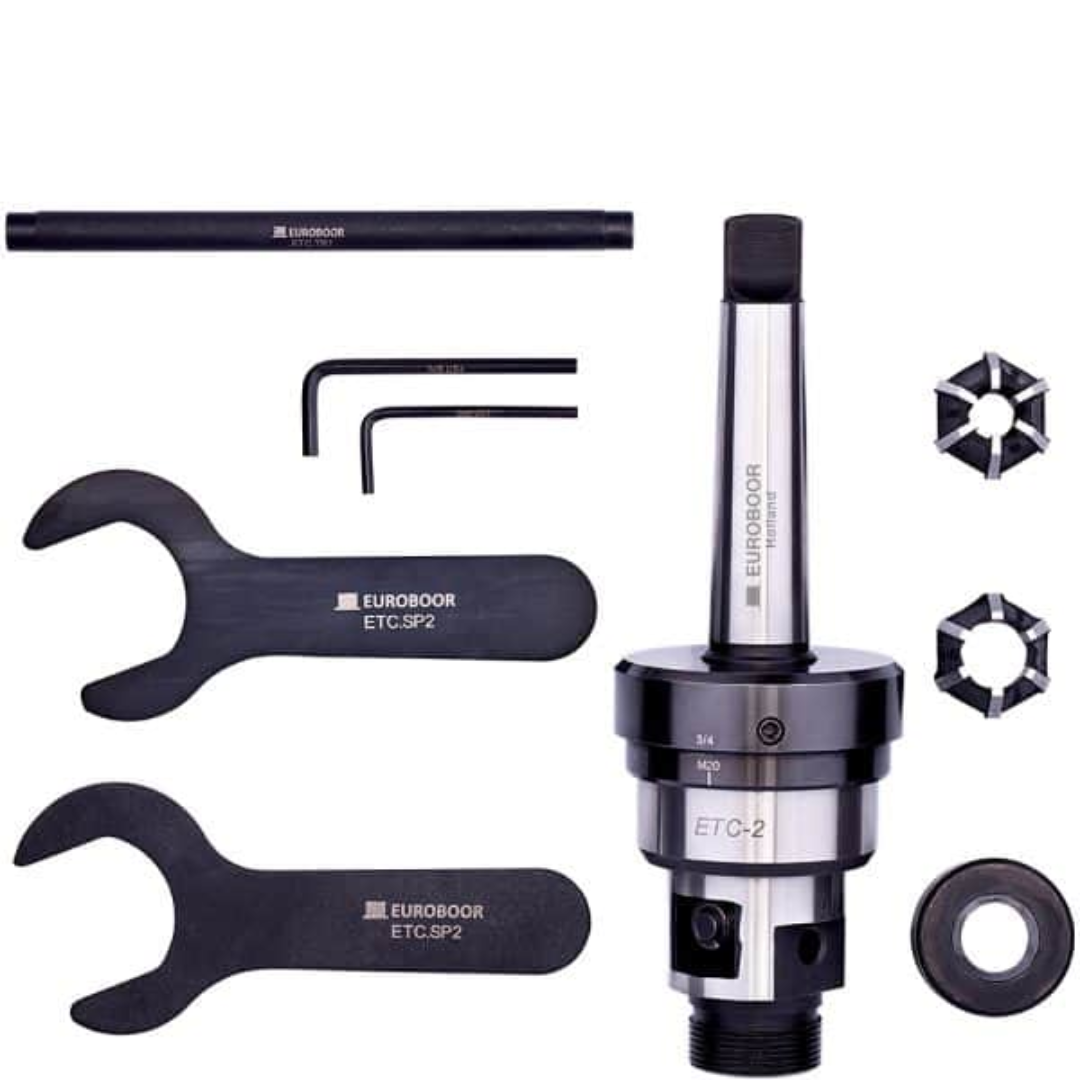

- Complete installation tooling included for quick setup and adjustment.
Why Choose the Euroboor ETC.2 Tapping Chuck
- Designed specifically for portable magnetic drilling machines.
- Slip clutch torque limiter protects taps and threads.
- Supports metric tap sizes from M8 to M20.
- MT3 Morse taper connection ensures secure machine compatibility.
- Improves thread accuracy and reduces tap breakage.
The Euroboor ETC.2 Tapping Chuck is a professional threading solution that improves tapping accuracy, protects tooling, and enhances productivity when working with magnetic drilling machines.
