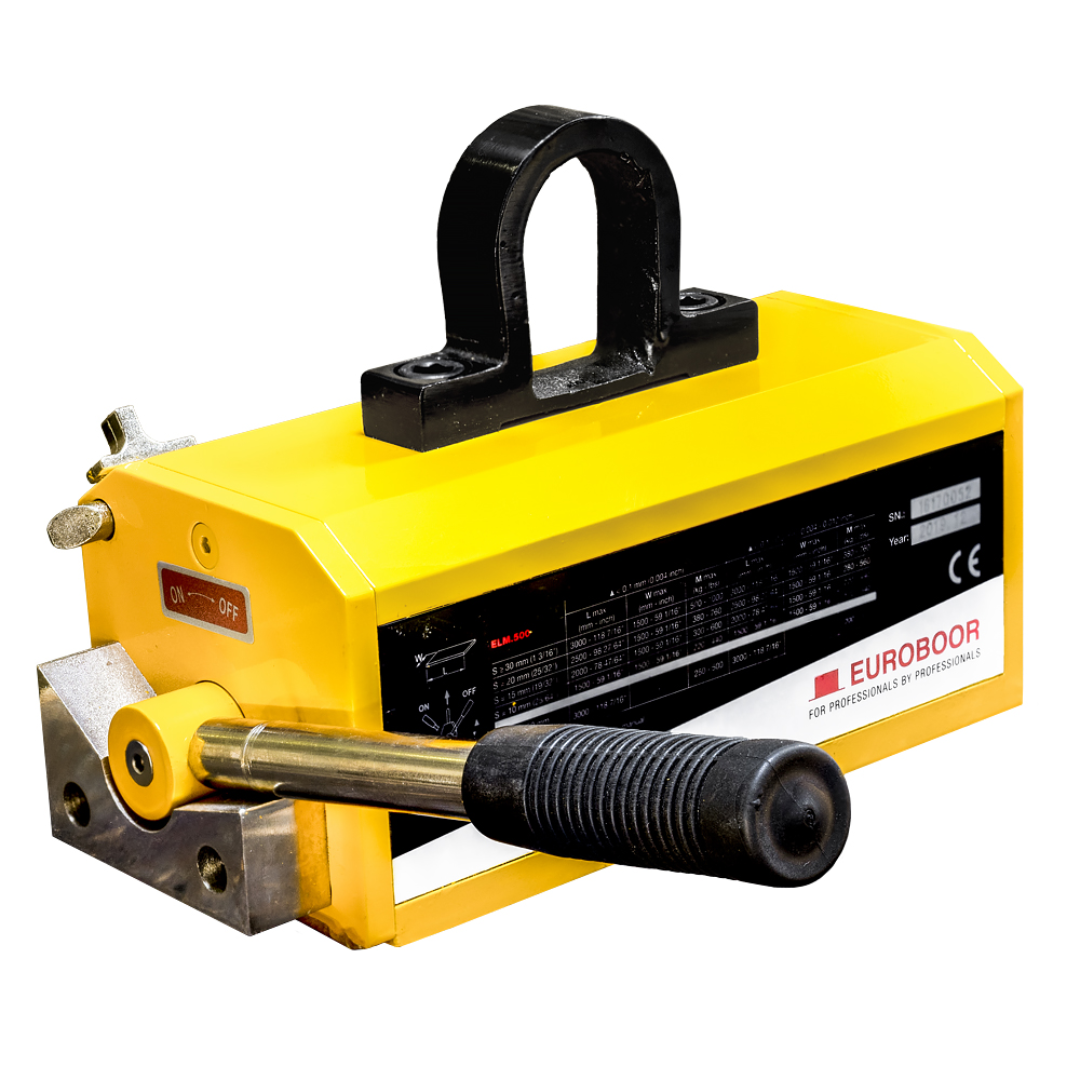

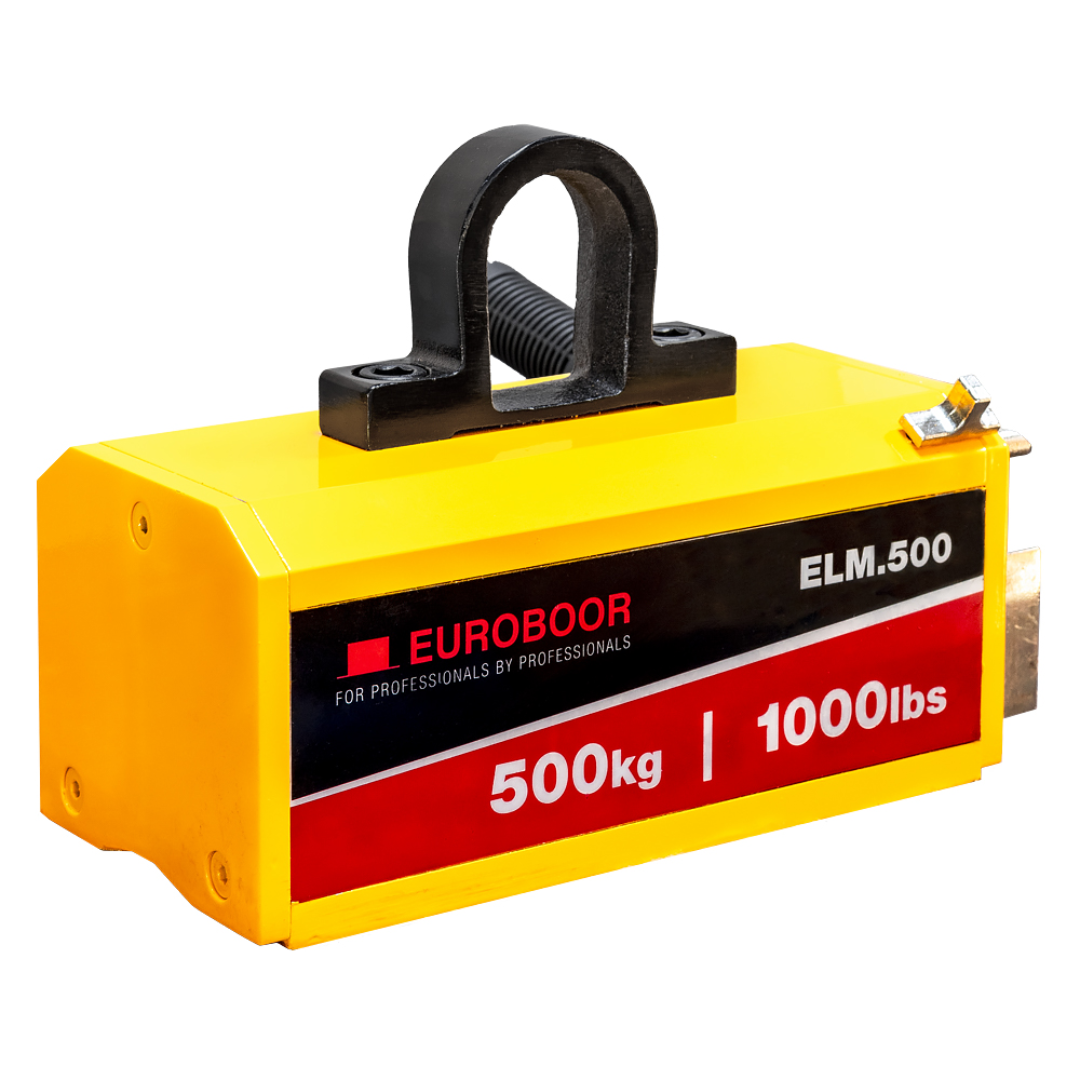

Euroboor ELM.500 Lifting Magnet Applications
- Lifting heavy steel plates and sheet metal
- Handling steel pipes and round tubular materials
- Moving structural steel beams and fabricated parts
- Material handling in metal fabrication shops
- Industrial manufacturing and steel processing operations
- Safe positioning and loading of large steel components
The Euroboor ELM.500 Lifting Magnet provides a safe and efficient lifting solution for ferrous materials without requiring slings, chains, or external power sources.
Euroboor ELM.500 Lifting Magnet Specifications
| Product Name | Euroboor ELM.500 Lifting Magnet |
|---|---|
| Lifting Capacity (Flat Material) | 500 kg (1,100 lb) |
| Lifting Capacity (Round Material) | 250 kg (550 lb) |
| Safety Factor | 3.5 : 1 |
| Length | 288 mm (11 5/16") |
| Width | 112 mm (4 7/16") |
| Height | 195 mm (7 11/16") |
| Eye Width | 42 mm |
| Weight | 21.2 kg (42.4 lb) |
| Minimum Plate Thickness | 30 mm (1 3/16") |
| Round Material Diameter Range | 100 – 250 mm |
| Maximum Operating Temperature | 80°C / 176°F |
| Application | Lifting |
Euroboor ELM.500 Lifting Magnet Performance & Construction
- Powerful permanent magnet system provides strong holding force for lifting heavy steel components safely.
- 500 kg lifting capacity for flat materials enables efficient handling of large steel plates and workpieces.
- 250 kg lifting capacity for round materials supports safe lifting of pipes and cylindrical steel components.
- High safety factor of 3.5 ensures dependable lifting performance and enhanced workplace safety.
- Suitable for rough and finished surfaces without damaging the workpiece.
- Maintenance-free magnetic system reduces downtime and operating costs.
- Reliable performance under extreme conditions ensures consistent operation in industrial environments.
- Simple and ergonomic operation allows quick activation and release of the magnetic lifting force.
Euroboor ELM.500 Lifting Magnet Package Contents
- 1 × Euroboor ELM.500 Lifting Magnet
- 1 × Allen Key 4 mm (5/32")
- 1 × Test Certificate
- 1 × User Manual
Each Euroboor ELM.500 Lifting Magnet is individually tested and delivered with a certificate verifying its lifting capacity and safety compliance.
Why Choose the Euroboor ELM.500 Lifting Magnet
- Heavy-duty magnetic lifter for industrial steel handling.
- 500 kg lifting capacity for flat materials and 250 kg for round materials.
- 3.5 safety factor for secure lifting operations.
- Maintenance-free permanent magnet system.
- Suitable for both flat and tubular steel objects.
- Individually tested and delivered with a safety certificate.
The Euroboor ELM.500 Lifting Magnet is a powerful and reliable lifting solution designed to safely move heavy steel components in fabrication shops, warehouses, and industrial manufacturing environments.
