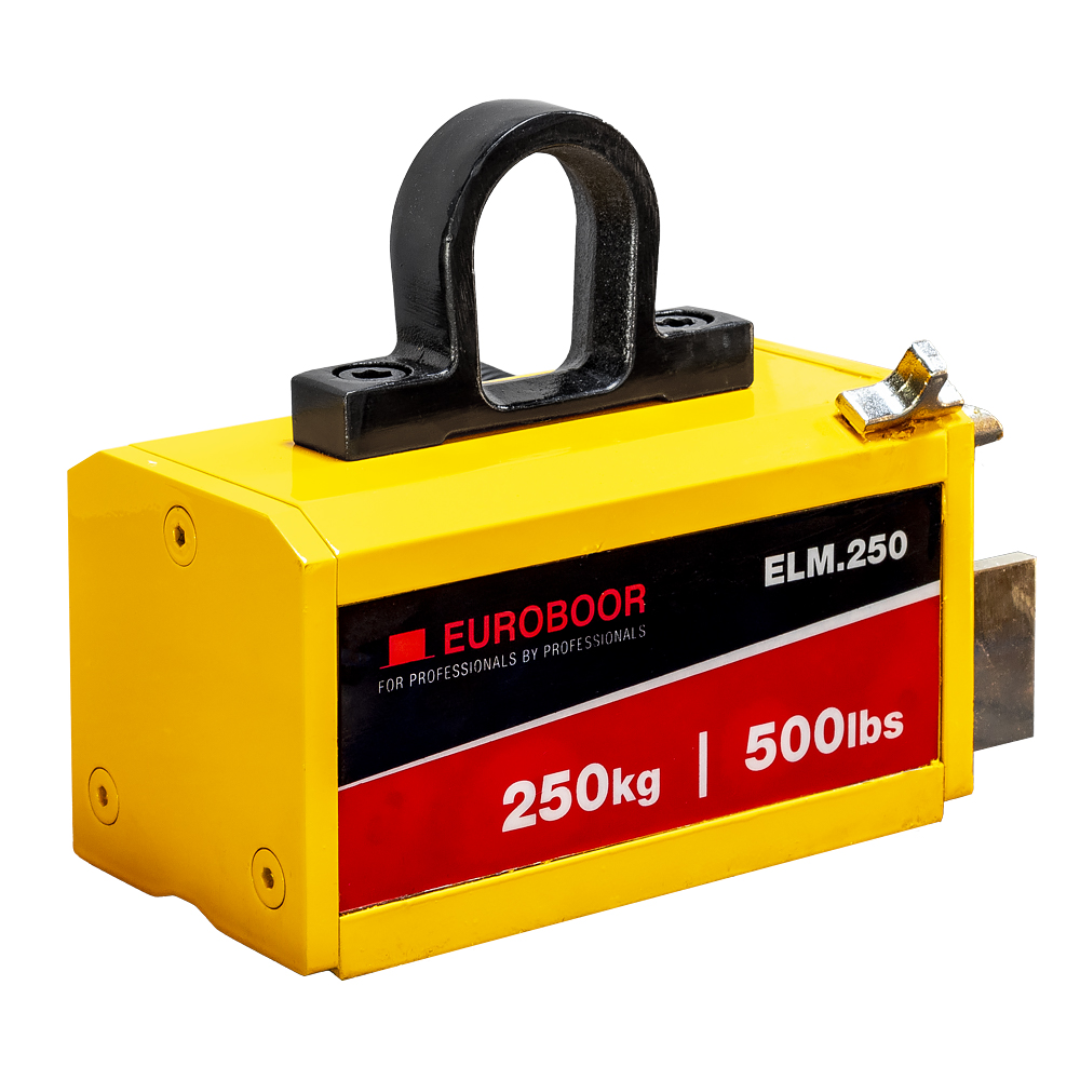

Euroboor ELM.250 Lifting Magnet Applications
- Lifting steel plates and flat metal sheets
- Handling steel pipes and tubular materials
- Moving structural steel components
- Material handling in fabrication shops
- Loading and positioning steel parts during production
- General industrial lifting tasks for ferrous materials
The Euroboor ELM.250 Lifting Magnet enables fast and secure lifting of steel components without the need for slings, chains, or clamps.
Euroboor ELM.250 Lifting Magnet Specifications
| Product Name | Euroboor ELM.250 Lifting Magnet |
|---|---|
| Lifting Capacity (Flat Material) | 250 kg (500 lb) |
| Lifting Capacity (Round Material) | 125 kg (275 lb) |
| Safety Factor | 3.5 : 1 |
| Length | 213 mm (8 3/8") |
| Width | 82 mm (3 1/4") |
| Height | 160 mm (6 5/16") |
| Eye Width | 40 mm |
| Weight | 9.4 kg (20.7 lb) |
| Minimum Plate Thickness | 25 mm (≈ 1") |
| Round Material Diameter Range | 50 – 100 mm |
| Maximum Operating Temperature | 80°C / 176°F |
| Application | Lifting |
Euroboor ELM.250 Lifting Magnet Performance & Construction
- Powerful permanent magnet lifting system enables fast and safe lifting of ferrous metal components without external power.
- 250 kg lifting capacity for flat materials allows efficient handling of steel plates and heavy workpieces.
- 125 kg lifting capacity for round materials supports safe lifting of pipes and cylindrical metal objects.
- High safety factor of 3.5 ensures reliable operation with a large safety margin.
- Works on rough or finished surfaces without damaging the material.
- Maintenance-free design reduces operating costs and downtime.
- Reliable performance in demanding conditions ensures consistent lifting performance in industrial environments.

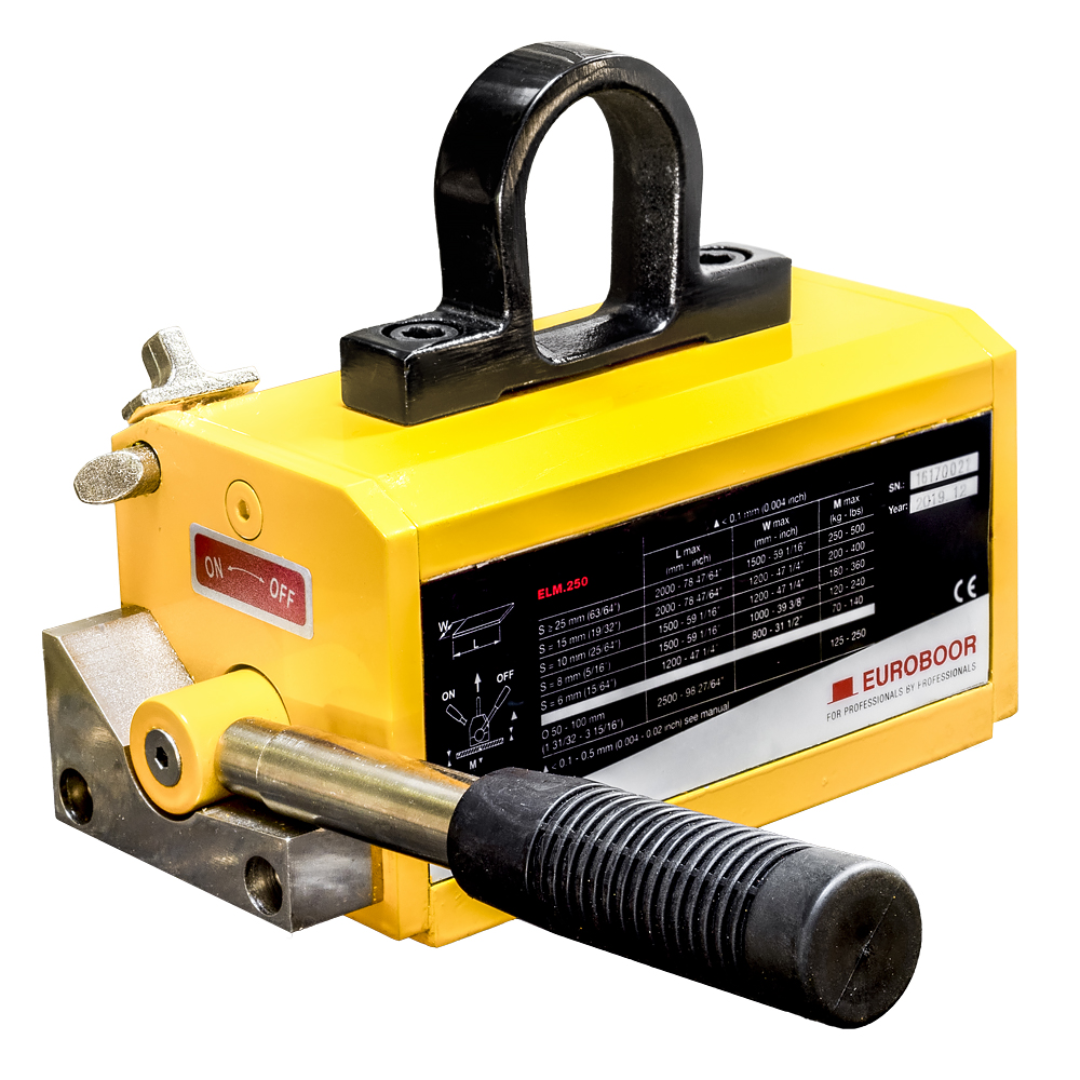

- Compact and ergonomic operation allows quick activation and release of the magnetic lifting force.
Euroboor ELM.250 Lifting Magnet Package Contents
- 1 × Euroboor ELM.250 Lifting Magnet
- 1 × Allen Key 4 mm (5/32")
- 1 × Test Certificate
- 1 × User Manual
Each Euroboor ELM.250 Lifting Magnet is individually tested and supplied with a certificate verifying the lifting capacity and safety compliance of the unit.
Why Choose the Euroboor ELM.250 Lifting Magnet
- Powerful permanent magnetic lifting system for steel materials.
- 250 kg lifting capacity for flat materials and 125 kg for round materials.
- 3.5 safety factor for secure industrial lifting.
- Maintenance-free design for reliable daily operation.
- Suitable for flat plates and tubular steel objects.
- Individually tested and supplied with a safety certificate.
The Euroboor ELM.250 Lifting Magnet is a dependable material handling solution designed for safely moving heavy steel components in fabrication shops, warehouses, and industrial manufacturing environments.
