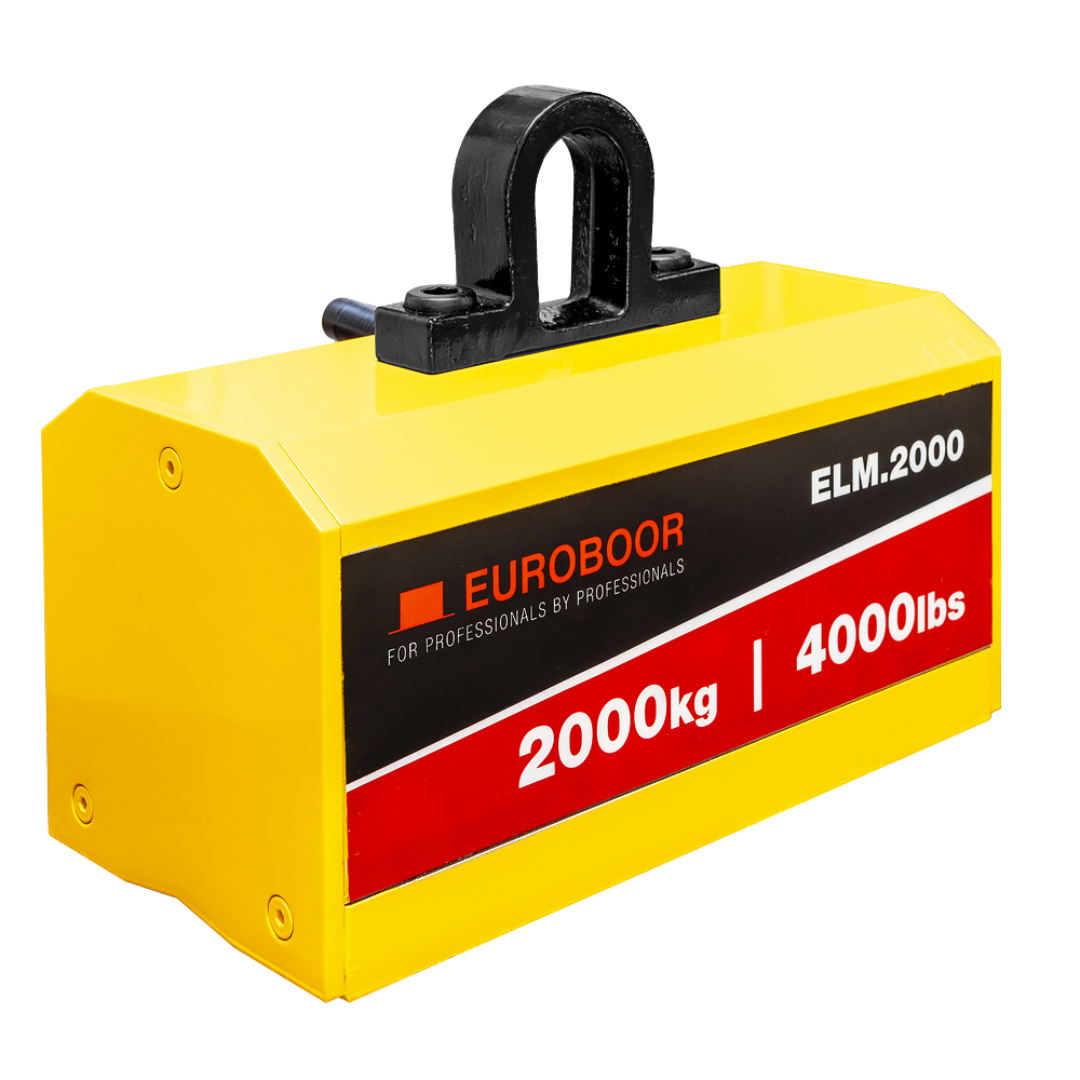

Euroboor ELM.2000 Lifting Magnet Applications
- Lifting extremely heavy steel plates and thick sheet metal
- Handling large steel pipes and round tubular materials
- Moving structural steel beams and fabricated components
- Material handling in heavy fabrication and steel processing facilities
- Industrial manufacturing and large-scale construction environments
- Safe positioning and loading of oversized ferrous workpieces
The Euroboor ELM.2000 Lifting Magnet allows operators to safely lift large steel materials without chains, slings, or external power sources.
Euroboor ELM.2000 Lifting Magnet Specifications
| Product Name | Euroboor ELM.2000 Lifting Magnet |
|---|---|
| Lifting Capacity (Flat Material) | 2000 kg (4000 lbs) |
| Lifting Capacity (Round Material) | 1000 kg (2000 lbs) |
| Safety Factor | 3.5 : 1 |
| Length | 559 mm (22") |
| Width | 154 mm (6 1/16") |
| Height | 295 mm (11 10/16") |
| Eye Width | 52 mm |
| Weight | 95.2 kg (209.6 lb) |
| Minimum Plate Thickness | 55 mm (2 11/64") |
| Round Material Diameter Range | 180 – 450 mm |
| Maximum Operating Temperature | 80°C / 176°F |
| Application | Lifting |
Euroboor ELM.2000 Lifting Magnet Performance & Construction
- Extremely powerful permanent magnet system designed for lifting very large steel components safely and efficiently.
- 2000 kg lifting capacity for flat materials supports handling of extremely heavy steel plates and fabricated structures.
- 1000 kg lifting capacity for round materials allows safe lifting of large pipes and cylindrical steel objects.
- High safety factor of 3.5 ensures secure lifting operations and enhanced workplace safety.
- Suitable for rough or finished surfaces without damaging the material.
- Maintenance-free magnetic system reduces downtime and long-term operating costs.
- Reliable performance under extreme conditions ensures dependable lifting in heavy industrial environments.

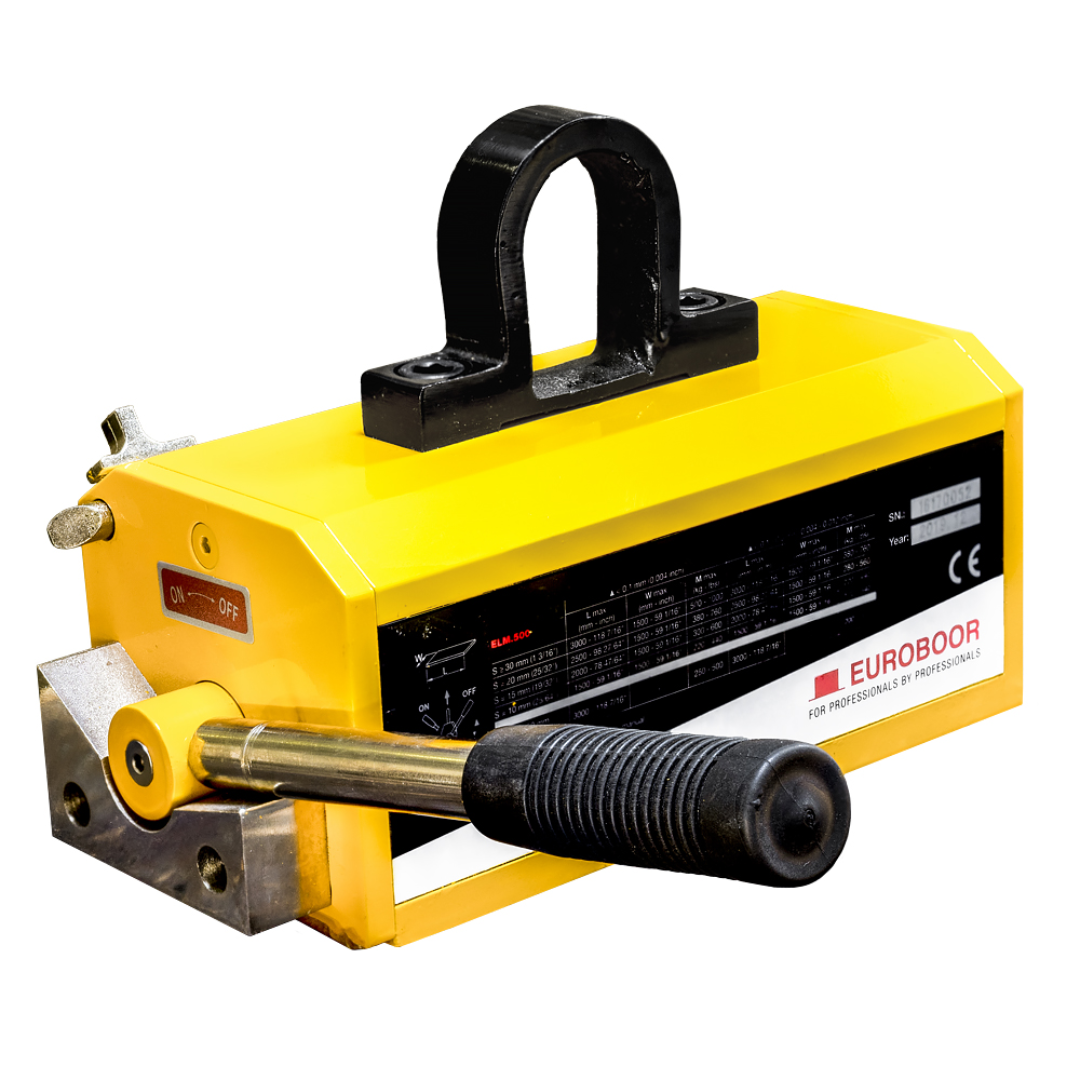

- Simple and ergonomic operation allows quick activation and release of the magnetic lifting force.
Euroboor ELM.2000 Lifting Magnet Package Contents
- 1 × Euroboor ELM.2000 Lifting Magnet
- 1 × Allen Key 5 mm (13/64")
- 1 × Test Certificate
- 1 × User Manual
Each Euroboor ELM.2000 Lifting Magnet is individually tested and delivered with a certificate verifying lifting capacity and safety compliance.
Why Choose the Euroboor ELM.2000 Lifting Magnet
- Maximum lifting capacity in the Euroboor magnet lifting range.
- 2000 kg lifting capacity for flat materials and 1000 kg for round materials.
- 3.5 safety factor for secure and reliable industrial lifting.
- Maintenance-free permanent magnet lifting system.
- Suitable for both flat plates and large tubular steel objects.
- Individually tested and delivered with a certified safety document.
The Euroboor ELM.2000 Lifting Magnet is an extremely powerful industrial lifting solution designed for safely moving very heavy steel components in fabrication plants, steel processing facilities, and large-scale manufacturing environments.
