Euroboor ELM.125 Lifting Magnet Applications
- Lifting steel plates and flat metal components
- Handling steel pipes and round tubular materials
- Moving structural steel parts in fabrication shops
- Material handling in metalworking workshops
- Loading and positioning steel parts during manufacturing processes
- Industrial maintenance and construction material handling

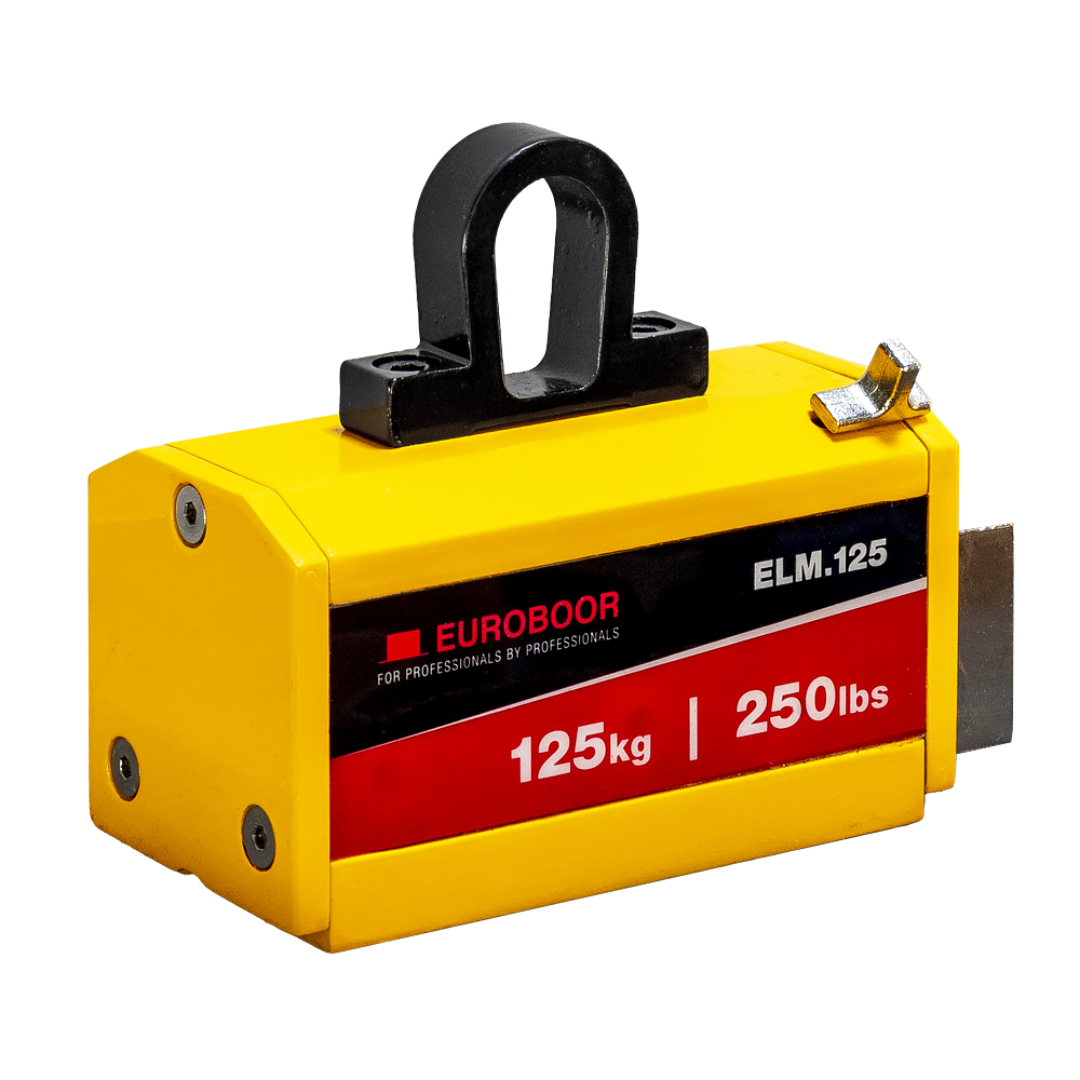

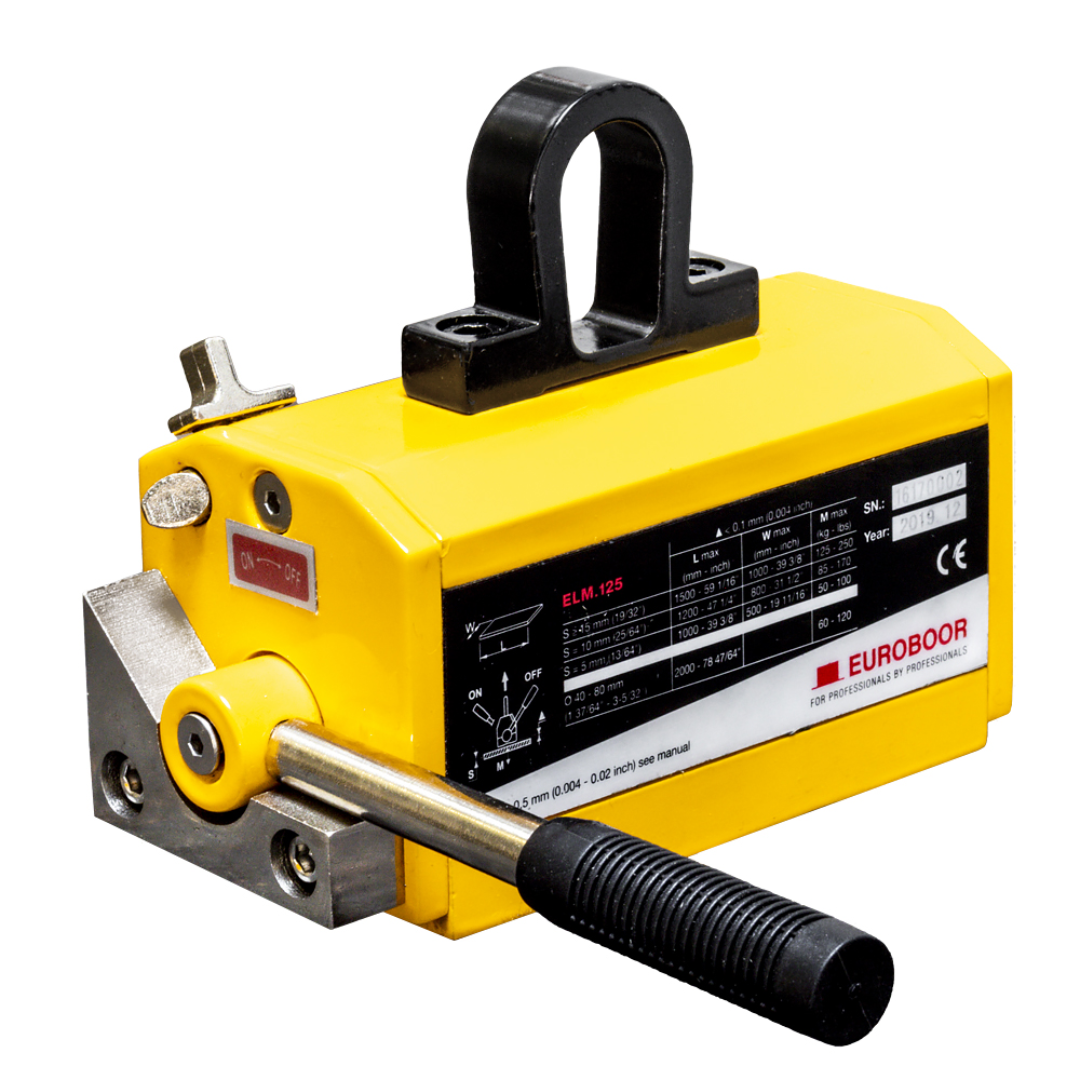

The Euroboor ELM.125 Lifting Magnet is designed for lifting ferrous materials safely and efficiently without the need for slings, chains, or clamps.
Euroboor ELM.125 Lifting Magnet Specifications
| Product Name | Euroboor ELM.125 Lifting Magnet |
|---|---|
| Lifting Capacity (Flat Material) | 125 kg (275 lb) |
| Lifting Capacity (Round Material) | 60 kg (132 lb) |
| Safety Factor | 3.5 : 1 |
| Length | 175 mm (6 7/8") |
| Width | 76 mm (3") |
| Height | 134 mm (5 1/4") |
| Eye Width | 30 mm |
| Weight | 6.5 kg (14.3 lb) |
| Minimum Plate Thickness | 15 mm (9/16") |
| Round Material Diameter Range | 40 – 80 mm |
| Maximum Operating Temperature | 80°C / 176°F |
| Application | Lifting |
Euroboor ELM.125 Lifting Magnet Performance & Construction
- Powerful permanent magnet system enables quick lifting of steel components without the need for power or external energy sources.
- 125 kg lifting capacity for flat materials allows efficient handling of steel plates and heavy metal workpieces.
- 60 kg lifting capacity for round materials makes the magnet suitable for pipes, tubes, and cylindrical steel objects.
- High safety factor (3.5) ensures reliable lifting performance under demanding working conditions.
- Suitable for rough or finished surfaces without damaging the workpiece.
- Maintenance-free operation reduces downtime and operating costs.
- Reliable performance under extreme conditions for professional fabrication environments.
- Compact and ergonomic design allows easy handling and fast operation by a single operator.
Euroboor ELM.125 Lifting Magnet Package Contents
- 1 × Euroboor ELM.125 Lifting Magnet
- 1 × Allen Key 3 mm (1/8")
- 1 × Test Certificate
- 1 × User Manual
Every Euroboor ELM.125 Lifting Magnet is individually tested and supplied with a certificate verifying the lifting capacity and safety compliance of the unit.
Why Choose the Euroboor ELM.125 Lifting Magnet
- Powerful magnetic lifter for steel plates and tubular materials.
- 125 kg lifting capacity for flat materials and 60 kg for round materials.
- 3.5 safety factor ensures safe industrial lifting.
- Maintenance-free permanent magnet system.
- Suitable for rough and finished metal surfaces.
- Compact design for easy operation in workshops and fabrication facilities.
The Euroboor ELM.125 Lifting Magnet is a reliable and efficient lifting solution for safely moving steel components in fabrication shops, warehouses, and industrial environments.
