Euroboor ECO.60S+ Magnetic Drilling Machine Applications
- Steel fabrication and structural metal construction
- Industrial manufacturing plants and machine shops
- Maintenance and repair operations
- Bridge construction and infrastructure projects
- Shipbuilding and heavy equipment fabrication
- Countersinking and precision drilling in structural steel plates
Designed for professional fabrication environments that require reliable magnetic drilling with enhanced electronic safety systems.
Euroboor ECO.60S+ Magnetic Drilling Machine Specifications
| Model | ECO.60S+ |
|---|---|
| Maximum Annular Cutter Diameter | 2 3/8" |
| Minimum Annular Cutter Diameter | 1/2" |
| Twist Drill Capacity | 1/16" – 15/16" |
| Countersinking Capacity | 3/8" – 2 9/16" |
| Motor Power | 14.5 A |
| Total Power | 15.5 A |
| Power Supply Voltage | 110 – 120 V |
| Power Supply Frequency | 60 Hz |
| Power Connection | NEMA 5-15 Plug |
| Gearbox Type | Oil lubricated |
| Rotation Direction | Clockwise |
| Magnetic Force | 4080 lbs |
| Stroke | 6 11/16" |
| No Load Speed (Gear 1) | 60 – 275 RPM |
| No Load Speed (Gear 2) | 100 – 500 RPM |
| Spindle | MT3 with 3/4" Weldon |
| Machine Dimensions | 12 5/8" × 7 7/8" × 17 3/16" – 24 1/2" |
| Magnet Dimensions | 6 5/8" × 3 5/16" × 1 15/16" |
| Net Weight | 28.4 lbs |

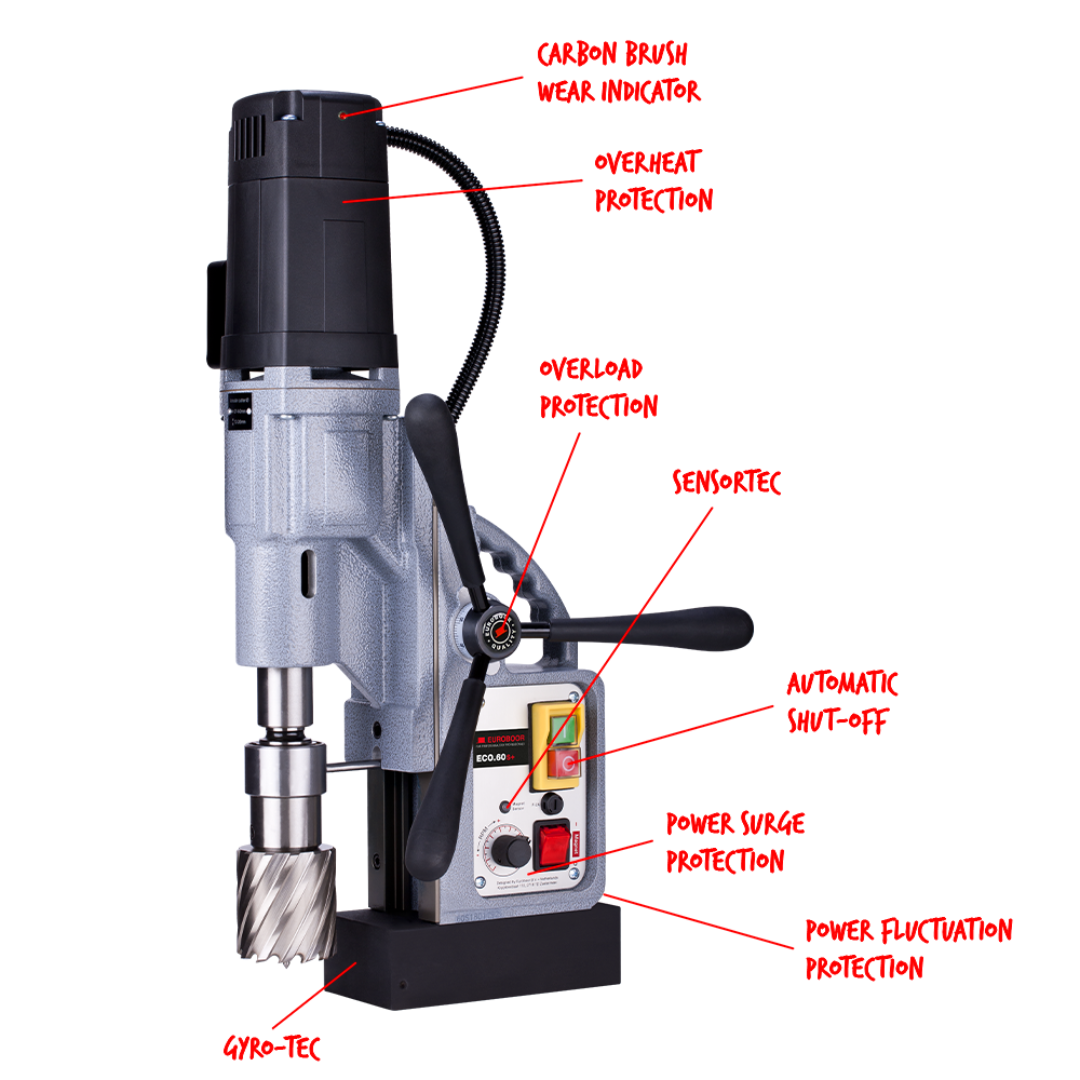

Euroboor ECO.60S+ Magnetic Drilling Machine Performance & Construction
- Powerful 14.5 Amp industrial motor delivers reliable torque and consistent drilling performance.
- Oil lubricated two-speed gearbox ensures smooth operation, reduced wear, and extended machine life.
- Electronic speed adjustment allows operators to optimize cutting speed for different materials and cutter sizes.
- Advanced safety electronics including overload protection, power fluctuation protection, and surge protection.
- Gyro-Tec safety monitoring reduces risk during sudden displacement or excessive vibration.
- Smart Restart technology prevents unexpected machine restart after power interruption.
- Overheat protection protects internal components and increases motor lifespan.
- Integrated cooling and lubrication system improves cutting performance and cutter life.
- CNC-machined dual coil magnet provides strong magnetic holding power while reducing energy consumption and heat generation.
- Carbon brush wear indicator allows timely maintenance before performance drops.

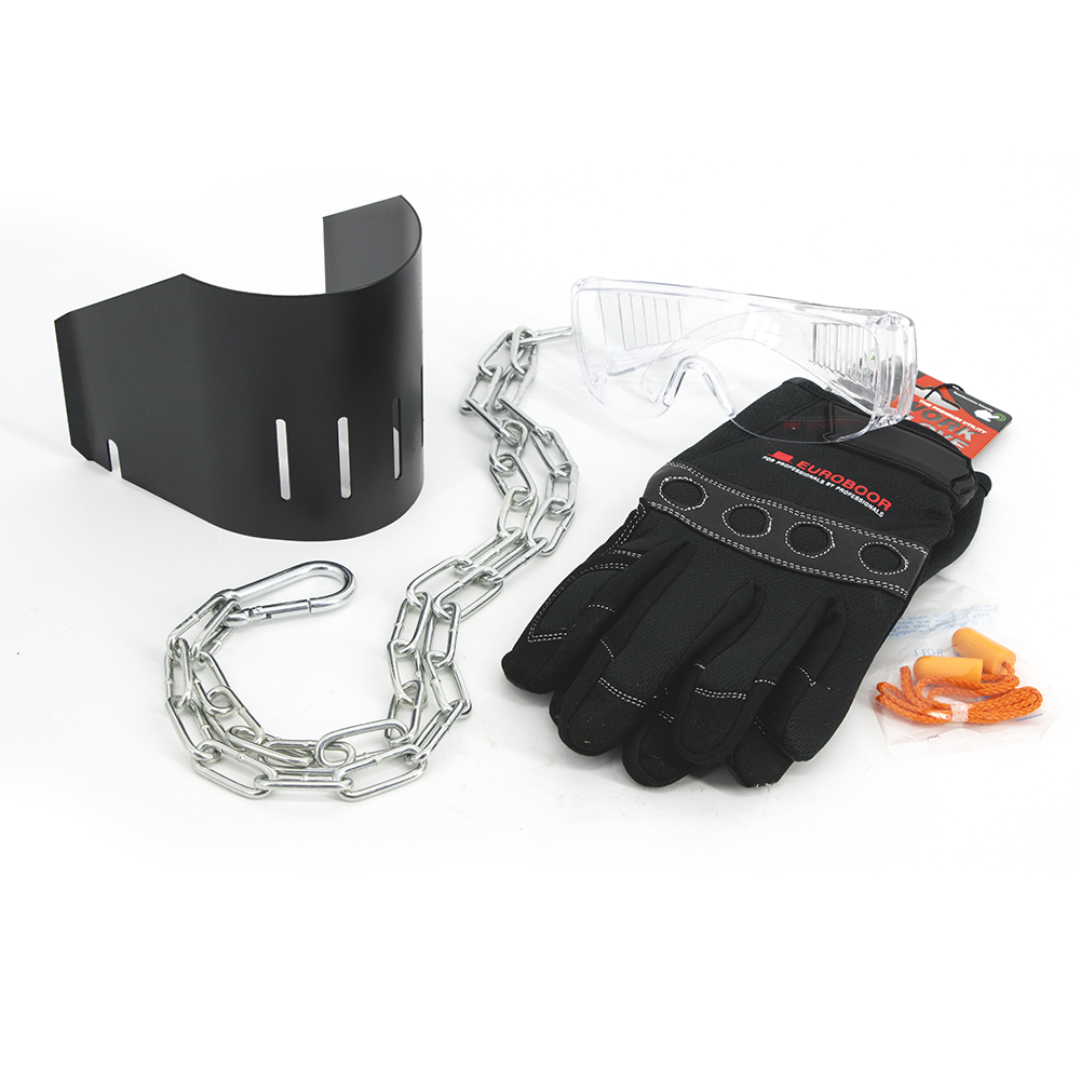

Euroboor ECO.60S+ Magnetic Drilling Machine Package Contents
- 1 × Euroboor ECO.60S+ Magnetic Drilling Machine
- 1 × Durable transport case
- 3 × Capstan hub handles
- 1 × MT3 spindle holder (3/4" Weldon – 19.05 mm) with cooling/lubrication ring
- 1 × Drift key
- 1 × Integrated lubrication and cooling system
- Allen keys: 2.5 mm, 4 mm, and 5 mm
- 1 × Protection guard
- 1 × Safety chain
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor ECO.60S+ Magnetic Drilling Machine
- High-performance drilling capacity up to 2 3/8" annular cutters.
- Advanced electronic safety systems to protect machine and operator.
- Two-speed oil lubricated gearbox for precision drilling control.
- Strong magnetic base with 4080 lbs holding force for secure operation.
- Portable and durable design ideal for fabrication, maintenance, and construction.
The Euroboor ECO.60S+ Magnetic Drilling Machine delivers professional-grade drilling performance with advanced safety electronics, powerful cutting capability, and reliable magnetic stability for industrial metalworking applications.
