Euroboor ECO.55S+/TA Magnetic Drilling Machine Applications
- Structural steel fabrication and heavy metal construction
- Industrial maintenance and repair operations
- Bridge, shipbuilding, and infrastructure projects
- Drilling, countersinking, and tapping in steel plates
- Manufacturing plants and fabrication workshops
- Field drilling applications where portable precision drilling is required
The automatic feed and return system of the Euroboor ECO.55S+/TA Magnetic Drilling Machine allows operators to complete repetitive drilling operations faster while maintaining consistent drilling quality.
Euroboor ECO.55S+/TA Magnetic Drilling Machine Specifications
| Model | ECO.55S+/TA |
|---|---|
| Annular Cutter Capacity | Up to 2 3/16" |
| Twist Drill Capacity | Up to 15/16" |
| Tapping Capacity | M3 – M20 |
| Auto Feed | Yes – Automatic drill feed with return for annular cutters |
| Spindle | Morse Taper 3 (MT3) |
| Rotation Direction | Bidirectional (Right / Left) |
| Speed (No Load) | Gear 1: 60 – 275 RPM Gear 2: 100 – 500 RPM |
| Magnetic Force | 4,080 lb |
| Stroke | 6 11/16" |
| Motor Power | 1,600 W |
| Total Power | 1,700 W |
| Power Supply | 110 – 120 Volt / 60 Hz |
| Power Connection | NEMA 5-15 Plug |
| Weight | 34.8 lb |
| Maximum Height | 26" |
Euroboor ECO.55S+/TA Magnetic Drilling Machine Performance & Construction
- Automatic drilling feed and return system for annular cutters increases productivity and ensures consistent drilling performance.
- Two-speed oil-lubricated gearbox improves motor efficiency and extends the lifespan of internal components.

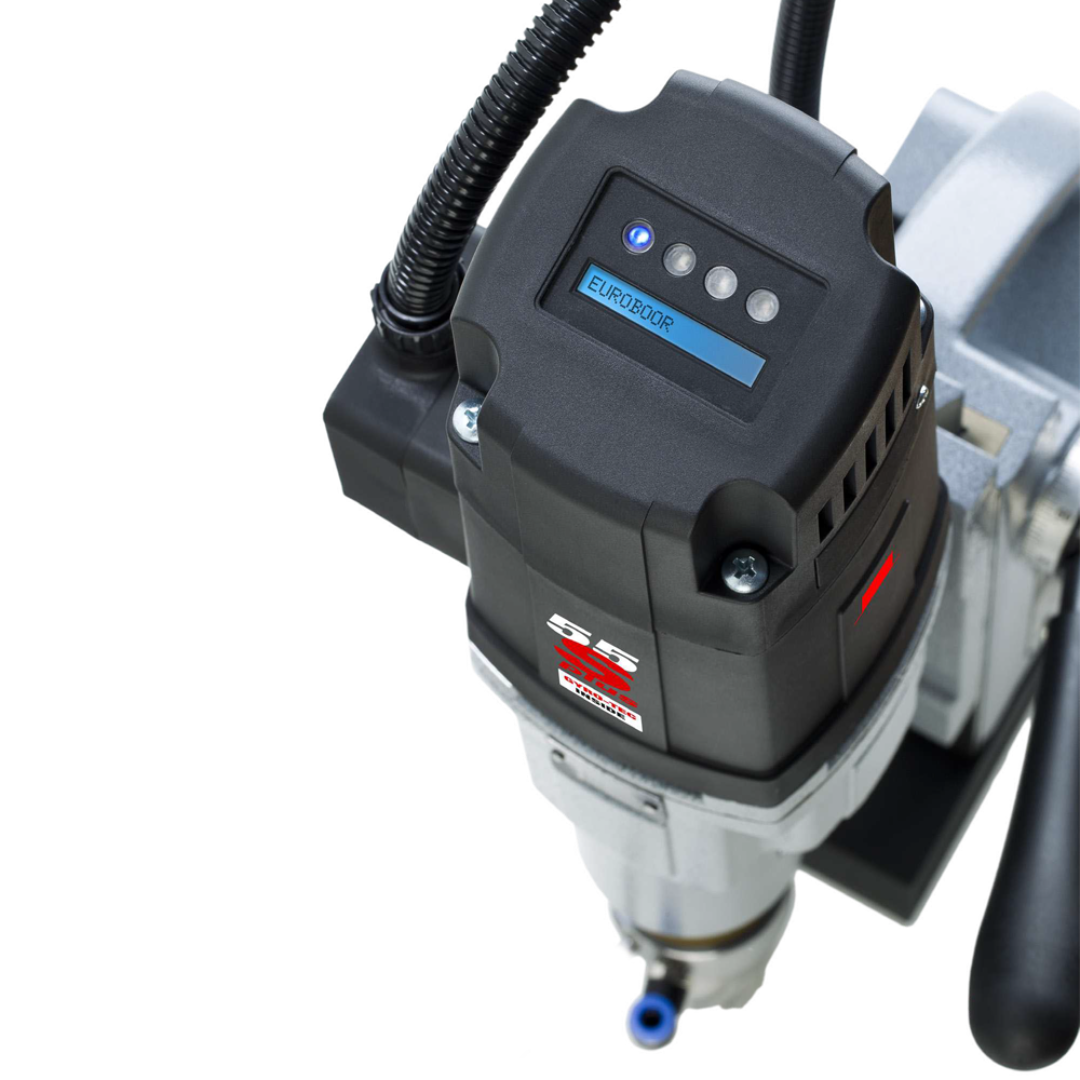

- Digital display with LED load indicators helps maintain optimal drilling pressure and power usage.
- Smart Restart technology prevents automatic restart after power interruptions, improving operator safety.
- Bidirectional rotation enables drilling, countersinking, and tapping operations.
- Electronic speed adjustment provides precise control for various drilling applications.
- Morse Taper 3 spindle with integrated cooling and lubrication improves cutting efficiency and tool longevity.
- High-precision capstan hub and integrated slide system deliver excellent drilling accuracy with minimal vibration.
- Strong CNC-machined dual-coil 2-way magnet reduces heat generation and energy consumption while maintaining powerful holding force.

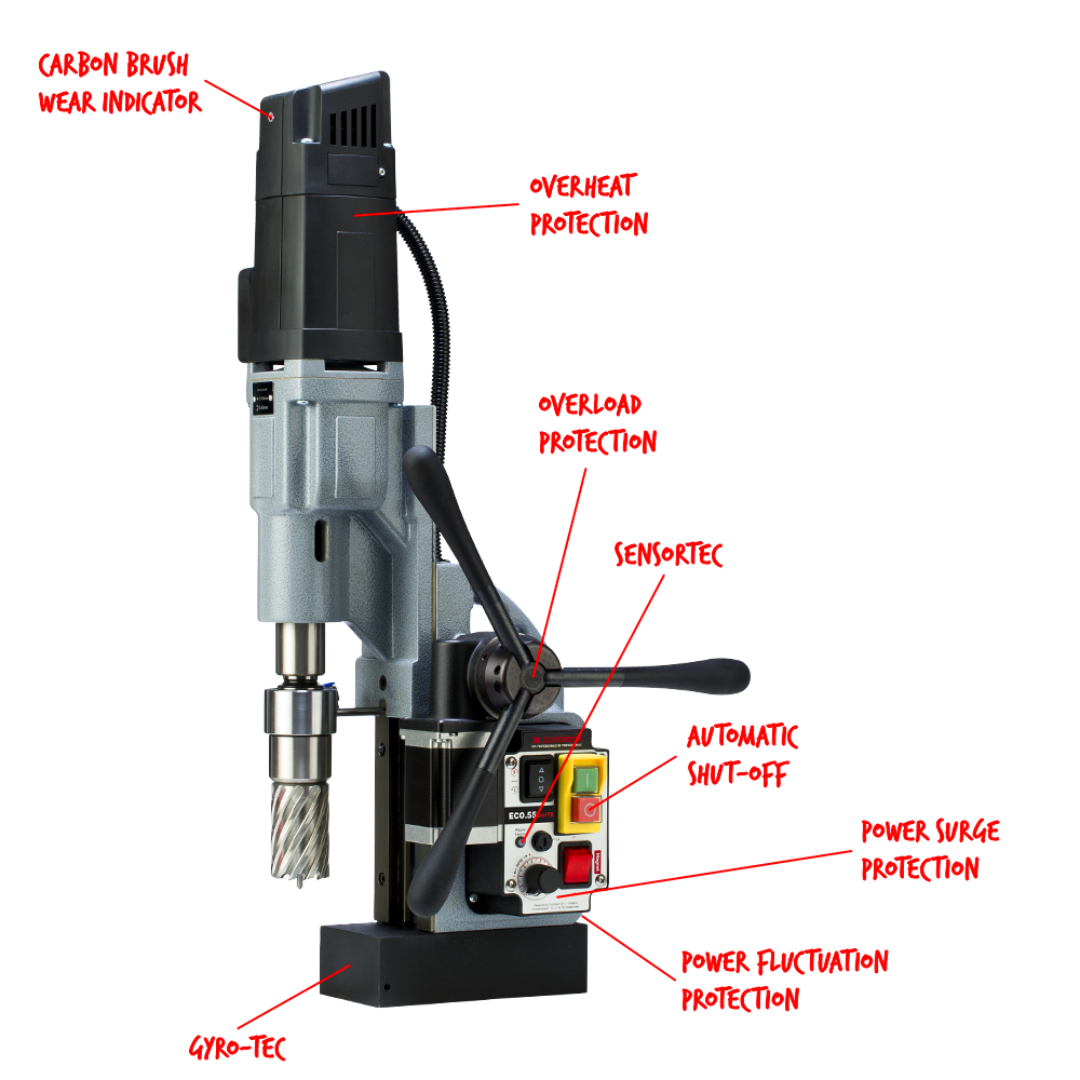

- GYRO-TEC safety system automatically shuts down the machine if excessive vibration or sudden displacement is detected.
- Overload, overheat, and power surge protection safeguard internal electronics and mechanical components.
- Easily accessible carbon brushes with automatic motor shut-off when replacement is required.
- High-precision height adjustment mechanism ensures low maintenance and minimal wear correction.
- Reliable electronics designed for use even in environments with unstable power supply conditions.
Euroboor ECO.55S+/TA Magnetic Drilling Machine Package Contents
- 1 × Carrying case
- 1 × Euroboor ECO.55S+/TA magnetic drilling machine
- 3 × Capstan hub handles
- 1 × Lubrication / cooling system
- 1 × MT3 spindle holder 19.05 mm (3/4") with cooling ring
- 1 × Drift key
- 4 × Tap holders (M10, M12, M14, M16)
- 4 × Allen keys (2.5 mm, 3 mm, 4 mm, 5 mm)

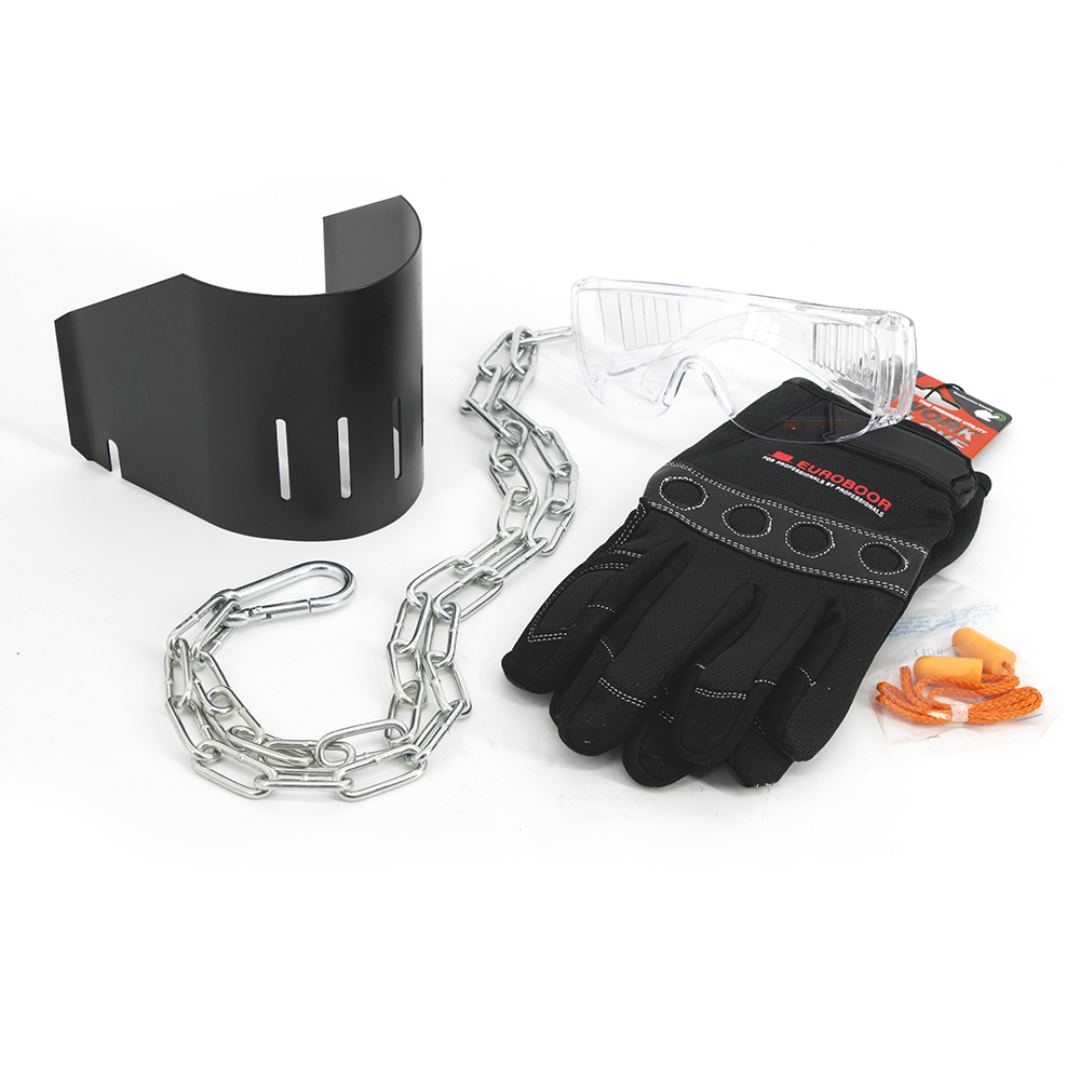

- 1 × Protection guard
- 1 × Safety chain
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor ECO.55S+/TA Magnetic Drilling Machine
- Automatic drilling feed dramatically improves productivity.
- Capable of drilling holes up to 2 3/16 inches in steel.
- Bidirectional rotation allows drilling and tapping operations.
- Digital load display helps maintain optimal cutting conditions.
- Powerful magnetic base ensures strong and stable attachment.
- Advanced safety electronics protect both operator and equipment.
- Designed for professional industrial and fabrication environments.
The Euroboor ECO.55S+/TA Magnetic Drilling Machine combines automatic drilling technology, precision engineering, and advanced safety systems to deliver one of the most efficient and reliable portable magnetic drilling solutions available for professional metalworking applications.
