Euroboor ECO.55S+/T Magnetic Drilling Machine Applications
- Structural steel fabrication and installation
- Industrial metalworking and heavy equipment manufacturing
- Bridge, shipbuilding, and construction projects
- Precision drilling, countersinking, and tapping operations
- Maintenance and repair work in fabrication shops and industrial facilities
Ideal for professional metalworking environments requiring precise drilling and threading with enhanced electronic safety systems.
Euroboor ECO.55S+/T Magnetic Drilling Machine Specifications
| Model | ECO.55S+/T |
|---|---|
| Machine Type | Magnetic Drilling Machine |
| Maximum Annular Cutter Diameter | 2 3/16" |
| Threading Capacity | M3 – M20 |
| Twist Drill Capacity | 1/16" – 15/16" |
| Countersinking Capacity | Up to 2 3/8" |
| Spindle | MT3 Morse Taper / 3/4" Weldon |
| Stroke | 6 11/16" |
| Rotation Direction | Bidirectional |
| No-Load Speed (Gear 1) | 60 – 275 RPM |
| No-Load Speed (Gear 2) | 100 – 500 RPM |
| Motor Power | 1,600 W |
| Total Power | 1,700 W |
| Magnetic Holding Force | 4,080 lbs |
| Power Supply Voltage | 110 – 120 Volt |
| Power Supply Frequency | 60 Hertz |
| Power Connection | Plug according to NEMA 5-15 |
| Machine Weight | 28.4 lbs |
Euroboor ECO.55S+/T Magnetic Drilling Machine Performance & Technology
- Two-Speed Oil-Lubricated Gearbox ensures efficient torque transfer, smooth drilling performance, and extended component lifespan.
- Digital Display with Load Indicator helps operators maintain the ideal working load, maximizing tool life and cutting performance.
- Smart Restart Technology automatically prevents unintended restart after power interruption, improving operational safety.
- Right / Left Rotating Function enables both drilling and tapping operations for greater versatility.
- Electronic Speed Adjustment allows precise speed control to match different materials and cutting tools.
- Morse Taper 3 Spindle with Integrated Cooling & Lubrication improves cutting efficiency and prolongs tool life.
- High-Accuracy Capstan Hub and Precision Slide System reduce vibration, increase drilling accuracy, and extend machine service life.
- Strong Dual-Coil CNC Machined 2-Way Magnet delivers powerful holding force while reducing heat generation and energy consumption.

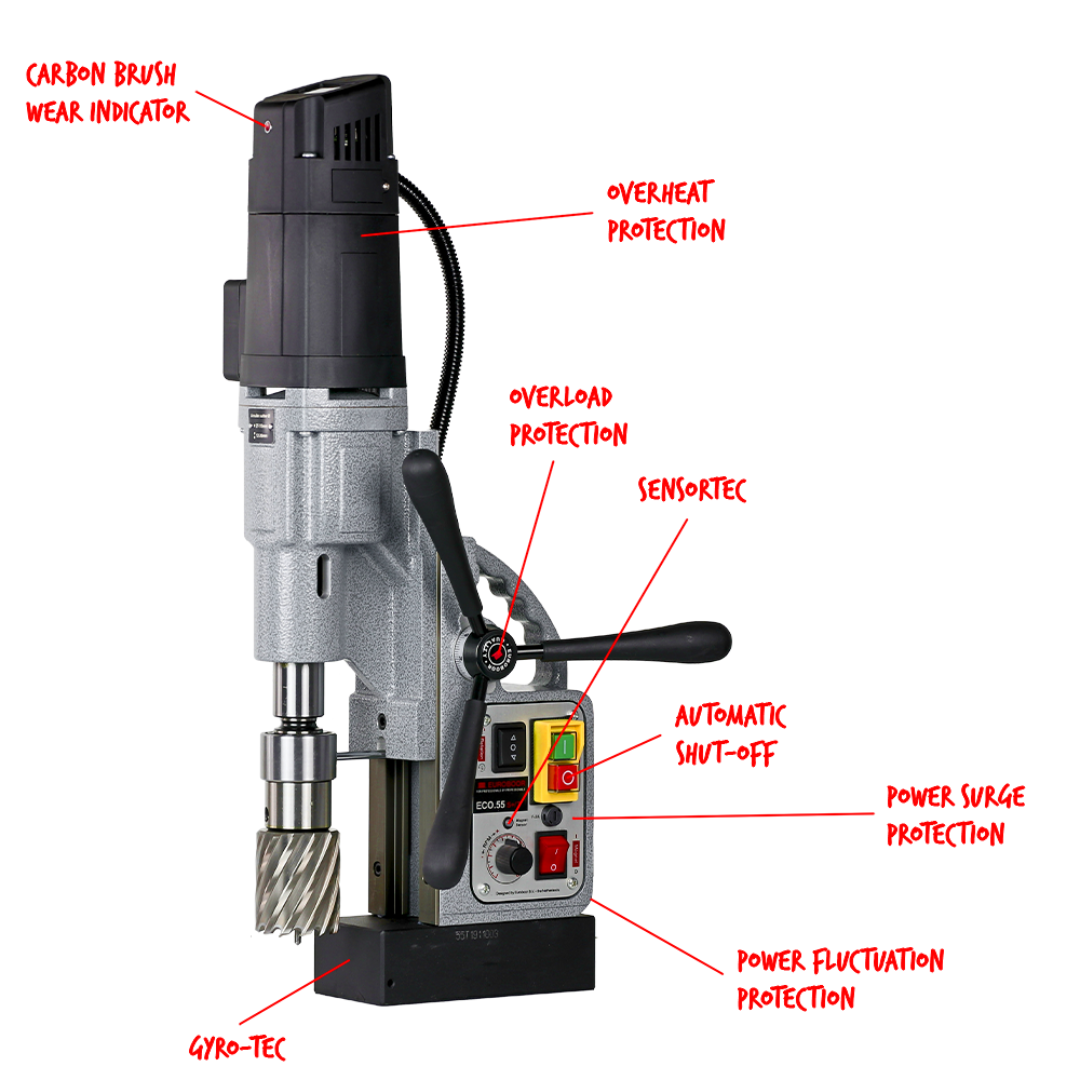

- Integrated Safety Electronics protect against overload, power fluctuation, and excessive vibration to safeguard both the machine and operator.
- Automatic Motor Shut-Off with Carbon Brush Indicator prevents armature damage when brush replacement is required.
- Designed for Challenging Power Environments ensuring stable performance even where power quality may fluctuate.
Euroboor ECO.55S+/T Magnetic Drilling Machine Package Contents
- 1 × Carrying case
- 1 × Euroboor ECO.55S+/T magnetic drilling machine
- 3 × Capstan hub handles
- 1 × Lubrication and cooling system
- 1 × MT3 spindle holder – 19.05 mm (3/4") with cooling/lubrication ring
- 1 × Drift key
- Tap holders (Weldon DIN 376): M10, M12, M14, M16
- Allen keys: 2.5 mm, 3 mm, 4 mm, 5 mm

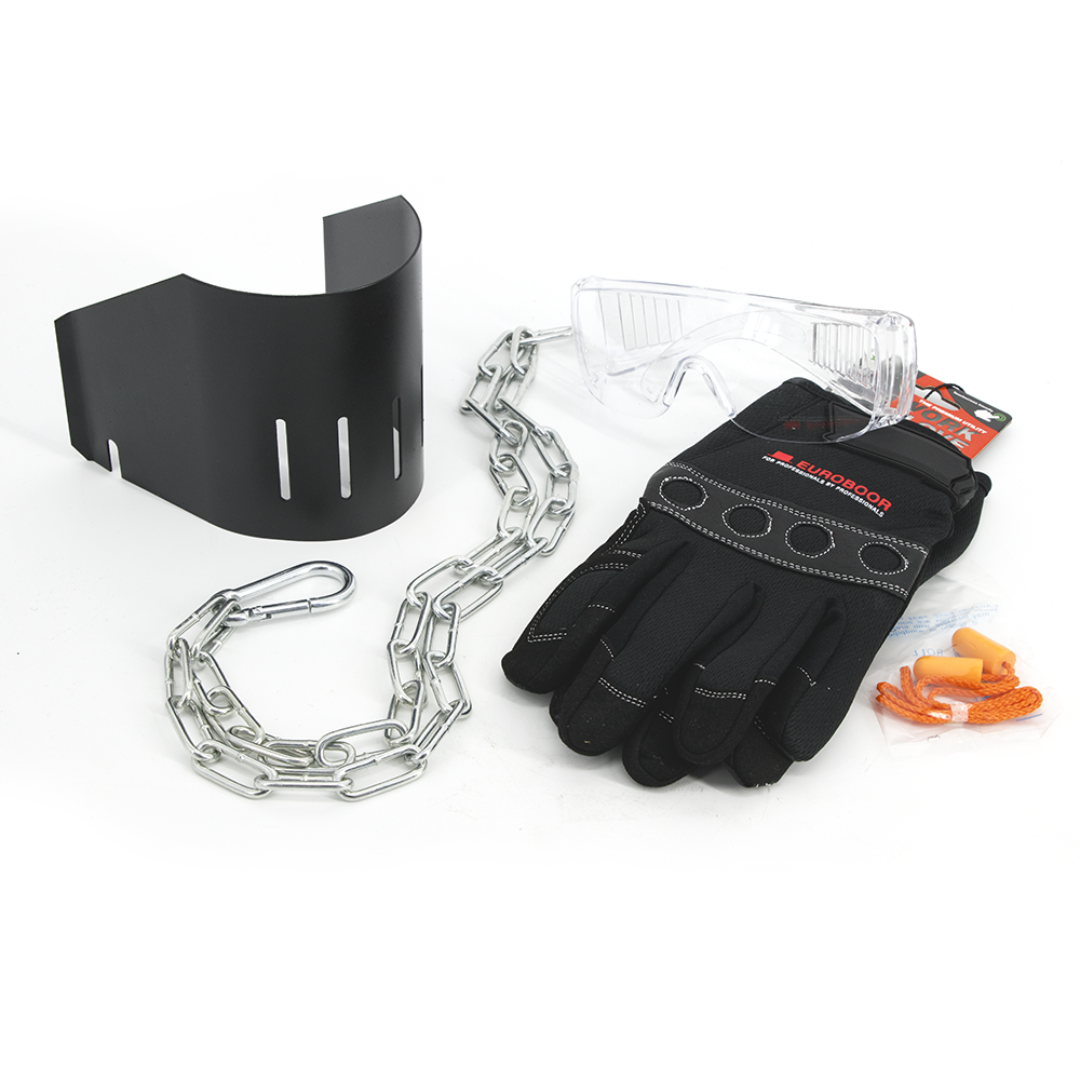

- 1 × Protection guard
- 1 × Safety chain
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor ECO.55S+/T Magnetic Drilling Machine
- High-capacity drilling up to 2 3/16" with powerful magnetic holding force
- Advanced electronics and Smart Restart technology for improved safety
- Precision tapping capability with right/left rotation
- Digital load monitoring for optimized drilling performance
- Industrial-grade design for fabrication, construction, and maintenance work
The Euroboor ECO.55S+/T Magnetic Drilling Machine delivers professional drilling and tapping performance with intelligent safety systems, making it a powerful and reliable solution for demanding metalworking environments.
