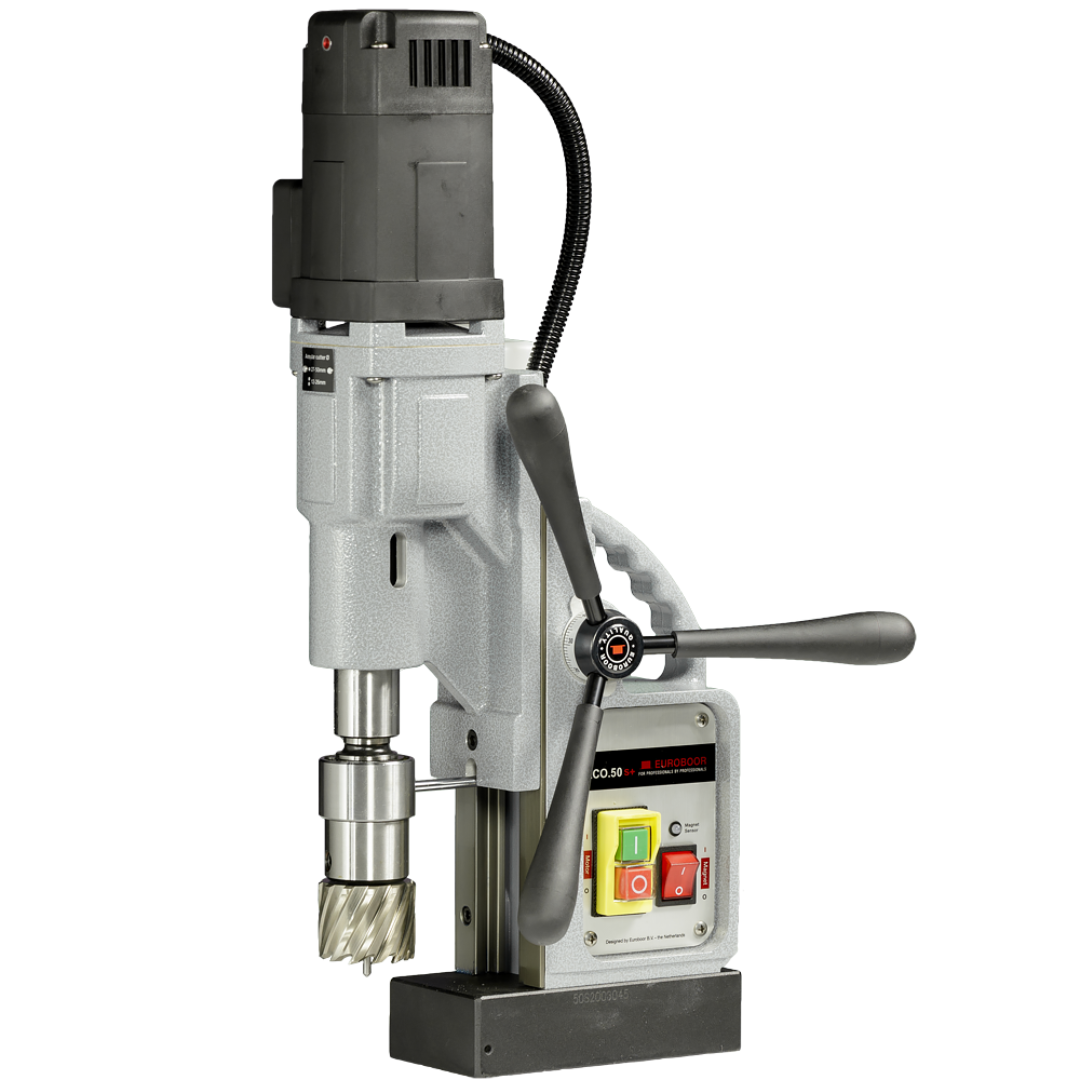

Euroboor ECO.50S+ Magnetic Drilling Machine Applications
- Structural steel fabrication and bridge construction projects
- Industrial manufacturing plants and metalworking workshops
- Heavy equipment maintenance and repair operations
- Shipbuilding, rail infrastructure, and industrial construction
- Precision annular drilling and countersinking in structural steel plates and beams
- On-site drilling applications where portable magnetic drilling equipment is required
Designed for professionals who require powerful drilling capacity, precise hole alignment, and reliable magnetic adhesion in demanding steel fabrication environments.
Euroboor ECO.50S+ Magnetic Drilling Machine Specifications
| Model | ECO.50S+ |
|---|---|
| Maximum Annular Cutter Diameter | 2 in |
| Annular Cutter Range | 1/2 in – 2 in |
| Twist Drill Capacity | 1/16 in – 15/16 in |
| Countersinking Capacity | 3/8 in – 2 3/16 in |
| Stroke | 6 11/16 in |
| Spindle Type | MT3 Morse Taper with 3/4 in Weldon adapter |
| Rotation Direction | Clockwise |
| No-Load Speed Gear 1 | 380 RPM |
| Load Speed Gear 1 | 235 RPM |
| No-Load Speed Gear 2 | 690 RPM |
| Load Speed Gear 2 | 425 RPM |
| Magnetic Force | 3,750 lb |
| Magnet Dimensions (L × W × H) | 6 5/16 in × 3 1/8 in × 1 5/8 in |
| Machine Height | 17 1/2 in – 24 3/16 in |
| Machine Length | 12 5/8 in |
| Machine Width | 7 7/8 in |
| Net Weight | 26.5 lb |
| Motor Power | 11.4 Amp |
| Total Power Consumption | 11.8 Amp |
| Voltage | 110 – 120 Volt |
| Power Supply Frequency | 60 Hertz |
| Power Connection | NEMA 5-15 Plug |
| Power Supply Type | AC Electric |
| Gearbox Lubrication | Oil Lubricated |
Euroboor ECO.50S+ Magnetic Drilling Machine Performance & Safety Features

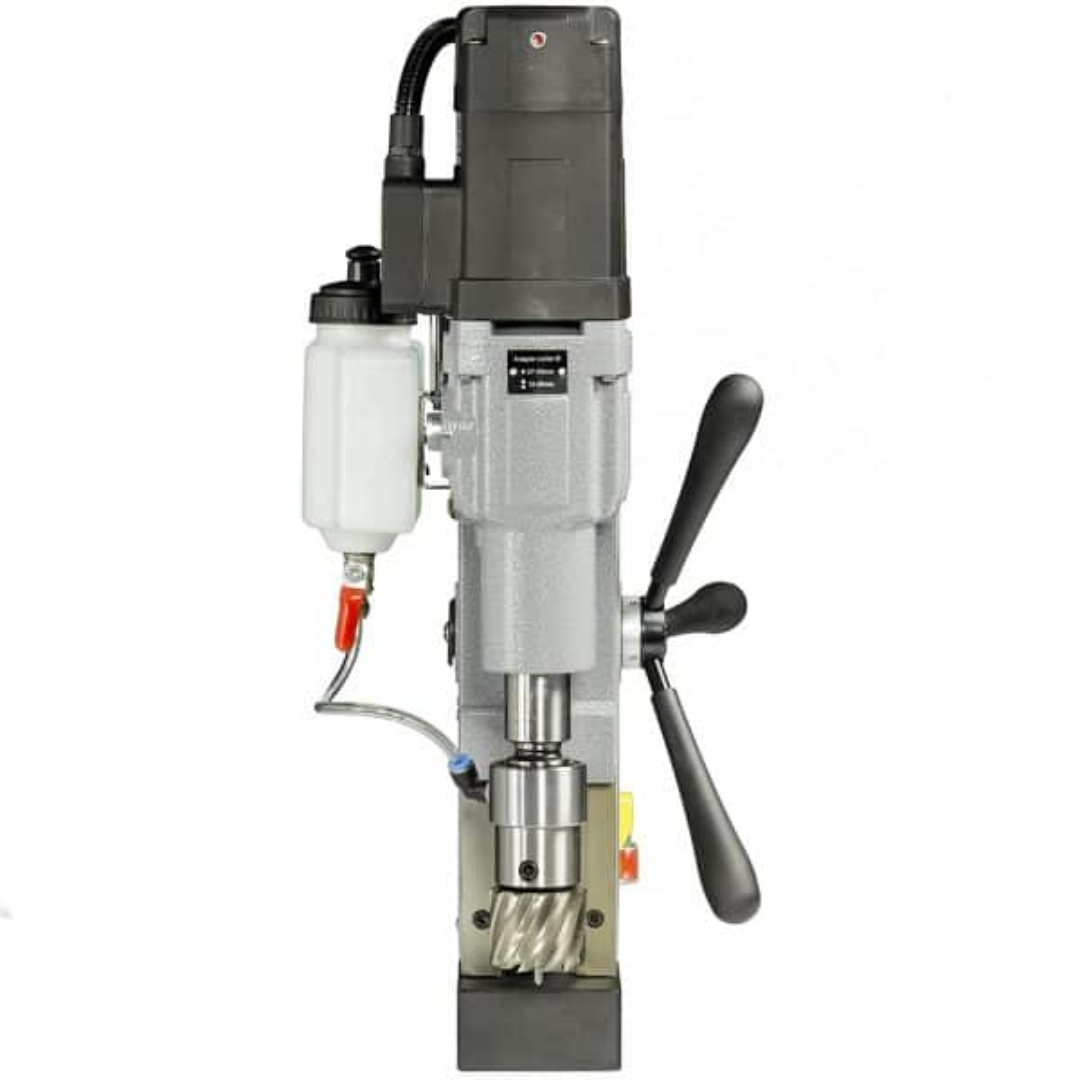

- Two-Speed Oil Lubricated Gearbox efficiently converts motor power into optimized drilling torque for improved efficiency and longer component lifespan.
- Morse Taper 3 Spindle System with integrated cooling and lubrication allows the use of a wide range of drilling tools while ensuring accurate and stable cutting.

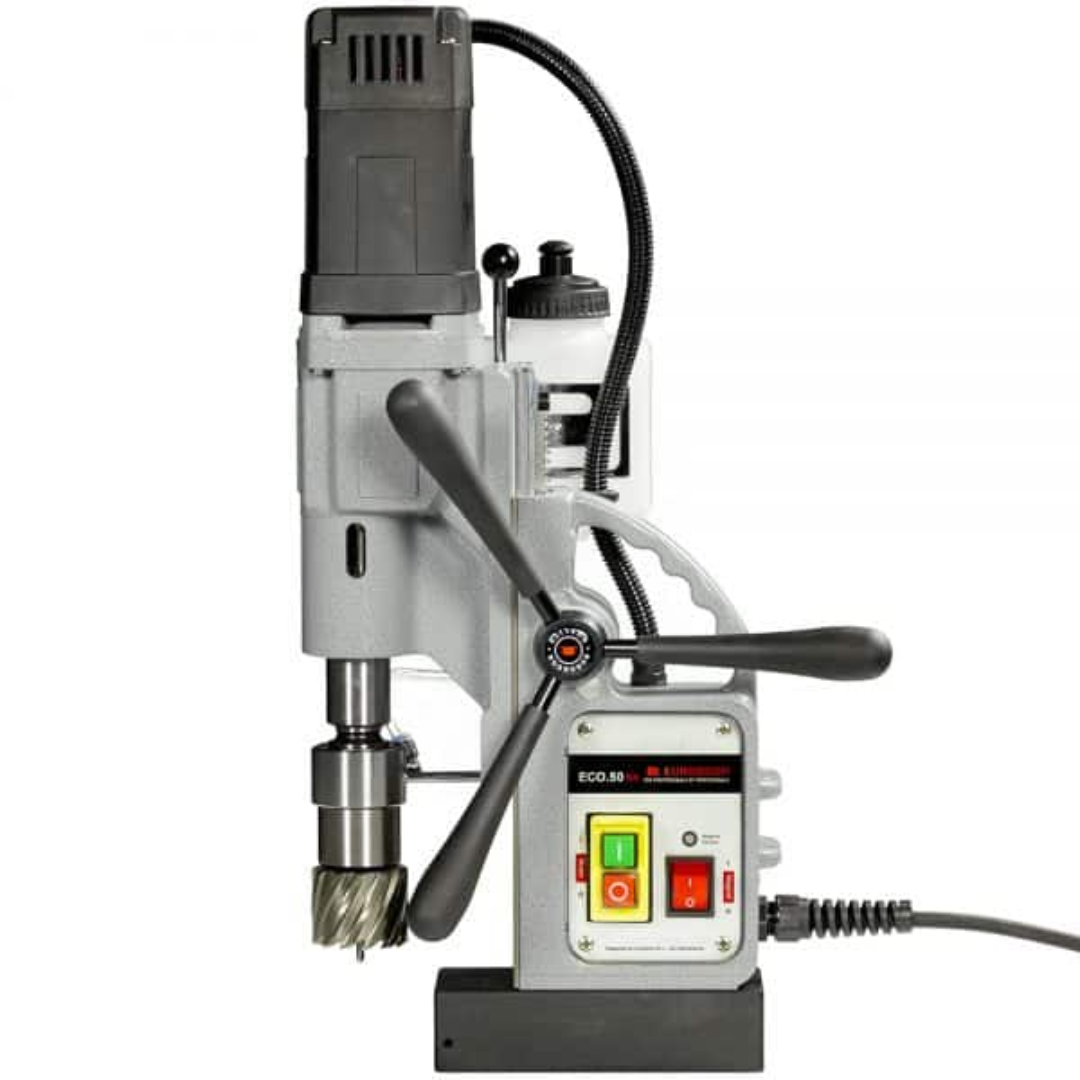

- High-Accuracy Capstan Hub provides precise drilling feed control for improved hole quality and operator control.
- Integrated Slide System enhances drilling accuracy, reduces vibration, and increases the overall lifecycle of the machine.
- Precision Height Adjustment allows accurate positioning while minimizing wear and maintenance requirements.
- Dual Coil CNC-Machined 2-Way Magnet delivers strong magnetic adhesion while using less energy and generating less heat.
- Advanced Electronic Protection Systems reduce the risk of machine damage, tool breakage, and workpiece errors during drilling operations.
- Overheat Protection and Power Monitoring help protect internal components and maintain stable operation in demanding jobsite conditions.
- Service Notification System alerts operators when maintenance is required, preventing unexpected downtime and unnecessary part replacement.
Euroboor ECO.50S+ Magnetic Drilling Machine Package Contents
- 1 × Carrying case
- 1 × Euroboor ECO.50S+ Magnetic Drilling Machine
- 3 × Capstan hub handles
- 1 × Lubrication / cooling system
- 1 × Spindle holder MT3 – 19.05 (3/4") including cooling/lubrication ring (IMC.30/19-N)
- 1 × Drift key
- 1 × Allen key 2.5 mm (3/32")
- 1 × Allen key 4 mm (5/32")
- 1 × Allen key 5 mm (13/64")

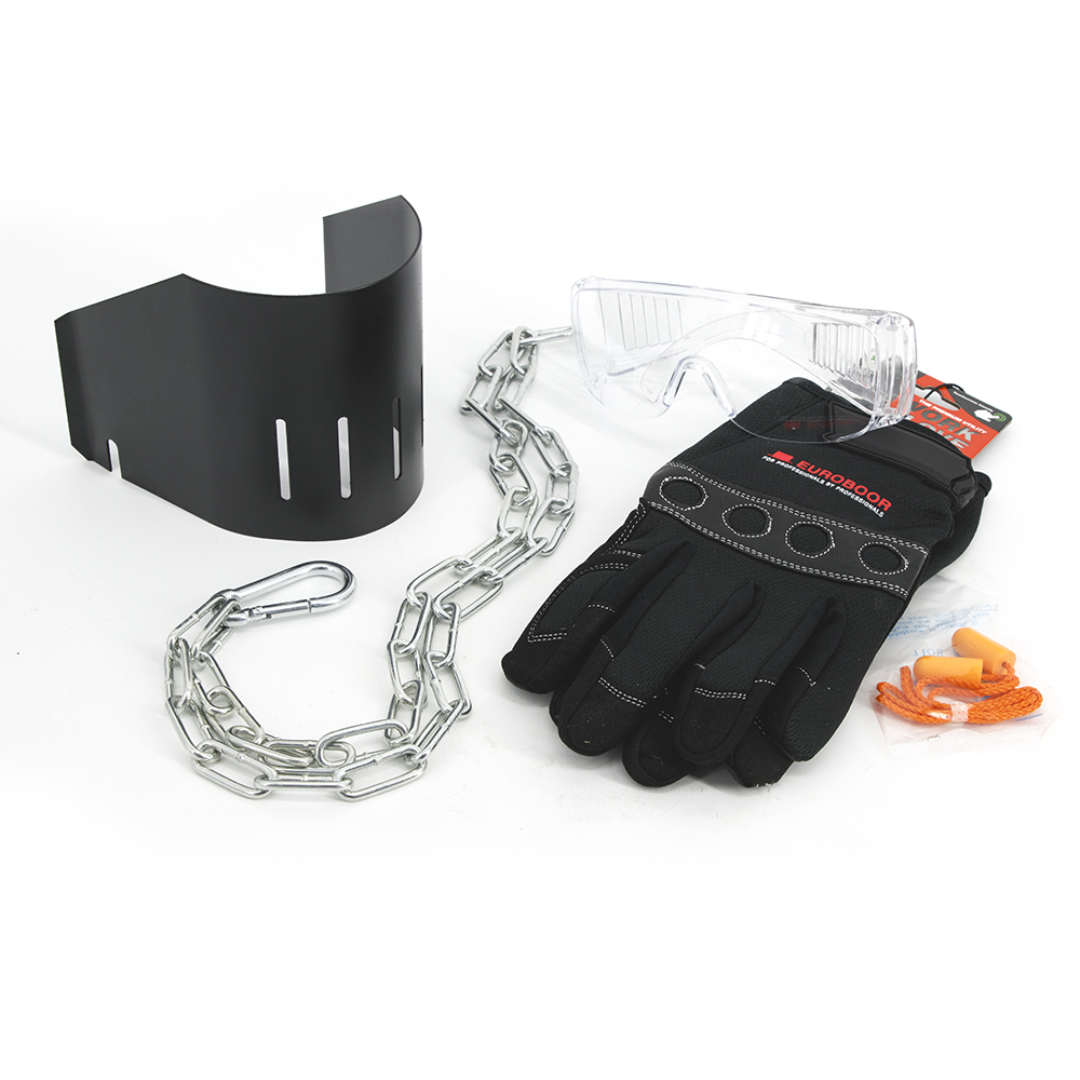

- 1 × Protection guard
- 1 × Safety chain
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor ECO.50S+ Magnetic Drilling Machine
- Powerful drilling capacity up to 2 inch with annular cutters.
- Two-speed gearbox for optimized torque and drilling performance.
- High-precision drilling with Morse Taper 3 spindle system.
- Advanced electronics reduce vibration and protect machine components.
- Strong CNC-machined magnet ensures stable drilling on steel surfaces.
The Euroboor ECO.50S+ Magnetic Drilling Machine delivers the perfect combination of power, precision, and safety for professional steel drilling applications. Built for demanding industrial environments, this portable magnetic drilling machine offers long service life, high drilling accuracy, and reliable performance for fabrication shops and jobsite professionals.
