Euroboor ECO.50S Magnetic Drilling Machine Applications
- Structural steel construction and bridge repair projects
- Steel fabrication shops and industrial manufacturing facilities
- Vertical and overhead drilling in heavy steel structures
- Shipbuilding, rail infrastructure, and heavy equipment maintenance
- Industrial maintenance and field drilling operations
- Precision annular drilling and countersinking in structural steel plates and beams
Engineered for professionals who require reliable magnetic adhesion, high drilling precision, and advanced safety features in demanding metalworking environments.
Euroboor ECO.50S Magnetic Drilling Machine Specifications
| Model | ECO.50S |
|---|---|
| Maximum Annular Cutter Diameter | 1 9/16 in |
| Annular Cutter Range | 7/16 in – 1 9/16 in |
| Twist Drill Capacity | 1/16 in – 5/8 in |
| Countersinking Capacity | 3/8 in – 1 3/4 in |
| Stroke | 5 7/8 in |
| Spindle Connection | 3/4 in Weldon |
| Rotation Direction | Clockwise |
| No-Load Speed | 600 RPM |
| Load Speed | 380 RPM |
| Magnetic Force | 1,984 lb |
| Magnet Dimensions (L × W × H) | 7 3/16 in × 3 3/4 in × 1 3/4 in |
| Machine Height | 12 3/16 in – 18 1/8 in |
| Machine Width | 7 1/16 in |
| Machine Length | 7 1/16 in |
| Net Weight | 27.1 lb |
| Motor Power | 10.5 Amp |
| Total Power Consumption | 10.5 Amp |
| Voltage | 110 – 120 Volt |
| Power Supply Frequency | 50 – 60 Hertz |
| Power Connection | NEMA 5-15 Plug |
| Power Supply Type | AC Electric |
| Gearbox Lubrication | Oil Lubricated |
Euroboor ECO.50S Magnetic Drilling Machine Safety & Performance Features
- Permanent Magnet Technology ensures continuous magnetic adhesion even if electrical power is lost during drilling operations.
- Gyro-Tec Safety System uses an integrated gyroscopic sensor that detects sudden movement and automatically shuts down the motor to protect the operator.
- Automatic Shut-Off Protection prevents internal damage when carbon brushes reach their wear limit.
- Carbon Brush Wear Indicator LED system alerts operators when maintenance is required.

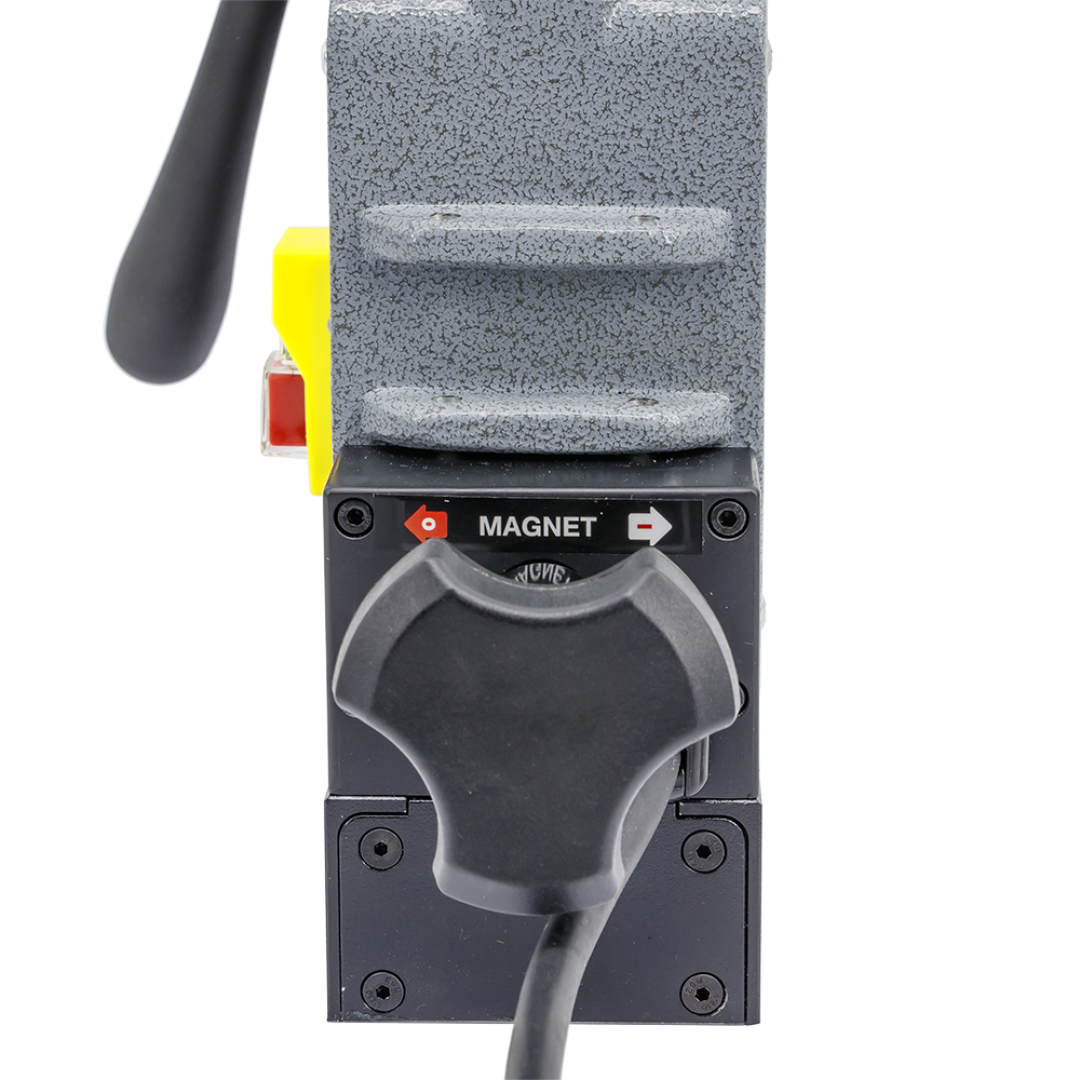

- Integrated Motor Cable Design reduces the risk of cable damage and improves jobsite durability.

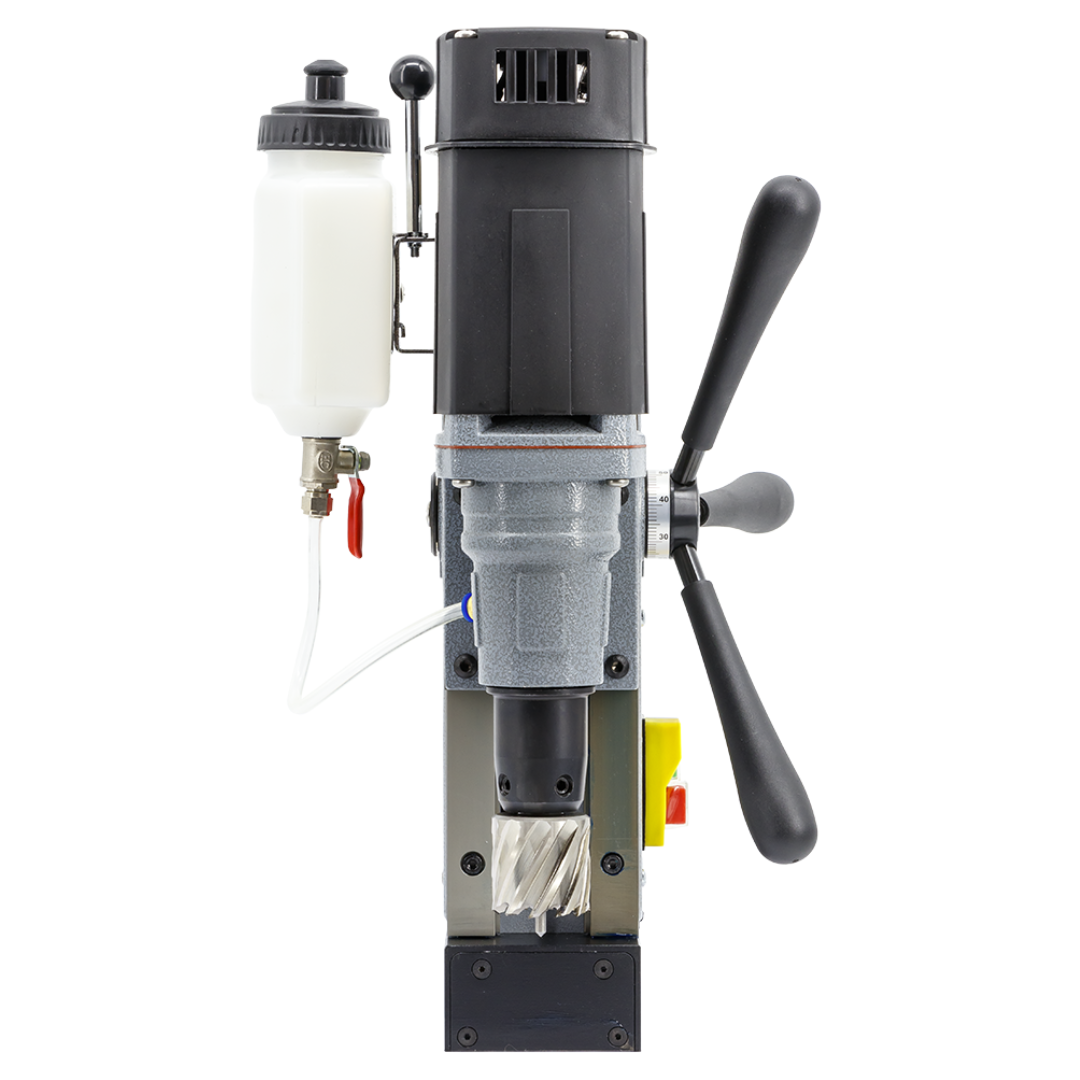

- Oil-Lubricated Gearbox ensures smooth mechanical performance and long service life under heavy drilling workloads.
- Power Fluctuation Protection shields the machine from unstable electrical supply.
- Power Surge Protection protects internal electronics from voltage spikes.

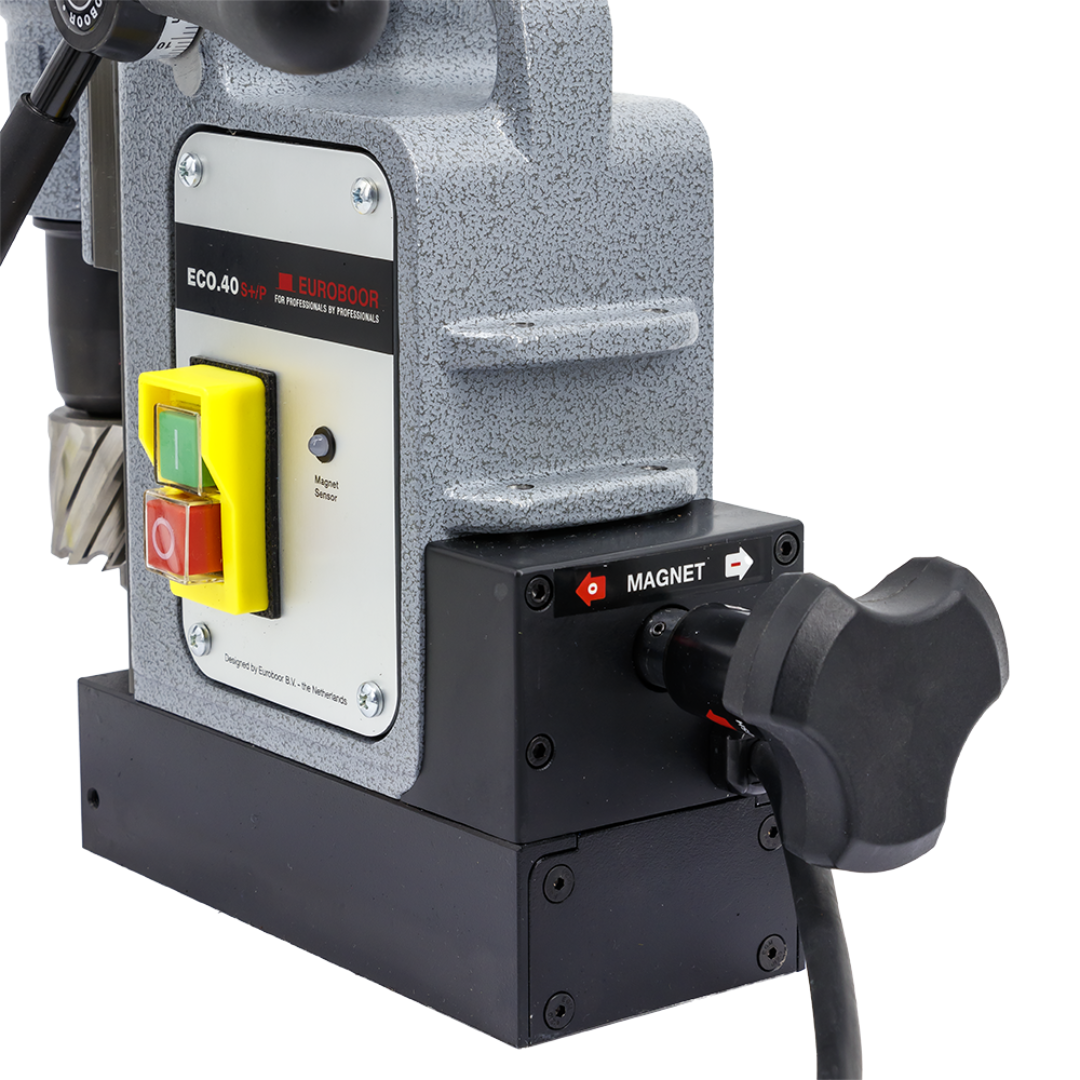

- SensorTec Magnet LED Indicator clearly displays magnet activation status to enhance operational safety.

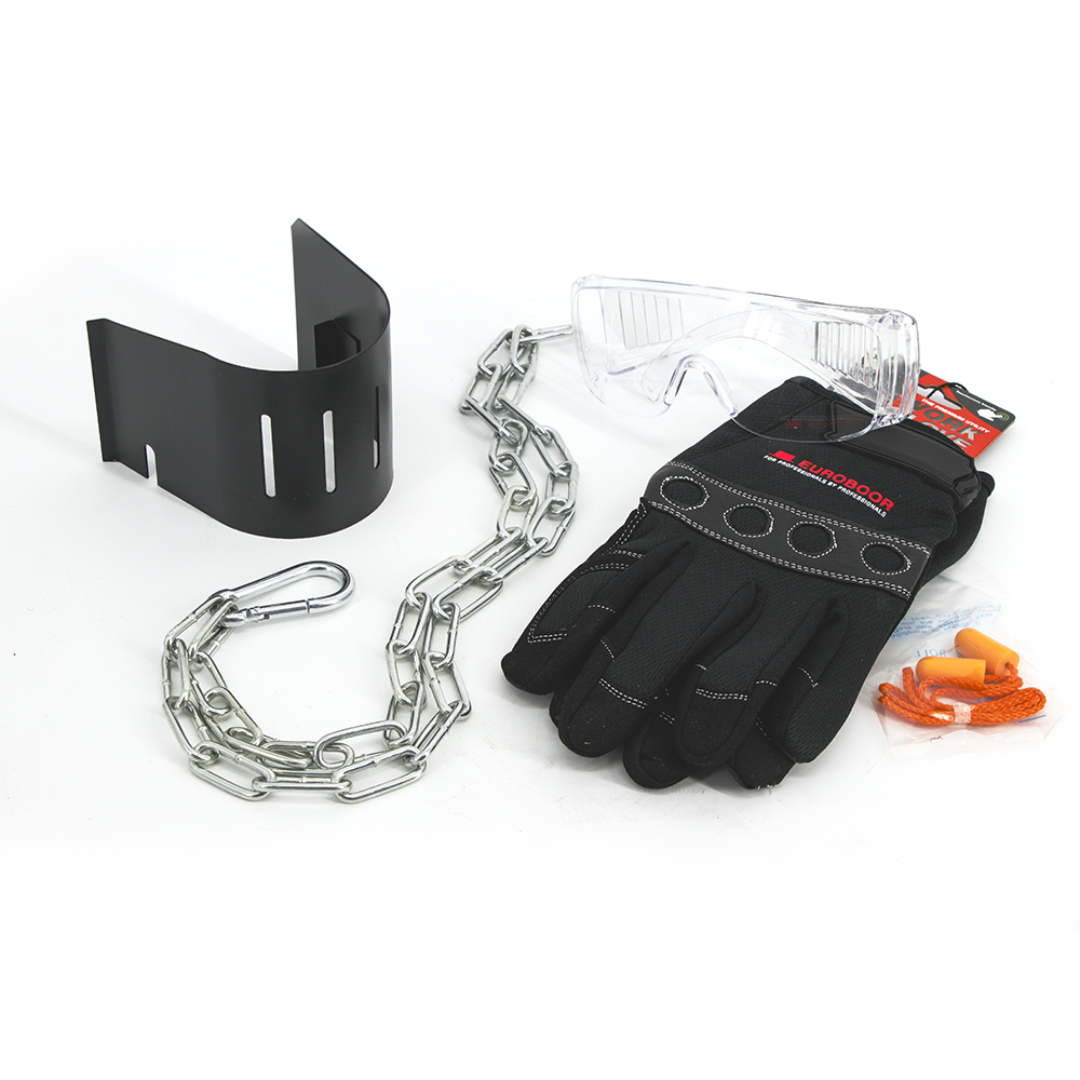

Euroboor ECO.50S Magnetic Drilling Machine Package Contents
- 1 × Carrying case
- 1 × Euroboor ECO.50S Magnetic Drilling Machine
- 3 × Capstan hub handles
- 1 × Lubrication / cooling system
- 1 × Protection guard
- 1 × Safety chain
- 1 × Allen key 2.5 mm (3/32")
- 1 × Allen key 3 mm (1/8")
- 1 × Allen key 4 mm (5/32")
- 1 × Allen key 5 mm (13/64")
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor ECO.50S Magnetic Drilling Machine
- Permanent magnet system improves safety during vertical and overhead drilling.
- Advanced Gyro-Tec safety technology protects operators from unexpected movement.
- Compact and portable design for on-site structural drilling applications.
- Oil-lubricated gearbox ensures durability and consistent drilling performance.
- Professional-grade magnetic drilling machine built for demanding steel fabrication work.
The Euroboor ECO.50S Magnetic Drilling Machine combines powerful drilling performance, permanent magnetic stability, and advanced safety technologies. Designed for professionals who require reliability and precision, this industrial magnetic drill delivers dependable results in fabrication shops, construction sites, and heavy-duty metalworking environments.
