Euroboor ECO.40S+/M Magnetic Drilling Machine Applications
- Bridge construction, repair, and structural steel renovation projects
- Steel fabrication shops and metalworking facilities
- Industrial maintenance and on-site structural drilling operations
- Shipbuilding, rail infrastructure, and heavy equipment repair
- Construction environments requiring vertical or overhead magnetic drilling
- Precision drilling and countersinking in thick steel structures
Designed for demanding environments where strong magnetic adhesion and reliable drilling performance are essential for safe and accurate steel fabrication work.

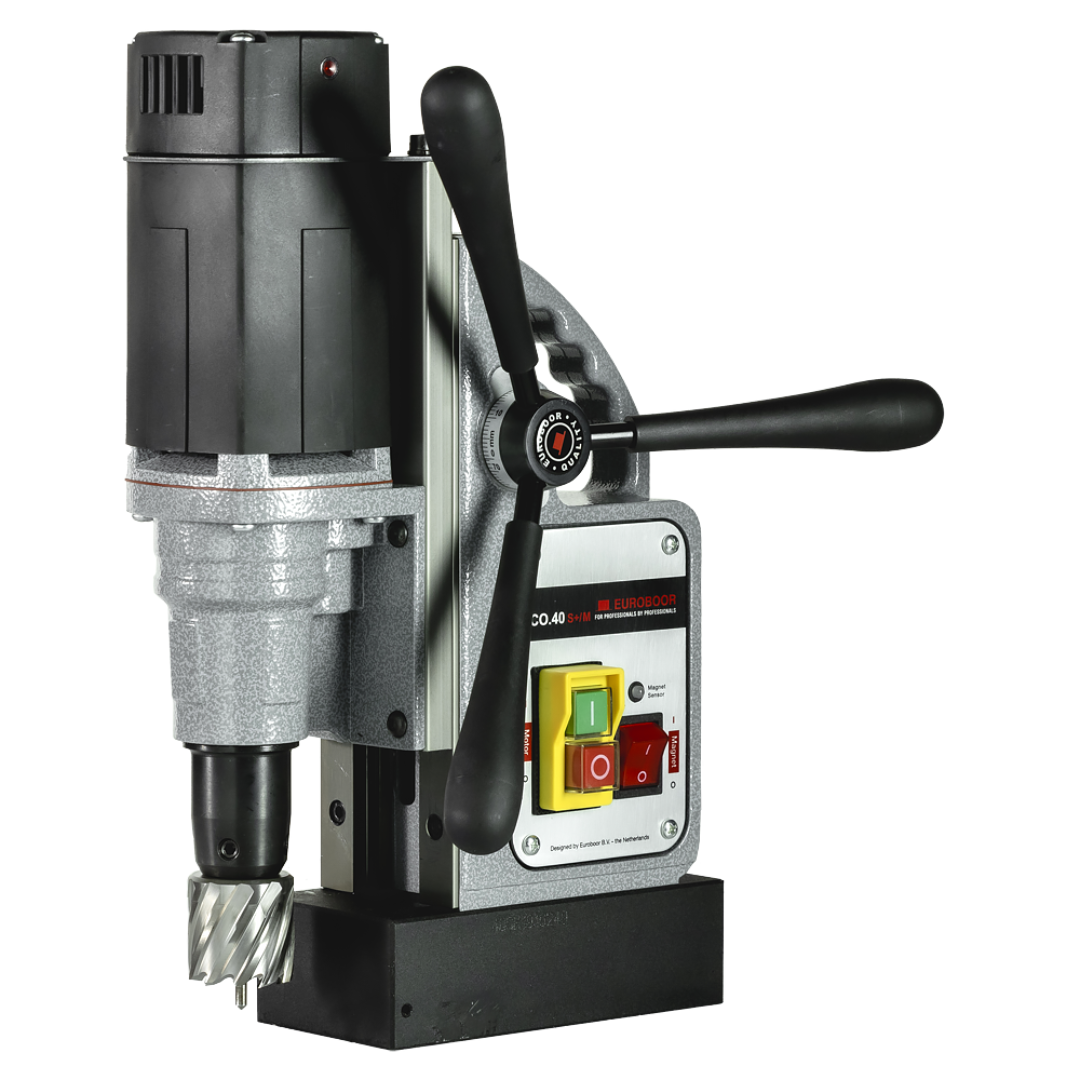

Euroboor ECO.40S+/M Magnetic Drilling Machine Specifications
| Model | ECO.40S+/M |
|---|---|
| Maximum Annular Cutter Diameter | 1 9/16 in |
| Annular Cutter Range | 7/16 in – 1 9/16 in |
| Twist Drill Capacity | 1/16 in – 5/8 in |
| Countersinking Capacity | 3/8 in – 1 3/4 in |
| Stroke | 5 11/16 in |
| Spindle Connection | 3/4 in Weldon |
| Rotation Direction | Clockwise |
| No-Load Speed | 600 RPM |
| Load Speed | 380 RPM |
| Magnetic Force | 4,079 lb |
| Magnet Dimensions (L × W × H) | 6 5/8 in × 3 1/16 in × 1 15/16 in |
| Machine Length | 10 3/8 in |
| Machine Width | 7 1/16 in |
| Machine Height | 14 7/16 in – 17 5/8 in |
| Net Weight | 26.9 lb |
| Motor Power | 10.5 Amp |
| Total Power Consumption | 10.9 Amp |
| Voltage | 110 – 120 Volt |
| Power Supply Frequency | 60 Hertz |
| Power Connection | NEMA 5-15 Plug |
| Power Supply Type | AC Electric |
| Gearbox Lubrication | Oil-Lubricated |
Euroboor ECO.40S+/M Magnetic Drilling Machine Features & Safety Technology

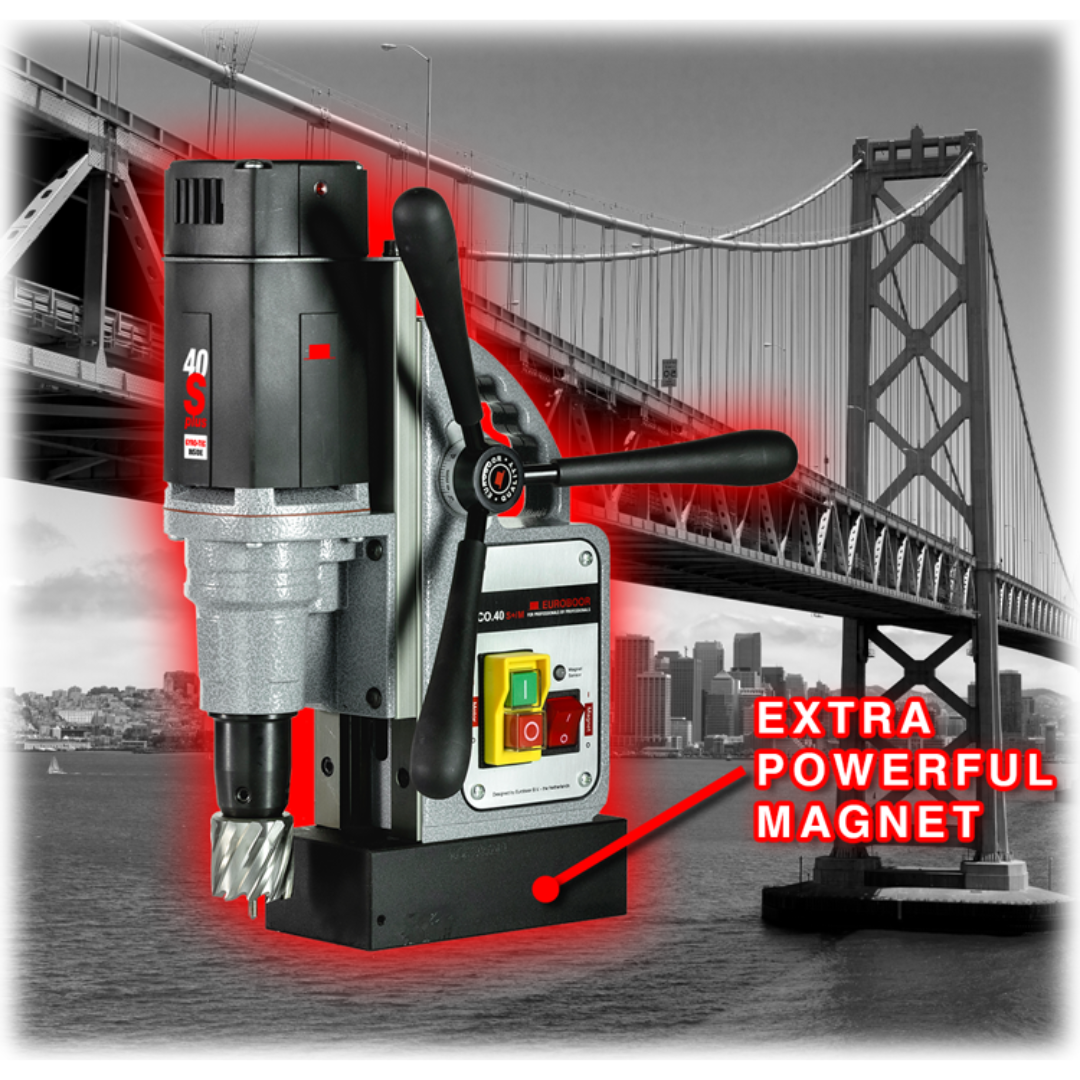

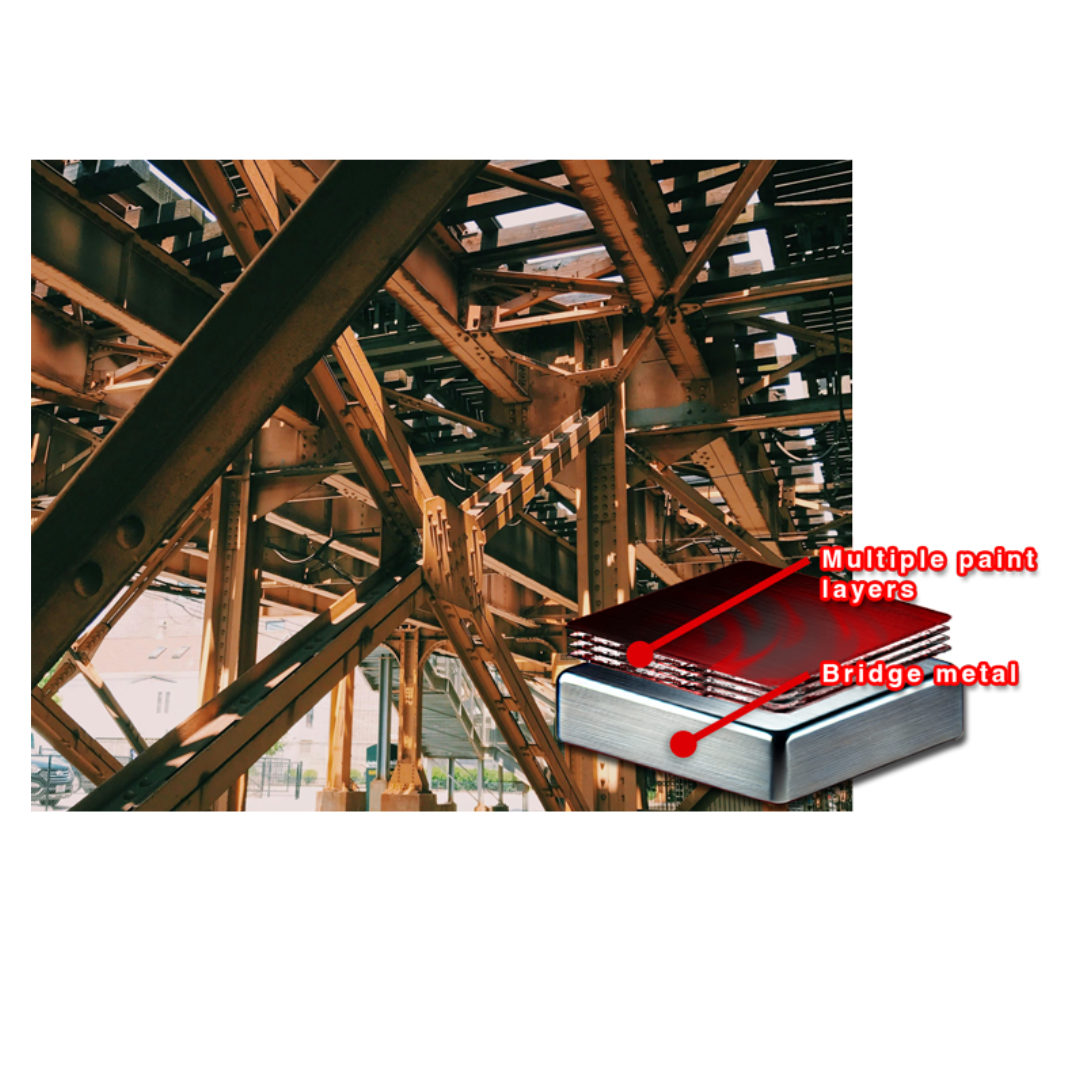

- High-strength industrial magnet delivers up to 4,079 lb of magnetic holding force, ensuring stable drilling even on uneven, painted, or corroded steel surfaces.
- Gyro-Tec safety technology automatically shuts down the machine when sudden movement or instability is detected, reducing the risk of accidents during operation.
- Automatic shut-off protection helps prevent unsafe operation if drilling conditions become unstable.
- Integrated motor cable design eliminates exposed wiring, reducing the risk of cable damage during transport or repositioning on the jobsite.
- Oil-lubricated gearbox ensures smooth mechanical performance, reduced wear, and extended service life under heavy workloads.
- Power fluctuation protection helps maintain consistent motor performance in environments where electrical supply may vary.
- Carbon brush wear indicator alerts operators when maintenance is required, minimizing unexpected downtime.
- Magnet LED indicator clearly displays magnetic activation status to enhance operator awareness and safety.
- Compact lightweight construction at only 26.9 lb, making the machine easier to transport and position on structural steel components.

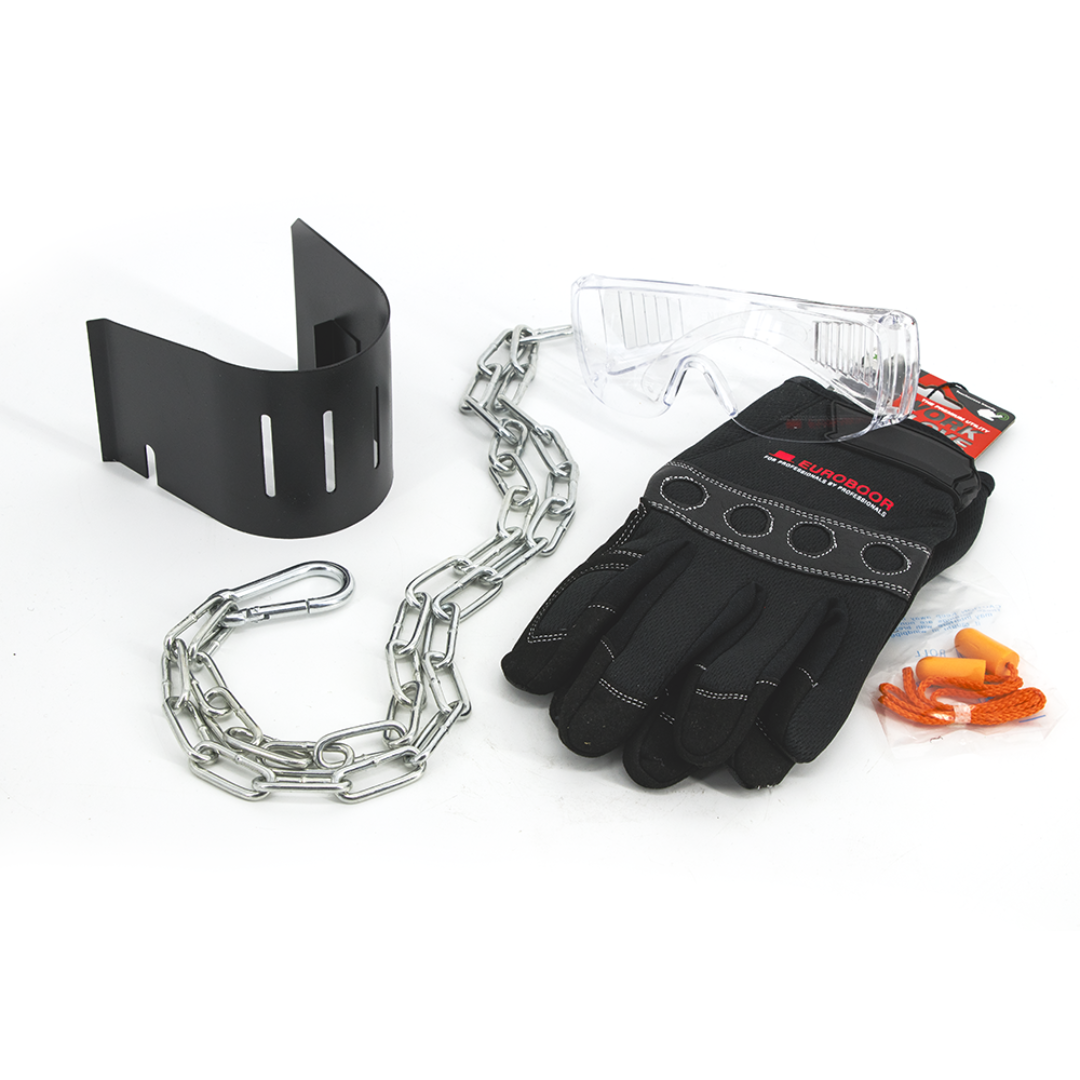

Euroboor ECO.40S+/M Magnetic Drilling Machine Package Contents
- 1 × Carrying case
- 1 × Euroboor ECO.40S+/M Magnetic Drilling Machine
- 3 × Capstan hub handles
- 1 × Lubrication / cooling system
- 1 × Protection guard
- 1 × Safety chain
- 1 × Allen key 2.5 mm (3/32")
- 1 × Allen key 3 mm (1/8")
- 1 × Allen key 4 mm (5/32")
- 1 × Allen key 5 mm (13/64")
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor ECO.40S+/M Magnetic Drilling Machine
- Powerful magnetic base designed for difficult steel surfaces.
- Compact and lightweight design ideal for on-site drilling work.
- Advanced Gyro-Tec safety system improves operational safety.
- Reliable oil-lubricated gearbox for long-term durability.
- Professional drilling performance for fabrication and construction industries.
The Euroboor ECO.40S+/M Magnetic Drilling Machine combines power, portability, and advanced safety technologies into a professional drilling system built for demanding structural steel applications. Whether working on bridges, construction sites, or fabrication projects, this magnetic drilling machine delivers the reliability and precision professionals require.
