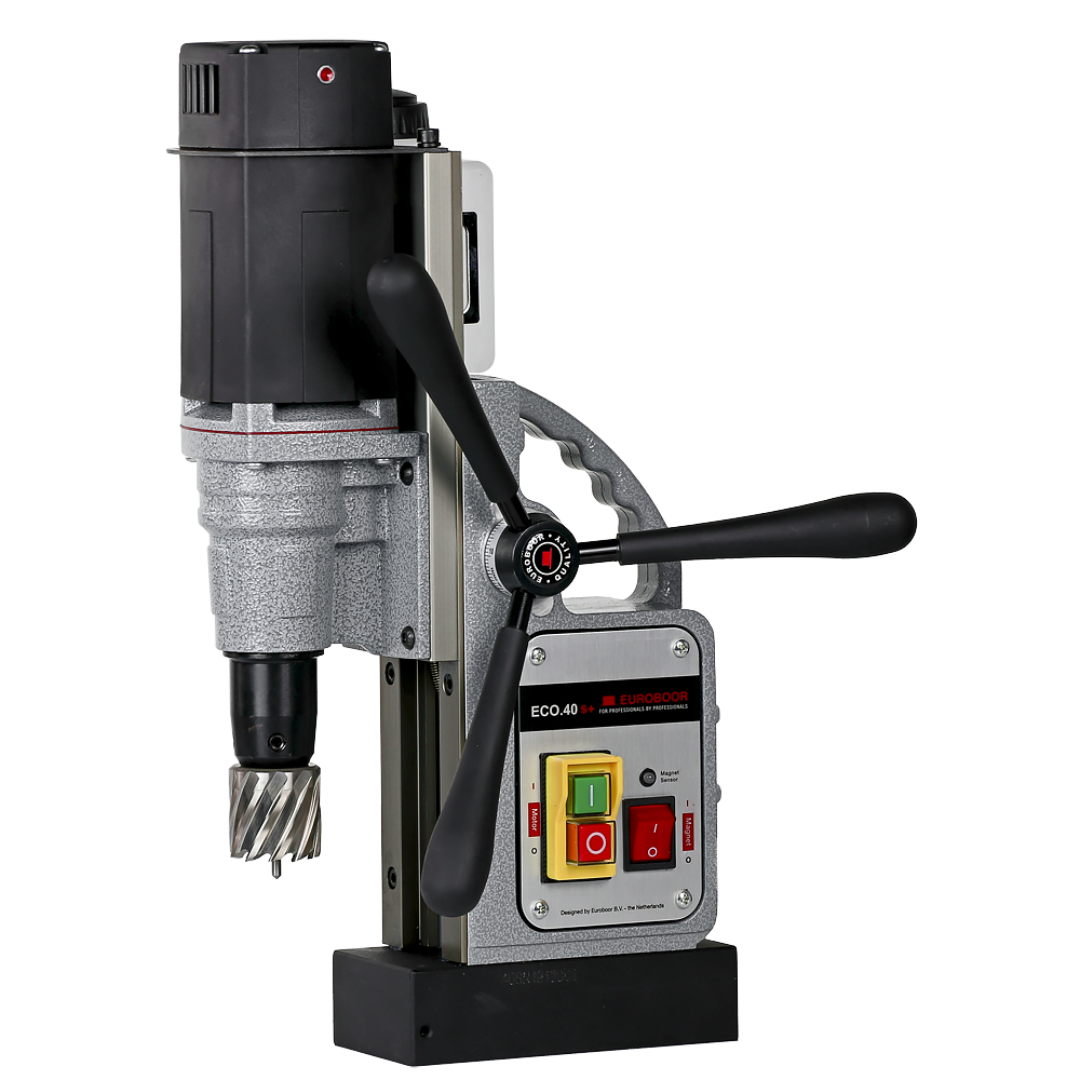

Euroboor ECO.40S+/IC Magnetic Drilling Machine Applications
- Structural steel fabrication and installation
- On-site drilling in beams, plates, and profiles
- Bridge construction and maintenance
- Industrial manufacturing and repair workshops
- Precision drilling and countersinking operations
With its compact footprint and strong 3,305 lbs magnetic force, the Euroboor ECO.40S+/IC Magnetic Drilling Machine ensures secure clamping and accurate drilling even in vertical and overhead applications.
Euroboor ECO.40S+/IC Magnetic Drilling Machine Specifications
| Maximum Annular Cutter Diameter | 1 9/16" (40 mm) |
|---|---|
| Minimum Annular Cutter Diameter | 7/16" |
| Maximum Twist Drill Diameter | 5/8" |
| Maximum Countersinking Diameter | 1 3/4" |
| Stroke | 5 11/16" |
| No-Load Speed | 600 RPM |
| Load Speed | 380 RPM |
| Spindle Connection | 3/4" Weldon |
| Rotation Direction | Clockwise |
| Magnetic Force | 3,305 lbs |
| Power Supply Tension | 110 – 120 Volt |
| Power Supply Frequency | 60 Hertz |
| Power Supply Connection | NEMA 5-15 Plug |
| Net Weight | 23.1 lbs |
Euroboor ECO.40S+/IC Magnetic Drilling Machine Performance & Construction
- Integrated Slide System: Ensures high accuracy, minimal vibration, and extended machine lifecycle.
- Direct Spindle Drive: Provides efficient power transfer for consistent drilling performance.

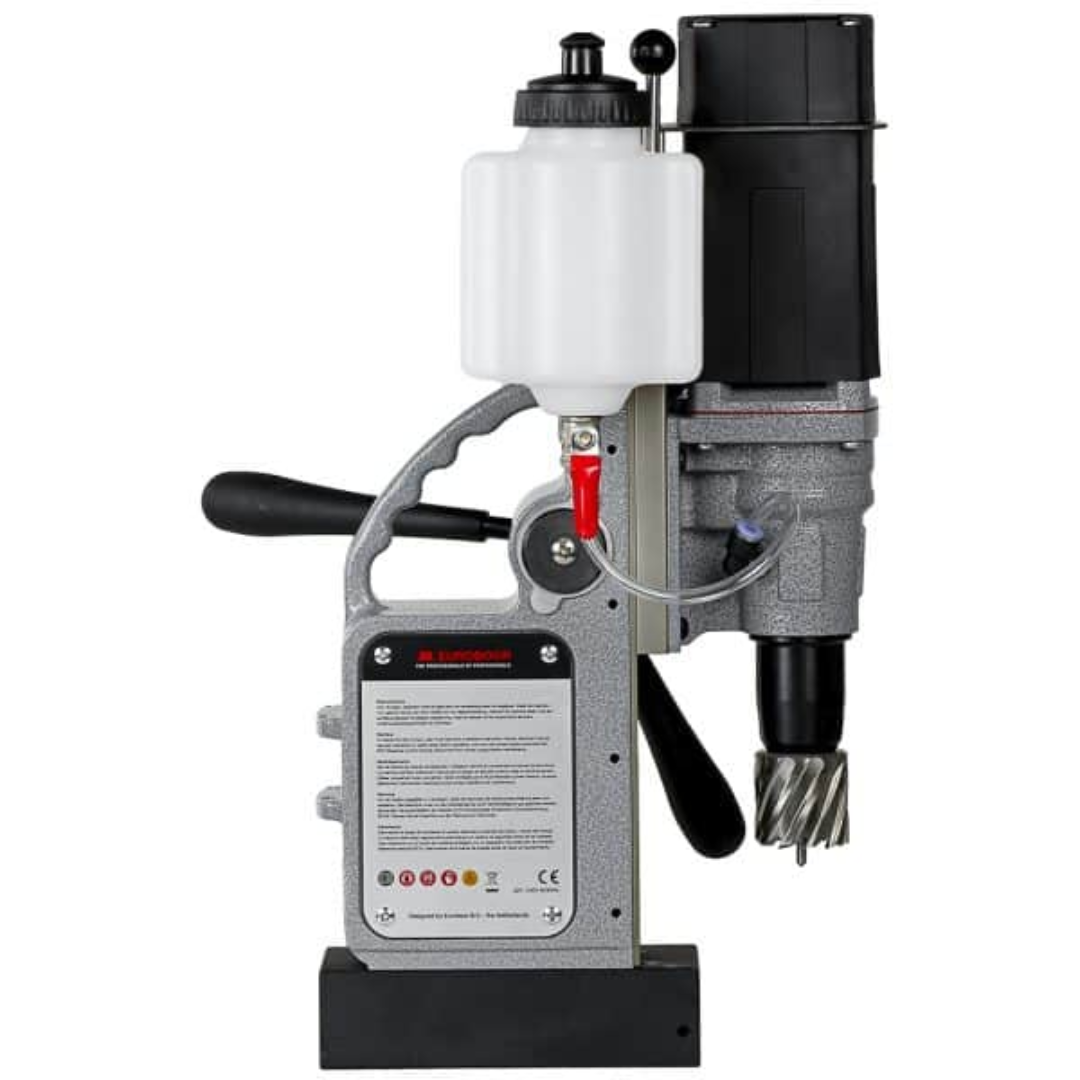

- Integrated Tool Cooling & Lubrication (IC): Improves cutter life and enhances drilling precision.
- High-Precision Height Adjustment: Reduces maintenance and minimizes wear correction.
- Oil-Lubricated Gearbox: Smooth operation and increased durability under load.
- Dual Coil CNC Machined 2-Way Magnet: Uses less energy, generates less heat, and increases machine longevity.
- Reversible Feed Handles: Easily change operating side for confined or restricted spaces.
- Advanced Electronic Safety: Protects against power surge and power fluctuation, reducing risk of machine or tool damage.
- Carbon Brush Wear Indicator & Automatic Shut-Off: Prevents unexpected downtime and protects internal components.
Euroboor ECO.40S+/IC Magnetic Drilling Machine Package Contents
- 1x Carrying Case
- 1x Magnetic Drilling Machine ECO.40S+
- 3x Capstan Hub Handles
- 1x Lubrication / Cooling System
- 1x Allen Key 2.5 mm (3/32")
- 1x Allen Key 3 mm (1/8")
- 1x Allen Key 4 mm (5/32")
- 1x Allen Key 5 mm (13/64")
- 1x Protection Guard
- 1x Safety Chain
- 1x Ear Protection
- 1x Safety Goggles
- 1x Safety Gloves
- 1x User Manual
Why Choose the Euroboor ECO.40S+/IC Magnetic Drilling Machine
- 1 9/16" (40 mm) annular drilling capacity in a compact design.
- Strong 3,305 lbs magnetic force for secure clamping.
- Integrated cooling and oil-lubricated gearbox for extended service life.
- Operates on 110 – 120 Volt, 60 Hertz with NEMA 5-15 plug.
- Lightweight, reliable, and engineered for professional metalworking environments.
The Euroboor ECO.40S+/IC Magnetic Drilling Machine delivers precision, durability, and advanced protection—making it a dependable solution for demanding drilling and countersinking applications.
