Euroboor ECO.36+/T Magnetic Drilling Machine Applications
- H-beams and structural steel frameworks
- Steel plates, profiles, and fabrication assemblies
- On-site construction and installation work
- Drilling, countersinking, and thread tapping in confined spaces
- Maintenance and retrofit operations requiring low-clearance access
With only 6 1/2" overall height, the Euroboor ECO.36+/T Magnetic Drilling Machine allows precision drilling and tapping where standard magnetic drills simply cannot operate.
Euroboor ECO.36+/T Magnetic Drilling Machine Specifications
| Maximum Annular Cutter Diameter | 1 7/16" |
|---|---|
| Minimum Annular Cutter Diameter | 7/16" |
| Maximum Twist Drill Diameter | 9/16" |
| Threading Capacity | 1/8" – 3/8" |
| Stroke | 1 9/16" |
| No-Load Speed | 120 – 500 RPM |
| Load Speed | 120 – 400 RPM |
| Magnetic Force | 2,645 lbs |
| Spindle Connection | 3/4" Weldon |
| Motor Power | 17.3 A |
| Total Power | 18.6 A |
| Voltage | 110 – 120 V |
| Frequency | 60 Hz |
| Power Connection | NEMA 5-15 Plug |
| Power Supply | AC Mains |
| Net Weight | 22.7 lbs |
| Overall Height | 6 1/2" |

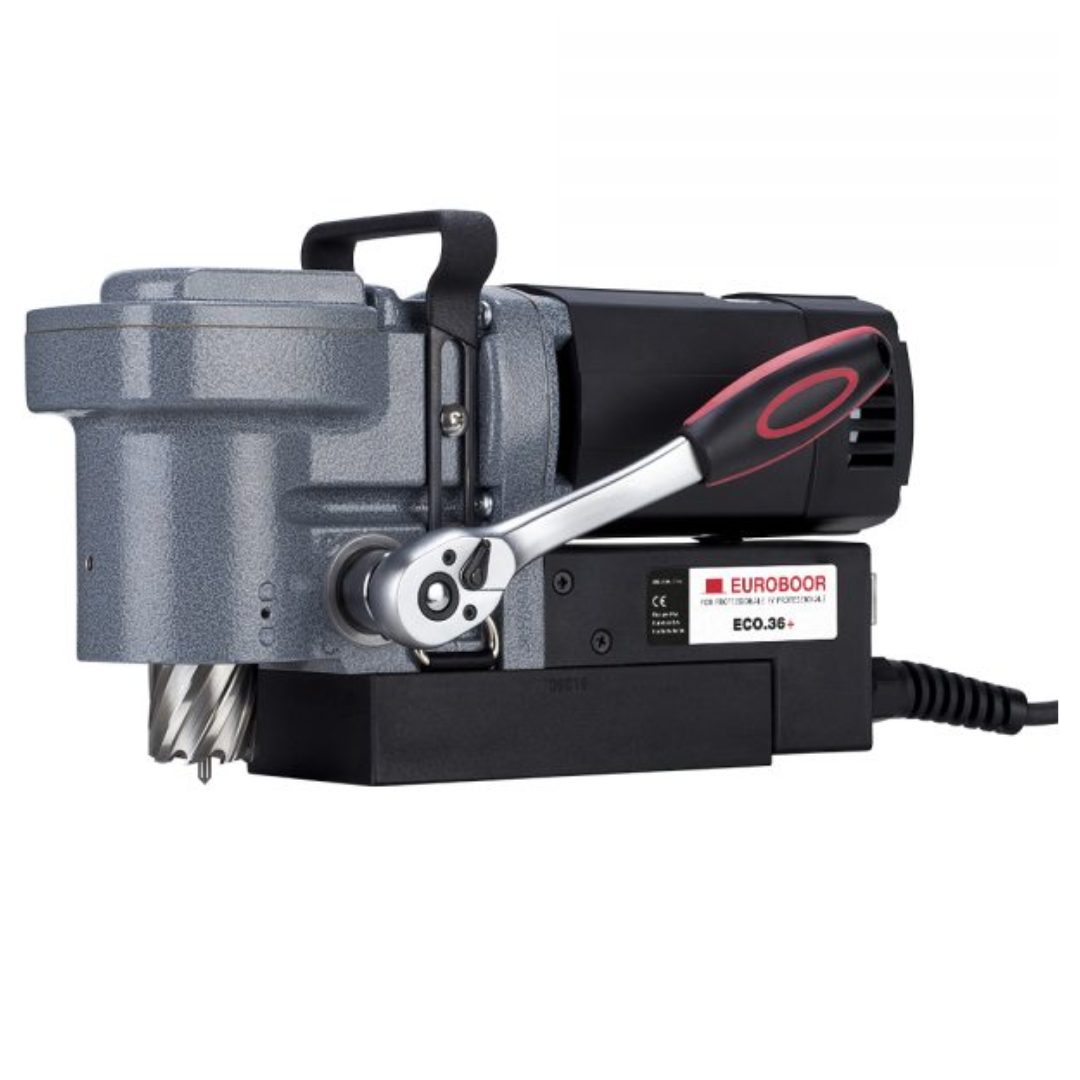

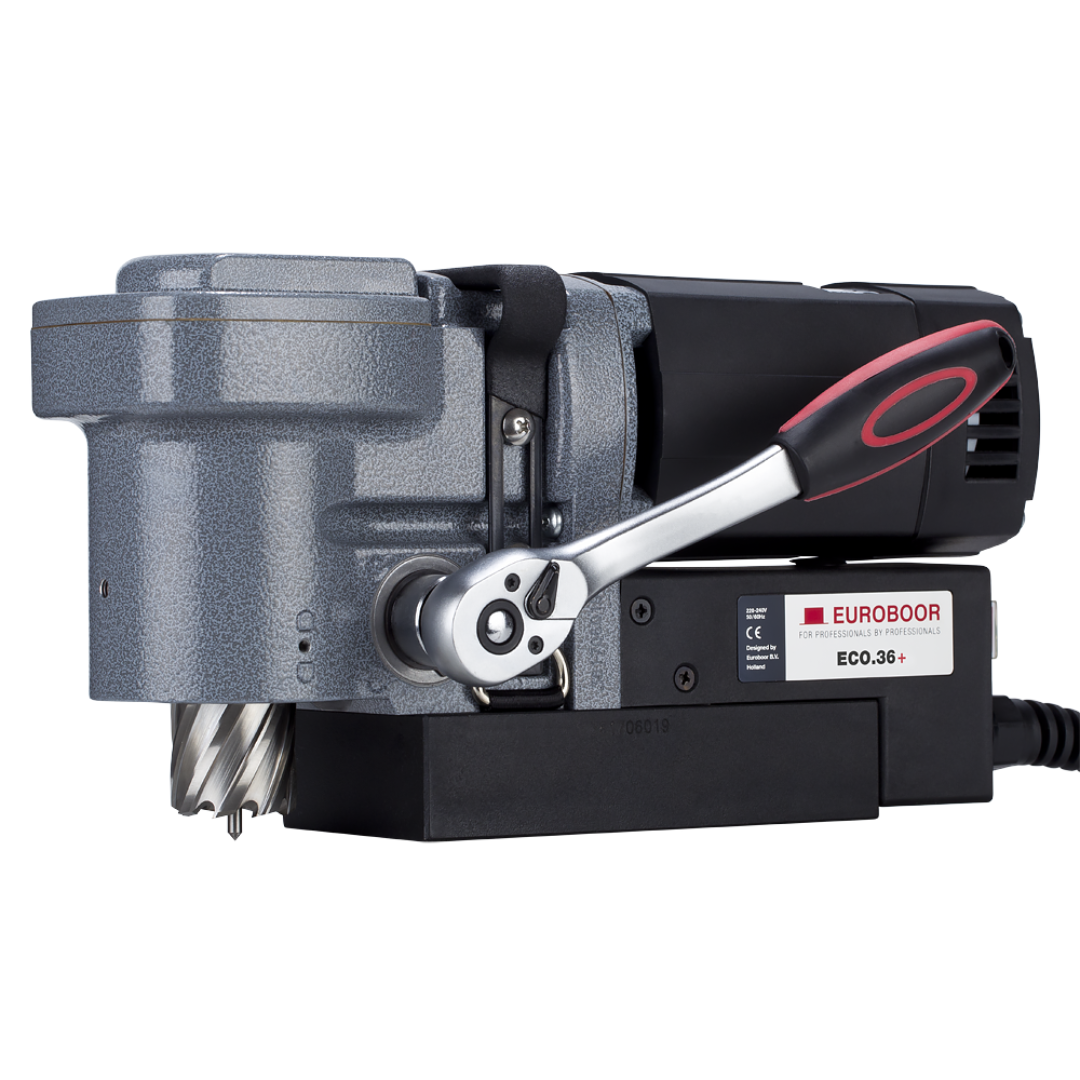

Euroboor ECO.36+/T Magnetic Drilling Machine Performance & Construction
- Ultra-Low Profile (6 1/2" Height): Ideal for tight and restricted working environments.
- Variable Speed Control: Adjustable RPM for optimized drilling and tapping performance.
- Tap Function: Enables fast and efficient thread tapping with left and right rotation capability.
- Gyro-Tec Safety Technology: Automatically shuts off the machine in case of excessive vibration or sudden movement.
- Advanced Electronics: Includes automatic shut-off, carbon brush wear indicator, power surge protection, and power fluctuation protection.
- Integrated Motor Cable, Handle & Safety Belt: Streamlined design for safer and more convenient operation.
- Left and Right Mountable Feed Handle: Improves flexibility and operator comfort.
- Integrated Cooling & Lubrication System: Enhances tool life and cutting performance.
- Sliding & Removable Protective Cover: Provides added safety while maintaining accessibility.
- Oil/Lubricant Bottle with Magnet System: Secure attachment and controlled fluid delivery.

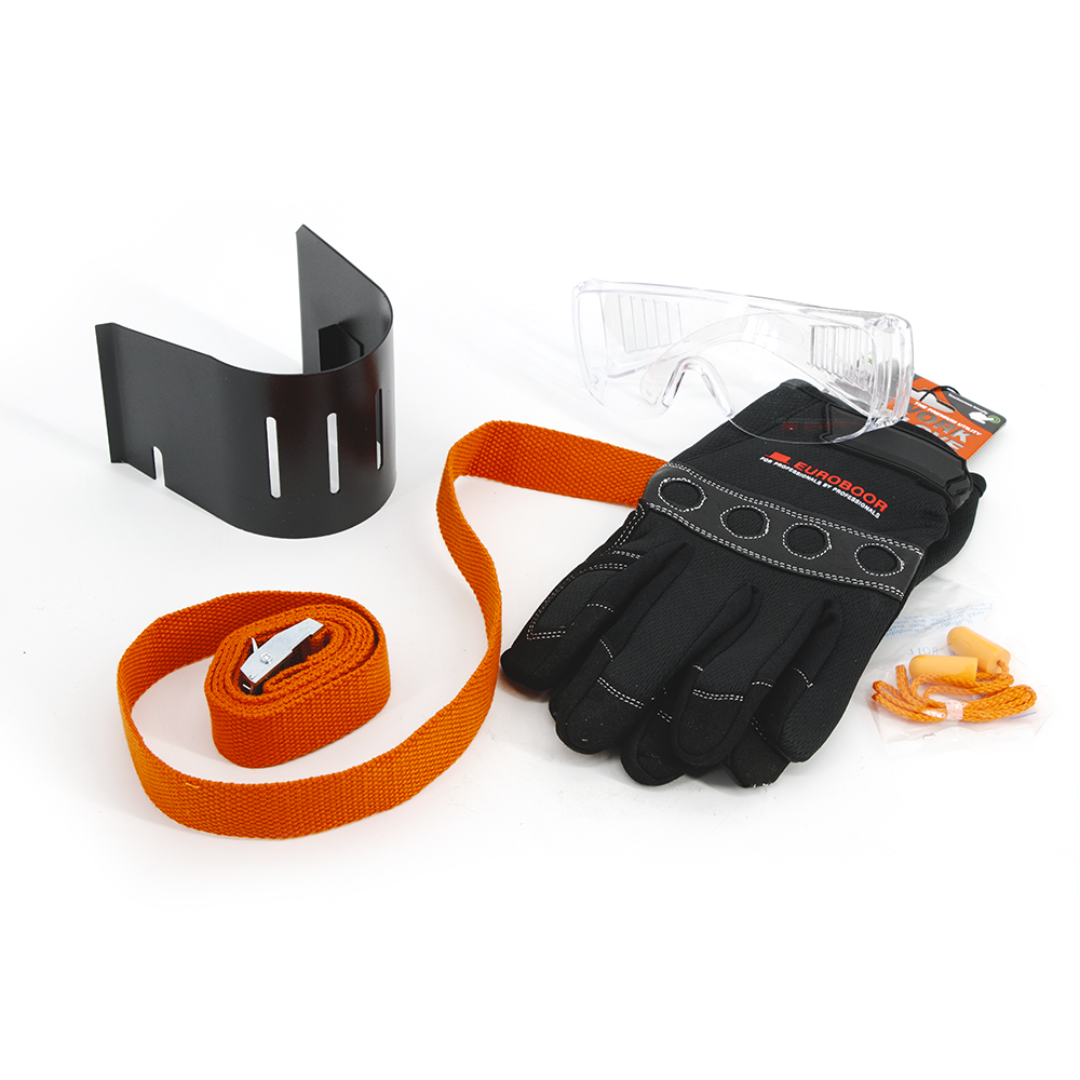

Euroboor ECO.36+/T Magnetic Drilling Machine Package Contents
- 1x Carrying Case
- 1x Euroboor ECO.36+/T Magnetic Drilling Machine
- 1x Quick Switch Feed Handle
- 1x Quick Switch Extension Rod 150 mm (5 7/8")
- 1x Lubrication / Cooling System
- 1x Allen Key 3 mm (1/8")
- 1x Protection Guard
- 1x Safety Belt
- 1x Ear Protection
- 1x Safety Goggles
- 1x Safety Gloves
- 1x User Manual
Why Choose the Euroboor ECO.36+/T Magnetic Drilling Machine
- Lowest profile magnetic drilling machine at only 6 1/2" height.
- Drilling and tapping capability in one compact unit.
- 1 7/16" annular cutting capacity with variable speed control.
- 2,645 lbs magnetic force for stable and secure operation.
- 110 – 120V, 60 Hz power supply with NEMA 5-15 plug for jobsite compatibility.
The Euroboor ECO.36+/T Magnetic Drilling Machine delivers compact power, advanced safety, and versatile drilling and tapping performance—making it the ideal solution for professionals working in confined steel fabrication environments.
