Euroboor ECO.36+ Magnetic Drilling Machine Applications
- H-beams and structural steel fabrication
- Steel plates, profiles, and framework assemblies
- Industrial maintenance and retrofit projects
- Confined spaces with limited height clearance
- Drilling and countersinking operations in heavy-duty steel
At only 6 1/2" tall, the Euroboor ECO.36+ Magnetic Drilling Machine is ideal for tight vertical clearances where traditional magnetic drills cannot operate.
Euroboor ECO.36+ Magnetic Drilling Machine Specifications
| Maximum Annular Cutter Diameter | 1 7/16" |
|---|---|
| Minimum Annular Cutter Diameter | 1/2" |
| Maximum Twist Drill Diameter | 9/16" |
| Maximum Countersinking Diameter | 1 9/16" |
| Stroke | 1 9/16" |
| Rotation Direction | Clockwise |
| No-Load Speed | 700 RPM |
| Load Speed | 400 RPM |
| Magnetic Force | 2,645 lbs |
| Spindle Connection | 3/4" Weldon |
| Motor Power | 9.5 A |
| Total Power | 10 A |
| Voltage | 110 – 120 V |
| Frequency | 60 Hz |
| Power Connection | NEMA 5-15 Plug |
| Power Supply | AC Mains |
| Net Weight | 22.7 lbs |
| Overall Height | 6 1/2" (165 mm) |
Euroboor ECO.36+ Magnetic Drilling Machine Performance & Construction
- One-Speed Gearbox: Delivers consistent torque and stable drilling performance.
- Quick-Connect Cutter Fitment System: User-friendly system for fast and secure cutter installation.

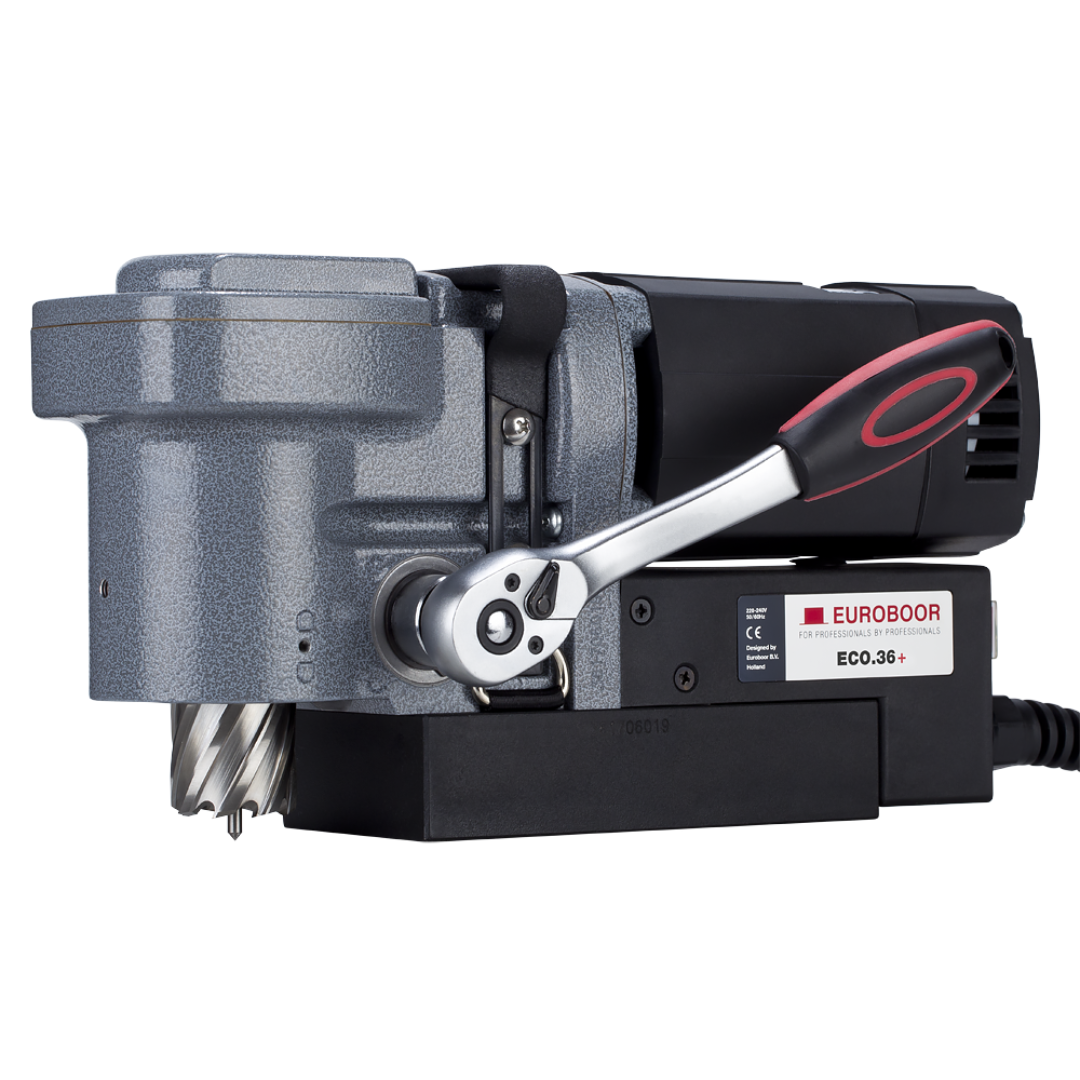

- Ultra-Low Profile Design: Only 165 mm (6 1/2") in height for restricted access drilling.
- Dual Coil CNC-Machined 2-Way Magnet (TempTec): Provides 2,645 lbs of magnetic force while reducing energy consumption and heat generation.
- Integrated Cooling & Lubrication System: Enhances cutter life and improves hole quality.

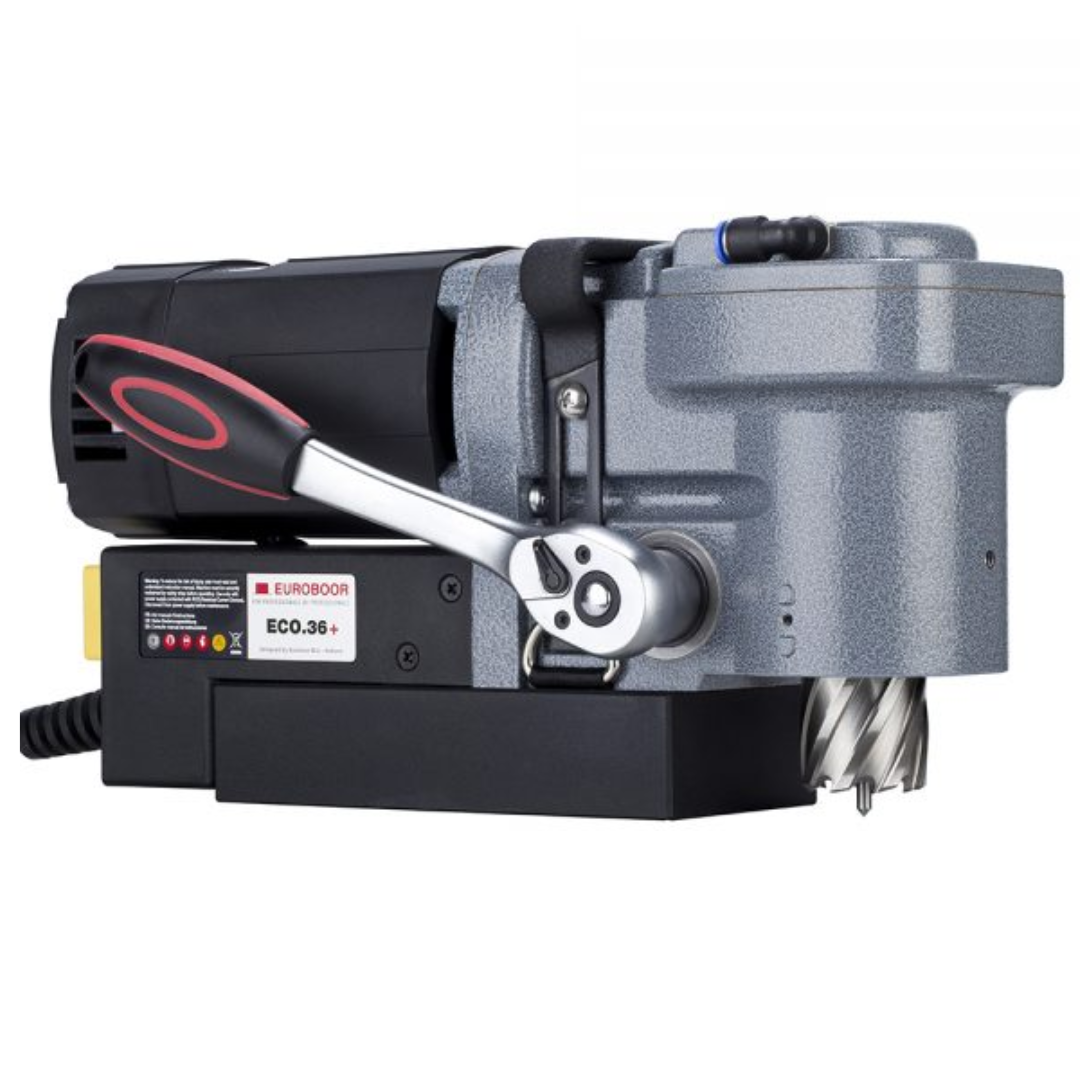

- Detachable Ratchet Feed Handle: Mountable on left or right side for operator flexibility.
- Removable & Slideable Safety Guard: Ensures protection without limiting accessibility.

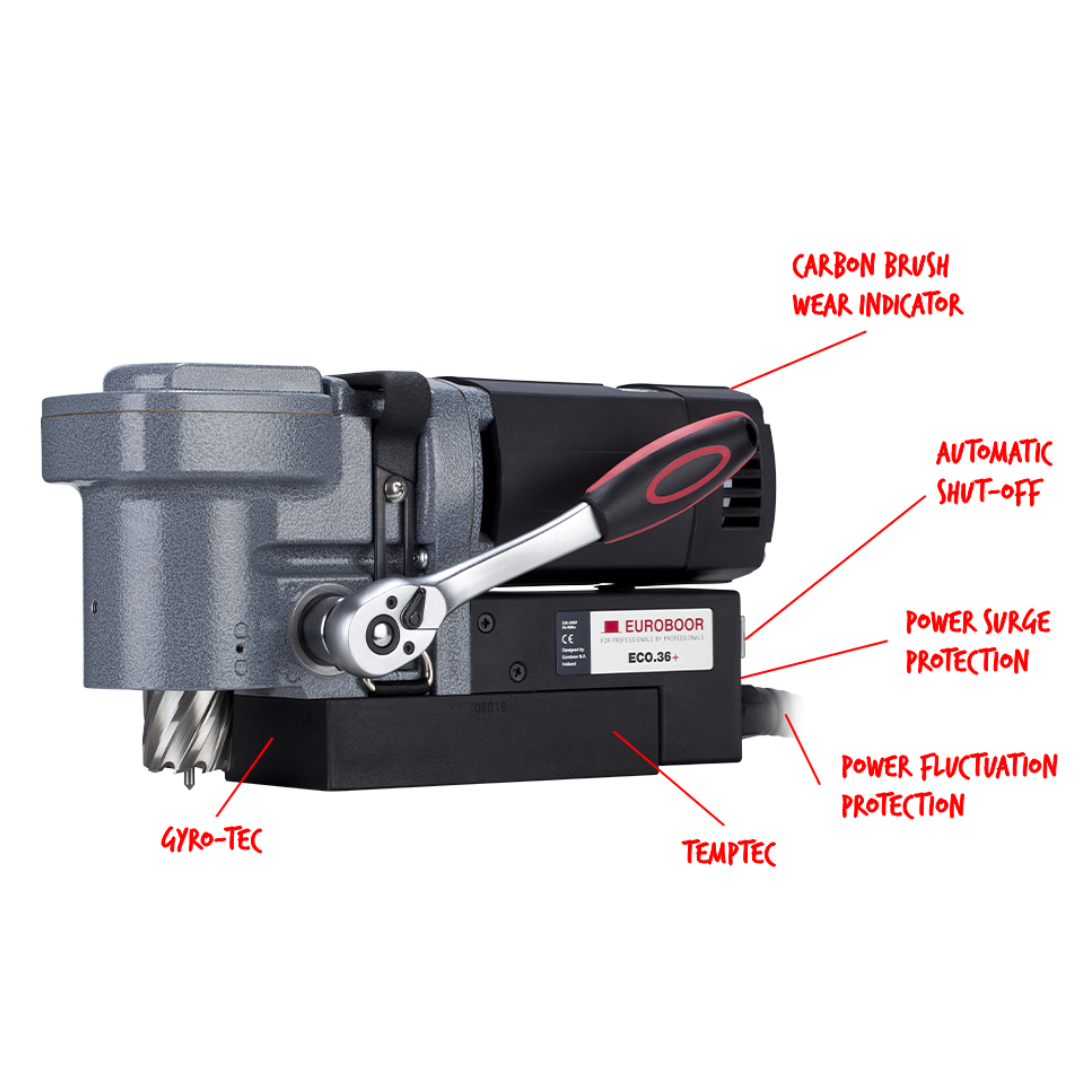

- Advanced Electronic Protection: Includes automatic shut-off, carbon brush wear indicator, power surge protection, power fluctuation protection, and Gyro-Tec technology.
- Enhanced Safety: Automatically switches off in case of excessive vibration or sudden displacement to protect both operator and machine.
- Designed for Variable Power Conditions: Suitable for workplaces with less stable power supply, reducing risk of armature and control unit damage.
- Timely Service Notification: Helps prevent unexpected downtime and unnecessary component replacement.
Euroboor ECO.36+ Magnetic Drilling Machine Package Contents
- 1x Carrying Case
- 1x Euroboor ECO.36+ Magnetic Drilling Machine
- 1x Quick Switch Feed Handle
- 1x Lubrication / Cooling System
- 1x Allen Key 3 mm (1/8")
- 1x Protection Guard
- 1x Safety Belt
- 1x Ear Protection
- 1x Safety Goggles
- 1x Safety Gloves
- 1x User Manual
Why Choose the Euroboor ECO.36+ Magnetic Drilling Machine
- Lowest profile magnetic drilling machine at only 6 1/2" height.
- 1 7/16" annular cutting capacity in a compact portable format.
- 2,645 lbs magnetic force for secure and stable drilling.
- 110 – 120V, 60 Hz operation with NEMA 5-15 plug for easy jobsite integration.
- Advanced safety electronics for extended machine lifespan and operator protection.
The Euroboor ECO.36+ Magnetic Drilling Machine delivers compact power, enhanced safety, and precision performance—making it the ideal solution for professional metalworking applications in restricted spaces.
