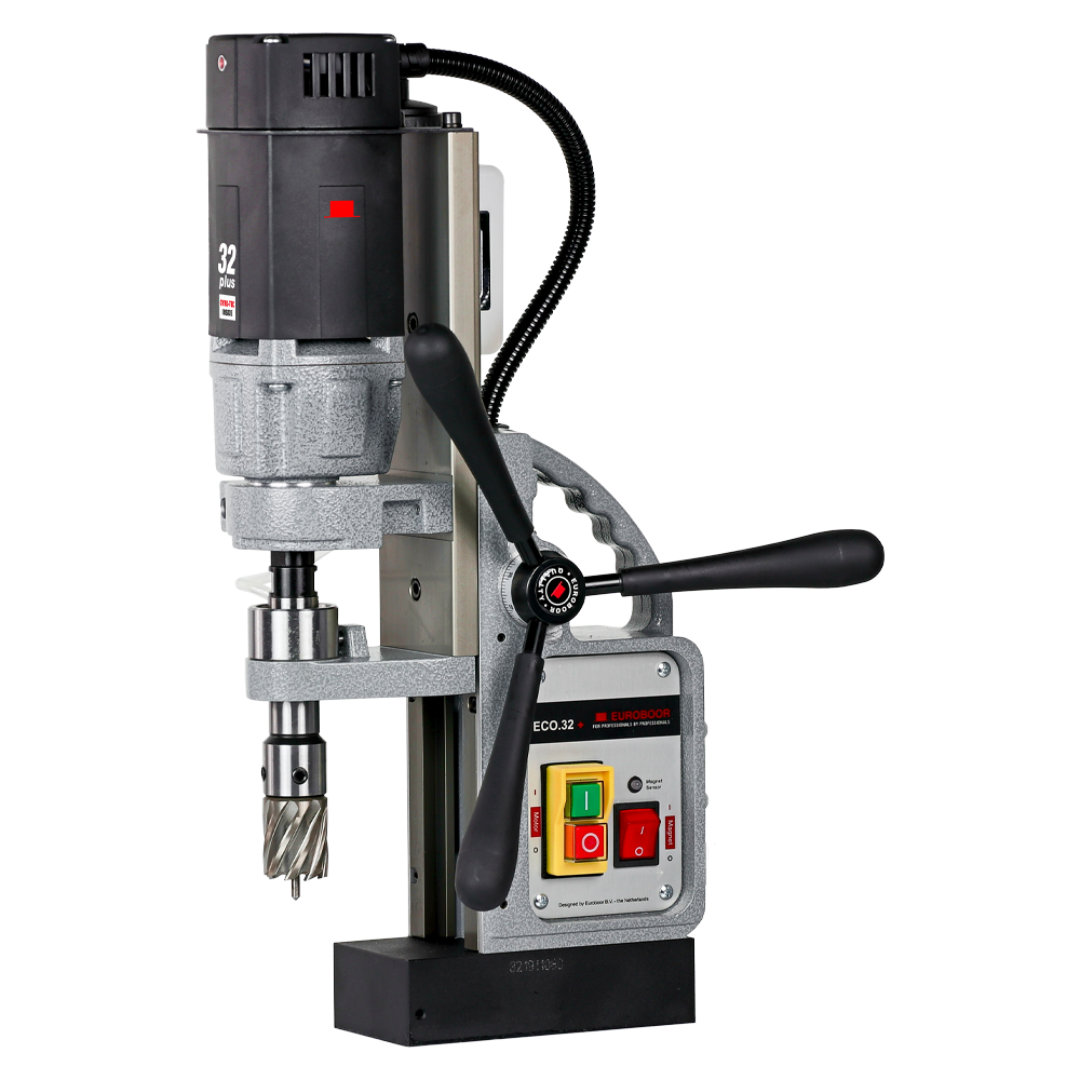

Euroboor ECO.32+ Magnetic Drilling Machine Applications
- Structural steel fabrication and installation
- Bridge construction and on-site steel erection
- Industrial maintenance and repair operations (MRO)
- Drilling and countersinking in heavy steel plate and profiles
- Work environments with unstable or lower-quality power supply
The Euroboor ECO.32+ Magnetic Drilling Machine is optimized for portable field use while maintaining the precision and reliability required in workshop environments.

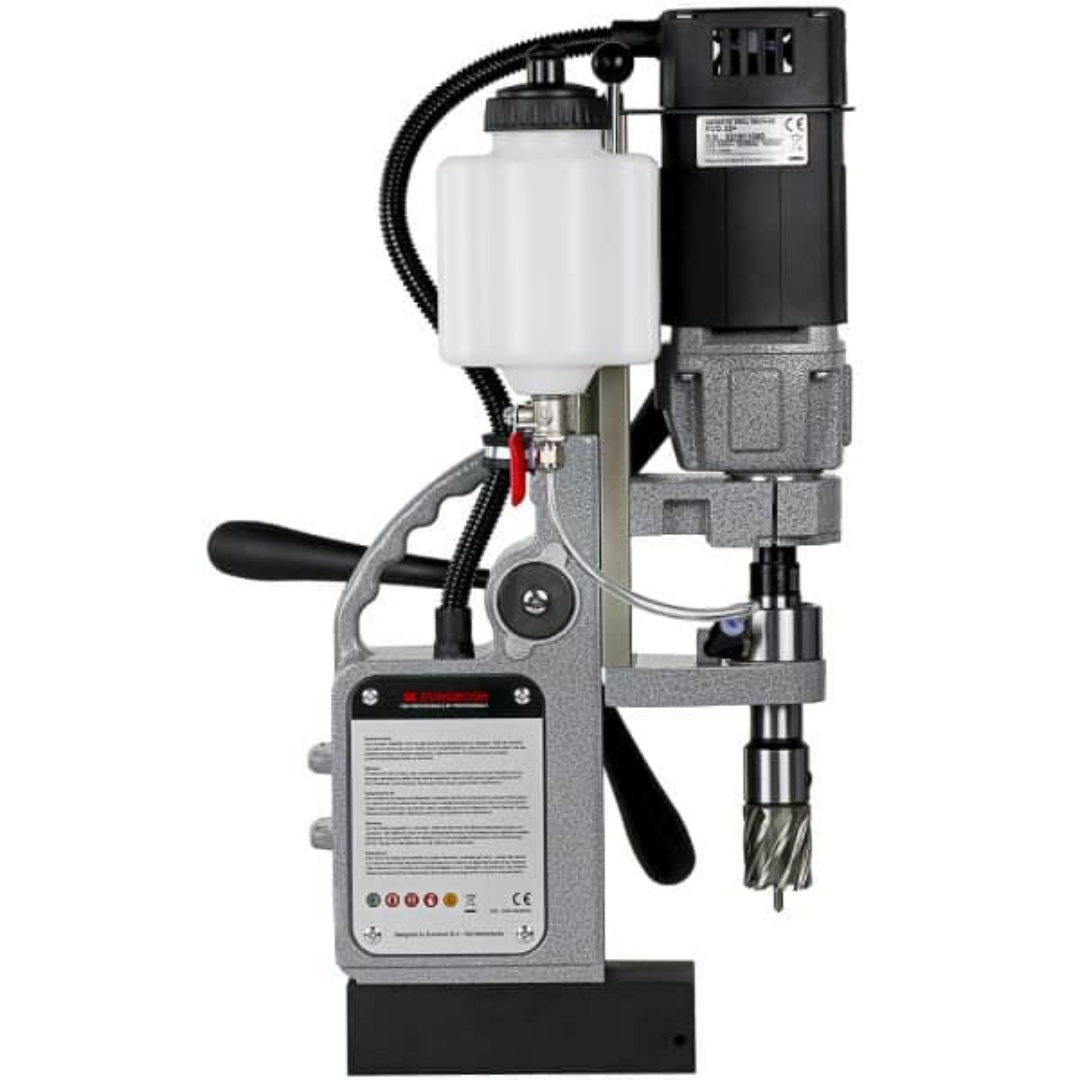

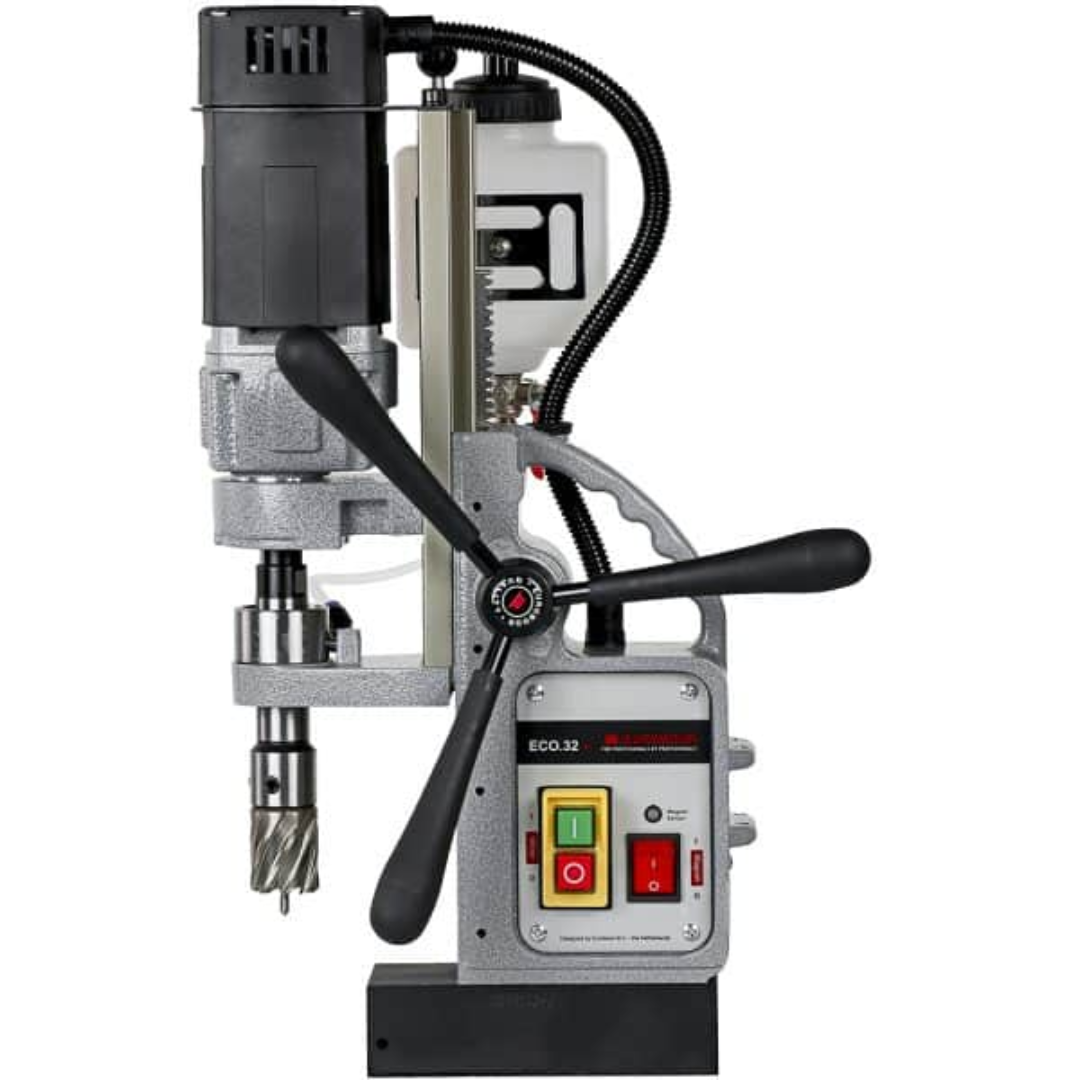

Euroboor ECO.32+ Magnetic Drilling Machine Specifications
| Maximum Annular Cutter Diameter | 1 1/4" |
|---|---|
| Minimum Annular Cutter Diameter | 1/2" |
| Maximum Twist Drill Diameter | 1/2" |
| Maximum Countersinking Diameter | 1 9/16" |
| Stroke | 5 15/16" |
| Rotation Direction | Clockwise |
| No-Load Speed | 775 RPM |
| Load Speed | 440 RPM |
| Magnetic Force | 3,305 lbs |
| Spindle Connection | 3/4" Weldon (19.05 mm) |
| Motor Power | 9.1 A |
| Total Power | 9.5 A |
| Voltage | 110 – 120 V |
| Frequency | 60 Hz |
| Power Connection | NEMA 5-15 Plug |
| Power Supply | AC Mains |
| Net Weight | 24.3 lbs |
| Overall Height | 14 9/16" – 20 3/16" |
Euroboor ECO.32+ Magnetic Drilling Machine Performance & Construction
- Single-Speed Gearbox: Optimized for controlled torque delivery and stable annular cutting up to 1 1/4" diameter.
- Detachable Spindle Drive: Simplifies service and maintenance while extending machine lifespan.

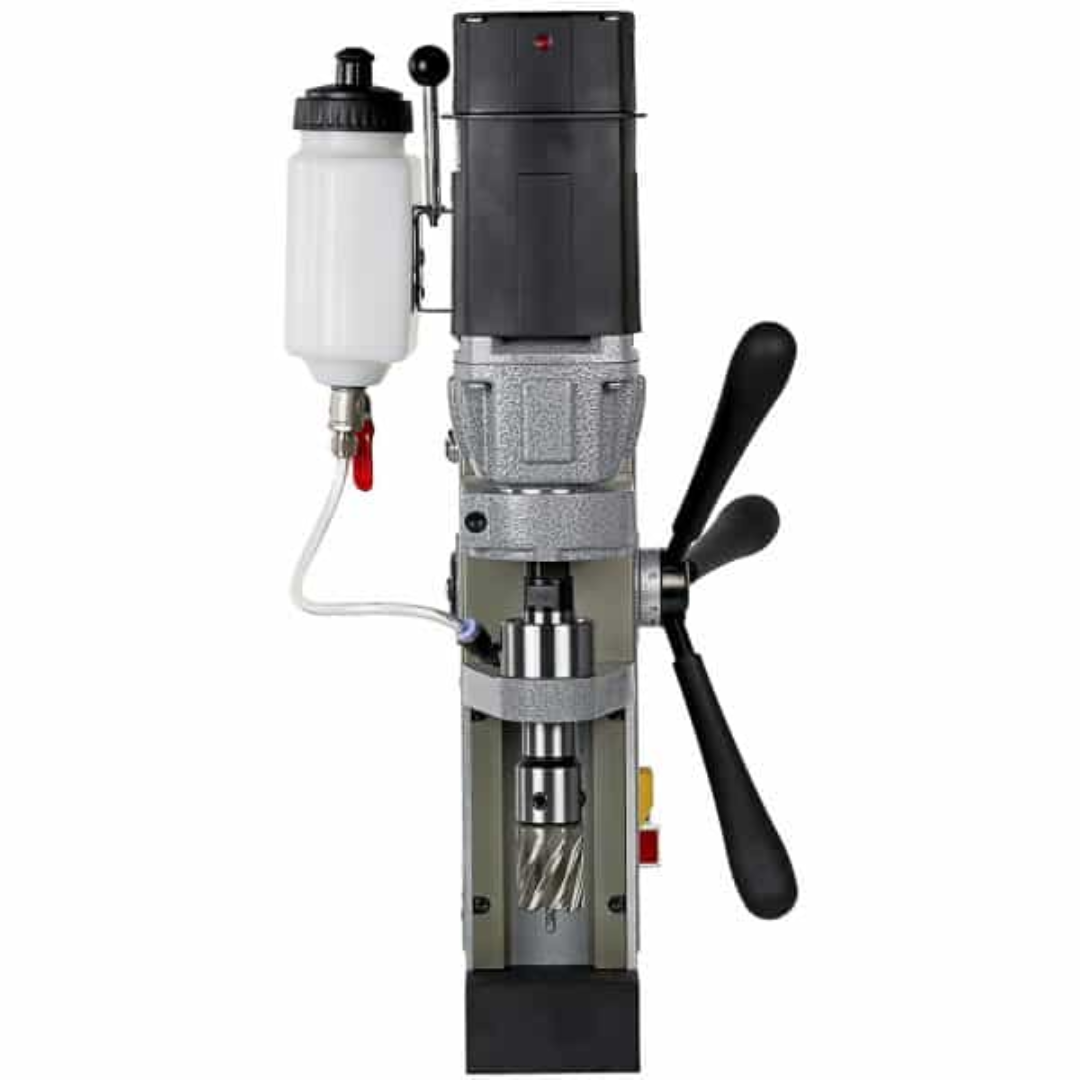

- Integrated Cooling & Lubrication System: Improves cutter life, reduces heat buildup, and enhances hole quality.
- High-Precision Integrated Slide: Minimizes vibration, increases drilling accuracy, and enlarges overall lifecycle.
- Precision Height Adjustment: Reduces wear correction and ensures long-term mechanical stability.
- Dual-Coil CNC-Machined 2-Way Magnet (TempTec): Generates up to 3,305 lbs of magnetic force while consuming less energy and producing less heat.

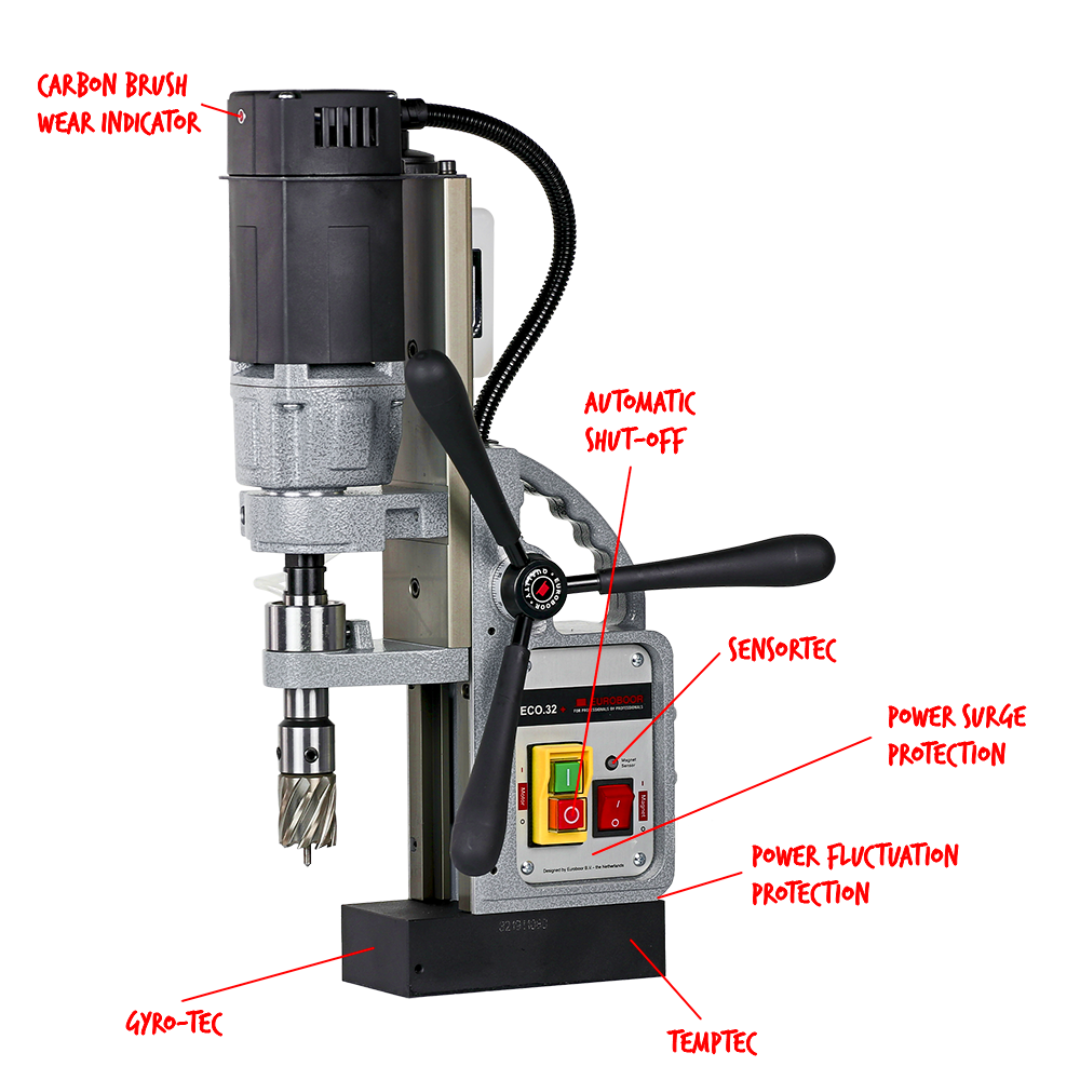

- Advanced Safety Electronics: Includes power surge protection, power fluctuation protection, automatic shut-off, and carbon brush wear indicator.
- Gyro-Tec Protection: Reduces risk of damage to machine, tooling, and workpiece while protecting the operator in case of excessive vibration or sudden displacement.
- Magnet LED Indicator: Provides visual confirmation of magnet status for safer operation.
- Reduced Risk of Armature & Control Unit Damage: Designed for use in workplaces with inconsistent power supply quality.
- Timely Service Notification: Helps prevent unexpected downtime and unnecessary component replacement.
Euroboor ECO.32+ Magnetic Drilling Machine Package Contents
- 1x Carrying Case
- 1x Euroboor ECO.32+ Magnetic Drilling Machine
- 3x Capstan Hub Handles
- 1x Lubrication / Cooling System
- 1x Allen Key 2.5 mm (3/32")
- 1x Allen Key 3 mm (1/8")
- 1x Allen Key 4 mm (5/32")
- 1x Allen Key 5 mm (13/64")
- 1x Protection Guard
- 1x Safety Chain
- 1x Ear Protection
- 1x Safety Goggles
- 1x Safety Gloves
- 1x User Manual
Why Choose the Euroboor ECO.32+ Magnetic Drilling Machine
- 1 1/4" annular cutting capacity in a compact, portable format.
- 110 – 120V, 60 Hz operation with NEMA 5-15 plug for easy jobsite integration.
- 3,305 lbs magnetic force for secure attachment and stable drilling.
- Advanced electronic safety features for extended machine life and operator protection.
- Lightweight 24.3 lb design for improved mobility without sacrificing performance.
The Euroboor ECO.32+ Magnetic Drilling Machine delivers precision drilling, enhanced safety, and long-term durability, making it a dependable solution for professional metalworking environments.
