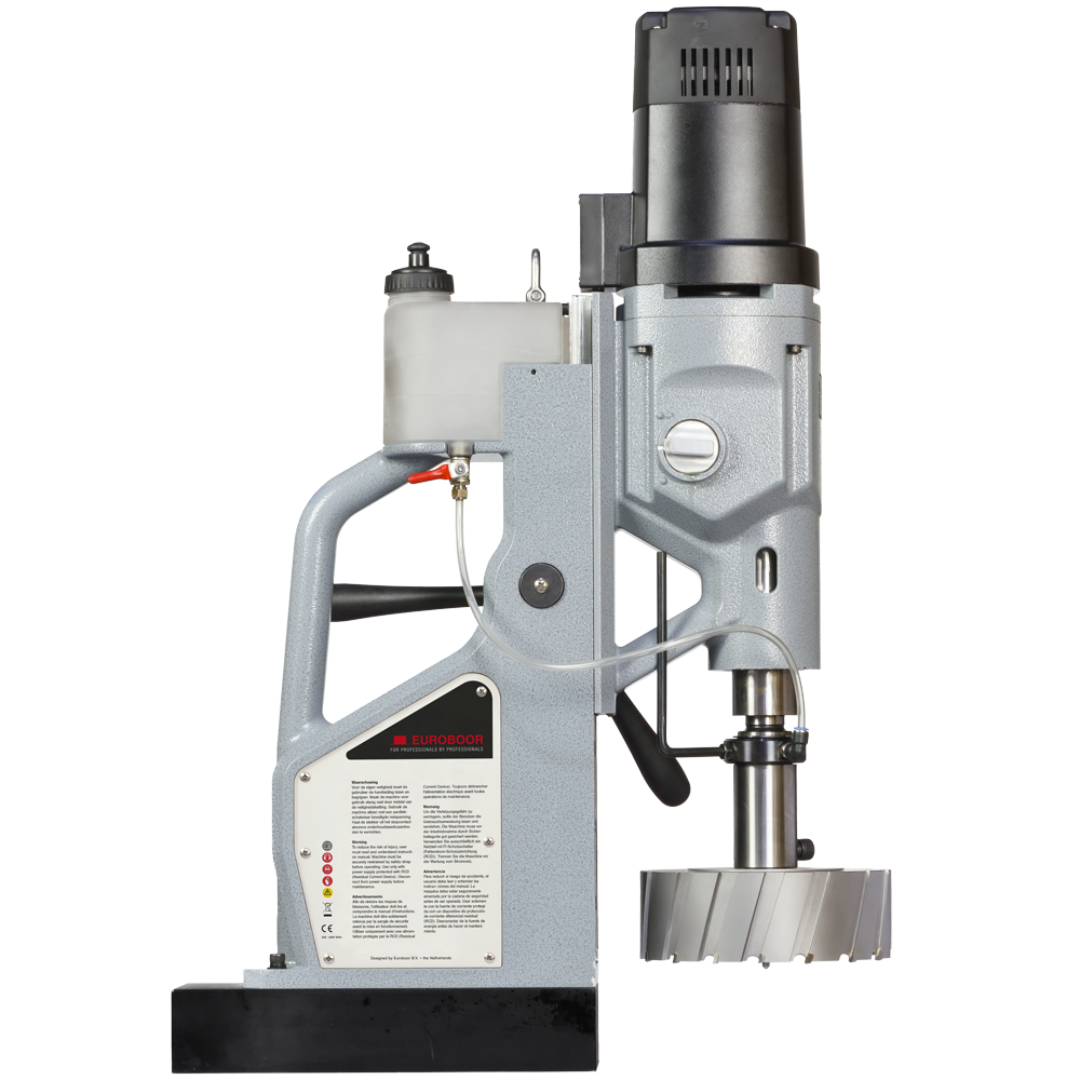

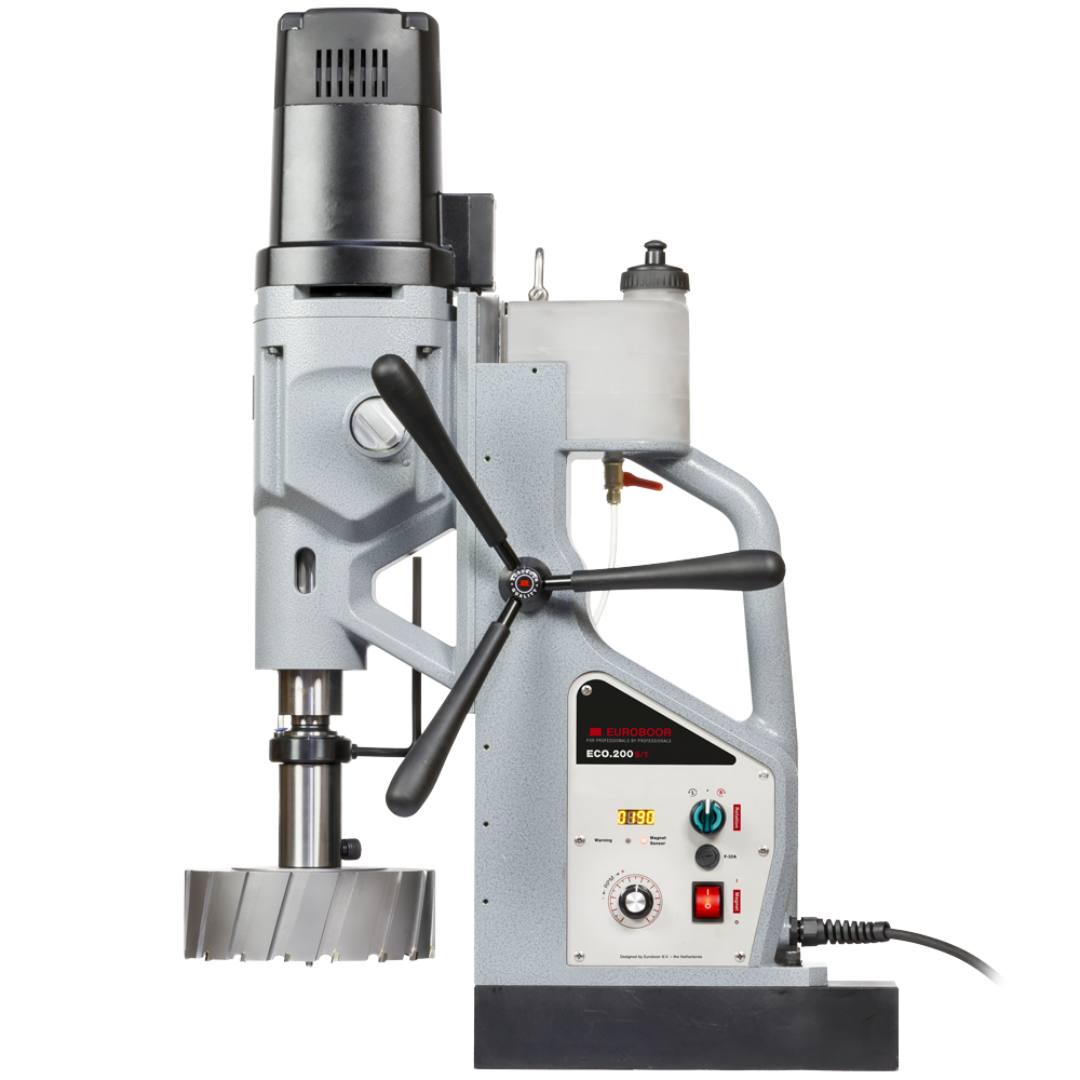

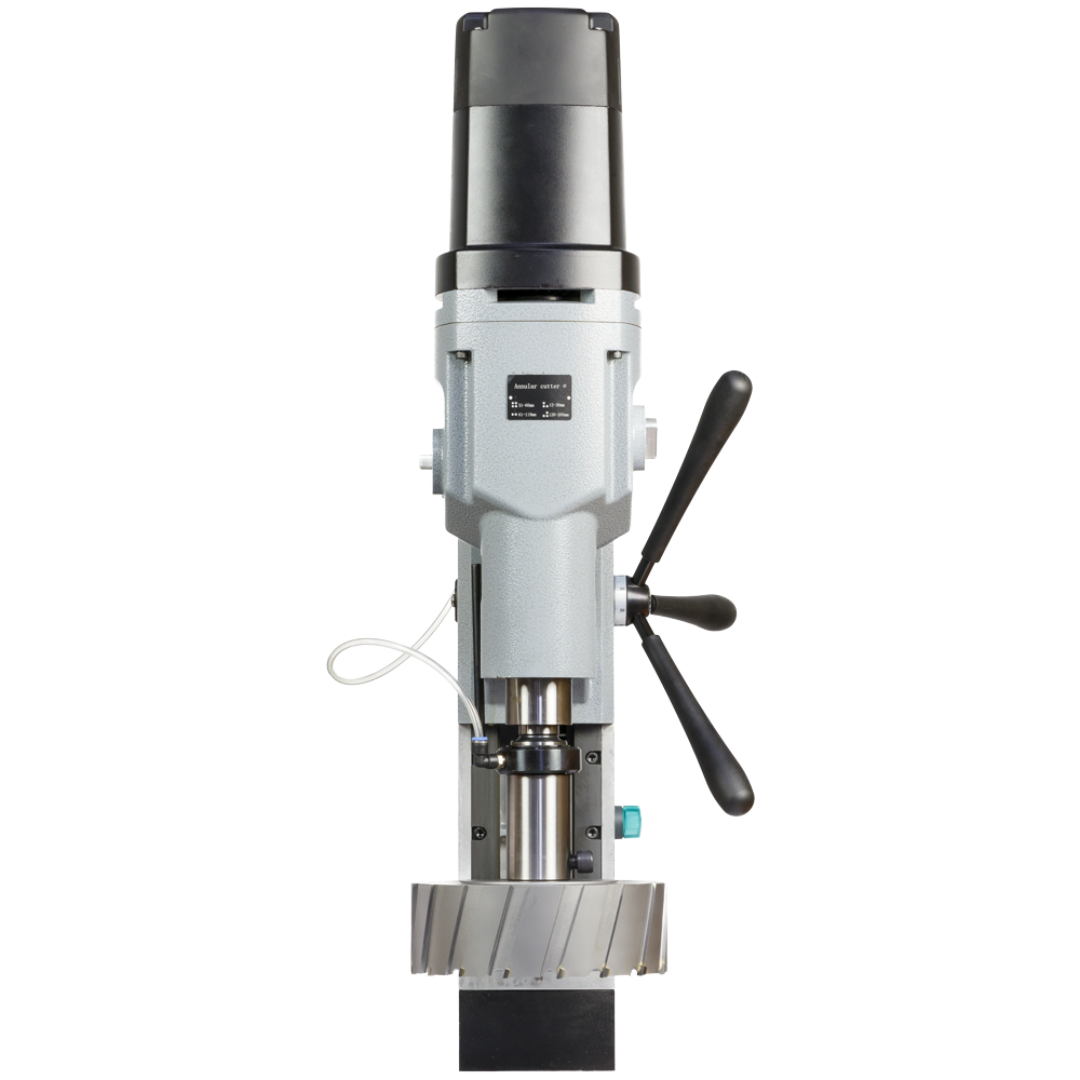

Euroboor ECO.200S/T Magnetic Drilling Machine Applications
- Heavy structural steel fabrication
- Bridge construction and infrastructure projects
- Industrial plant construction and maintenance
- Shipbuilding and offshore fabrication
- Large diameter hole drilling in steel plates and beams
- Thread tapping and countersinking operations
- Machining of alloy steels, stainless steel, and heavy metal structures
With its massive drilling capacity and industrial-grade motor, the Euroboor ECO.200S/T Magnetic Drilling Machine is built for extreme drilling tasks where standard magnetic drills cannot perform.
Euroboor ECO.200S/T Magnetic Drilling Machine Specifications
| Model | ECO.200S/T |
|---|---|
| Maximum Annular Cutter Diameter | 200 mm (7 7/8") |
| Twist Drill Capacity | 1/16" – 2" |
| Countersinking Capacity | 3/8" – 8-1/16" |
| Threading Capacity | M3 – M48 (1/8" – 1-7/8") |
| Spindle Type | MT4 Morse Taper / Weldon 1-1/4" |
| Stroke | 10-1/16" |
| Magnetic Holding Force | 8,113 lbs |
| Gearbox | 4-Speed Oil Lubricated Gearbox |
| Rotation Direction | Bidirectional |
| No-Load Speeds | 40–80 / 60–125 / 145–300 / 230–470 RPM |
| Loaded Speeds | 29–75 / 46–120 / 110–285 / 174–452 RPM |
| Motor Type | Brushless Motor |
| Motor Power | 2,600 W |
| Total Power Consumption | 2,750 W |
| Power Supply Voltage | 220 – 240 Volt |
| Power Supply Frequency | 50 – 60 Hertz |
| Machine Weight | 129 lbs |
| Machine Dimensions (L × W × H) | 20-1/4" × 10-7/16" × 25-9/16" – 35-5/8" |
| Magnet Dimensions | 13-3/4" × 4-15/16" × 2-9/16" |
| Application Type | Drilling, Countersinking, Threading |
Euroboor ECO.200S/T Magnetic Drilling Machine Performance & Technology
- High-performance brushless motor increases efficiency and eliminates friction losses associated with traditional brushes.
- Electronic adjustable speed control allows operators to precisely match cutting speed with drill size and material.
- Bidirectional rotation supports accurate thread tapping and controlled tool extraction.
- Oil lubricated gearbox ensures smooth operation and long mechanical lifespan even under heavy loads.
- Digital display and speed control system allows accurate monitoring of motor revolutions and drilling performance.
- Magnet LED indicator (SensorTec) confirms whether sufficient magnetic holding force is present for safe operation.
- Overload, overheat, and power fluctuation protection protect internal electronics and motor components.
- Gyro-Tec safety system automatically shuts the machine down in case of sudden displacement or excessive vibration.
- Integrated motor cable and durable industrial construction designed for demanding jobsite conditions.

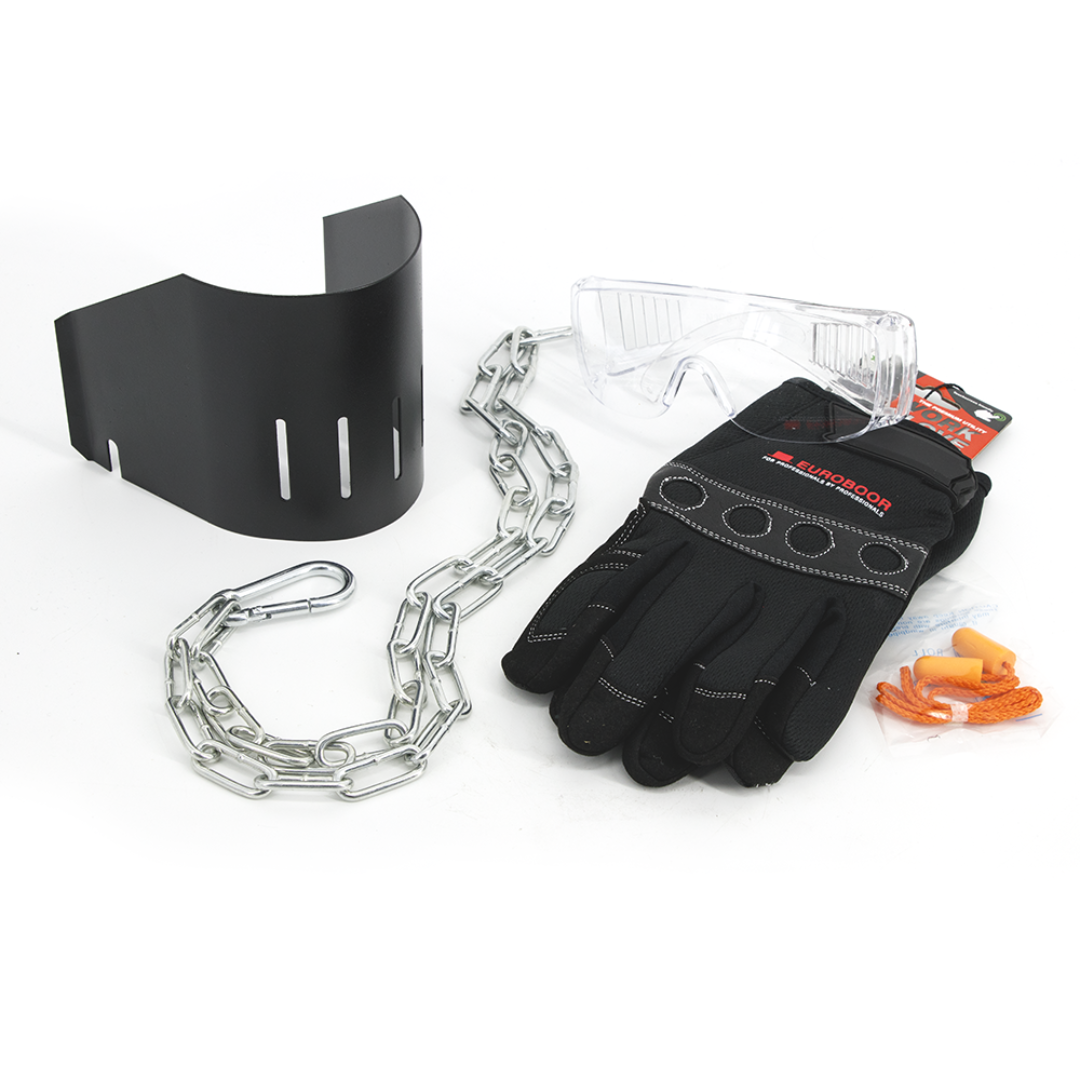

Euroboor ECO.200S/T Magnetic Drilling Machine Package Contents
- 1 × Euroboor ECO.200S/T Magnetic Drilling Machine
- 1 × Heavy-duty metal transport case
- 3 × Capstan hub feed handles
- 1 × MT4 – Weldon 31.75 mm (1-1/4") spindle holder with cooling/lubrication ring
- 1 × MT3 – Weldon 19.05 mm (3/4") spindle holder with cooling/lubrication ring
- 1 × Morse taper reducing adapter MT4 to MT3
- 1 × Drift key
- 1 × Lubrication and cooling system
- Allen keys: 2.5 mm, 5 mm, and 6 mm
- 1 × Safety chain
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor ECO.200S/T Magnetic Drilling Machine
- Massive 200 mm drilling capacity for extreme fabrication tasks.
- Brushless motor technology for higher efficiency and reduced maintenance.
- Adjustable speed control and bidirectional rotation ideal for tapping.
- Industrial-grade magnetic holding force for stable drilling on steel.
- Advanced safety electronics protect both operator and machine.
The Euroboor ECO.200S/T Magnetic Drilling Machine delivers unmatched drilling capacity, efficiency, and durability, making it the ultimate solution for professionals performing large-diameter drilling and tapping operations in demanding industrial environments.
