Euroboor ECO.100S+/TD Magnetic Drilling Machine Applications
- Structural steel fabrication and construction
- Bridge construction and heavy infrastructure projects
- Industrial equipment installation and maintenance
- Steel plate drilling, countersinking, and tapping
- Shipbuilding and offshore fabrication
- Railway and heavy machinery maintenance
- Precision hole alignment in large steel structures
The swivel base design allows operators to fine-tune hole positioning without moving the magnetic base, saving time and increasing drilling accuracy on structural steel surfaces.
Euroboor ECO.100S+/TD Magnetic Drilling Machine Specifications
| Model | ECO.100S+/TD |
|---|---|
| Maximum Annular Cutter Diameter | 4" |
| Threading Capacity | M3 – M30 (1/8" – 1-3/16") |
| Twist Drill Capacity | 1/16" – 1-1/4" |
| Countersinking Capacity | 3/8" – 4-1/8" |
| Spindle Type | MT3 Morse Taper / Weldon 3/4" |
| Stroke | 10-1/4" |
| Magnetic Holding Force | 6,615 lbs |
| Rotation Direction | Bidirectional (Right/Left Rotation) |
| Gearbox | 4-Speed Oil Lubricated Gearbox |
| No-Load Speed | 42 – 620 RPM (4-speed gearbox) |
| Loaded Speeds | 85 / 152 / 270 / 480 RPM |
| Motor Power | 2,050 W |
| Total Power Consumption | 2,000 W |
| Power Supply Voltage | 110 – 120 Volt |
| Power Supply Frequency | 60 Hertz |
| Power Supply Connection | NEMA 5-15 Plug |
| Machine Weight | 68.3 lbs |
| Machine Dimensions (L × W × H) | 14-3/8" × 12-3/16" × 20-1/4" – 28-1/8" |
| Magnet Dimensions | 8-11/16" × 4-5/16" × 2-1/2" |
| Application Type | Drilling, Countersinking, Threading |
Euroboor ECO.100S+/TD Magnetic Drilling Machine Performance & Technology
- Unique swivel base magnet rotates 30° left/right and slides 15–20 mm for extremely precise hole positioning.
- Four-speed oil lubricated gearbox reduces heat buildup and extends internal component lifespan.
- Bidirectional rotation enables efficient thread tapping and controlled tool extraction.
- Electronic variable speed adjustment allows operators to match cutting speed with tool diameter and material.
- Integrated torque control ensures safe and accurate tapping performance.
- Morse Taper 3 spindle with integrated cooling and lubrication improves drilling efficiency and tool life.
- Dual-coil CNC-machined magnetic base provides strong holding power while minimizing energy consumption.

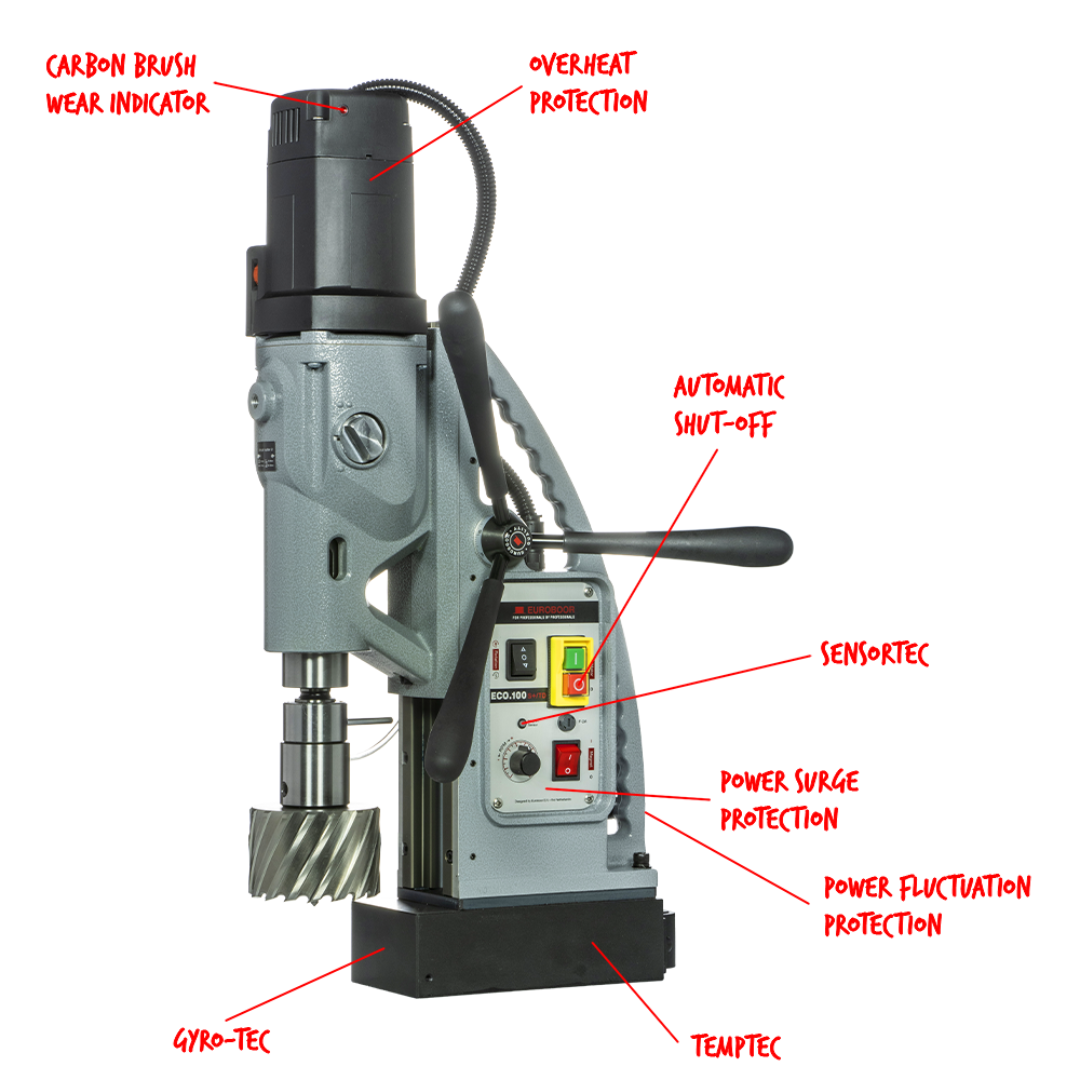

- Gyro-Tec safety monitoring automatically stops the machine in case of sudden displacement or excessive vibration.
- Automatic shut-off protection improves operator safety during unexpected drilling conditions.
- Overload, overheat, and power fluctuation protection safeguard the motor and electronic systems.
- Carbon brush wear indicator and Smart Restart system help prevent unexpected downtime.
- Magnet LED indicator confirms proper magnetic engagement before drilling begins.
Euroboor ECO.100S+/TD Magnetic Drilling Machine Package Contents
- 1 × Euroboor ECO.100S+/TD Magnetic Drilling Machine
- 1 × Heavy-duty metal transport case
- 3 × Capstan hub feed handles
- 1 × MT3 – Weldon 31.75 mm (1-1/4") spindle holder with cooling/lubrication ring
- 1 × Weldon 31.75 mm to 19.05 mm adapter (1-1/4" to 3/4")
- 1 × Drift key
- 1 × Side handle
- 1 × Lubrication and cooling system
- Allen keys: 2.5 mm, 3 mm, 4 mm, 5 mm, and 8 mm

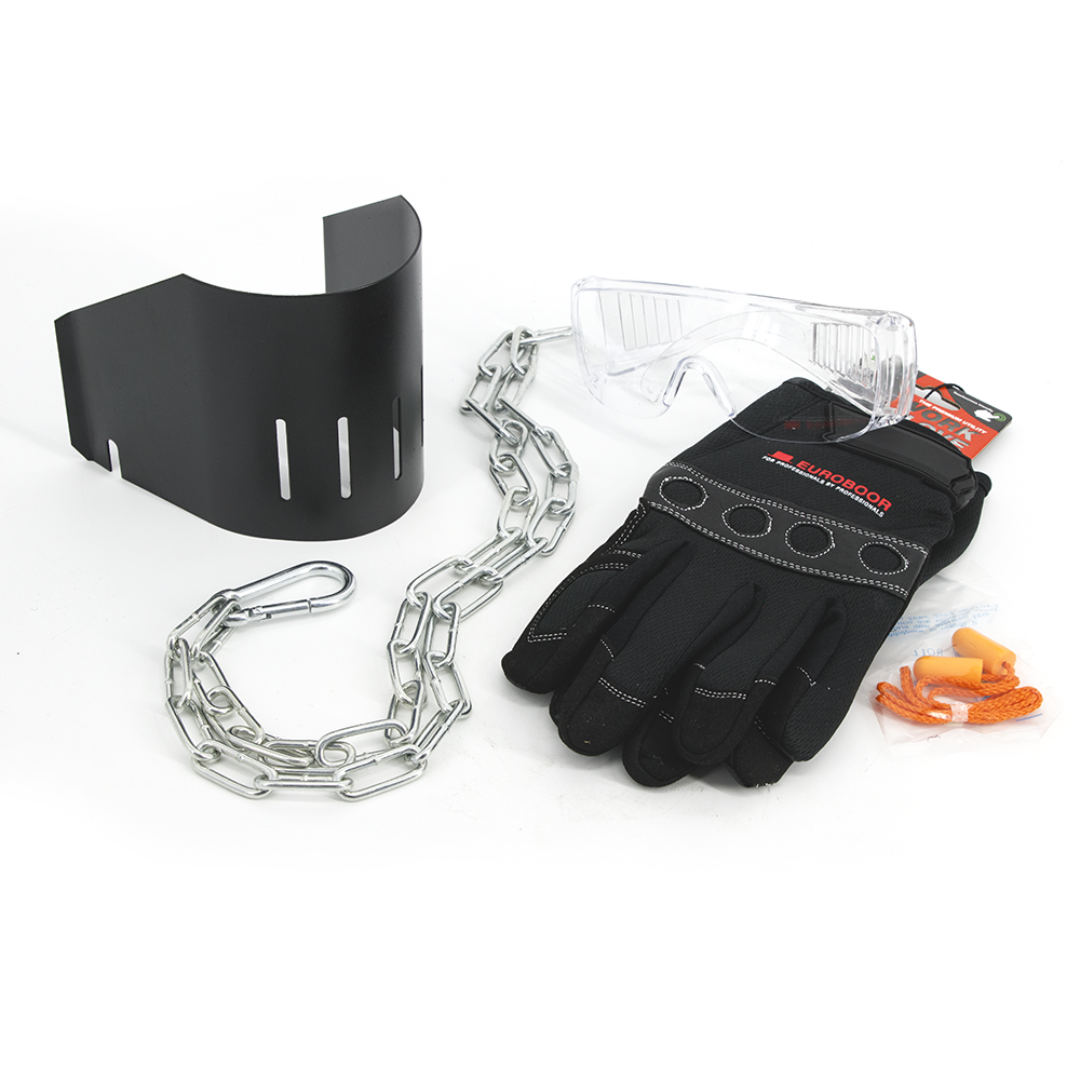

- 1 × Protective safety guard
- 1 × Safety chain
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor ECO.100S+/TD Magnetic Drilling Machine
- Unique swivel base system for precise hole alignment.
- High drilling capacity up to 4" diameter in structural steel.
- Integrated tapping capability with bidirectional rotation.
- Advanced safety electronics protecting operator and equipment.
- Durable industrial construction designed for heavy jobsite use.
The Euroboor ECO.100S+/TD Magnetic Drilling Machine combines powerful drilling performance with precision positioning technology, making it an ideal solution for professionals working in structural steel fabrication, construction, and industrial maintenance.
