Euroboor EBM.36/P-18V Cordless Magnetic Drilling Machine Applications
- Structural steel fabrication and installation
- Construction site drilling and field metalwork
- Bridge building and infrastructure maintenance
- Industrial repair and maintenance operations
- Shipbuilding, rail, and heavy equipment manufacturing
- Metal fabrication shops performing precision drilling
- On-site drilling in elevated or hard-to-reach work areas
The cordless design allows the Euroboor EBM.36/P-18V Cordless Magnetic Drilling Machine to operate anywhere without dependence on external power connections.
Euroboor EBM.36/P-18V Cordless Magnetic Drilling Machine Specifications
| Model | EBM.36/P-18V |
|---|---|
| Maximum Annular Cutting Diameter | 36 mm (1-7/16") |
| Twist Drill Capacity | 1 – 13 mm (1/16" – 1/2") |
| Countersinking Capacity | 10 – 40 mm (3/8" – 1-9/16") |
| Connection Type | Weldon 3/4" |
| Stroke | 140 mm (5-1/2") |
| No-Load Speed | 530 RPM |
| Load Speed | 430 RPM |
| Magnetic Force | 650 kg (1,433 lbs) |
| Minimum Material Thickness | 6 mm (1/4") |
| Motor Type | Brushless Motor |
| Motor Power | 1,000 W |
| Battery Platform | Makita LXT 18V |
| Battery Options | 18V 5Ah Li-ion or 18V 9Ah Li-ion |
| Machine Length | 325 mm (12-13/16") |
| Machine Width | 235 mm (9-1/4") |
| Machine Height | 370 – 410 mm (14-9/16" – 16-1/8") |
| Magnet Size | 157 × 85 × 45 mm |
| Machine Weight | 10.2 kg (22.4 lbs) |
| Power Supply Frequency | 50 – 60 Hz |
| Operating Temperature | 41°F – 104°F |
Euroboor EBM.36/P-18V Cordless Magnetic Drilling Machine Features
- Brushless motor technology provides greater efficiency, lower friction, and extended service life.
- Fully cordless drilling operation eliminates cables and allows unrestricted movement on the job site.
- Permanent magnetic base delivers strong holding force for safe and stable drilling.
- Makita LXT 18V battery compatibility allows shared battery use across many cordless tools.
- Compact and lightweight design makes the machine easy to transport and operate in tight spaces.
- High-performance battery system allows drilling multiple holes without losing power.
- LED load indicators and magnet indicator help monitor drilling performance and machine status.
- Integrated protection systems including overload and overheating protection for safe operation.

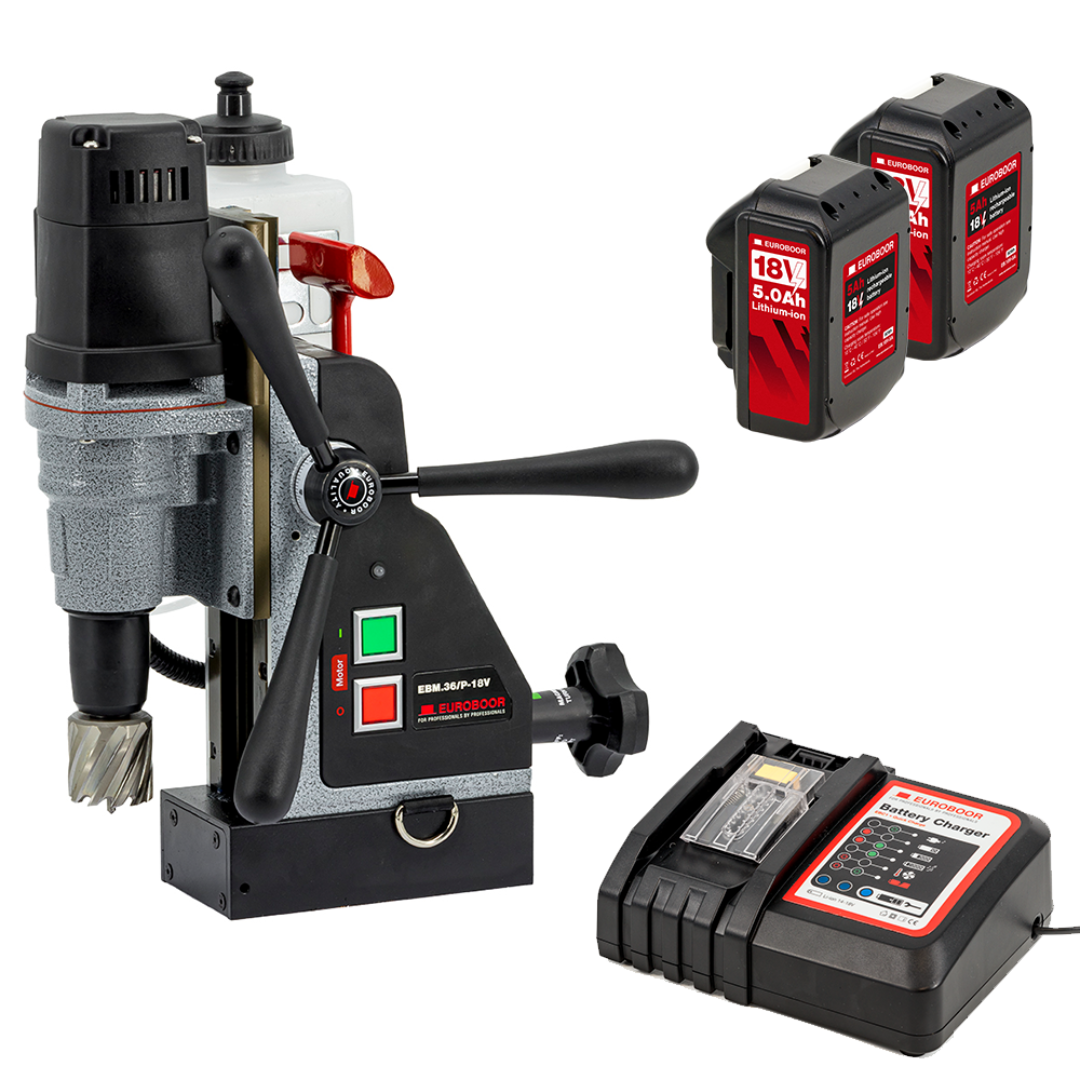

Euroboor EBM.36/P-18V Cordless Magnetic Drilling Machine Package Contents
- EBM.36/P-18V cordless magnetic drilling machine
- Protective carrying case
- Battery charger
- 2 × 9Ah Li-ion batteries
- 3 × capstan hub feed handles
- Lubrication and cooling system
- Allen key 2.5 mm (3/32")
- Allen key 3 mm (1/8")
- Allen key 4 mm (5/32")
- Allen key 5 mm (13/64")
- Protection guard
- Safety belt
- Ear protection
- Safety goggles
- Safety gloves
- User manual
Why Choose the Euroboor EBM.36/P-18V Cordless Magnetic Drilling Machine
- Completely cordless operation for maximum job site mobility.
- Powerful brushless motor engineered for professional metal drilling.
- Maximum annular cutting capacity of 36 mm (1-7/16").
- Reliable permanent magnet base for stable drilling on steel surfaces.
- Makita LXT battery compatibility for greater flexibility.
- Compact and lightweight design ideal for field work and maintenance.
The Euroboor EBM.36/P-18V Cordless Magnetic Drilling Machine combines portability, power, and precision, making it a reliable cordless solution for professional metal drilling applications in fabrication, construction, and industrial environments.
