Euroboor EBM.36/P-18V Cordless Magnetic Drilling Machine Applications
- Structural steel and on-site construction projects
- Bridge work, rail, and heavy equipment maintenance
- Steel, stainless steel, and non-ferrous metal drilling
- Remote job sites without direct power access
- Confined or elevated working environments
Independent from power outlets, the Euroboor EBM.36/P-18V Cordless Magnetic Drilling Machine enables safe and efficient drilling in locations where traditional corded machines cannot operate.
Euroboor EBM.36/P-18V Cordless Magnetic Drilling Machine Specifications
| Maximum Annular Cutter Diameter | 36 mm (1 7/16") |
|---|---|
| Minimum Annular Cutter Diameter | 7/16" |
| Maximum Twist Drill Diameter | 1/2" |
| Maximum Countersinking Diameter | 1 9/16" |
| Stroke | 5 1/2" |
| No-Load Speed | 530 RPM |
| Load Speed | 430 RPM |
| Spindle Connection | 3/4" Weldon |
| Magnet Type | Permanent Magnet |
| Magnetic Force | 1,433 lbs |
| Motor Type | Brushless |
| Battery Platform | Makita LXT 18V |
| Battery Options | 2x 5Ah or 2x 9Ah (region dependent) |
| Power Supply Frequency | 50 – 60 Hz (charger) |
| Minimum Material Thickness | 1/4" |
| Weight (Incl. Battery) | 22.4 lbs |
| Maximum Working Temperature | 104°F |
Euroboor EBM.36/P-18V Cordless Magnetic Drilling Machine Performance & Construction
- Unlimited Mobility: Fully cordless operation for maximum flexibility on any job site.
- High-Capacity Battery System: Drill up to 25 holes in 10 mm (0.39") S235 steel on a single charge (HSS14 test).
- Brushless Motor: Reduced friction, improved efficiency, longer lifespan, and less downtime.
- Permanent Magnet Base: Energy-efficient, safer operation and suitable for thinner materials.
- Makita 18V LXT Platform Compatibility: Cross-compatible batteries for optimized runtime and convenience.
- Compact & Lightweight Design: Easy to transport, fits into larger tool cases or backpacks.
- Magnet LED Indicator: Visual confirmation of magnet status.
- Overload & Overheat Protection: Protects motor and battery for extended service life.
- Integrated Cooling & Lubrication System: Improves cutting performance and tool longevity.

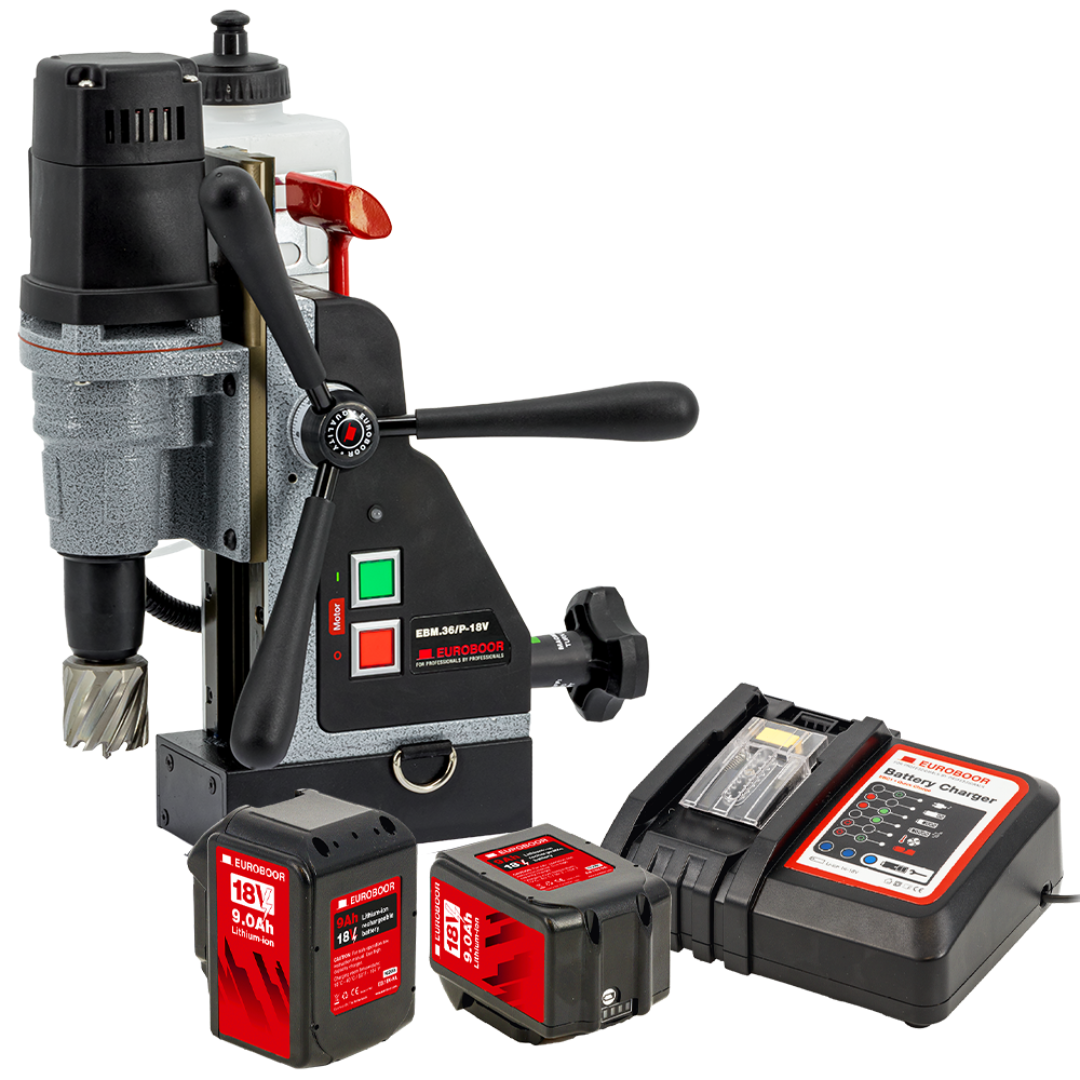

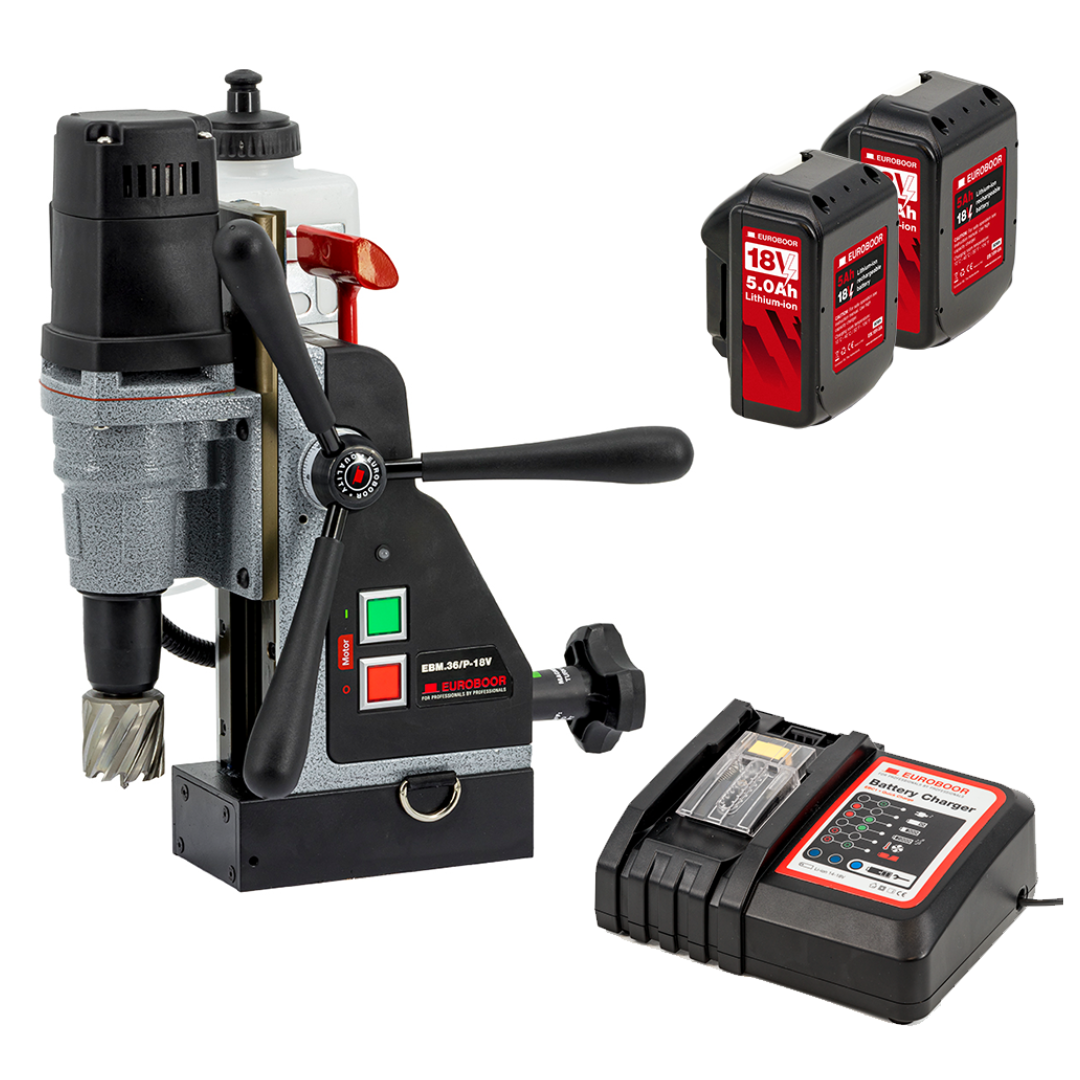

Euroboor EBM.36/P-18V Cordless Magnetic Drilling Machine Available Versions
- Machine only (battery and charger not included)
- Set 1: Machine + 2x 5Ah battery and charger*
- Set 2: Machine + 2x 9Ah battery and charger*
*In the USA, sets include 1 battery instead of 2.
Euroboor EBM.36/P-18V Cordless Magnetic Drilling Machine Package Contents
- 1x Carrying Case
- 1x Battery Operated Magnetic Drilling Machine EBM.36/P-18V
- 1x Charger
- 2x 9Ah Batteries
- 3x Capstan Hub Handles
- 1x Lubrication / Cooling System
- 1x Allen Key 2.5 mm (3/32")
- 1x Allen Key 3 mm (1/8")
- 1x Allen Key 4 mm (5/32")
- 1x Allen Key 5 mm (13/64")
- 1x Protection Guard
- 1x Safety Belt
- 1x Ear Protection
- 1x Safety Goggles
- 1x Safety Gloves
- 1x User Manual
Why Choose the Euroboor EBM.36/P-18V Cordless Magnetic Drilling Machine
- 36 mm (1 7/16") annular drilling capacity without cords.
- Brushless motor for maximum efficiency and durability.
- Makita 18V battery compatibility for extended runtime.
- Permanent magnet technology for safer and energy-efficient operation.
- Engineered for professional metalworkers who demand mobility and performance.
The Euroboor EBM.36/P-18V Cordless Magnetic Drilling Machine combines cordless freedom, powerful brushless performance, and professional-grade precision—making it the ultimate mobile magnetic drilling solution.
