Euroboor EBM.36+LP/P-18V Cordless Magnetic Drilling Machine Applications
- Structural steel fabrication and installation
- Bridge construction and infrastructure maintenance
- Steel erection and field drilling operations
- Industrial maintenance and repair work
- Shipbuilding, rail, and heavy equipment manufacturing
- On-site drilling in confined or hard-to-reach spaces
- Metal fabrication shops performing precision hole cutting
The cordless design makes the Euroboor EBM.36+LP/P-18V Cordless Magnetic Drilling Machine ideal for remote job sites where power outlets are unavailable.
Euroboor EBM.36+LP/P-18V Cordless Magnetic Drilling Machine Specifications
| Model | EBM.36+LP/P-18V |
|---|---|
| Maximum Annular Cutting Diameter | 36 mm (1-7/16") |
| Twist Drill Capacity | 1 – 13 mm (1/16" – 1/2") |
| Countersinking Capacity | 10 – 40 mm (3/8" – 1-9/16") |
| Connection Type | Weldon 3/4" (inside) |
| Stroke | 40 mm (1-9/16") |
| No-Load Speed | 270 – 430 RPM |
| Magnetic Force | 650 kg (1,433 lbs) |
| Minimum Material Thickness | 6 mm (1/4") |
| Motor Power | 1,000 W |
| Battery Platform | Makita LXT 18V |

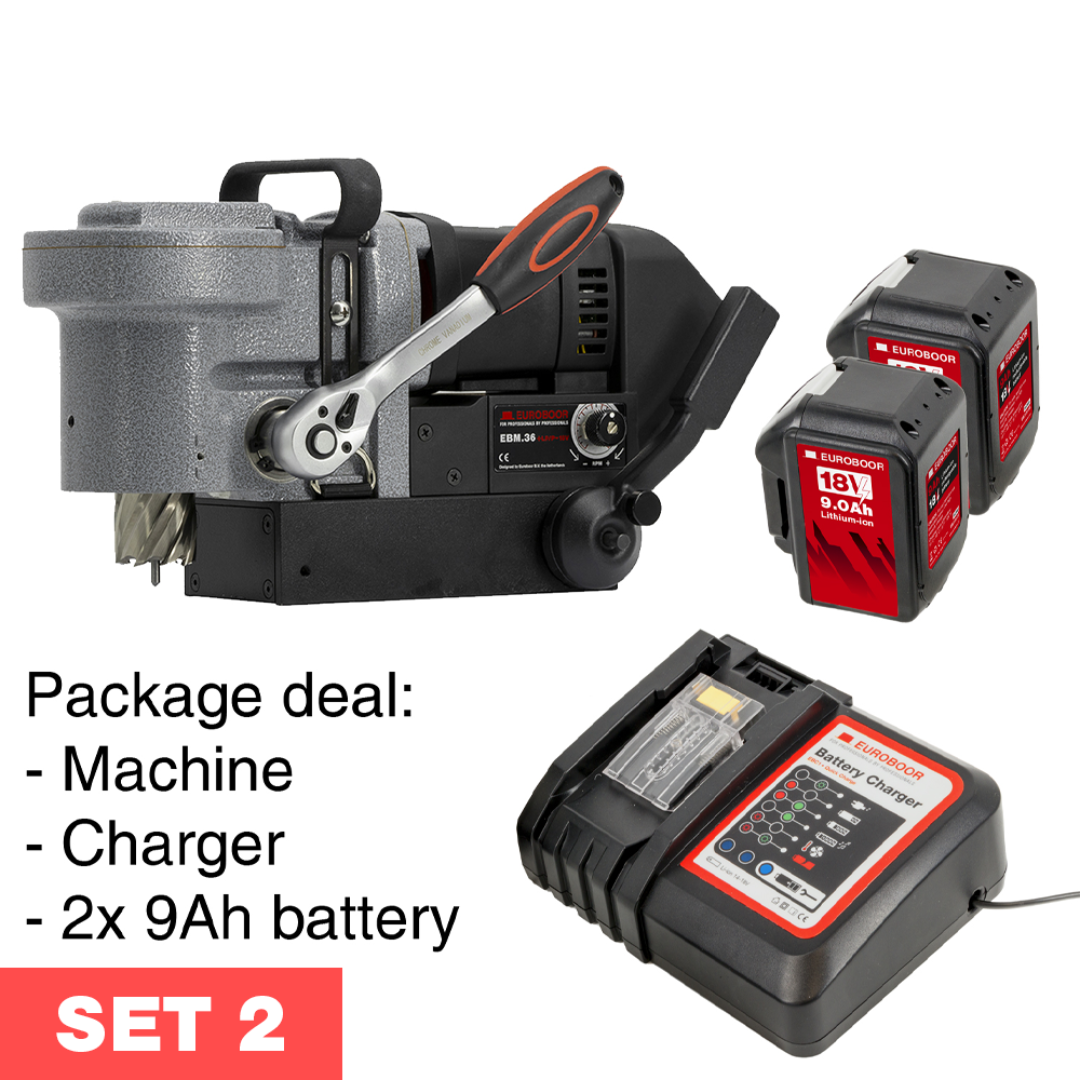

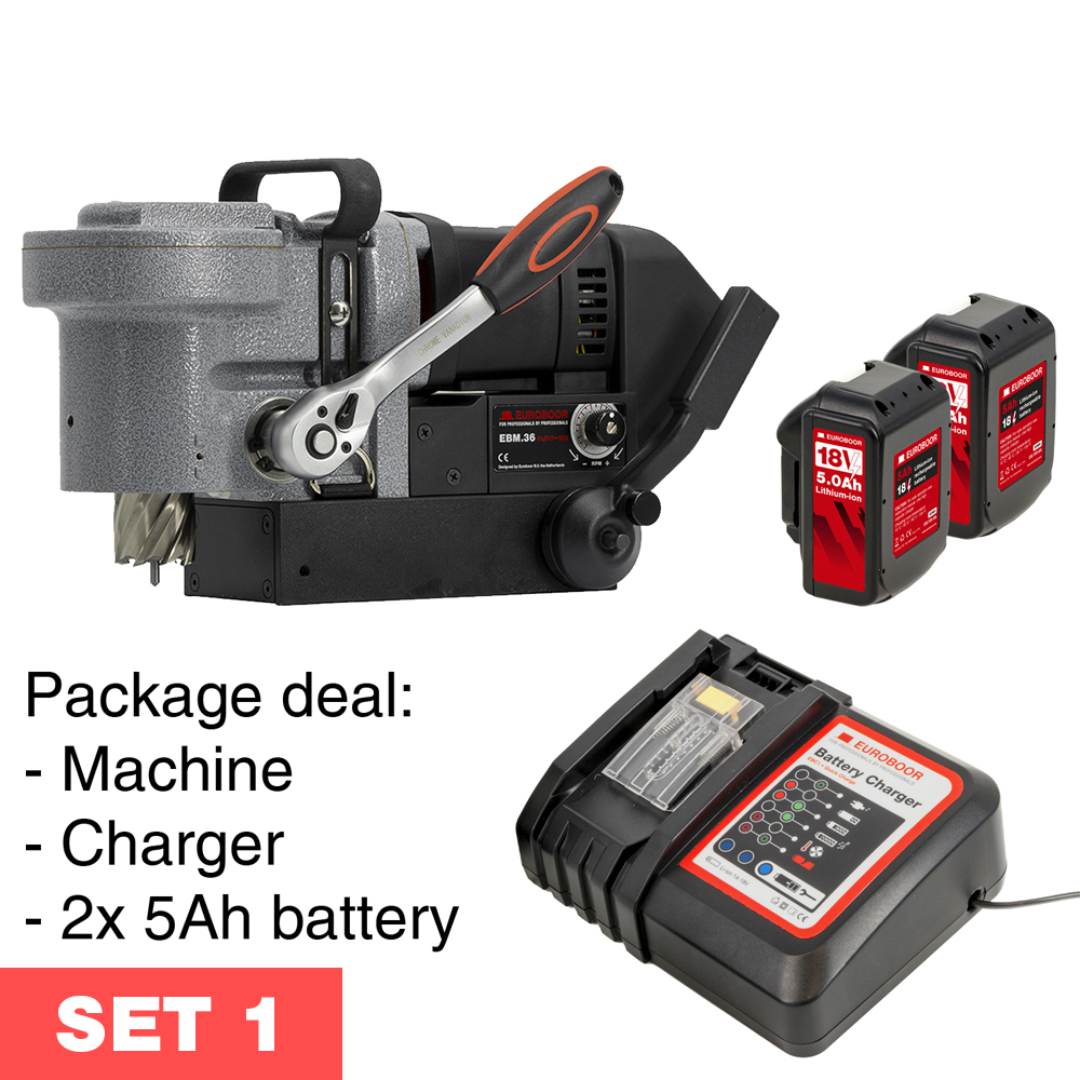

| Battery Capacity Options | 5Ah or 9Ah Li-ion |
| Machine Length | 340 mm (13-3/8") |
| Machine Width | 140 mm (5-1/2") |
| Machine Height | 174 mm (6-7/8") |
| Magnet Size | 76 × 85 × 45 mm |
| Machine Weight | 11.3 kg (24.9 lbs) |
| Power Supply Frequency | 50 – 60 Hz |
| Operating Temperature | 41°F – 104°F |
Euroboor EBM.36+LP/P-18V Cordless Magnetic Drilling Machine Features
- Brushless motor technology delivers efficient performance, reduced friction, and longer service life.
- Battery powered operation eliminates dependency on external power supplies for maximum portability.
- Makita LXT 18V platform compatibility allows shared batteries with other Makita cordless tools.

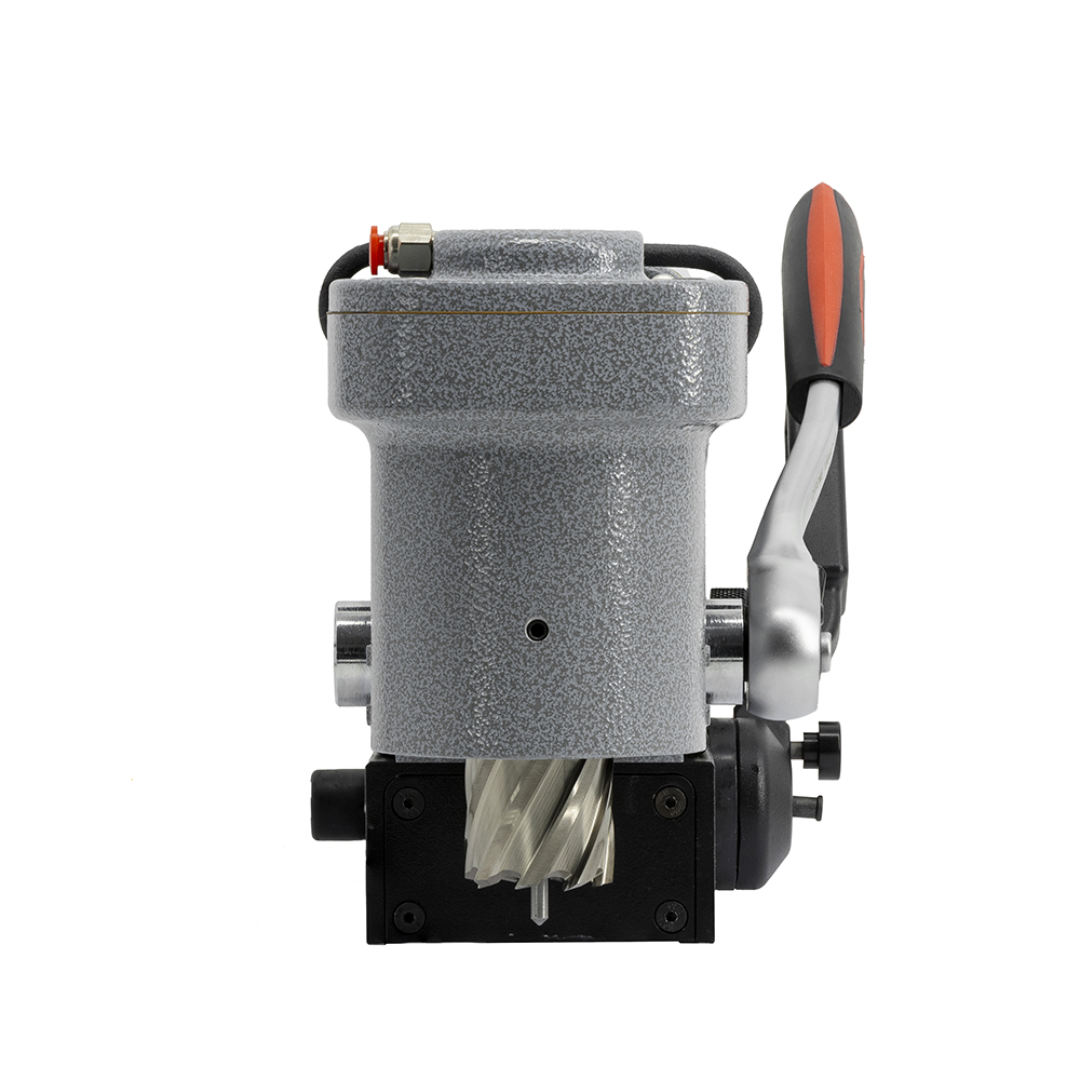

- Ultra-compact low profile design enables drilling in confined spaces where traditional mag drills cannot fit.

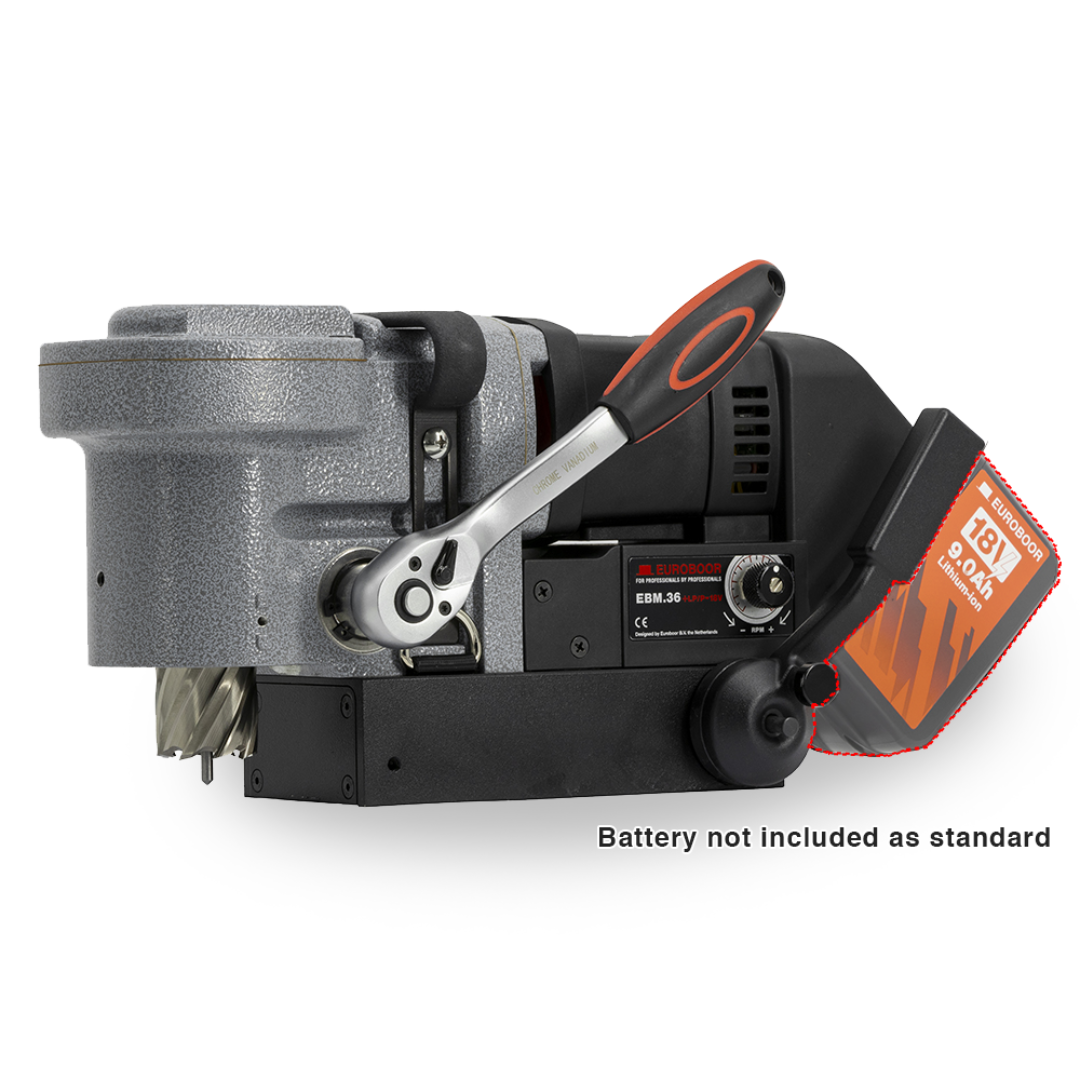

- Permanent magnet base provides strong holding force for safe and stable drilling.
- Adjustable speed control allows optimal cutting performance across different materials and cutter types.
- Gyro-Tec safety system detects sudden machine movement and automatically shuts down the motor.

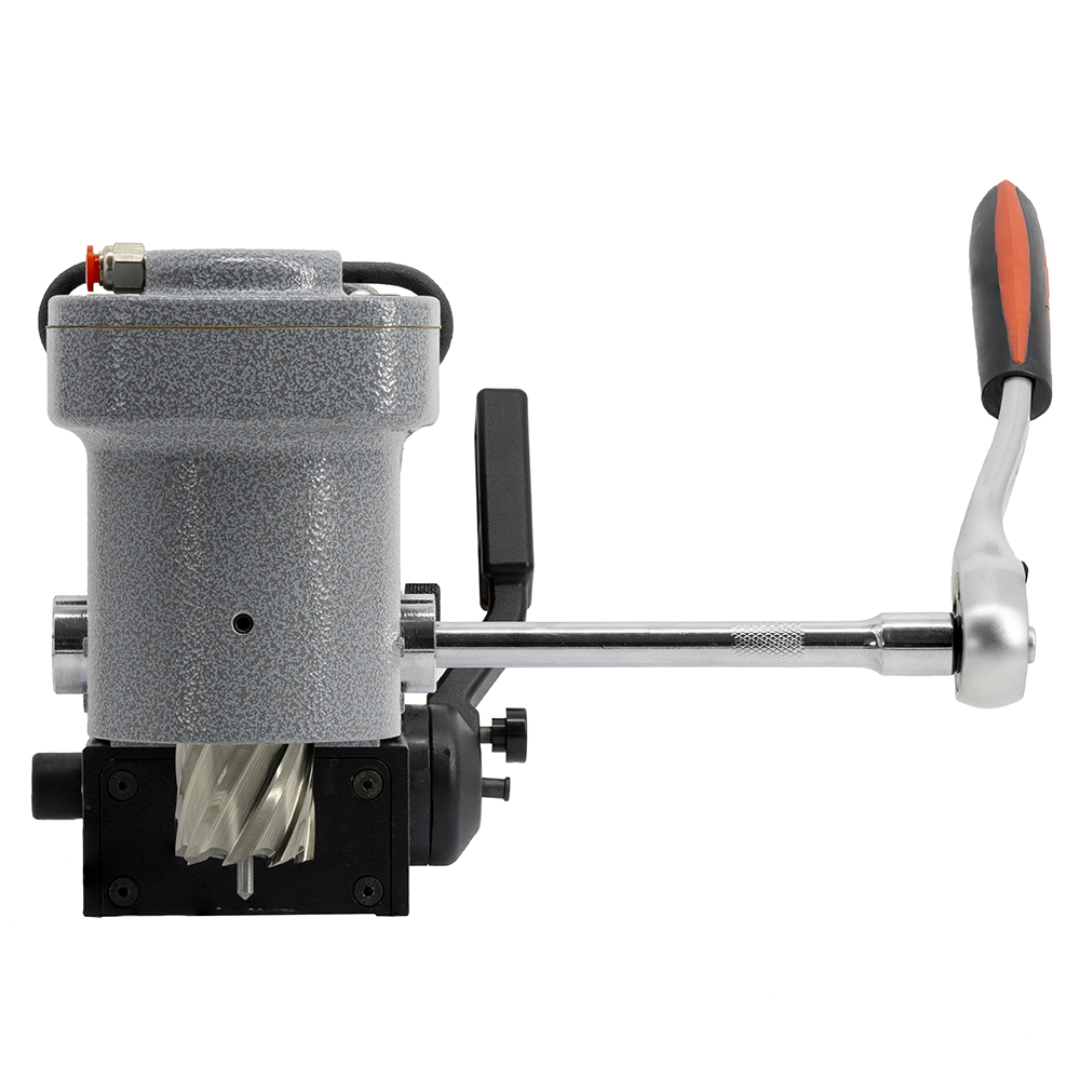

- Quick-Switch feed handle allows installation on either side of the machine for flexible operation.
- Integrated motor cable protection increases durability and reliability during heavy use.

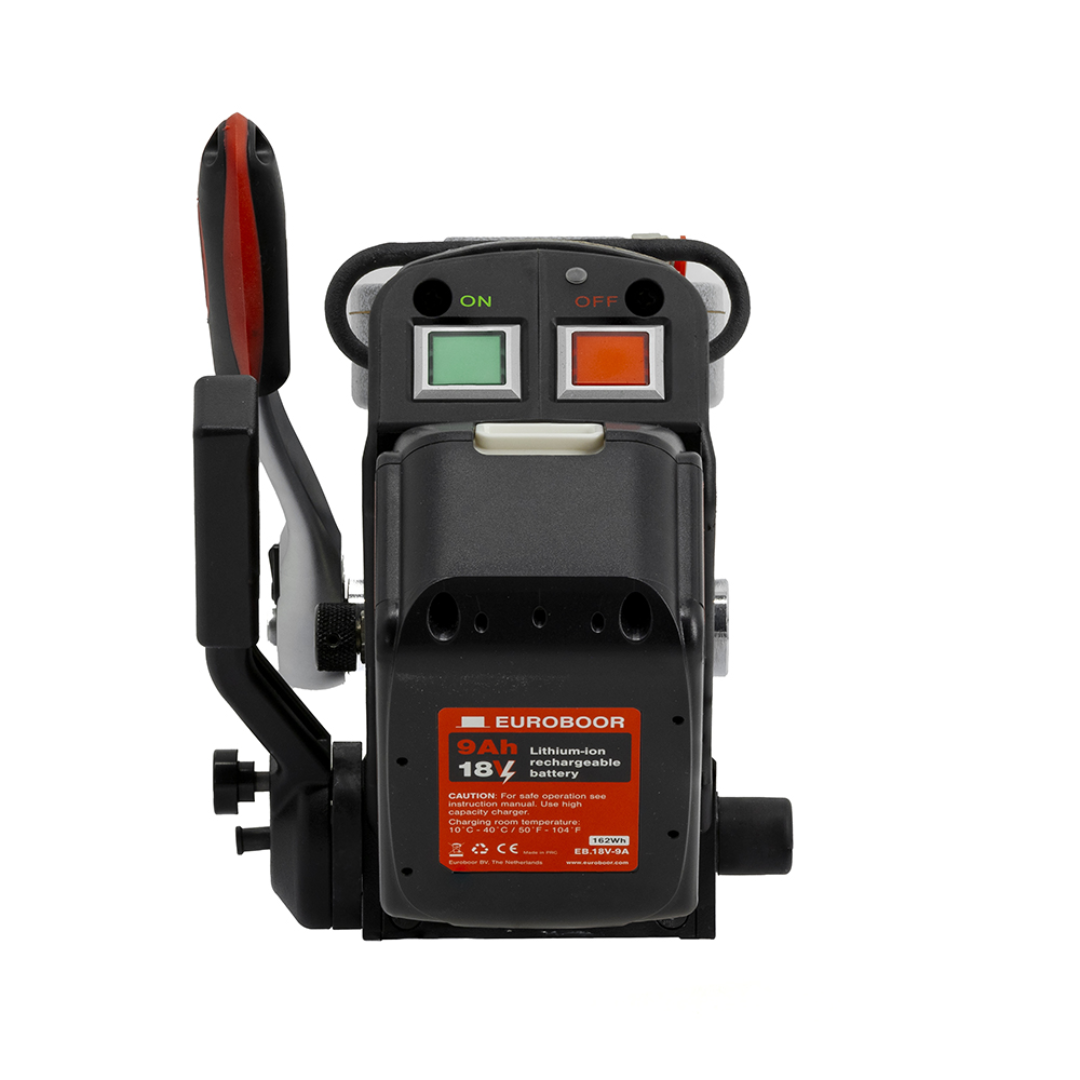

- LED load indicators help monitor drilling load for efficient operation.
Euroboor EBM.36+LP/P-18V Cordless Magnetic Drilling Machine Package Contents
- EBM.36+LP/P-18V cordless magnetic drilling machine
- Protective carrying case
- Quick-switch feed handle
- Quick-switch magnet handle
- Quick-switch extension rod – 150 mm (5-7/8")
- Lubrication and cooling system
- Allen key 3 mm (1/8")
- Allen key 4 mm (5/32")

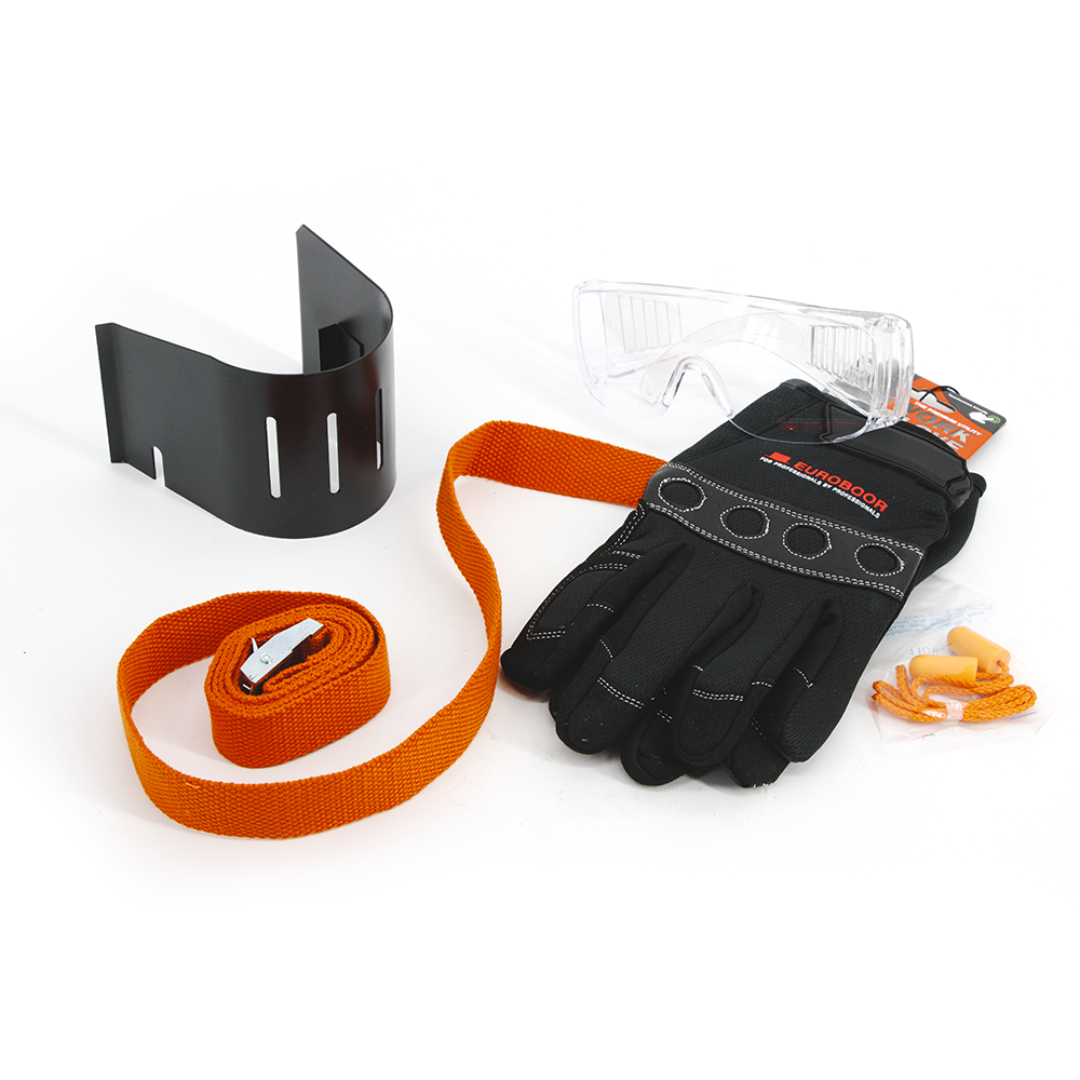

- Protection guard
- Safety belt
- Ear protection
- Safety goggles
- Safety gloves
- User manual
Why Choose the Euroboor EBM.36+LP/P-18V Cordless Magnetic Drilling Machine
- Fully cordless drilling capability for maximum job site mobility.
- Powerful 1,000 W motor with adjustable drilling speed.
- Strong permanent magnet for secure attachment to steel surfaces.
- Compact low-profile design ideal for confined spaces.
- Compatible with the widely used Makita LXT 18V battery system.
- Engineered for professional fabrication, construction, and maintenance applications.
The Euroboor EBM.36+LP/P-18V Cordless Magnetic Drilling Machine combines portability, power, and precision in one compact tool—making it a reliable solution for professionals who demand efficient metal drilling performance in the field or workshop.
