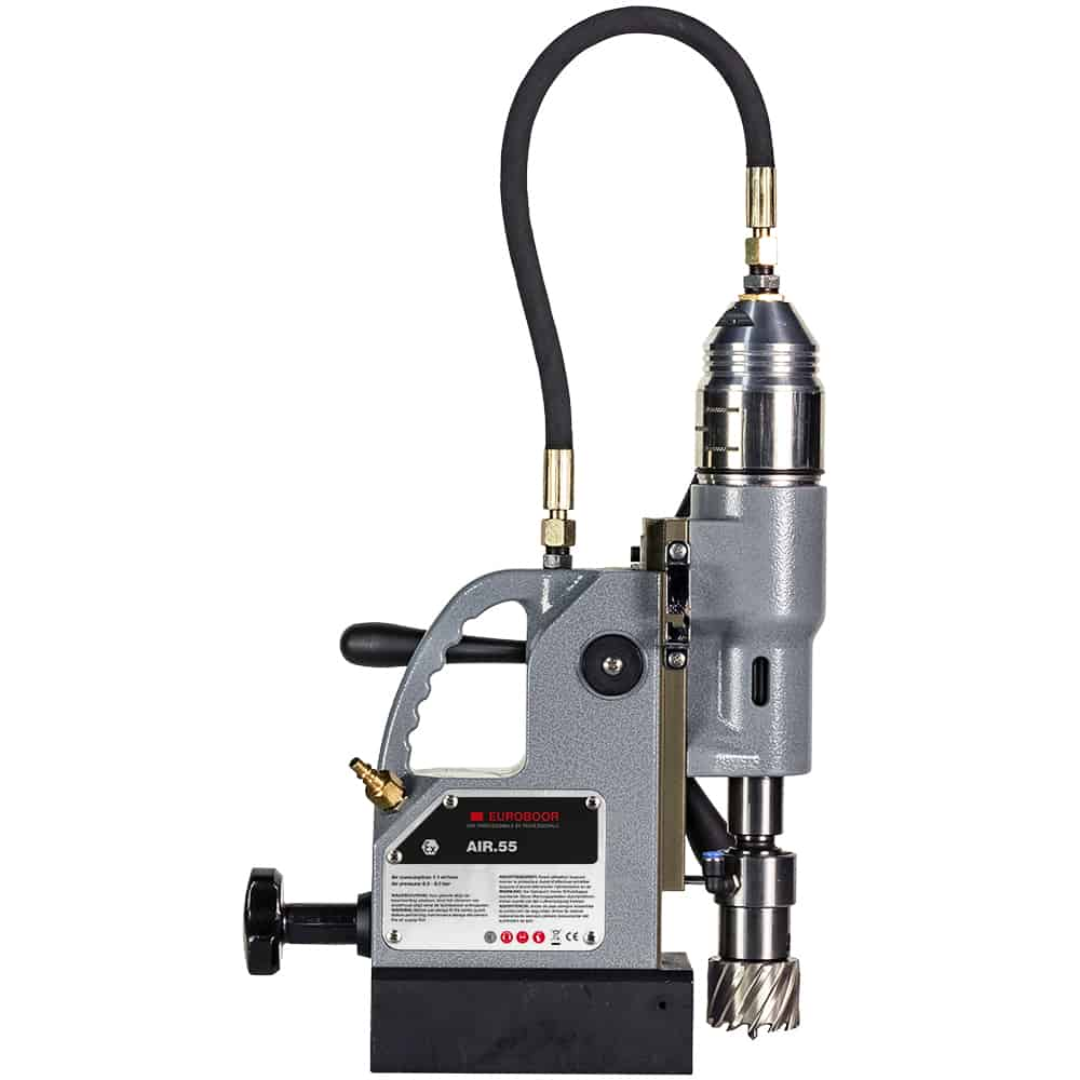

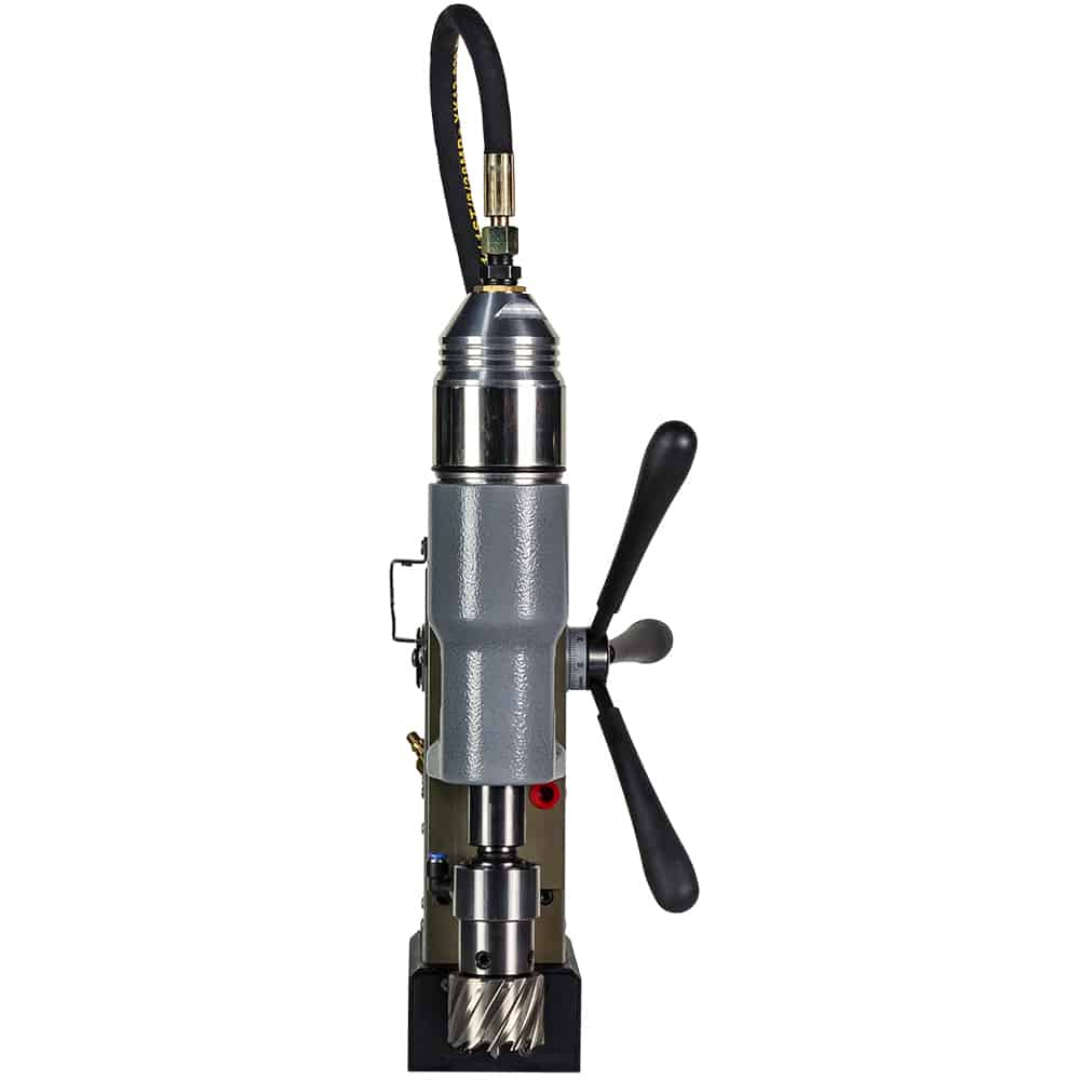

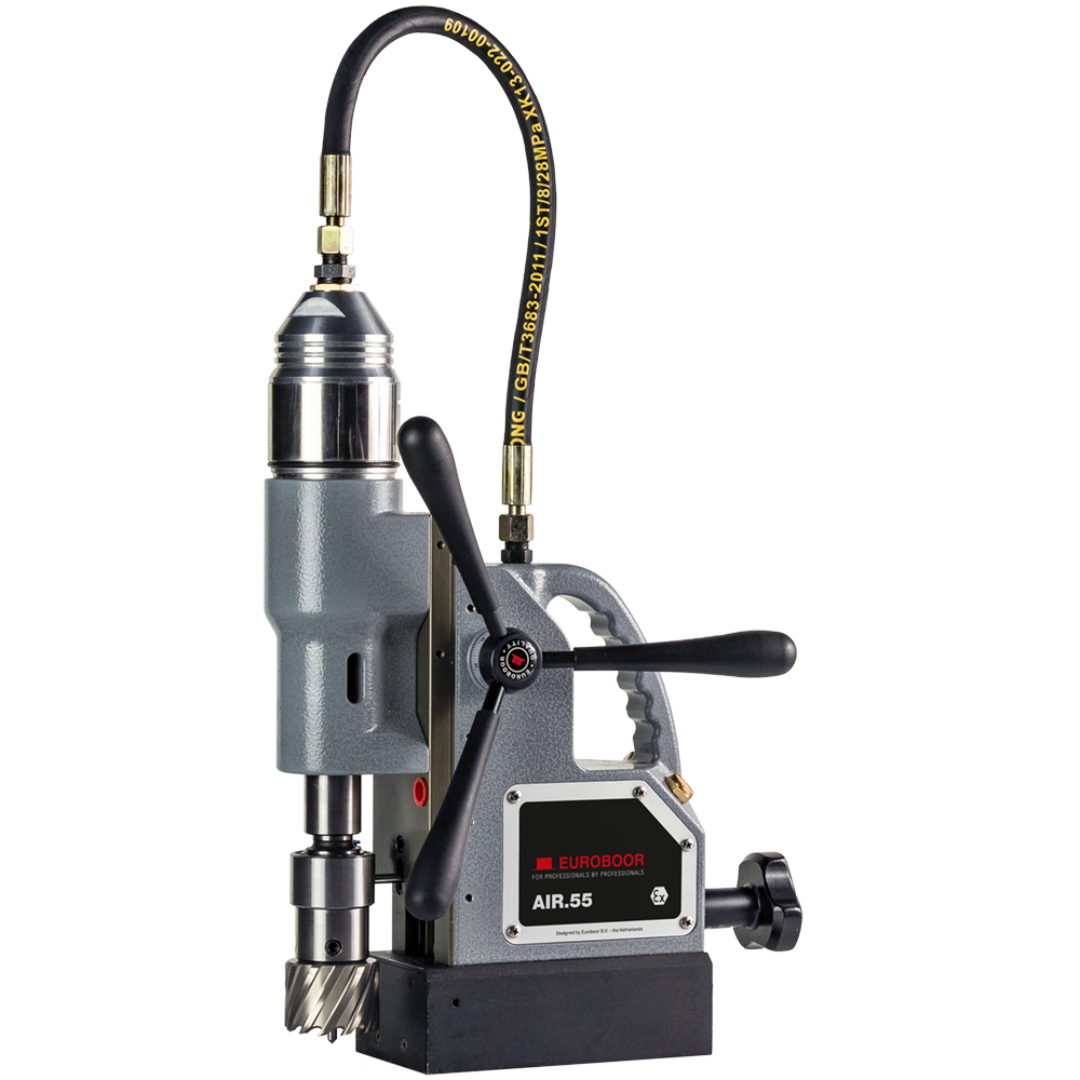

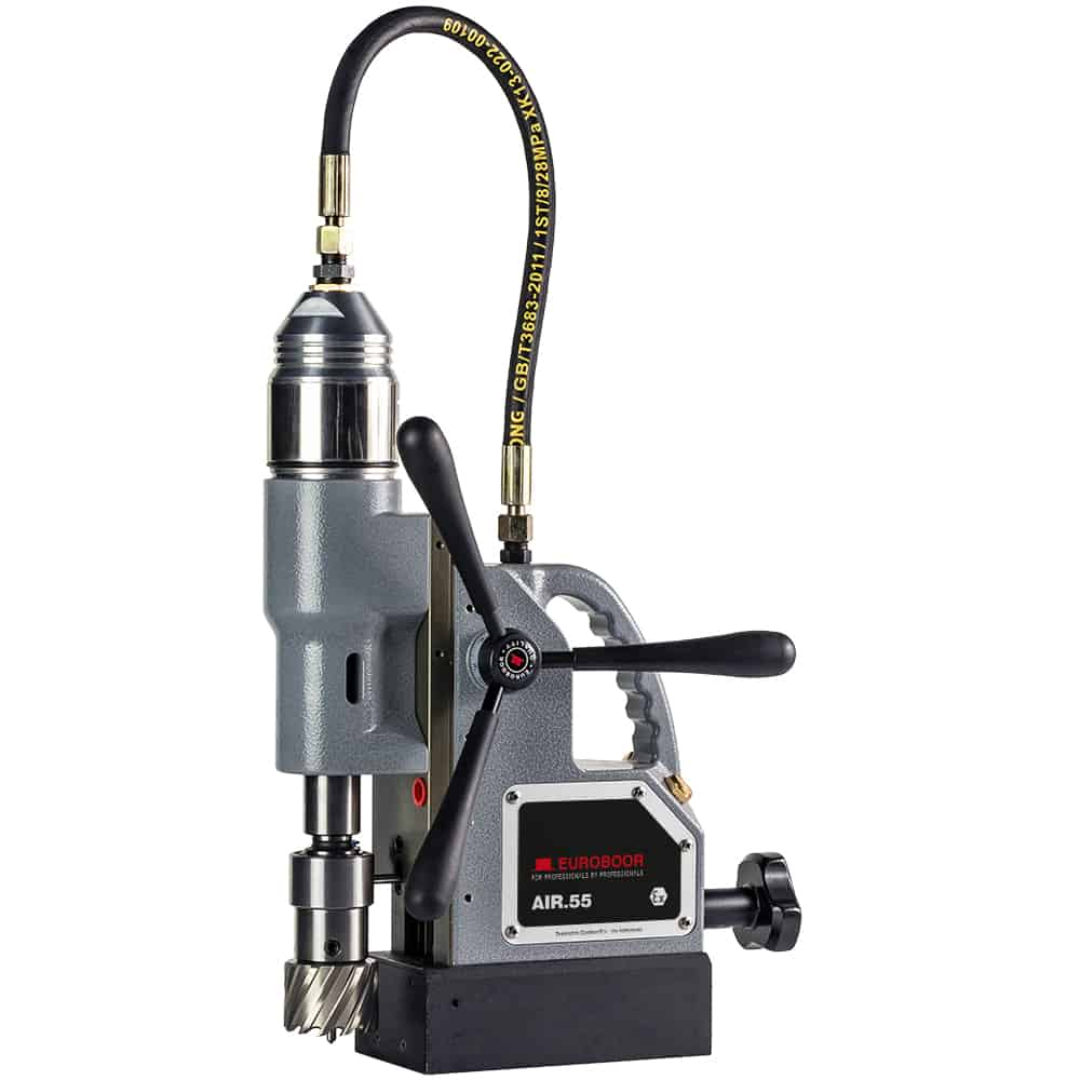

Euroboor AIR.55 Pneumatic Magnetic Drilling Machine Applications
- Offshore drilling and maintenance operations
- Petrochemical plants and refineries
- Mining and heavy industrial environments
- Hazardous locations requiring spark-free equipment
- Steel fabrication and structural drilling
- Industrial maintenance where electrical tools are restricted
Ideal for explosive or spark-sensitive environments where pneumatic equipment provides a safer alternative to electric drilling machines.
Euroboor AIR.55 Pneumatic Magnetic Drilling Machine Specifications
| Model | AIR.55 |
|---|---|
| Machine Type | Pneumatic Magnetic Drilling Machine |
| Maximum Annular Cutter Diameter | 2 3/16" (55 mm) |
| Minimum Annular Cutter Diameter | 7/16" |
| Twist Drill Capacity | Up to 15/16" |
| Rotation Direction | Clockwise |
| No-Load Speed | 380 RPM |
| Magnetic Force | 1,984 lbs |
| Magnet Type | Permanent non-electric magnet |
| Gearbox Lubrication | Grease |
| Air Supply Pressure | 6.3 bar |
| Air Flow Rate | 66 m³/hr |
| Air Hose Connection | 3/8" inside diameter |
| Spindle | MT3 / 3/4" Weldon |
| Stroke | 6 9/16" |
| Height Range | 24 3/16" – 27 3/4" |
| Weight | 36.4 lbs |
Euroboor AIR.55 Pneumatic Magnetic Drilling Machine Features
- Spark-Free Pneumatic Motor designed for safe use in explosive or hazardous environments.
- Permanent Non-Electric Magnet System ensures strong holding force without electrical power.
- No Loss of Magnetic Grip during power cuts or supply interruptions.
- Heavy-Duty Air Motor delivers consistent drilling performance when connected to a compressor.
- Compact Portable Design allows easy transport and use in confined industrial locations.
- Single Operation Control Knob integrates magnet and motor operation with dead-man safety control.
- High Magnetic Holding Force provides stability even on thinner steel materials.
- MT3 Spindle with Weldon Tool Holder compatible with a wide range of annular cutters and drilling tools.
Euroboor AIR.55 Pneumatic Magnetic Drilling Machine Package Contents
- 1 × Metal storage case
- 1 × Euroboor AIR.55 pneumatic magnetic drilling machine

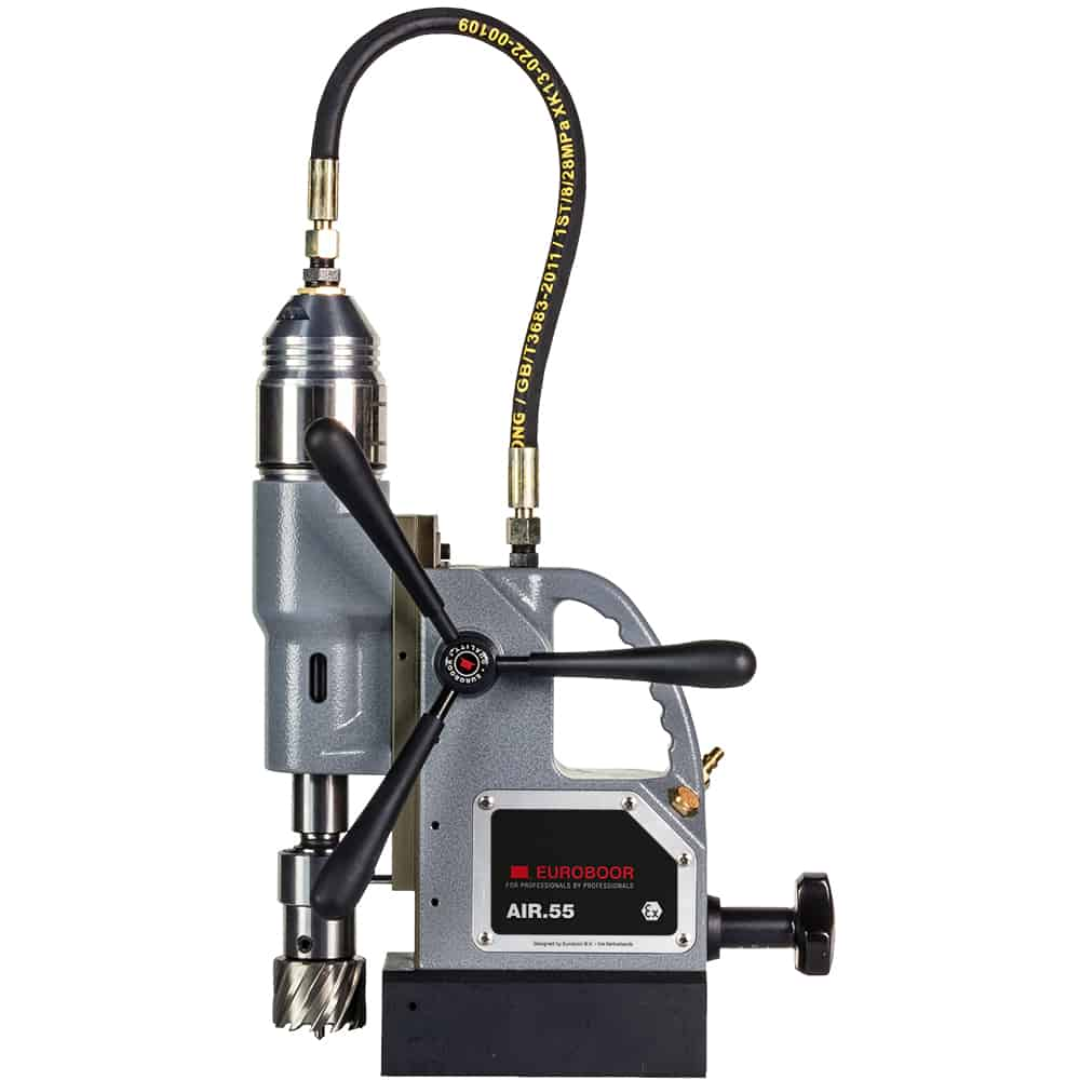

- 3 × Capstan hub feed handles
- 1 × Spindle holder MT3 – 19.05 mm (3/4") with cooling/lubrication ring
- 1 × Drift key

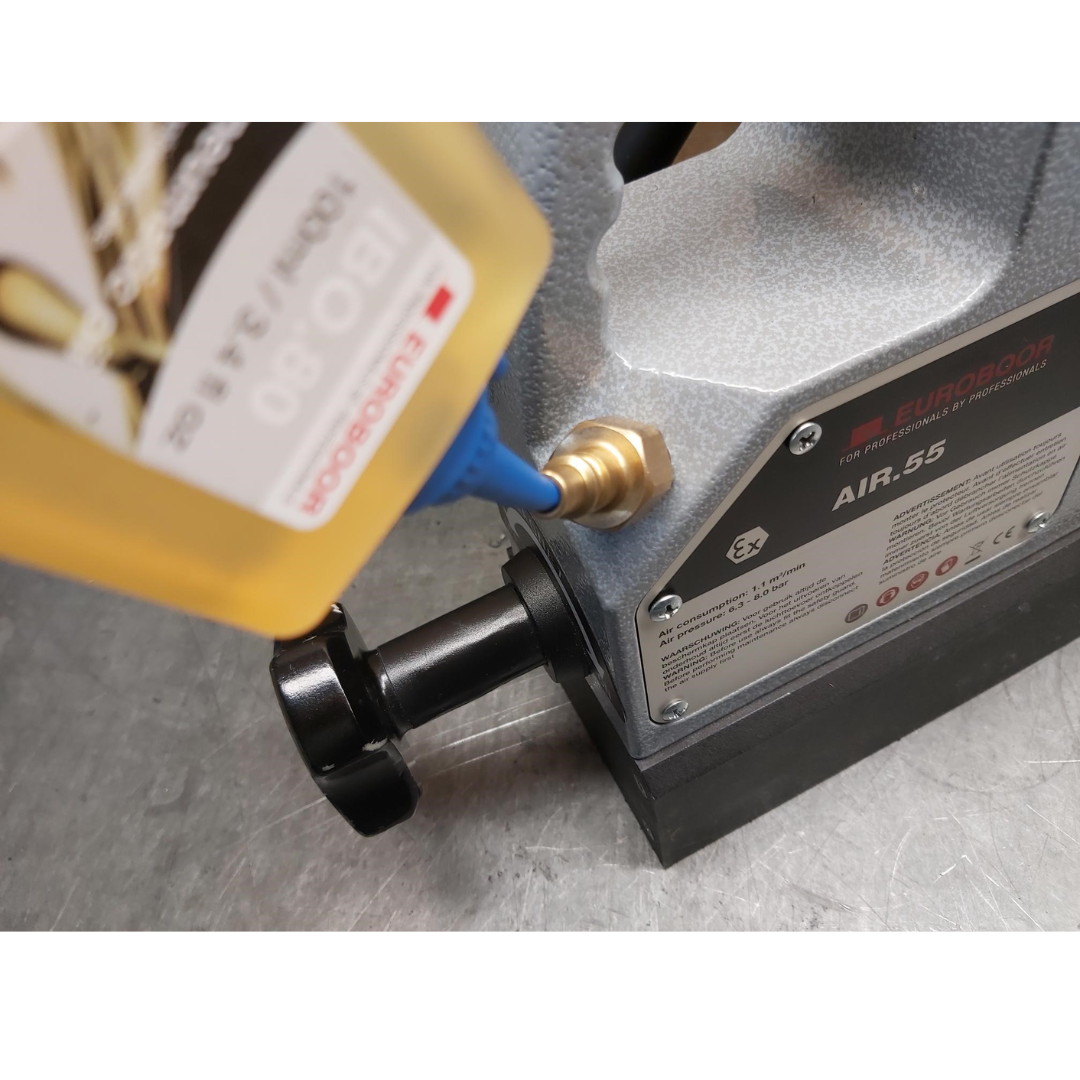

- 1 × Lubrication and cooling system
- 1 × Allen key 2.5 mm (3/32")
- 1 × Allen key 4 mm (5/32")
- 1 × Allen key 5 mm (13/64")
- 2 × Open-end spanners 19/22 mm (3/4" – 7/8")

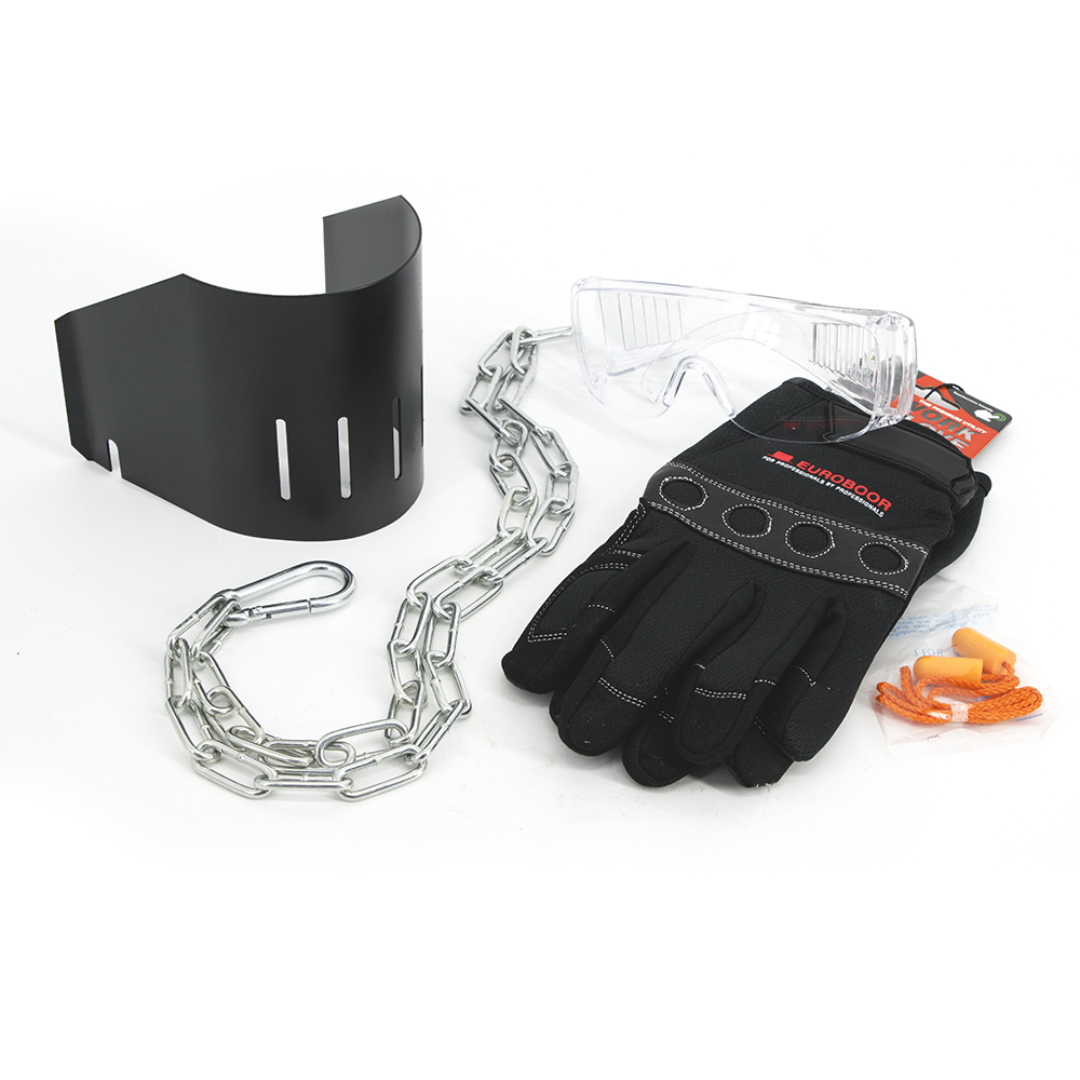

- 1 × Protection guard
- 1 × Safety chain
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor AIR.55 Pneumatic Magnetic Drilling Machine
- Safe pneumatic operation for hazardous and explosive environments
- Permanent magnet base eliminates dependence on electrical magnet systems
- Capable of drilling large holes up to 2 3/16"
- Reliable performance in offshore, mining, and petrochemical industries
- Portable heavy-duty design for demanding industrial work
The Euroboor AIR.55 Pneumatic Magnetic Drilling Machine delivers powerful, spark-free drilling performance where safety and reliability are critical.
