Enco 42" x 1" Vertical Combination Sanding Machine: 8" Disc Dia BD1801 Applications
- Woodworking and cabinet making.
- Metal deburring and edge finishing.
- Knife making and tool sharpening.
- Plastic and composite material finishing.
- Fabrication and maintenance shops.
- Model making and prototype development.
- Educational and vocational workshops.
- General-purpose sanding, shaping, and finishing applications.
Ideal for workshops that require the versatility of both belt and disc sanding in one compact, benchtop machine.
Enco 42" x 1" Vertical Combination Sanding Machine: 8" Disc Dia BD1801 Specifications
| Model | BD1801 |
|---|---|
| Belt Size | 1" × 42" |
| Belt Orientation | Vertical |
| Disc Diameter | 8" |
| Motor | 3/4 HP, 5 Amp Induction Motor |
| Voltage / Phase | 120 Volt / Single Phase |
| Belt Speed | 3,590 RPM |
| Disc Speed | 3,590 RPM |
| Motor Speed | 3,590 RPM |
| Operation | Dry Use Only |
| Belt Table Width | 6" |
| Disc Table Width | 8" |
| Table Length | 7-7/8" |
| Table Tilt | 45° Inward (Disc) / 45° Outward |
| Dust Collection Ports | Two Separate 1-1/2" Dust Collection Outlets |
| Control Type | On/Off Rocker Switch |
| Cord Type | Corded |
| Cord Length | 183" |
| Overall Dimensions (L × D × H) | 20-1/3" × 15-1/8" × 20-1/5" |
| Certification | TÜV SÜD |
| Manufacturer Part Number | BD1801 |
| UNSPSC Code | 23101509 |
| Country of Origin | China |
Enco 42" x 1" Vertical Combination Sanding Machine: 8" Disc Dia BD1801 Performance & Construction
- Powerful 3/4 HP, 5-amp induction motor delivers smooth, dependable performance with reduced vibration and extended service life.
- Combination sanding system integrates a 1" × 42" vertical belt and an 8" sanding disc to handle a wide range of finishing, shaping, and deburring tasks.
- Vertical belt configuration is ideal for contour sanding, edge finishing, and precision material removal.
- Large 8-inch sanding disc provides a stable platform for squaring edges, flattening surfaces, and bevel sanding.

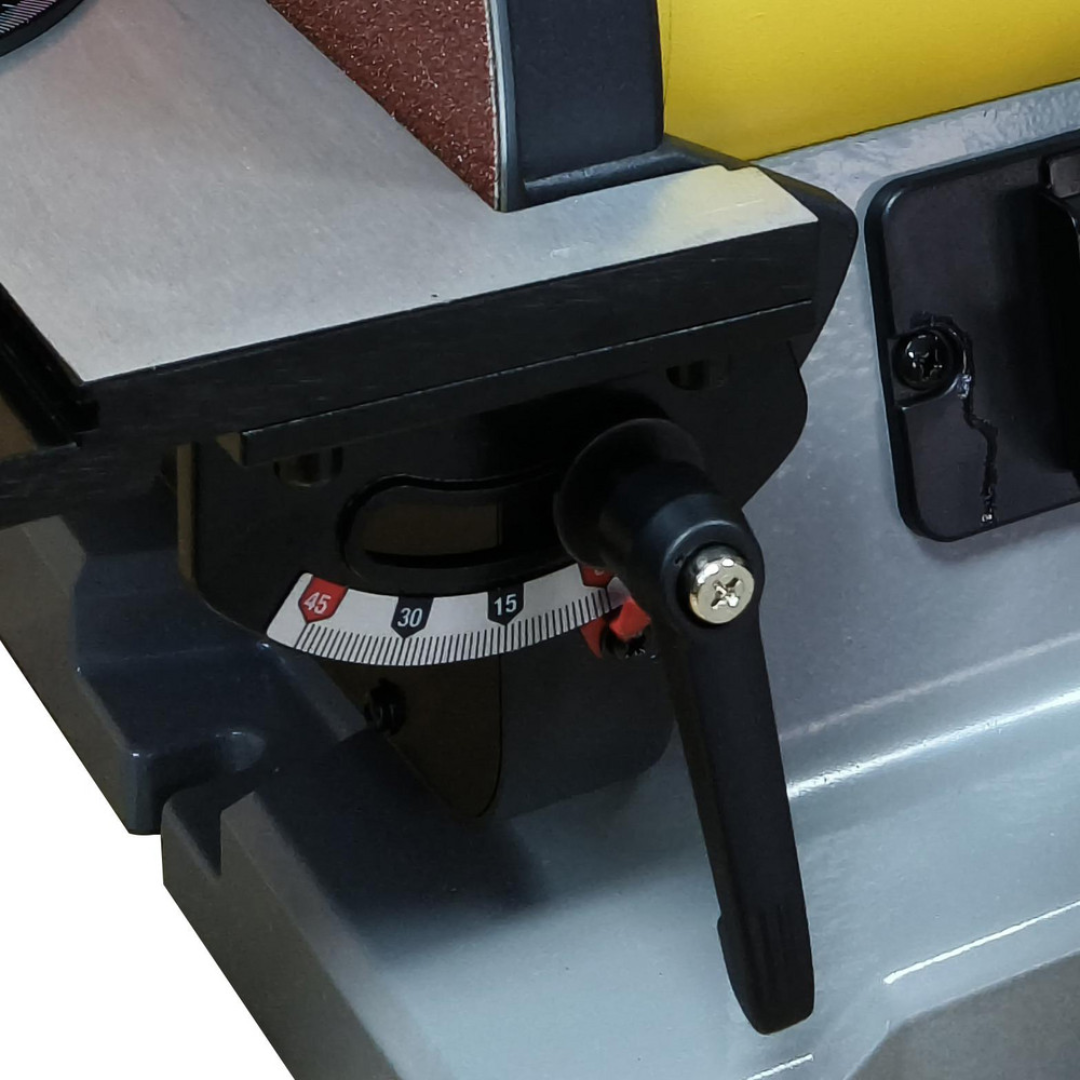

- Adjustable work tables tilt up to 45° for accurate bevel sanding and angle finishing.
- Dual dust collection ports feature separate 1-1/2" outlets for the belt and disc, helping maintain a cleaner, safer work environment.
- Heavy-duty cast iron base minimizes vibration while providing excellent machine stability and improved sanding accuracy.

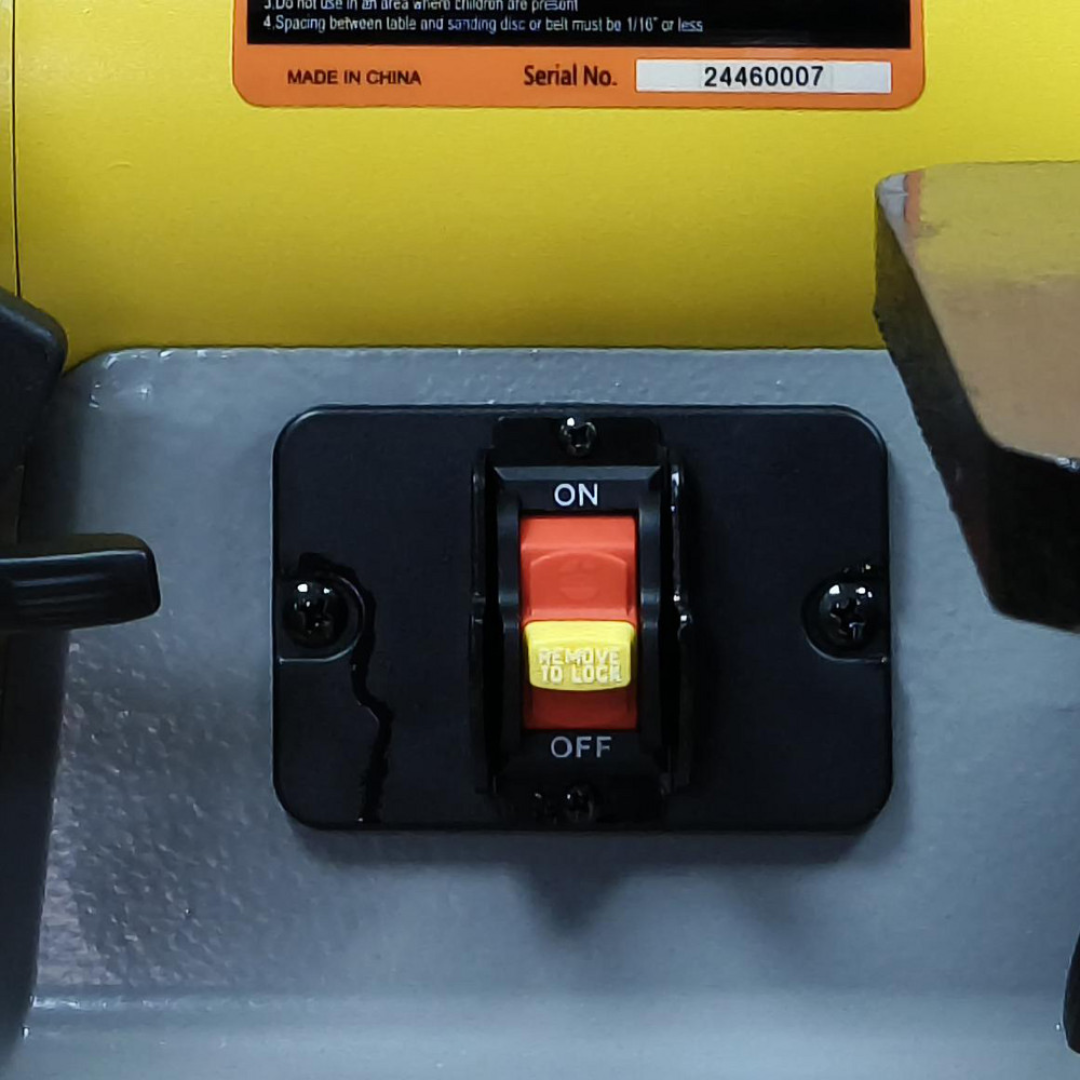

- Simple on/off rocker switch offers convenient machine operation and easy accessibility.
- Dry-use design is suitable for sanding wood, plastics, composites, and metal using appropriate abrasives.
- TÜV SÜD certified for compliance with recognized product safety and quality standards.
Why Choose the Enco 42" x 1" Vertical Combination Sanding Machine: 8" Disc Dia BD1801
- Versatile combination belt and disc sanding machine.
- Powerful 3/4 HP induction motor for dependable performance.
- Vertical 1" × 42" belt and 8" disc accommodate a wide range of sanding tasks.
- Dual dust collection ports improve dust management and shop cleanliness.
- Rigid cast iron base enhances stability and sanding precision.
- Adjustable work tables simplify bevel and angle sanding.
- Excellent for woodworking, fabrication, maintenance, knife making, and educational workshops.
The Enco 42" x 1" Vertical Combination Sanding Machine: 8" Disc Dia BD1801 delivers professional sanding performance in a compact benchtop design. Combining a durable induction motor, heavy-duty cast iron construction, dual dust collection ports, and versatile belt and disc sanding capabilities, it is an excellent choice for shops that require precision, reliability, and space-saving efficiency.
