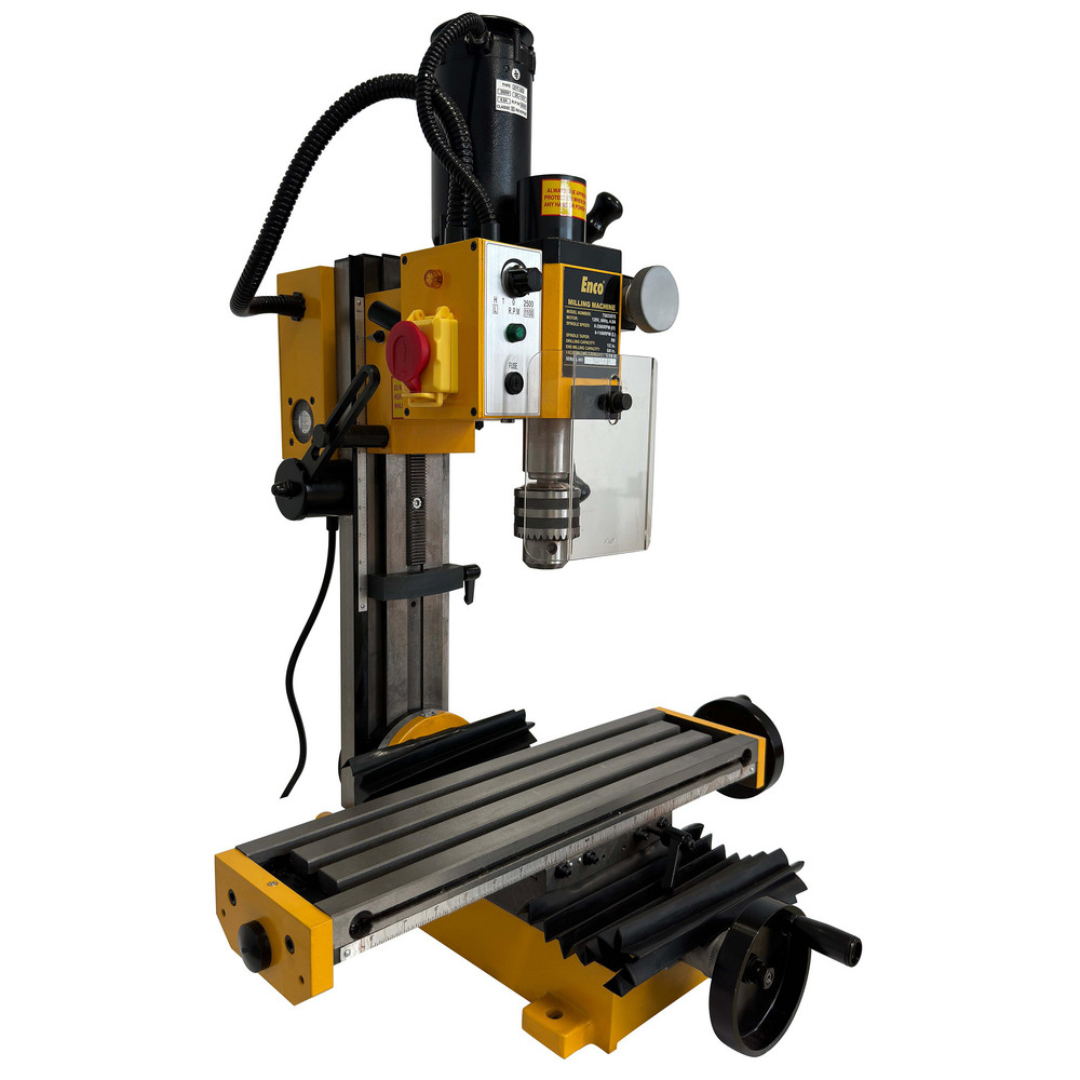

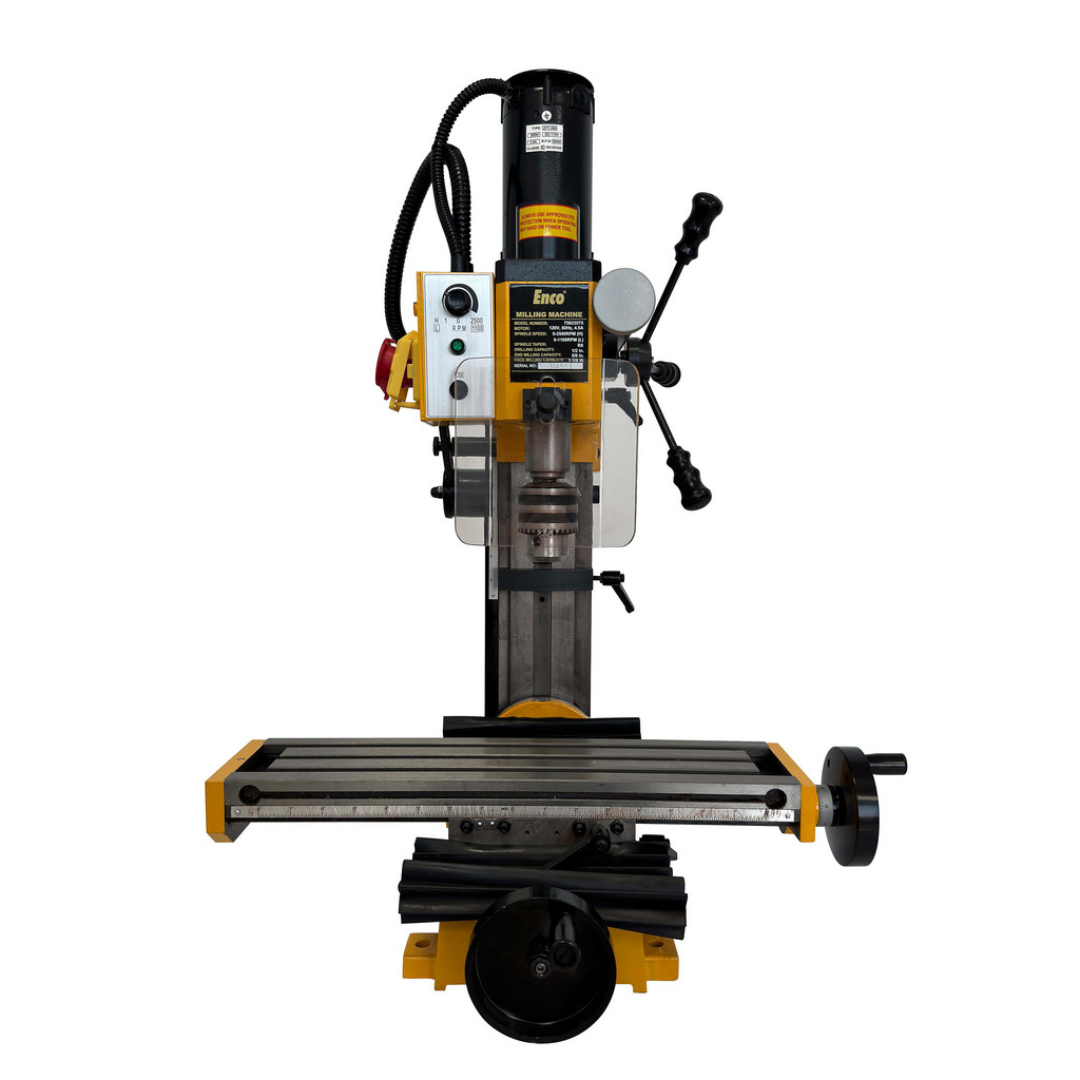

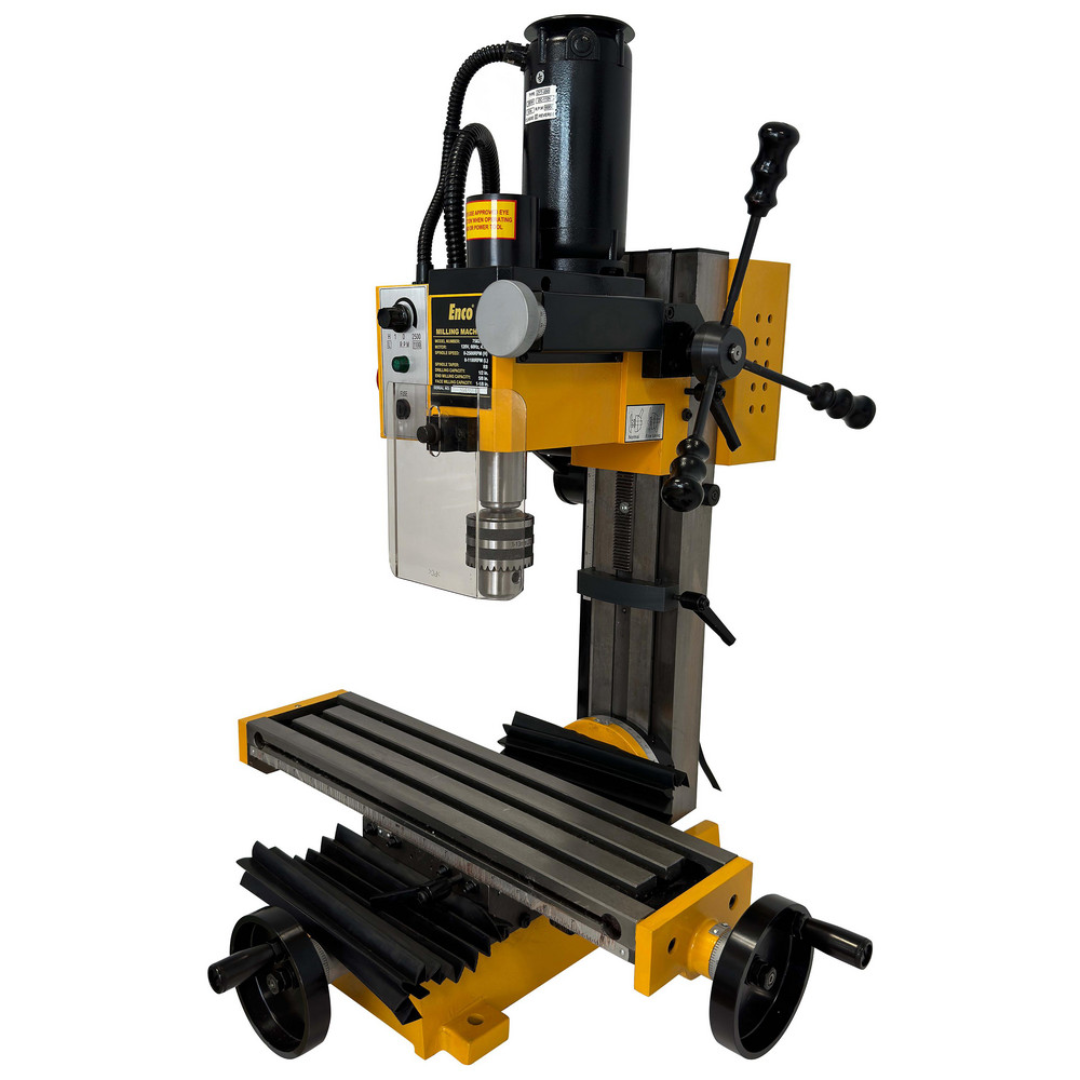

Enco 18" X 5" Compact Milling Drilling Machine, Various Speed, 110V X2 Applications
- Precision drilling of steel, cast iron, aluminum, brass, and plastics.
- End milling, slotting, and light face milling operations.
- Prototype manufacturing and product development.
- Maintenance and repair machining.
- Fixture, jig, and tooling fabrication.
- Educational machine shop instruction.
- Small-part production and custom machining.
- Home workshops and professional fabrication environments.
An excellent solution for users requiring the capabilities of both a drill press and a milling machine in one compact benchtop package.
Enco 18" X 5" Compact Milling Drilling Machine, Various Speed, 110V X2 Specifications
| Machine Type | Bench Mill Drill Combination |
|---|---|
| Motor | 1/2 HP |
| Voltage / Phase | 110 Volt / Single Phase |

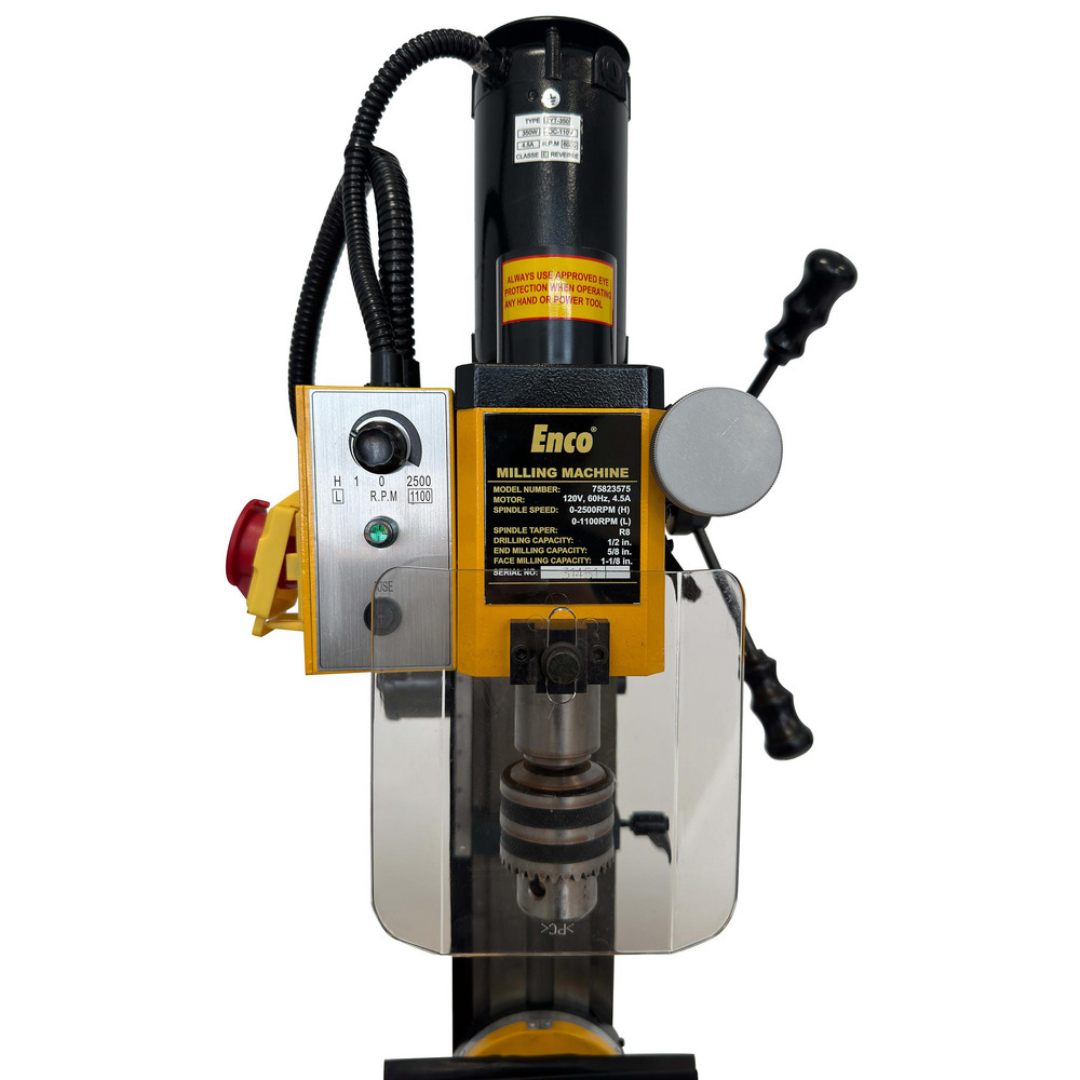

| Speed Control | Variable Speed Gear Drive |
| Spindle Speed Range | 100 – 2,500 RPM |
| Spindle Taper | R8 |

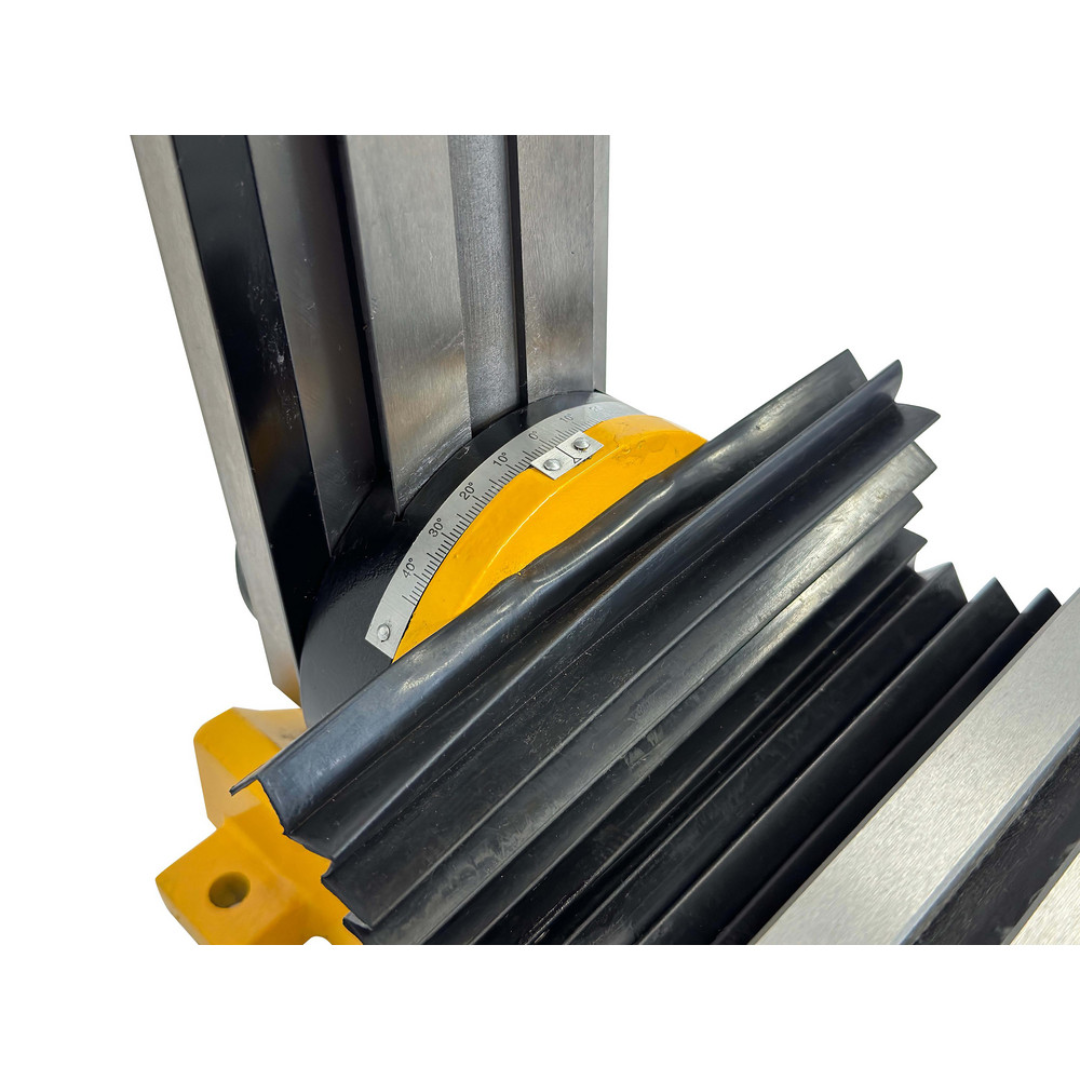

| Head Tilt | 45° Left / 45° Right |
| Drilling Capacity (Steel) | 33/64" |
| Drilling Capacity (Cast Iron) | 1/2" |
| End Milling Capacity | 0.6299" |
| Face Milling Capacity | 1.1811" |
| Swing | 6-37/64" |
| Spindle Travel | 7-3/32" |
| Maximum Spindle to Table Distance | 10-1/2" |
| Maximum Spindle to Column Distance | 6-37/64" |
| Table Size | 18-7/64" × 4-23/32" |
| Cross Travel | 5-1/8" |
| Longitudinal Travel | 11-13/16" |
| Table Load Capacity | 44.1 lbs |
| T-Slots | 3 |
| Column Type | Square Dovetail Column |
| Power Down Feed | No |
| Spindle Diameter | 4-23/32" |
| Overall Dimensions (H × L × D) | 29-59/64" × 23-15/64" × 22-53/64" |
| Included Accessories | 13 mm Drill Chuck, Wrench Set, Oil Can |
| Certification | cETL Certified |
| Safety Feature | Overload Protection |
| UNSPSC Code | 23241500 |
| Country of Origin | China |
Enco 18" X 5" Compact Milling Drilling Machine, Various Speed, 110V X2 Performance & Construction
- Variable-speed gear drive provides smooth spindle speed adjustment from 100 to 2,500 RPM for drilling, milling, and finishing operations.
- R8 spindle taper accepts a wide range of industry-standard tooling, maximizing machining versatility.
- 45° left and right tilting head enables angled drilling, chamfering, and precision milling without repositioning the workpiece.

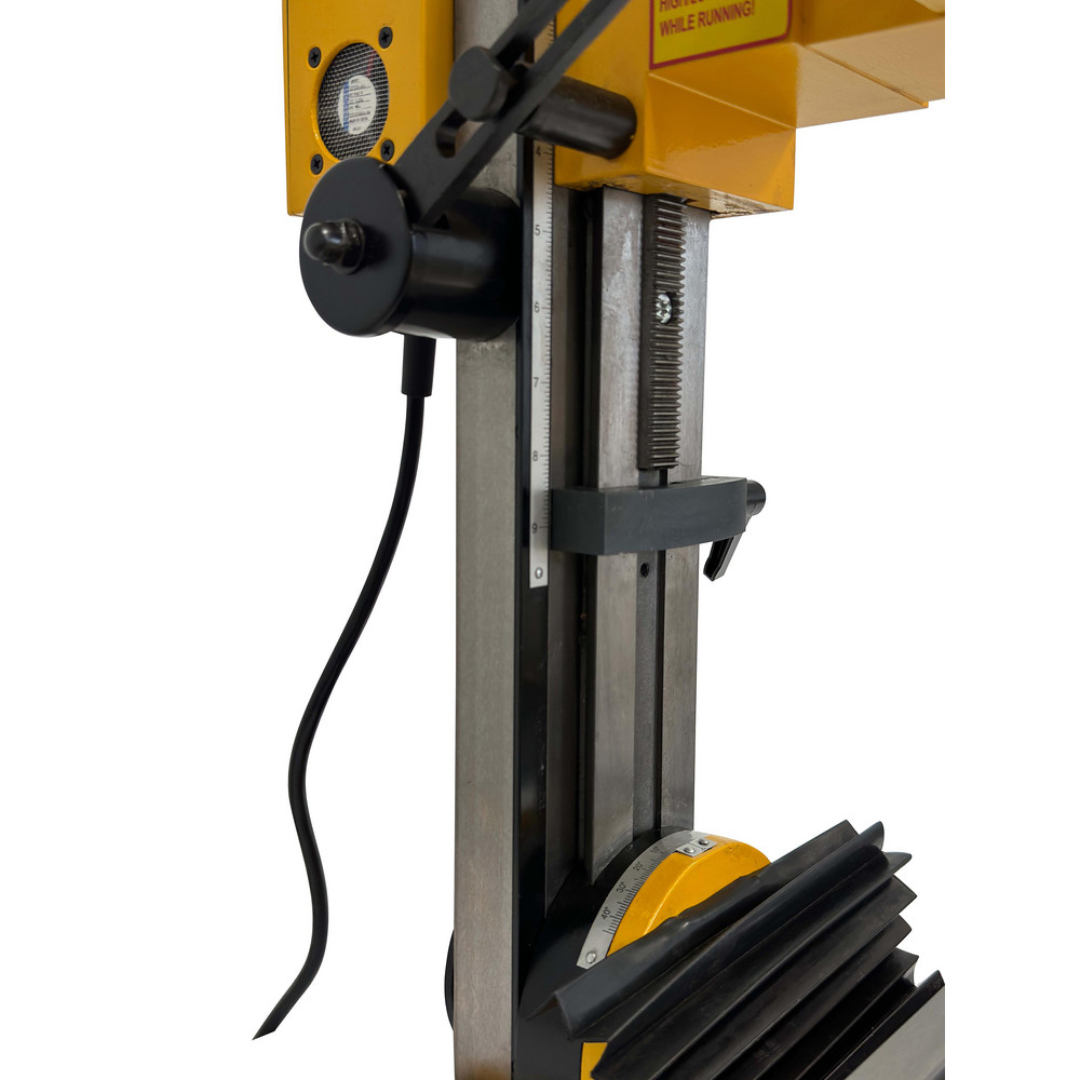

- Rigid dovetail column delivers excellent machining accuracy while minimizing vibration during cutting operations.
- Heavy-duty cast iron base enhances stability and improves precision for repeatable machining results.

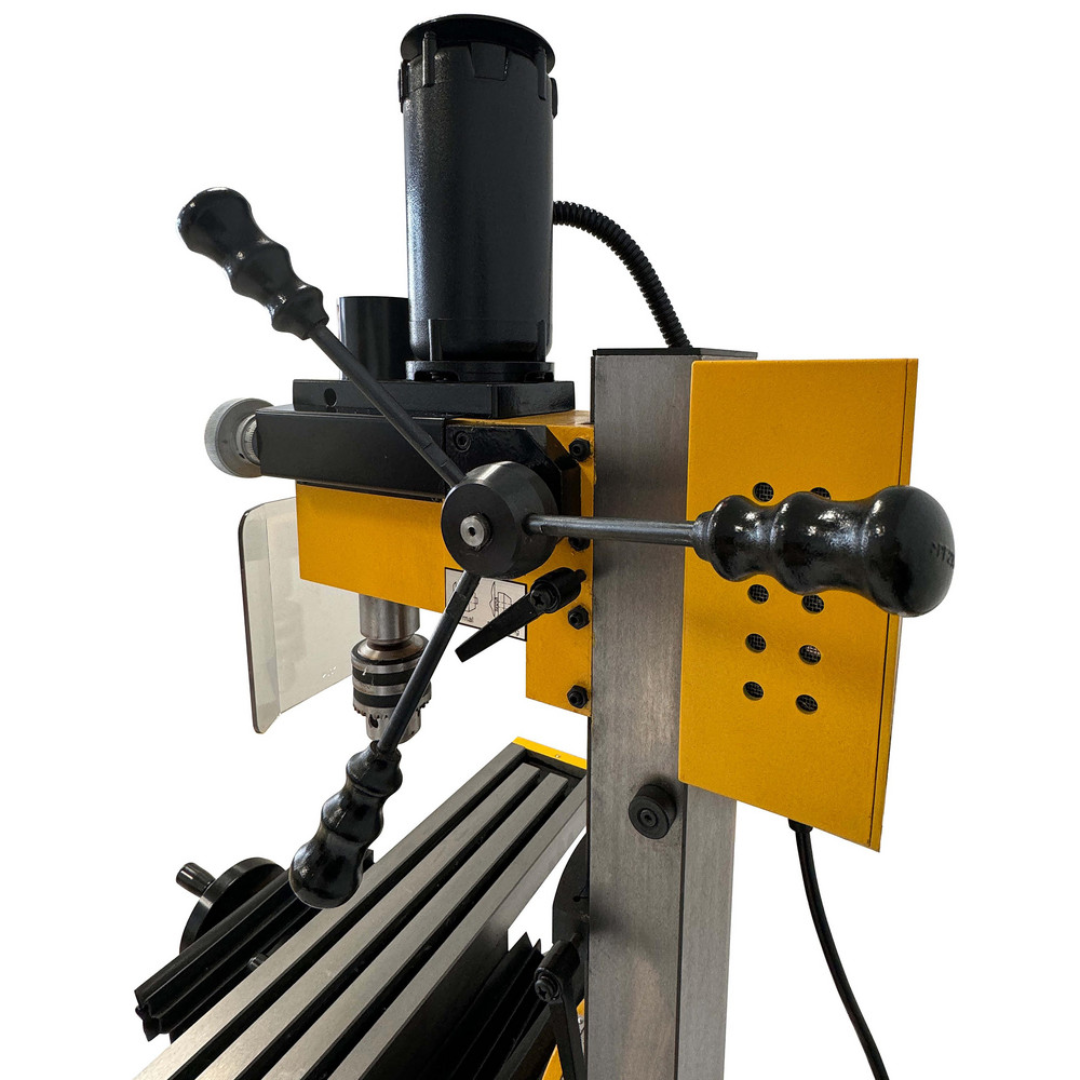

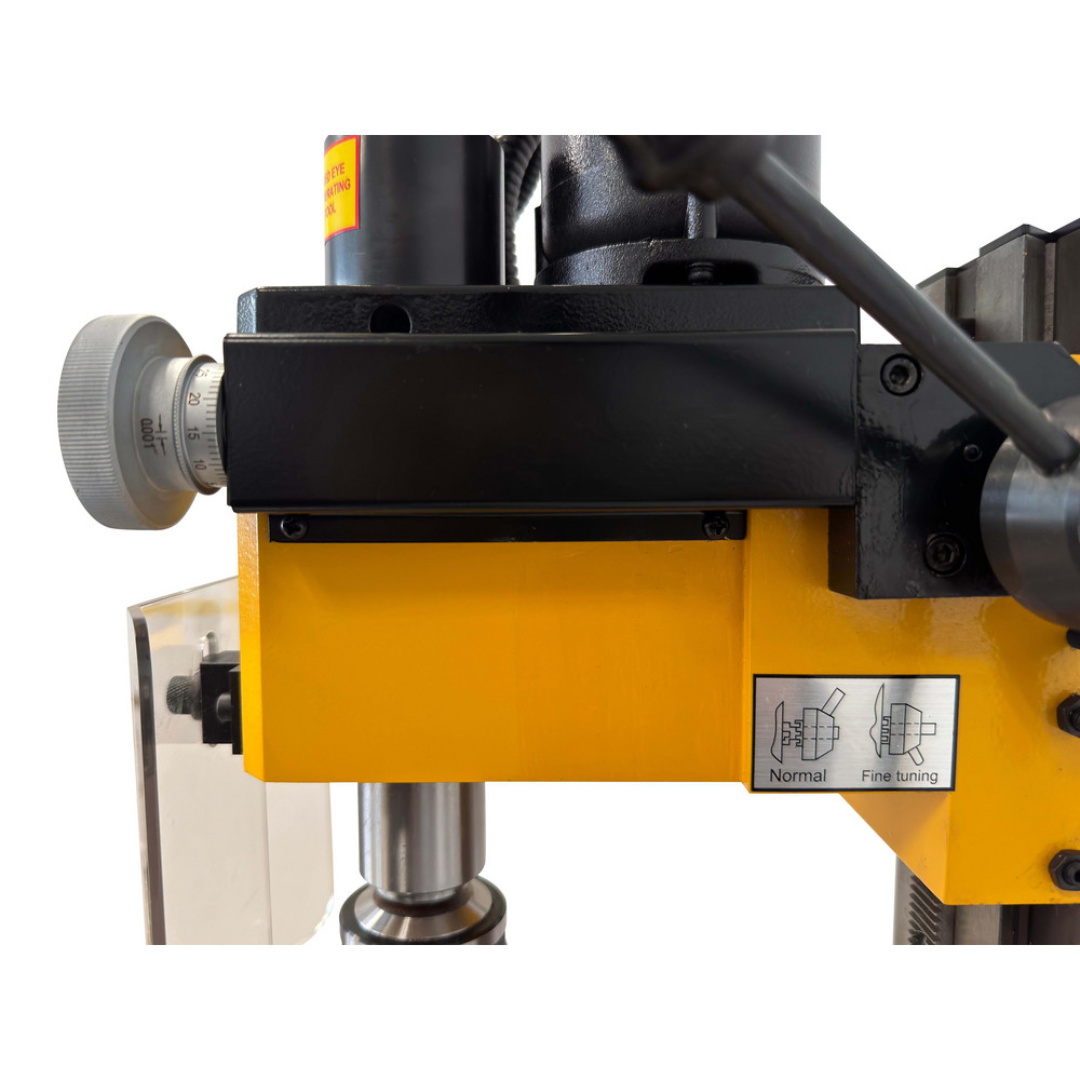

- Micro-feed quill advances at 0.002" per graduation, providing exceptional control during fine drilling and milling operations.

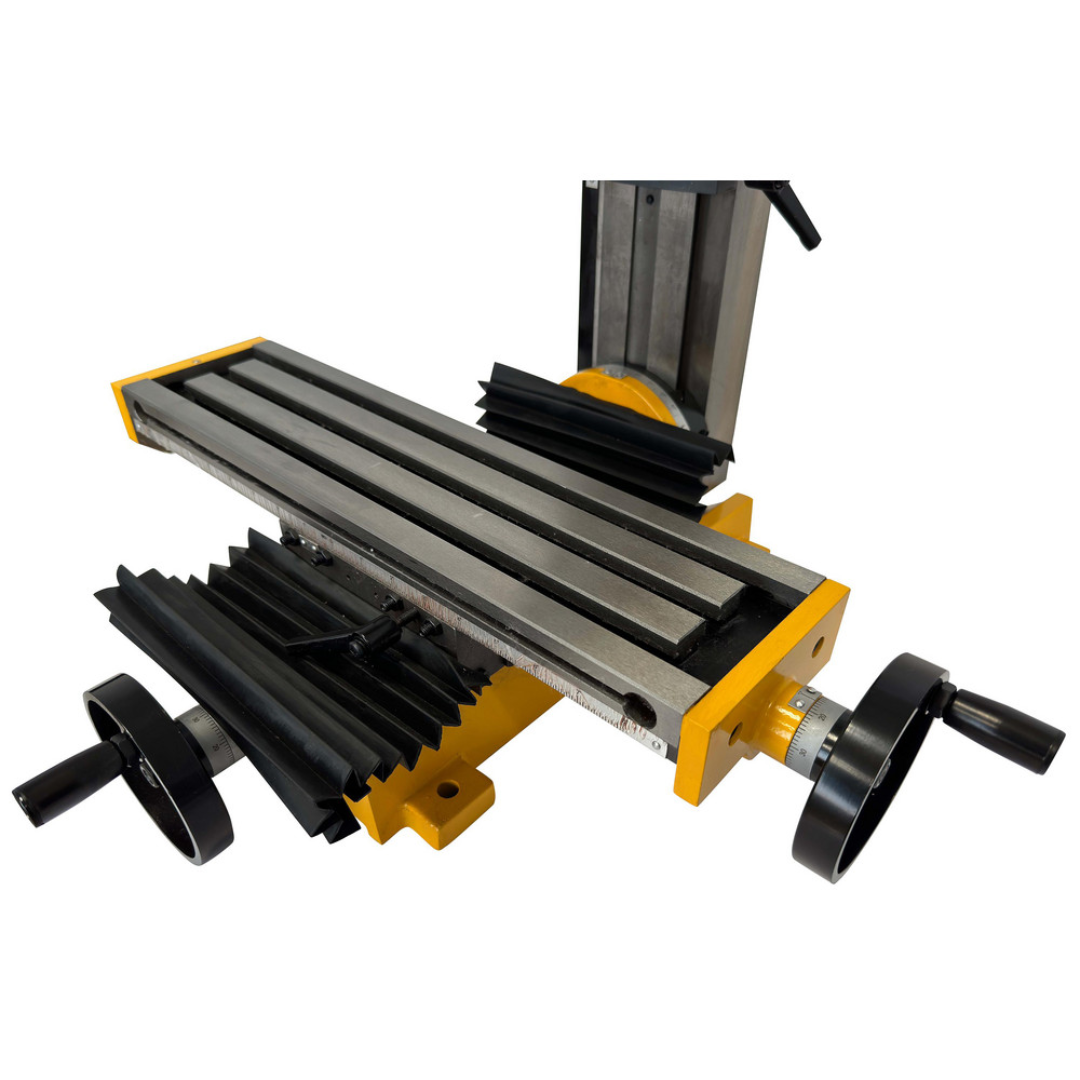

- Generous table travel with 11-13/16" longitudinal and 5-1/8" cross travel accommodates a wide variety of machining setups.
- Three T-slots simplify workholding using vises, clamps, fixtures, and rotary tables.
- Built-in overload protection helps safeguard the motor during demanding machining applications.
- Compact benchtop footprint allows installation in professional shops, educational facilities, maintenance departments, and home workshops where space is limited.
- Complete starter package includes a 13 mm drill chuck, wrench set, and oil can for convenient setup and operation.
- cETL Certified for compliance with recognized electrical safety standards.
Why Choose the Enco 18" X 5" Compact Milling Drilling Machine, Various Speed, 110V X2
- Variable spindle speeds from 100–2,500 RPM for versatile machining.
- R8 spindle accepts widely available milling and drilling tooling.
- 45° tilting head increases machining flexibility.
- Precision dovetail column and cast iron construction improve rigidity.
- Micro-feed quill enables accurate drilling and finishing operations.
- Operates on standard 110V single-phase power.
- Ideal for prototyping, maintenance, education, fabrication, and precision machining.
- Includes essential accessories for immediate operation.
The Enco 18" X 5" Compact Milling Drilling Machine, Various Speed, 110V X2 delivers professional milling and drilling capabilities in a compact, bench-mounted design. Combining variable-speed performance, an industry-standard R8 spindle, precision dovetail construction, and a tilting head, this versatile machine provides exceptional value for machinists, fabricators, maintenance professionals, schools, and serious hobbyists seeking accurate, dependable machining performance.
