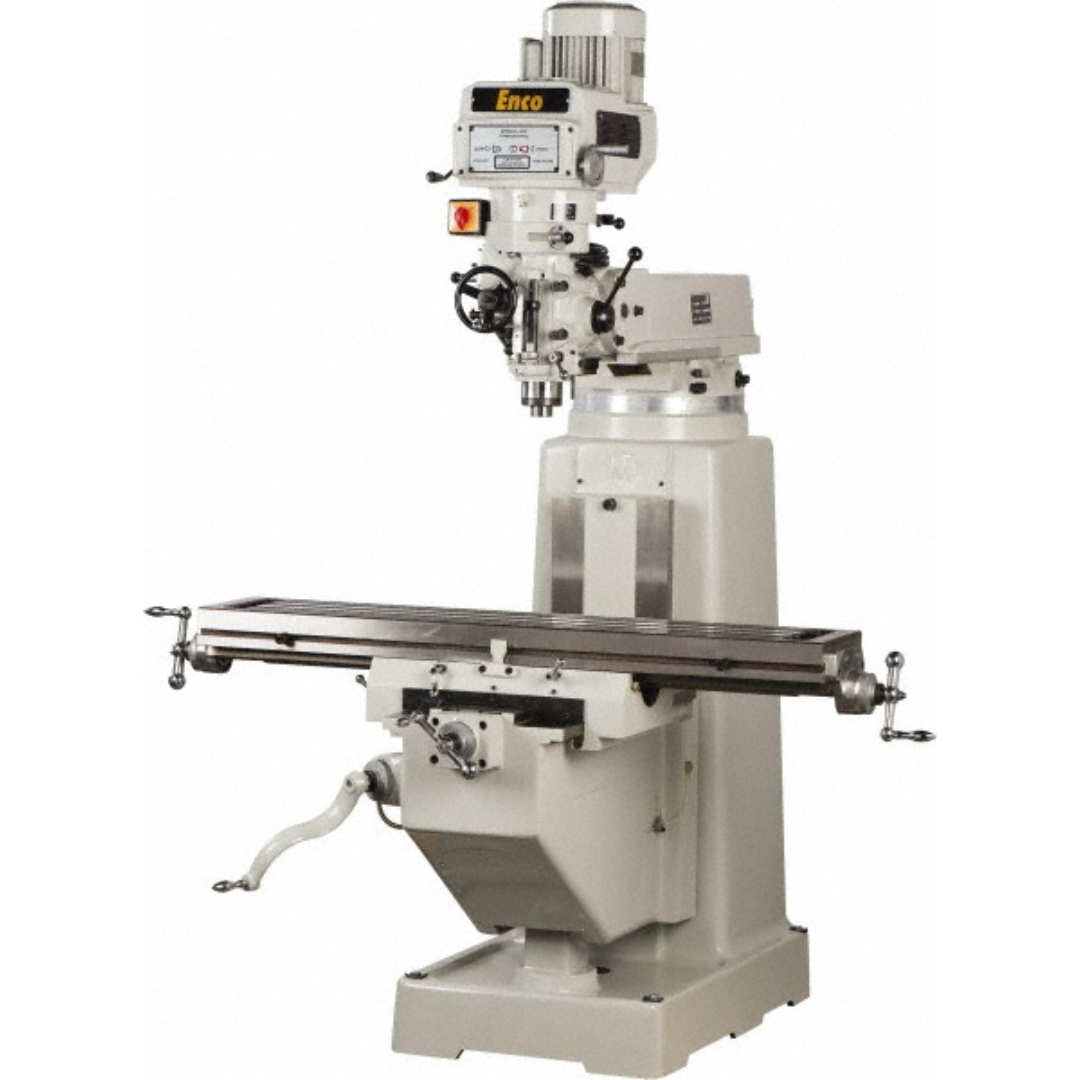

Enco 10 x 54" Knee Milling Machine: 3.00 hp, Variable Speed Pulley, Three Phase 5012958/4104673 Applications
- Production milling and machining.
- Tool and die manufacturing.
- Prototype development and precision fabrication.
- Maintenance and repair machining.
- End milling, face milling, slotting, drilling, and boring.
- Fixture, jig, and tooling production.
- Machine shops, manufacturing facilities, and industrial maintenance departments.
- Technical schools and vocational machine shop training.
This package is ideal for facilities seeking a production-ready milling solution complete with digital readout technology and powered table feed for increased machining accuracy and efficiency.
Enco 10 x 54" Knee Milling Machine: 3.00 hp, Variable Speed Pulley, Three Phase 5012958/4104673 Specifications
| Package | Knee Milling Machine with 2-Axis DRO & X-Axis Power Feed |
|---|---|
| Motor | 3 HP |
| Voltage / Phase | 220 Volt / Three Phase |
| Spindle Speed Control | Variable Speed Pulley |
| Spindle Speed Range | 65 – 4,500 RPM |
| Spindle Taper | R8 |
| Table Size | 10" × 54" |
| Longitudinal Travel | 36" |
| Cross Travel | 16" |
| Knee Travel | 15" |
| Ram Travel | 18" |
| Spindle Travel (Quill) | 5" |
| Quill Diameter | 3" |
| Table Load Capacity | 618 lbs (280 kg) |
| Number of T-Slots | 3 |
| Minimum Spindle to Table Distance | 1" |
| Maximum Spindle to Table Distance | 16" |
| Minimum Spindle to Column Distance | 6" |
| Maximum Spindle to Column Distance | 24" |
| Head Tilt | 45° Forward / 45° Backward / 90° Left / 90° Right |
| Ram Turret Swivel | 360° |
| Overall Dimensions (H × L × D) | 88" × 70" × 62" |
| Included Accessories | 16" × 36" DP500 2-Axis Digital Readout System with Bracket; X-Axis Mill Power Feed (1–32 in/min) |
| UNSPSC Code | 23242503 |
| Country of Origin | Various |
Enco 10 x 54" Knee Milling Machine: 3.00 hp, Variable Speed Pulley, Three Phase 5012958/4104673 Performance & Construction
- Powerful 3 HP industrial motor provides the torque required for demanding milling, drilling, boring, and machining operations.
- Variable-speed pulley drive delivers spindle speeds from 65 to 4,500 RPM, allowing optimal cutting performance across a broad range of materials and tooling.
- Industry-standard R8 spindle accepts a wide variety of collets, end mills, drill chucks, boring heads, fly cutters, and other common milling accessories.
- Large 10" × 54" precision work table accommodates substantial workpieces, fixtures, vises, and production tooling.
- Generous machine travels include 36" longitudinal travel, 16" cross travel, 15" knee travel, and 18" ram travel for outstanding machining flexibility.
- Fully adjustable milling head tilts 45° forward and backward and 90° left and right to simplify angular machining and compound cuts.
- 360° turret ram allows convenient spindle positioning while reducing workpiece repositioning.
- DP500 2-Axis Digital Readout System provides accurate X and Y axis position feedback, reducing setup time while improving machining precision and repeatability.
- X-Axis Power Feed with adjustable feed rates from 1–32 inches per minute delivers smoother finishes, consistent feed motion, and reduced operator fatigue during production work.
- Rigid knee mill construction minimizes vibration while improving machining accuracy, rigidity, and surface finish quality.
- 618 lb table capacity supports heavy workpieces and production fixtures with confidence.
- Three T-slots accommodate a wide variety of vises, clamps, rotary tables, and custom workholding systems.
Why Choose the Enco 10 x 54" Knee Milling Machine: 3.00 hp, Variable Speed Pulley, Three Phase 5012958/4104673
- Complete machining package including DRO and X-axis power feed.
- 3 HP industrial motor delivers dependable production performance.
- Variable spindle speeds from 65–4,500 RPM maximize machining versatility.
- Precision R8 spindle supports widely available tooling.
- Large 10" × 54" table accommodates demanding machining applications.
- Digital readout improves measurement accuracy and setup efficiency.
- Power feed enhances productivity while producing smoother surface finishes.
- Ideal for production shops, tool rooms, manufacturing facilities, and industrial machining environments.
The Enco 10 x 54" Knee Milling Machine: 3.00 hp, Variable Speed Pulley, Three Phase 5012958/4104673 delivers a complete professional machining solution by combining a powerful variable-speed knee mill with a precision 2-axis digital readout system and X-axis power feed. This integrated package improves productivity, machining accuracy, and operator efficiency, making it an outstanding choice for production machining, toolmaking, maintenance, and precision manufacturing operations.
