Ellis 4000 Mitre Band Saw

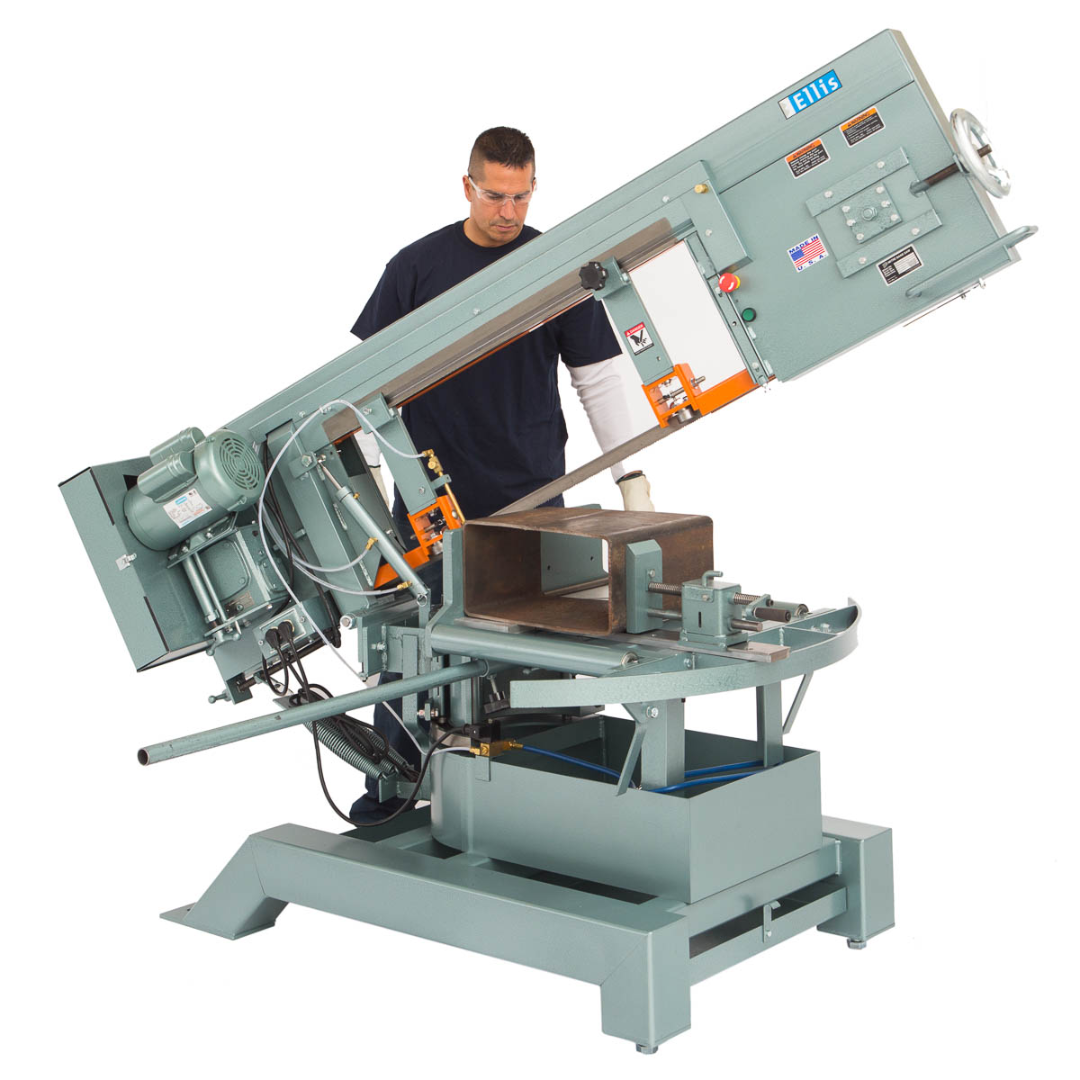

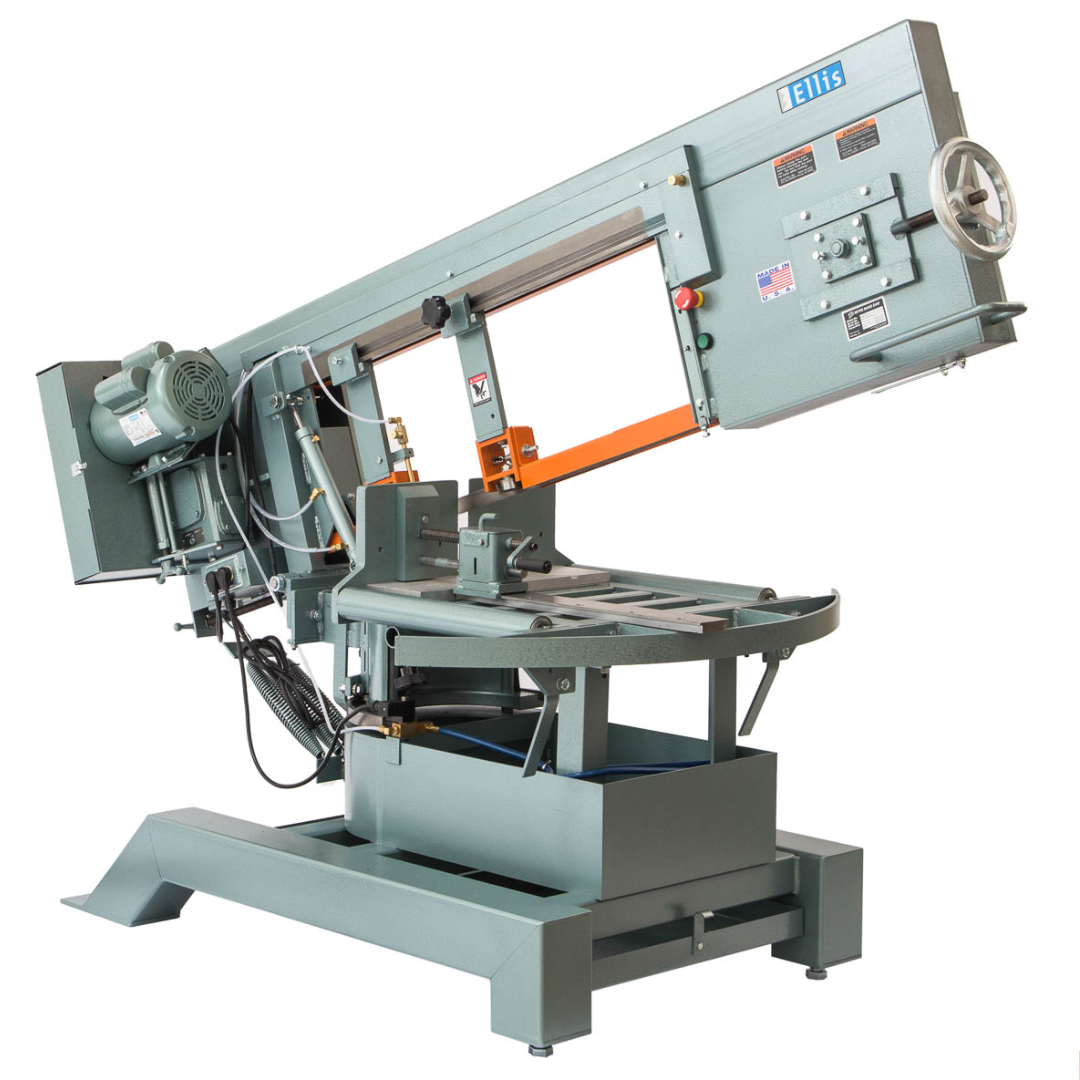

Built for fabrication and maintenance teams that cut large steel daily and need repeatable angle accuracy. The Ellis 4000 keeps stock clamped in one position for straight and angle cuts, while the saw head moves left or right with a built-in protractor for fast setups.
Why shops The Ellis 4000
-
Faster angle work Set angles quickly with the built-in protractor, then run repeat cuts without chasing setup.
-
More capacity for bigger jobs Cuts up to 22" flat and 13-1/2" round at 90°, built for structural and heavy-wall material.
-

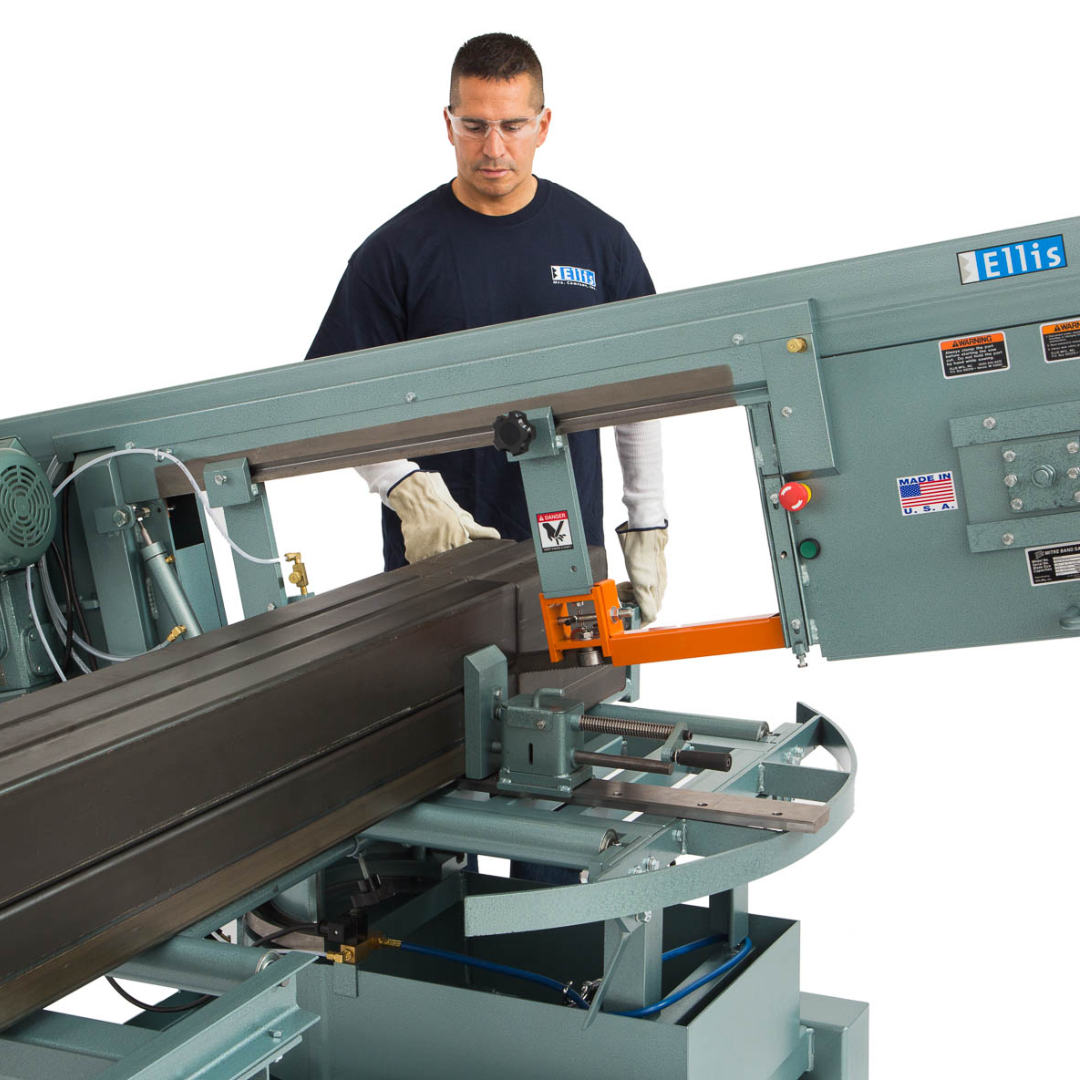

Controlled cutting on heavy sections Hydraulic feed lets you dial in the cut rate for better finish and longer blade life.
-
Built for daily production Heavy steel construction—welded and machined for accuracy and durability.
For a procurement-ready quote, send: quantity, delivery ZIP, and electrical requirements (single-phase or 3-phase). We’ll reply with clean line items.
Quick specs
60–180 FPM
15'0" × 1-1/4"
Hydraulic adjusting
Quick adjusting screw type
2 HP • 220V • Single phase
3 PH • 220/440/460/480/575V
Sealed oil bath worm gear
1,250 lbs
Footprint: table height 29-3/8" • L 90" • W 43-1/4" • H 50" • removable chip tray • air system standard. Specs subject to change without notice.
Cutting capacity
90°
45°
Safety basics: use the vise to secure material and keep hands clear while the blade is moving.
Ellis 4000 accessories (common add-ons)
-
Stock gauge with micro-adjuster 5750
-

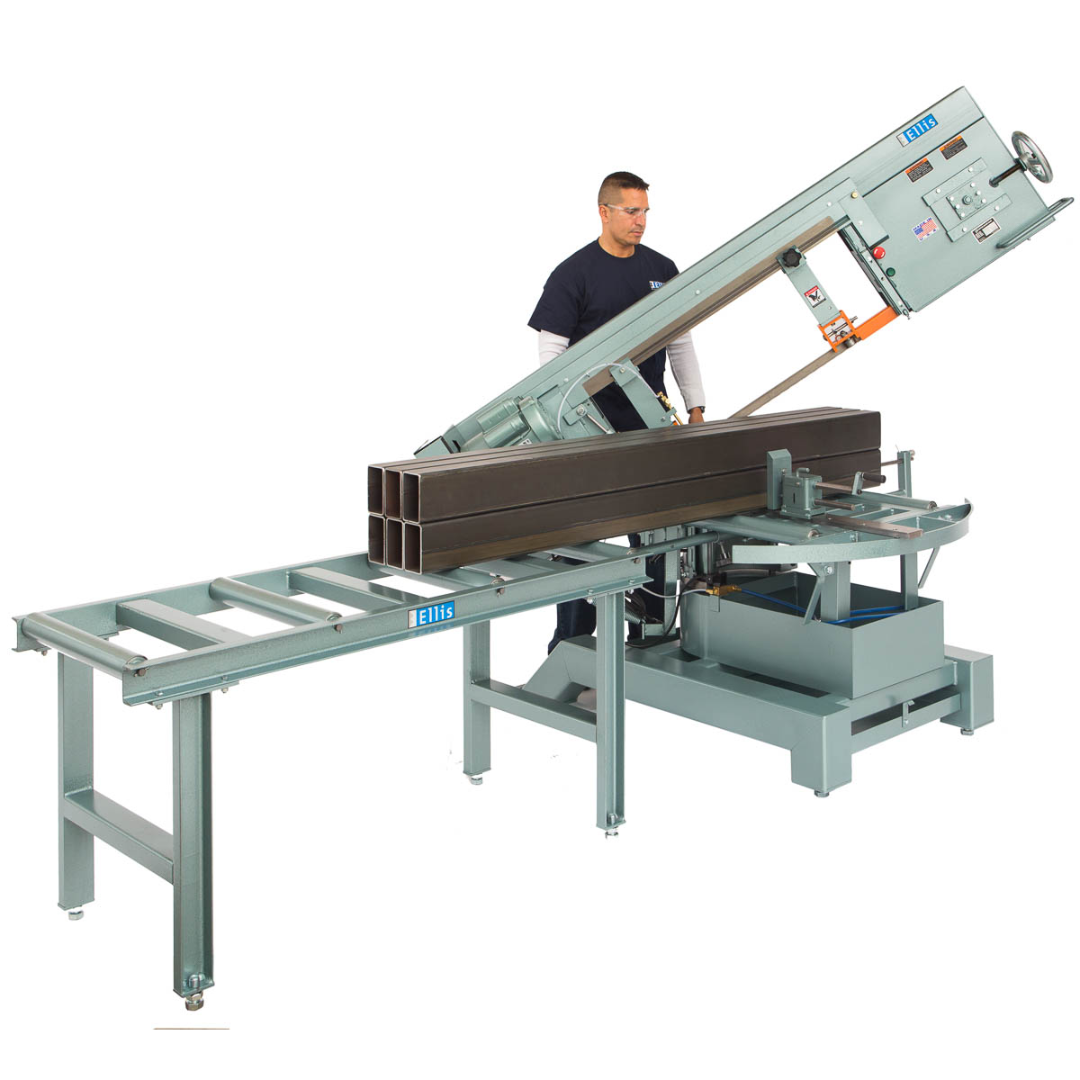

Single stock stand – 1 roller 6185
-
Stock stand – 5’ long, 4 rollers (20" W) 6227
-
Pipe clamp attachment for screw vise 6286
Blade change reminder: always disconnect power before changing the blade.
Manuals & safety documents
Keep these on hand for onboarding, maintenance, and shop safety reviews.
Quick safety note: always secure material with the vise and never hold work by hand while the blade is in motion.
