Description
Ellis 2000 Mitre Band Saw

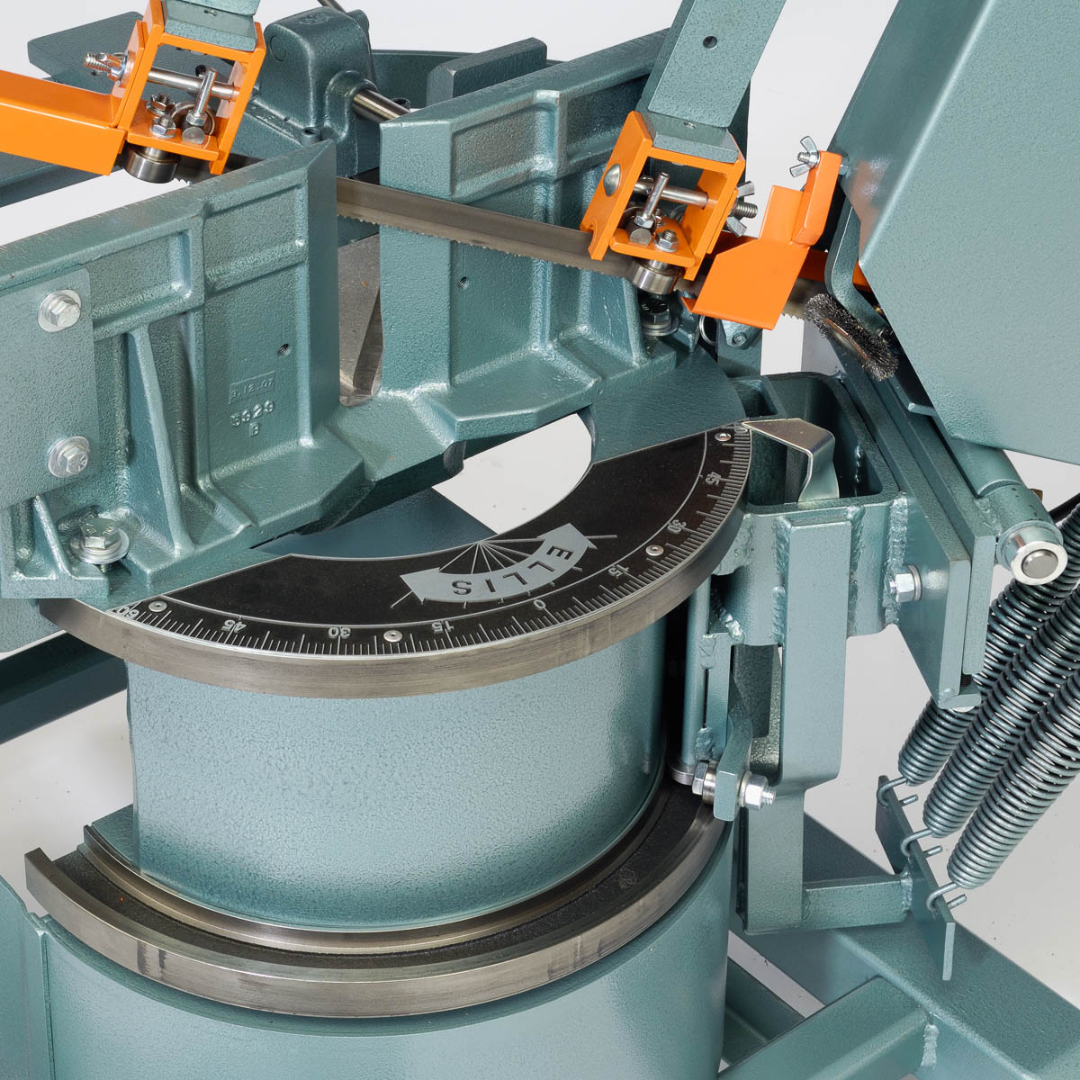

Built for fabrication and maintenance teams that cut a lot of steel and can’t afford drift, slow setups, or constant re-clamping. The Ellis 2000 keeps stock in one position for straight and angle cuts, and the head mitres 60° both ways with a built-in protractor for repeatable angles.
Why shops spec the Ellis 2000
-
Faster angle work Set angles quickly with the built-in protractor, then run repeat cuts without chasing setup.
-
Less handling, more throughput Keep stock clamped in one position for straight cuts and mitres—less time reloading material.
-
Controlled cutting on heavy sections Hydraulic feed lets you dial in the cut rate for better finish and blade life.
-
Built for daily production Heavy steel construction—welded and machined for accuracy and durability.
For a procurement-ready quote, send: quantity, delivery ZIP, and electrical requirements (single-phase or 3-phase). We’ll reply with clean line items.
Quick specs
60 / 115 / 230 FPM
12'0" × 1"
Hydraulic adjusting
Quick adjusting camlock
1-1/2 HP • 220V • Single phase
3 PH • 220/440/460/480/575V
Sealed oil bath worm gear
800 lbs
Footprint: table height 28-1/8" • L 72" • W 38-1/4" • H 47" • removable chip tray • automatic shut-off. Specs subject to change without notice.
Cutting capacity
90°
45°
60° capacity (both directions)
Tip: For consistent angle production, pair this saw with a stock stand and micro-adjustable gauge.
Safety basics: use the vise to secure material and keep hands clear while the blade is moving.
Ellis 2000 accessories (common add-ons)
-
Air system5922 (120V) • 5932 (230V)
-
Stock gauge with micro-adjuster5750
-
Single stock stand – 1 roller6185
-
Stock stand – 5’ long, 4 rollers (20" W)6228
-
Pipe clamp attachment for camlock vise6106
-
Screw type vise6622
-
Pipe clamp attachment for screw vise6286
Blade change reminder: always disconnect power before changing the blade
Manuals & safety documents
Keep these on hand for onboarding, maintenance, and shop safety reviews.
Quick safety note: always secure material with the vise and never hold work by hand while the blade is in motion.
This product can expose you to materials and/or chemicals which are known to the State of California to cause cancer and/or reproductive harm.
For more information, visit www.p65warnings.ca.gov .
