Edge bander EB-M4U Overview
The Edge bander EB-M4U integrates automatic feed stations including pre-mill, hot melt gluing, pneumatic guillotine end cutting, trimming, fine edge trimming, and polishing. The edging material (strip or coil) feeds automatically and remains synchronized with the workpiece for smooth glue application and consistent edge finishing.
Feed Speed: 43 FPM for steady, reliable production output.

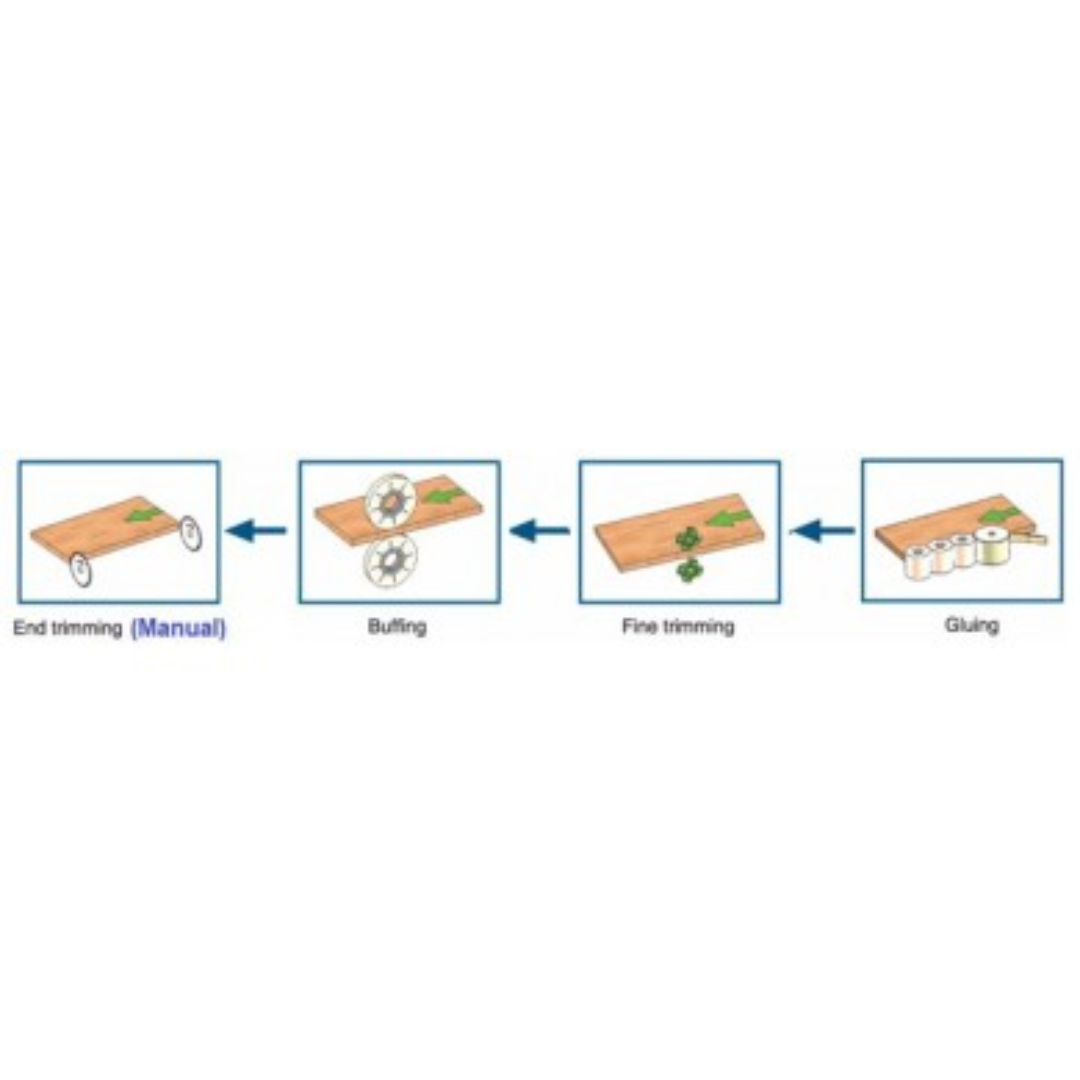

Edge bander EB-M4U Processing Units

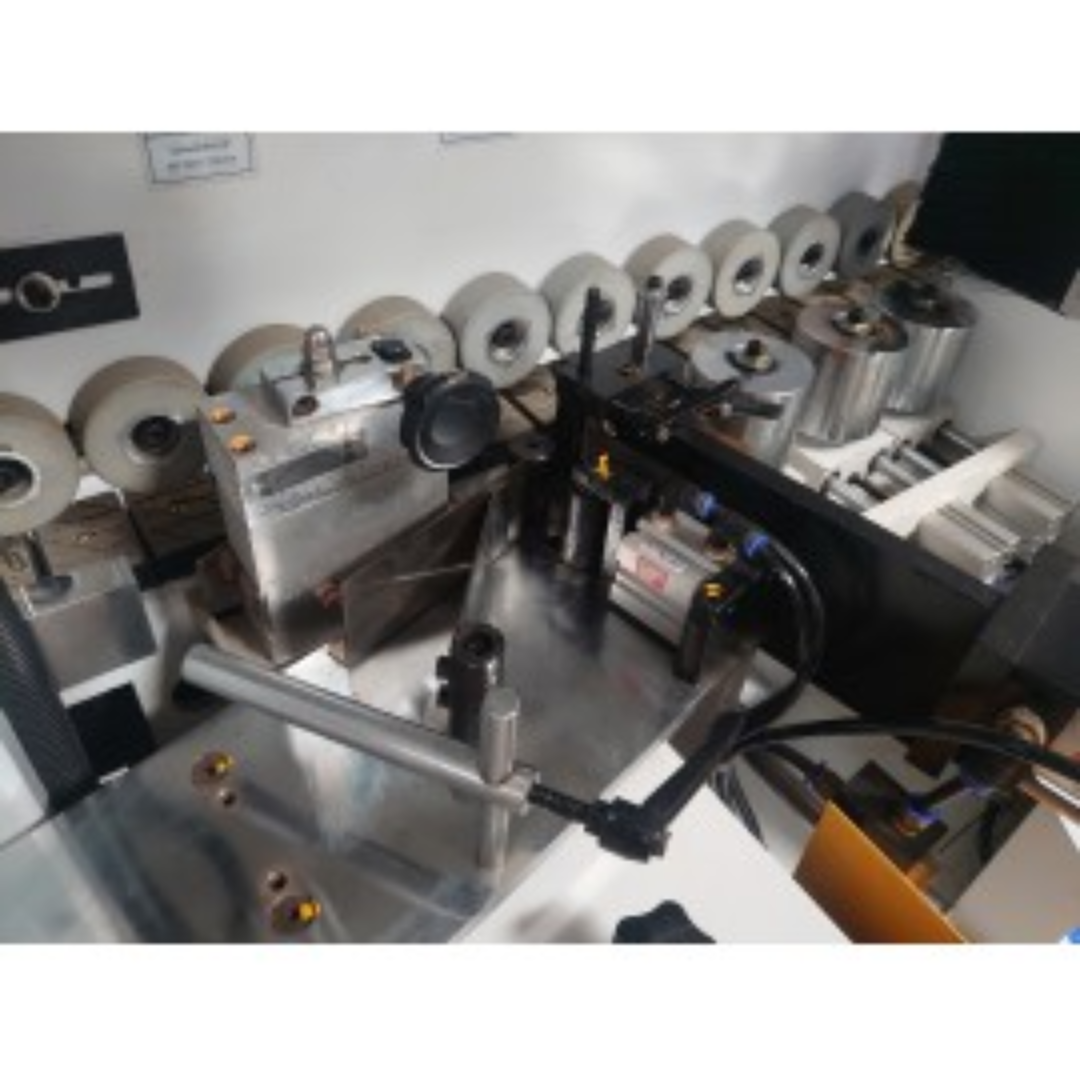

- Pre-Mill Station: Prepares panel edges for improved glue adhesion.
- Hot Melt Gluing Unit: 2.3 kW glue tank with 0.75 kW glue roller motor.
- Pneumatic Guillotine: Clean end trimming of band material.
- End Trimming Unit: 0.7 kW motor at 12,000 RPM for accurate trimming.
- Fine Edge Trimming: Dual 0.7 kW motors at 12,000 RPM for smooth top and bottom finish.
- Polishing Unit: Dual 0.18 kW motors at 1400 RPM for final edge surface refinement.
Edge bander EB-M4U Construction & Stability
- Heavy-duty frame construction minimizes vibration and increases precision.
- Pressure beam with staggered rubber rollers ensures smooth workpiece guidance.
- Precision chain track system with rubber pads prevents surface marring.
- Mechanical digital thickness adjustment for accurate setup.
- Side pressure unit with independent adjustment for straight edge banding.
- Safety covers with integrated dust extraction outlets.
- Outrigger support for processing wider panels.
Edge bander EB-M4U Technical Specifications
| Specification | Value |
|---|---|
| Machine Net Weight | 1400 LBS |
| Workpiece Thickness | 10 ~ 60 mm |
| Edging PVC Band Thickness | 0.4 ~ 3 mm |
| Minimum Workpiece Length | 6.3" |
| Minimum Workpiece Width | 5.5" |
| Heating Glue Tank Power | 2.3 kW |
| Gluing Roller Motor | 0.75 kW |
| End Trimming Motor | 0.7 kW × 1 (12,000 RPM) |
| Fine Edge Trimming Motor | 0.7 kW × 2 (12,000 RPM) |
| Polish Motor | 0.18 kW × 2 |
| Polish Wheel Speed | 1400 RPM |
| Feed Motor | 1.5 kW |
| Feed Speed | 43 FPM |
| Total Power | 7.0 kW |
General Information
- Model: EB-M4U
- FOB Los Angeles, CA (USA)
- Warranty: 1 year
- Delivery Time: xx days after deposit
- Training, installation, tooling & rigging optional
- Customer responsible for local regulations and utility connections
