Ebac WM80-D Dehumidifier 11284DL-US Applications
- Offices, retail stores, and commercial spaces
- Restaurants, bars, salons, and hospitality locations
- Museums, archives, and storage facilities
- Computer rooms and telecommunications equipment areas
- Garages, cellars, and basements
- Animal enclosures and spa environments
- Commercial facilities requiring wall-mounted humidity control
The Ebac WM80-D Dehumidifier 11284DL-US provides efficient humidity control while saving valuable floor space with its secure wall-mounted installation design.
Ebac WM80-D Dehumidifier 11284DL-US Specifications
| Model | WM80-D |
|---|---|
| Part Number | 11284DL-US |
| Voltage Requirement | 110V / 1 Phase / 60 Hz |
| Power Consumption | 0.9 kW |
| Current | 8 A |
| Typical Moisture Extraction | 62 Pints per Day |
| Airflow | 160 CFM |
| Noise Level | 58 dBA |
| Refrigerant | R454c |
| Effective Coverage Volume | 7,063 cu.ft. |
| Minimum Operating Temperature | 33°F |
| Maximum Operating Temperature | 95°F |
| Height | 19.4 in |
| Width | 22 in |
| Depth | 11.4 in |
| Weight | 85.5 lbs |
| Compressor Type | Rotary |
Ebac WM80-D Dehumidifier 11284DL-US Performance & Construction
- Digital Humidity Control System allows precise humidity settings and continuous monitoring of environmental conditions.
- Cross-Flow Blower Fan provides efficient airflow with quiet operation and improved moisture extraction performance.
- Status and Mode Indicator Panel offers clear visual feedback on system operation and performance.
- High Capacity Internal Condensate Pump automatically removes collected moisture for continuous operation.
- Washable Air Filter protects internal components and allows easy maintenance.
- Hot Gas Defrost System prevents frost buildup and allows reliable operation at lower temperatures.
- Temperature Sensitive Defrost Control ensures efficient performance in colder environments.
- Durable Epoxy Powder-Coated Steel Cabinet provides excellent corrosion resistance and long-term durability.

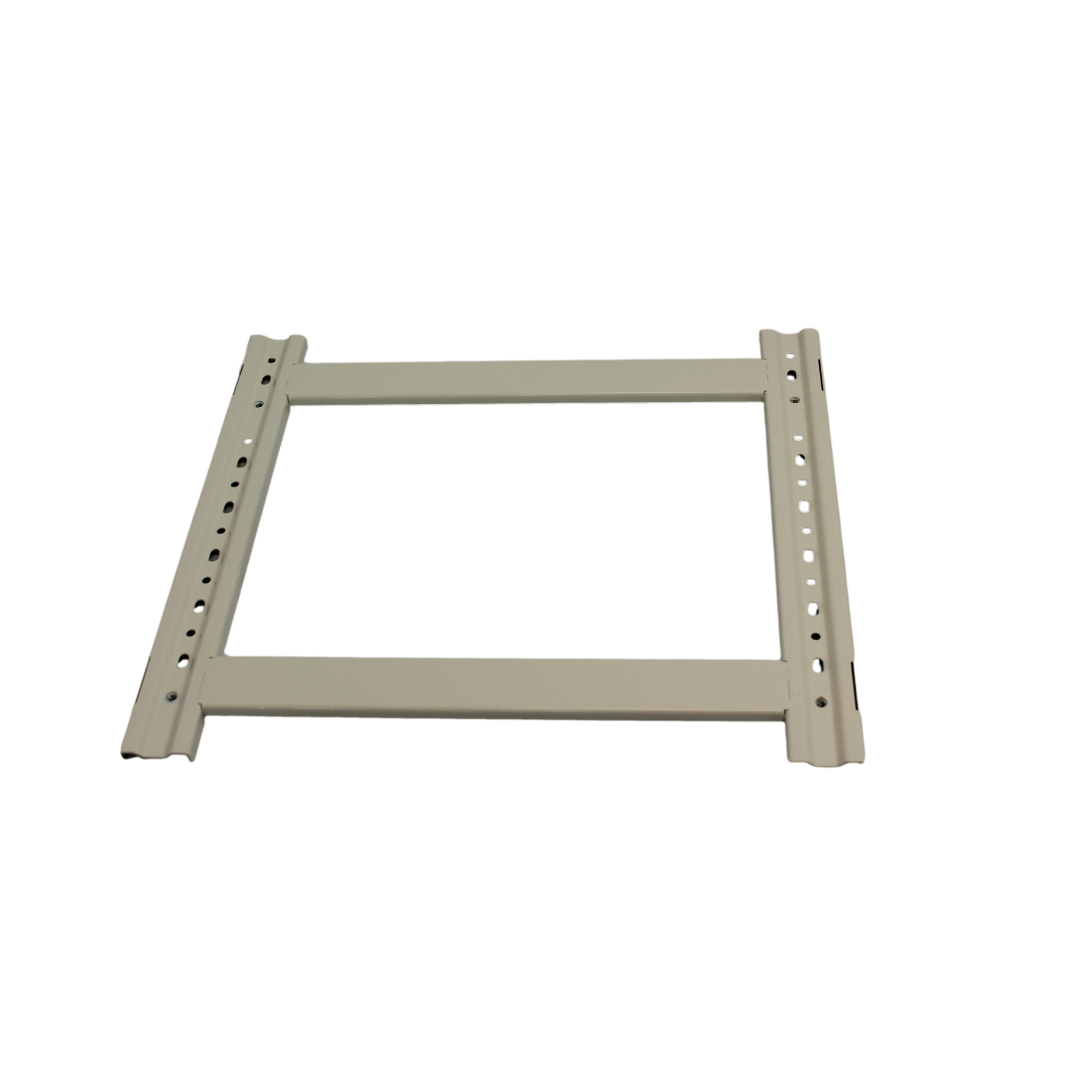

- Wall Mounting Bracket Included allows quick and secure installation without occupying floor space.
- Long Power Cord with Molded Plug simplifies installation with a standard electrical connection.
Ebac WM80-D Dehumidifier 11284DL-US Dehumidification Process
- Air is drawn into the Ebac WM80-D Dehumidifier 11284DL-US through the internal fan system.
- The air passes across a cold evaporator coil where moisture condenses.
- Collected moisture drains into the condensate tray and is pumped away through the internal condensate pump.
- The air then moves through the condenser coil where recovered heat slightly warms the air.
- The discharged air returns to the room warmer and significantly drier.
- Continuous air circulation gradually reduces the relative humidity in the controlled space.
- An automatic defrost system prevents ice formation on internal coils.
- The digital humidistat cycles the unit on and off to maintain the selected humidity level.
Using an efficient refrigeration-based drying system, the Ebac WM80-D Dehumidifier 11284DL-US provides consistent humidity control while maintaining energy-efficient performance.
Ebac WM80-D Dehumidifier 11284DL-US Included Components
- 1 × WM80-D Static Dryer
- 1 × WM80-D Owner’s Manual
- 1 × PVC Drain Tube (3/8" ID – 7.8 m Long)
- 4 × Brass Wood Screws
- 4 × Rawl Plugs
- 1 × Quick Release Hose Clip
Why Choose the Ebac WM80-D Dehumidifier 11284DL-US
- Removes up to 62 pints of moisture per day for reliable humidity control.
- Wall-mounted design saves valuable floor space.
- Integrated condensate pump allows unattended operation.
- Digital humidity control for precise environmental management.
- Durable steel construction built for commercial and industrial environments.
- Quiet and efficient operation suitable for offices and occupied spaces.
The Ebac WM80-D Dehumidifier 11284DL-US combines wall-mounted convenience, powerful moisture extraction, and durable industrial construction to deliver dependable humidity control in commercial and industrial environments.
