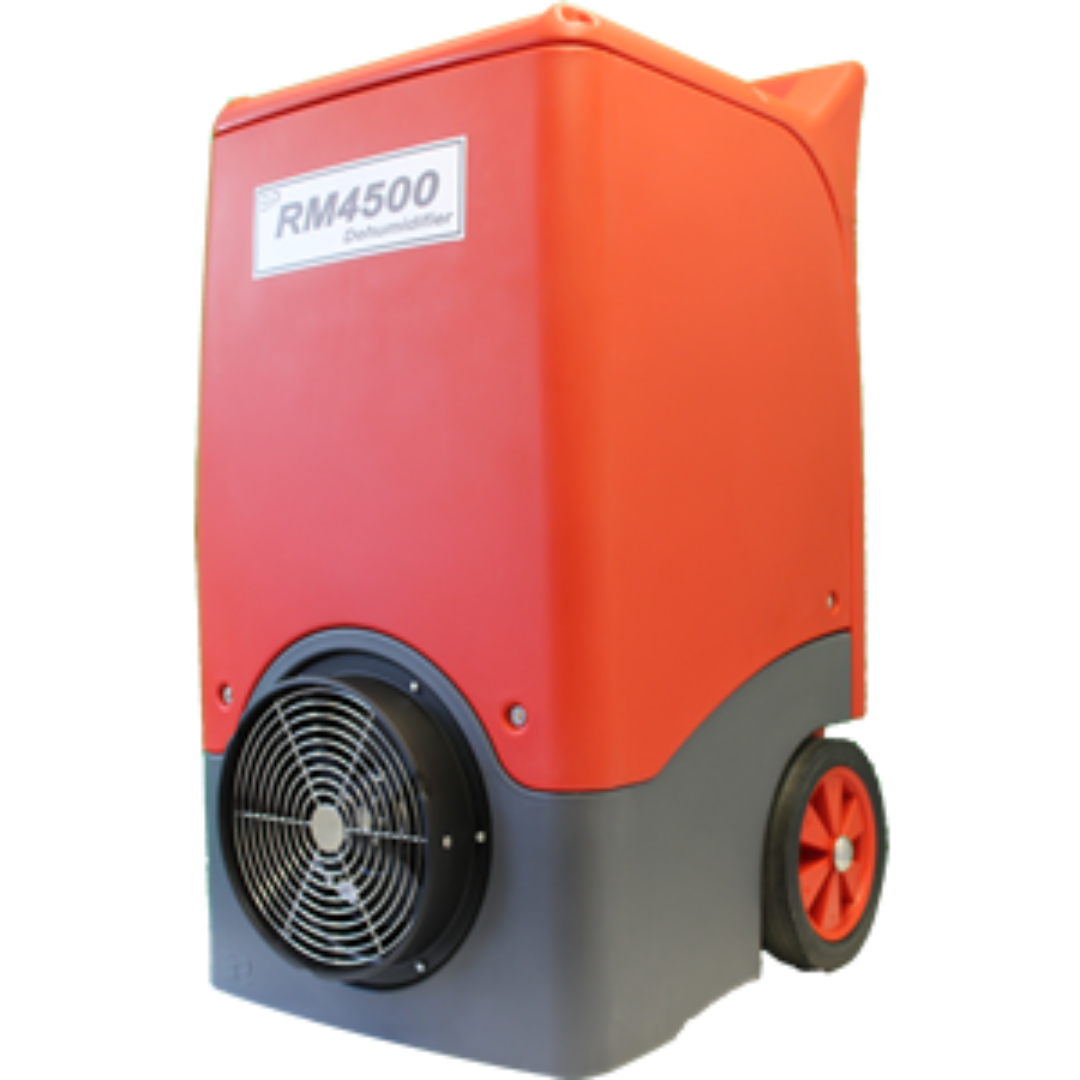

Ebac RM4500 / RM4500-H Dehumidifier Applications
- Water damage restoration and flood recovery
- Structural drying after storms or plumbing failures
- Commercial and industrial humidity control
- Construction and renovation drying projects
- Basements, crawl spaces, and damp interior environments
- Restoration contractor and equipment rental fleets
Designed for restoration professionals who require high-capacity moisture removal combined with rugged durability and portability.
Ebac RM4500 / RM4500-H Dehumidifier Specifications
| Model | RM4500 / RM4500-H |
|---|---|
| Part Numbers | 10570RG-US / 10570RH-US |
| Voltage Requirements | 110V / 1 Phase / 60 Hz (Single or Dual Voltage Models) |
| Typical Extraction | 150 PPD |
| Effective Coverage Volume | 10,594 cu. ft |
| Airflow | 410 CFM |
| Power Consumption | 1.2 kW |
| Current Draw | 12 A |
| Noise Level | 52 dBA |
| Operating Temperature Range | 37°F – 95°F |
| Dimensions (H × W × D) | 43.8" × 25.7" × 24.8" |
| Weight | 172 lbs |
| Refrigerant | R407c |
| Compressor Type | Rotary |
Ebac RM4500 / RM4500-H Dehumidifier Performance & Construction
- High Efficiency Rotary Compressor delivers powerful moisture extraction with energy-efficient performance.
- Dual Voltage Availability provides flexibility for restoration contractors and equipment rental fleets.
- Rotational Molded Polyethylene Housing offers superior durability and impact resistance in demanding environments.
- Hot Gas Defrost System automatically clears frost buildup to maintain reliable performance in cooler environments.
- Electronic Defrost Timer ensures consistent operation across varying temperature conditions.
- Integral Condensate Pump allows continuous drainage and unattended operation during long restoration jobs.
- Pump Purge Switch drains remaining water from the pump before transport to prevent spills.
- Washable Air Filter simplifies maintenance and supports optimal airflow.
- Large Diameter Rugged Wheels allow easy movement across job sites and uneven surfaces.
- Rigid Transport Handle improves maneuverability and control when moving the unit.
- Cable and Hose Storage Wrap keeps accessories organized during transport and storage.
Ebac RM4500 / RM4500-H Dehumidifier Control Features
- Electronic Humidistat allows accurate humidity control to maintain desired environmental conditions.
- Simple On/Off Switch Control provides easy operation for restoration technicians.
- Free Standing Design allows flexible positioning across job sites.
The RM4500-H model includes an integrated electronic humidistat that automatically maintains the selected humidity level.
Ebac RM4500 / RM4500-H Dehumidifier How the System Works
- Moist air is drawn into the Ebac RM4500 / RM4500-H Dehumidifier by the high-capacity fan.
- The air passes across the evaporator coil where it cools below its dew point.
- Moisture condenses on the coil and is collected in the condensate tray.
- The integrated condensate pump removes collected water through the drainage hose.
- The cooled air passes through the condenser coil where it is reheated using recovered system energy.
- The discharged air returns to the room approximately 2°C warmer and significantly drier.
- The hot gas defrost system automatically removes frost buildup when required.
- Continuous air circulation gradually reduces humidity levels within the space.
Ebac RM4500 / RM4500-H Dehumidifier Package Contents
- 1 × RM4500-H Dehumidifier
- 1 × Owner’s Manual
- 1 × 3/8" PVC Drain Tube (7.8M Length)
- 1 × Quick Release Hose Coupling
Why Choose the Ebac RM4500 / RM4500-H Dehumidifier
- High capacity moisture removal up to 150 pints per day.
- Dual voltage option for flexible restoration deployment.
- Rugged rotomolded housing built for demanding jobsite environments.
- Integral condensate pump allows continuous unattended drying.
- Energy-efficient rotary compressor with reliable performance.
- Professional-grade design ideal for restoration contractors and rental fleets.
The Ebac RM4500 / RM4500-H Dehumidifier delivers powerful moisture removal, exceptional durability, and professional reliability—making it an ideal solution for restoration contractors, construction professionals, and facilities requiring dependable humidity control equipment.
