Ebac RM40P Dehumidifier 11186MP-US Applications
- Basements, crawl spaces, and garages
- Industrial workshops and tool storage areas
- Warehouses and small storerooms
- Locker rooms and damp utility areas
- Mechanical equipment rooms
- Unattended installations requiring pumped drainage
The Ebac RM40P Dehumidifier 11186MP-US is ideal for environments where continuous moisture removal is required but gravity drainage is not available, thanks to its integrated high-lift condensate pump.
Ebac RM40P Dehumidifier 11186MP-US Specifications
| Model | RM40P |
|---|---|
| Part Number | 11186MP-US |
| Power Requirement | 110V / 1 Phase / 60 Hz |
| Power Consumption | 0.344 kW |
| Current Draw | 3.3 A |
| Typical Moisture Extraction | 24 Pints per Day |
| Airflow | 100 CFM |
| Noise Level | 47 dBA |
| Refrigerant | R454c |
| Effective Coverage Volume | 3,000 cu.ft. |
| Minimum Operating Temperature | 33°F |
| Maximum Operating Temperature | 95°F |
| Height | 25 in |
| Width | 15 in |
| Depth | 14 in |
| Weight | 42 lbs |
| Compressor Type | Rotary |
Ebac RM40P Dehumidifier 11186MP-US Features & Performance

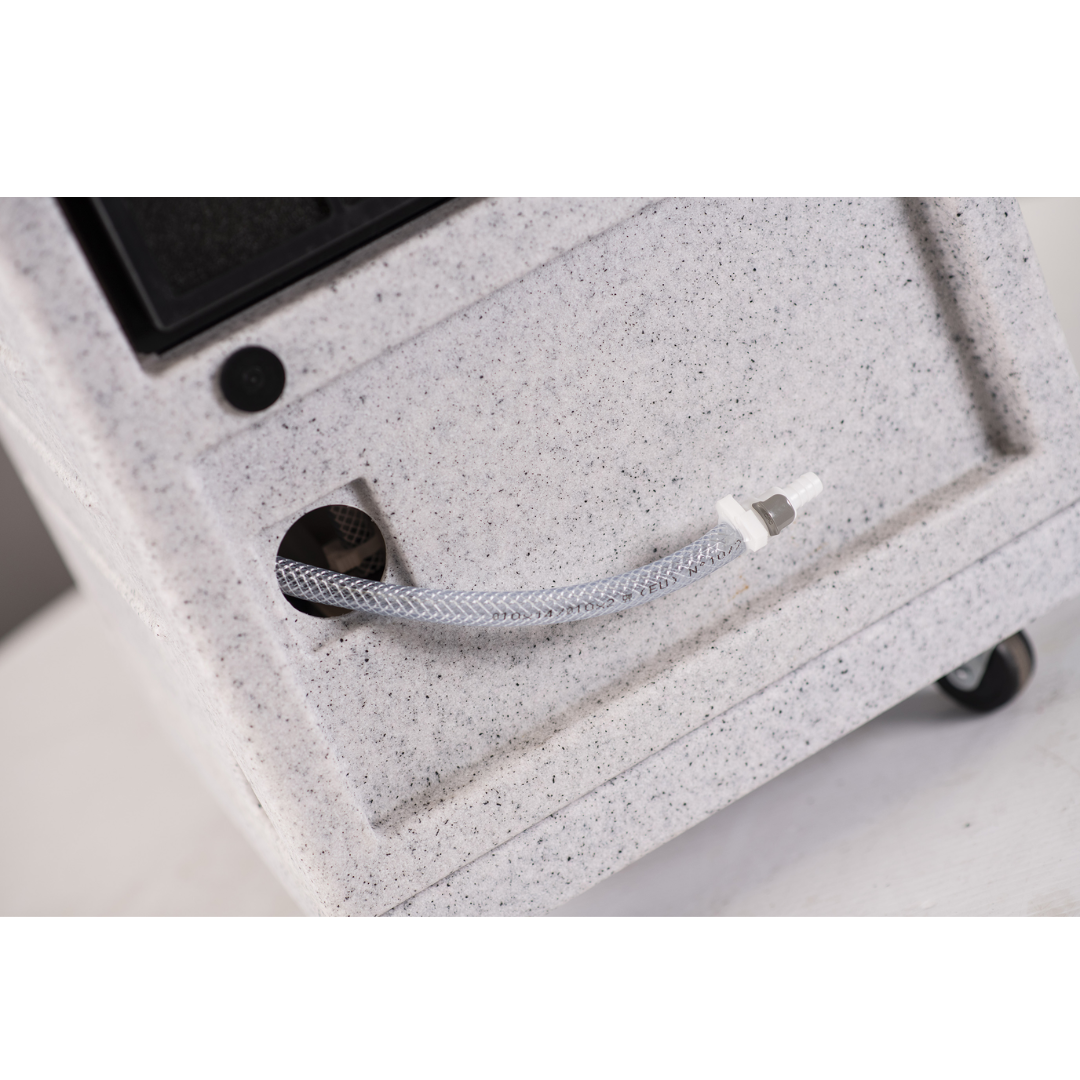

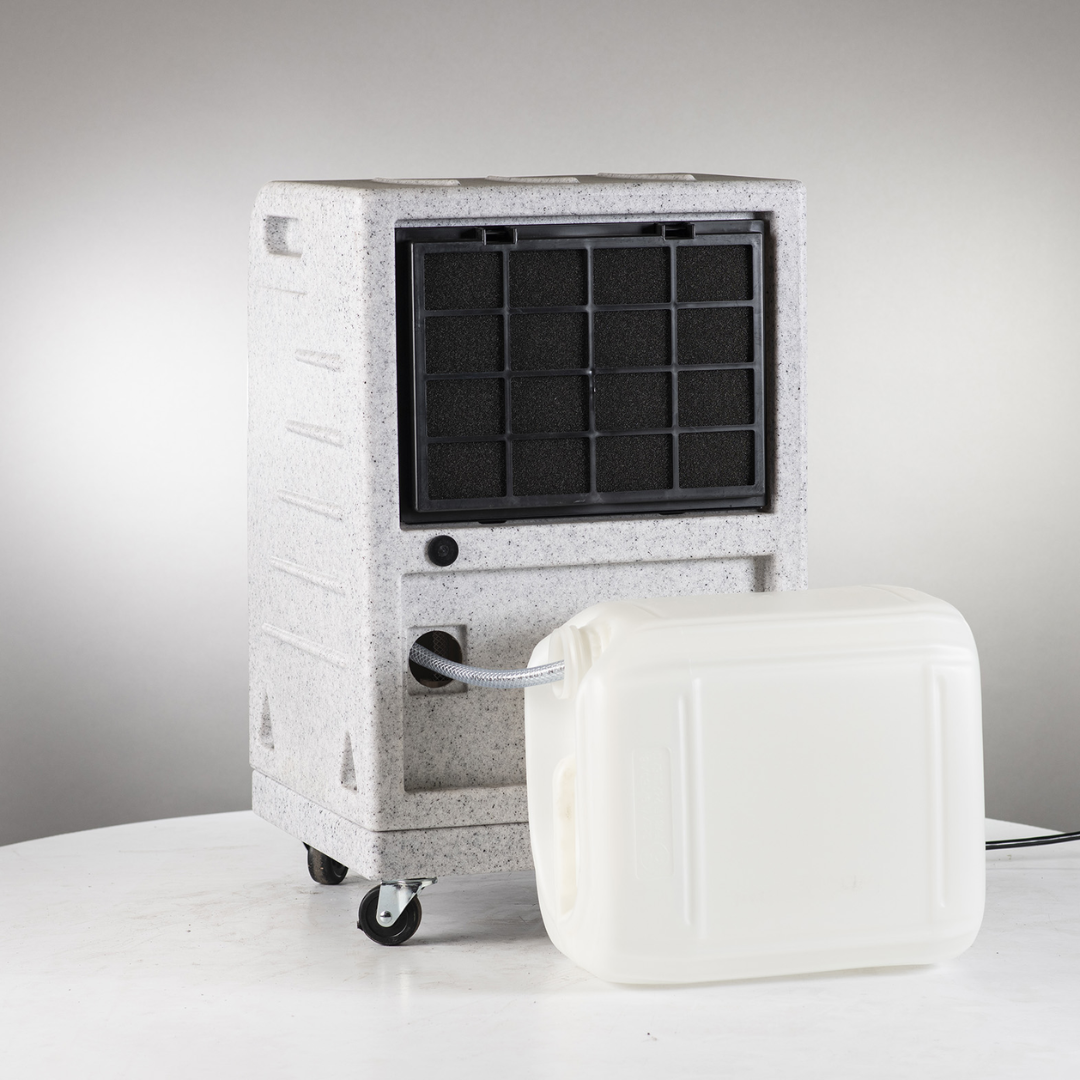

- High-Lift Integral Condensate Pump allows water to be pumped upward to a drain location, ideal for basements and unattended installations.

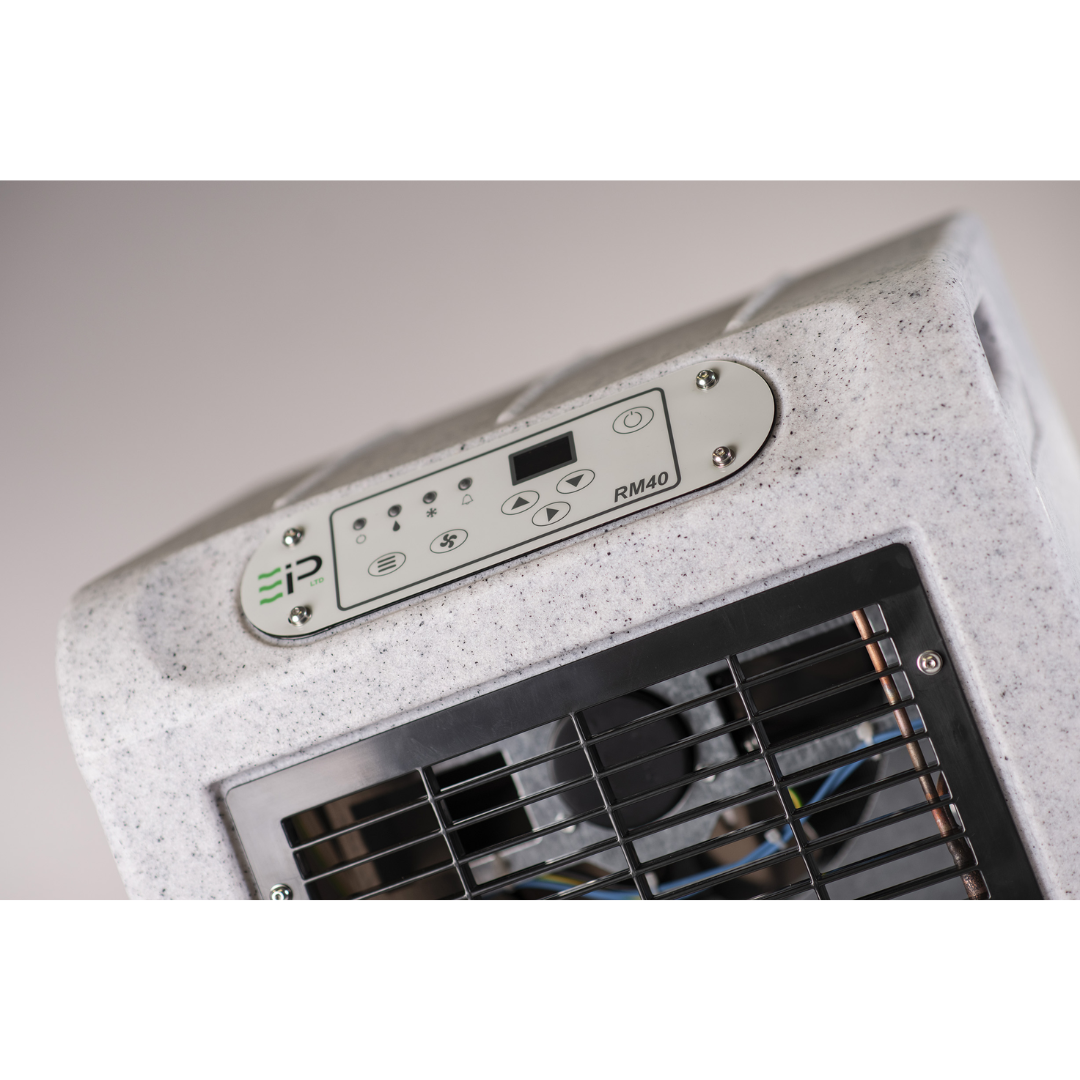

- OLED Display Interface enables precise humidity control and provides clear monitoring of system conditions.
- Electronic Humidistat automatically maintains the selected humidity level.
- LED Status Indicator Panel provides visual feedback on unit operation and drying progress.
- Temperature Sensitive Defrost prevents frost build-up on coils during cooler operation.
- Hot Gas Defrost System ensures reliable moisture removal even in demanding environments.
- Recirculation (Fan Only) Mode allows air movement without active dehumidification when needed.
- Washable Air Filter simplifies maintenance while maintaining efficient airflow.
- Rotationally Moulded Housing combined with a galvanised steel chassis provides exceptional durability.

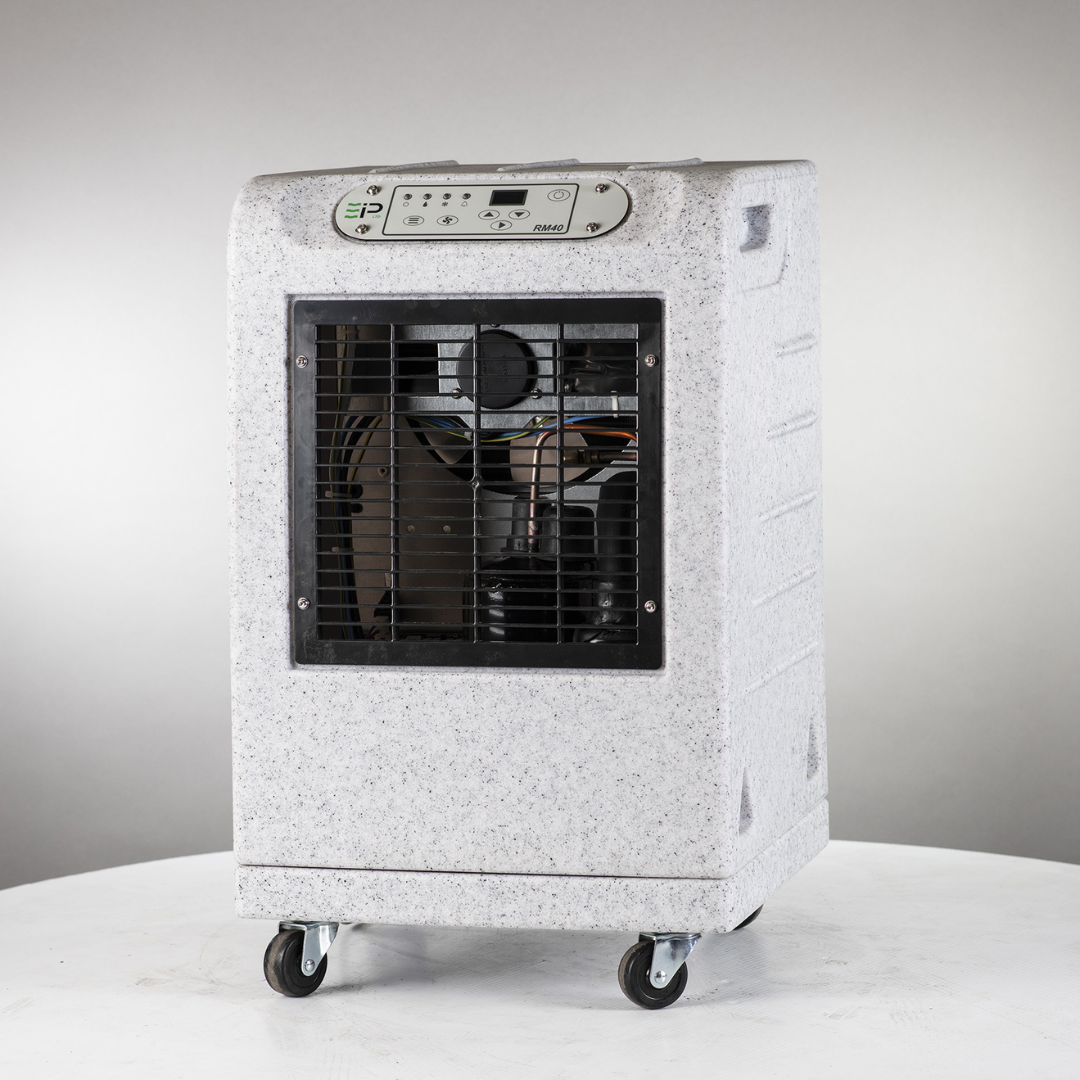

- Portable Design with Castors allows the unit to be easily transported between work areas.
Ebac RM40P Dehumidifier 11186MP-US Dehumidification Process
- Air is drawn into the Ebac RM40P Dehumidifier 11186MP-US by an internal fan.
- The air passes across a cold evaporator coil where moisture condenses.
- Condensed water is collected and pumped away through the integrated condensate pump.
- The air passes through the condenser where recovered heat slightly warms the air.
- The discharged air returns to the room drier and slightly warmer.
- Continuous air circulation gradually lowers humidity levels within the space.
- An automatic defrost system protects the unit during colder operation.
- The electronic humidistat cycles the unit on and off to maintain the selected humidity level.
The refrigeration-based drying system used by the Ebac RM40P Dehumidifier 11186MP-US efficiently removes excess moisture while maintaining energy-efficient operation.
Ebac RM40P Dehumidifier 11186MP-US Included Components
- 1 × RM40P Dehumidifier
- 1 × RM40P Owner’s Manual
- 1 × 3/8" ID PVC Tube (7.8 m Long)
- 1 × Quick Release Tube Connector
Why Choose the Ebac RM40P Dehumidifier 11186MP-US
- Integrated high-lift pump allows drainage up to elevated outlets.
- Removes up to 24 pints of moisture per day under typical conditions.
- Compact and portable design suitable for multiple environments.
- Durable industrial construction with roto-moulded body.
- OLED display and electronic humidistat provide precise humidity control.
- Ideal for unattended installations where gravity drainage is unavailable.
The Ebac RM40P Dehumidifier 11186MP-US delivers compact industrial performance with the added advantage of an integrated condensate pump, making it a reliable solution for moisture control in basements, equipment rooms, and industrial spaces.
