Ebac PD220-D Dehumidifier 10157GY-US Applications
- Indoor swimming pools and spa facilities
- Commercial and industrial building humidity control
- Warehouses and storage environments
- Manufacturing plants and mechanical rooms
- Basements and damp interior spaces
- Health clubs, locker rooms, and wellness centers
- Ducted HVAC humidity control systems
Best suited for environments where high humidity can lead to corrosion, mold growth, structural damage, or reduced air quality.
Ebac PD220-D Dehumidifier 10157GY-US Specifications
| Model | PD220-D |
|---|---|
| Part Number | 10157GY-US |
| Voltage Requirements | 220V / 1 Phase / 60 Hz |
| Typical Extraction (80°F / 60% RH) | 190 PPD |
| Typical Extraction (80°F / 80% RH) | 220 PPD |
| Effective Coverage Volume | 21,189 cu. ft (Approx. 450 m³) |
| Airflow | 586 – 665 CFM (Two-Speed Fan) |
| Power Consumption | 2100 W |
| Current Draw | 10 A |
| Heat Recovery | 15,500 BTU |
| Noise Level | 73 dBA |
| Operating Temperature Range | 33°F – 95°F |
| Dimensions (H × W × D) | 17.5" × 27.5" × 26" |
| Weight | 168 lbs |
| Refrigerant | R32 |
| Compressor Type | Rotary |
Ebac PD220-D Dehumidifier 10157GY-US Performance & Construction

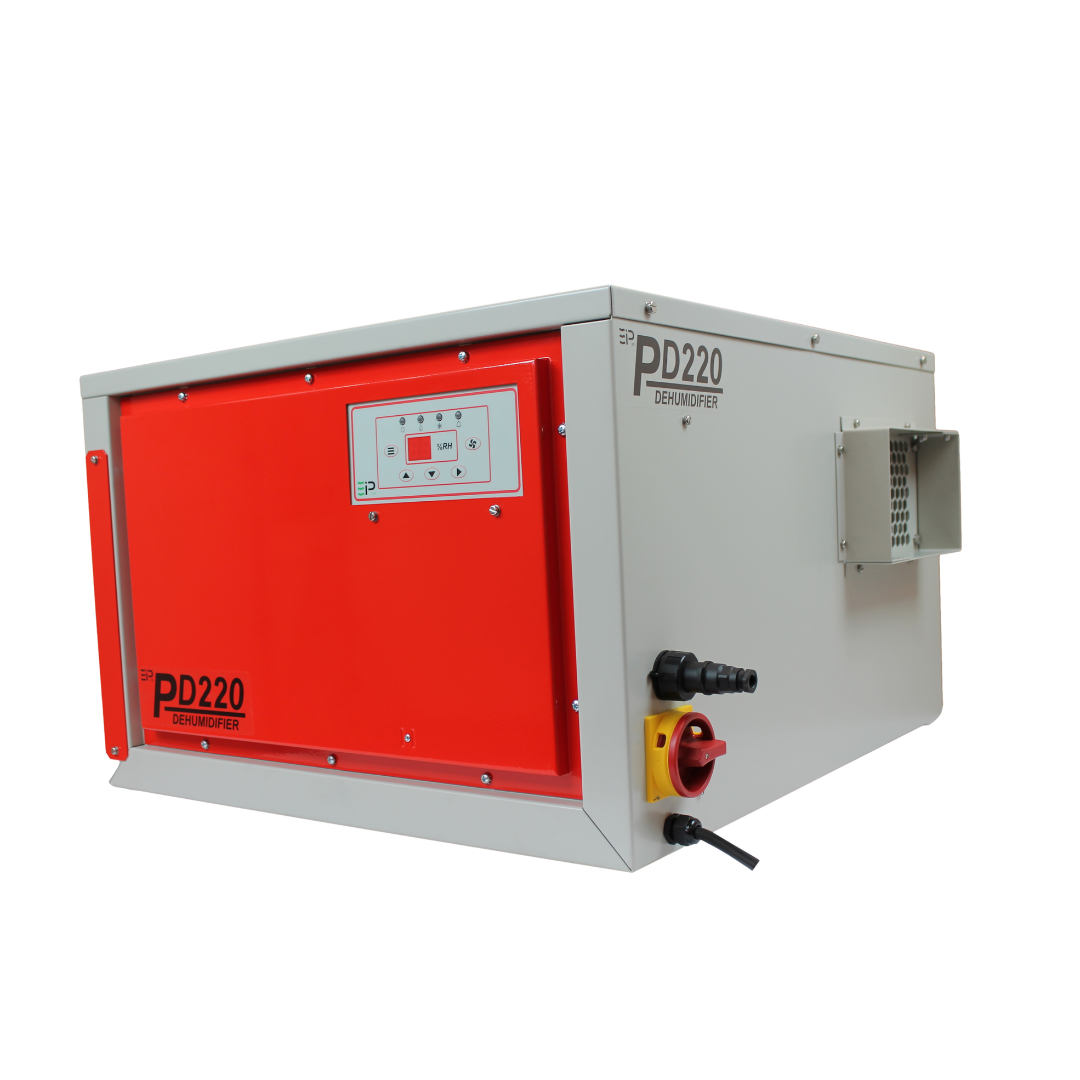

- Adjustable Digital Control Humidistat allows precise humidity control for maintaining ideal environmental conditions.
- Temperature Sensitive Reverse Cycle Defrost automatically melts frost buildup to maintain full drying capacity in low ambient temperatures.
- Quiet Two-Speed Centrifugal Fan delivers efficient airflow with reduced operating noise.
- Heavy Gauge Epoxy-Coated Steel Cabinet provides long-term durability and corrosion resistance.
- Totally Enclosed Coils protect internal components and ensure reliable long-term operation.
- Electronic Defrost Control maintains optimal system performance.

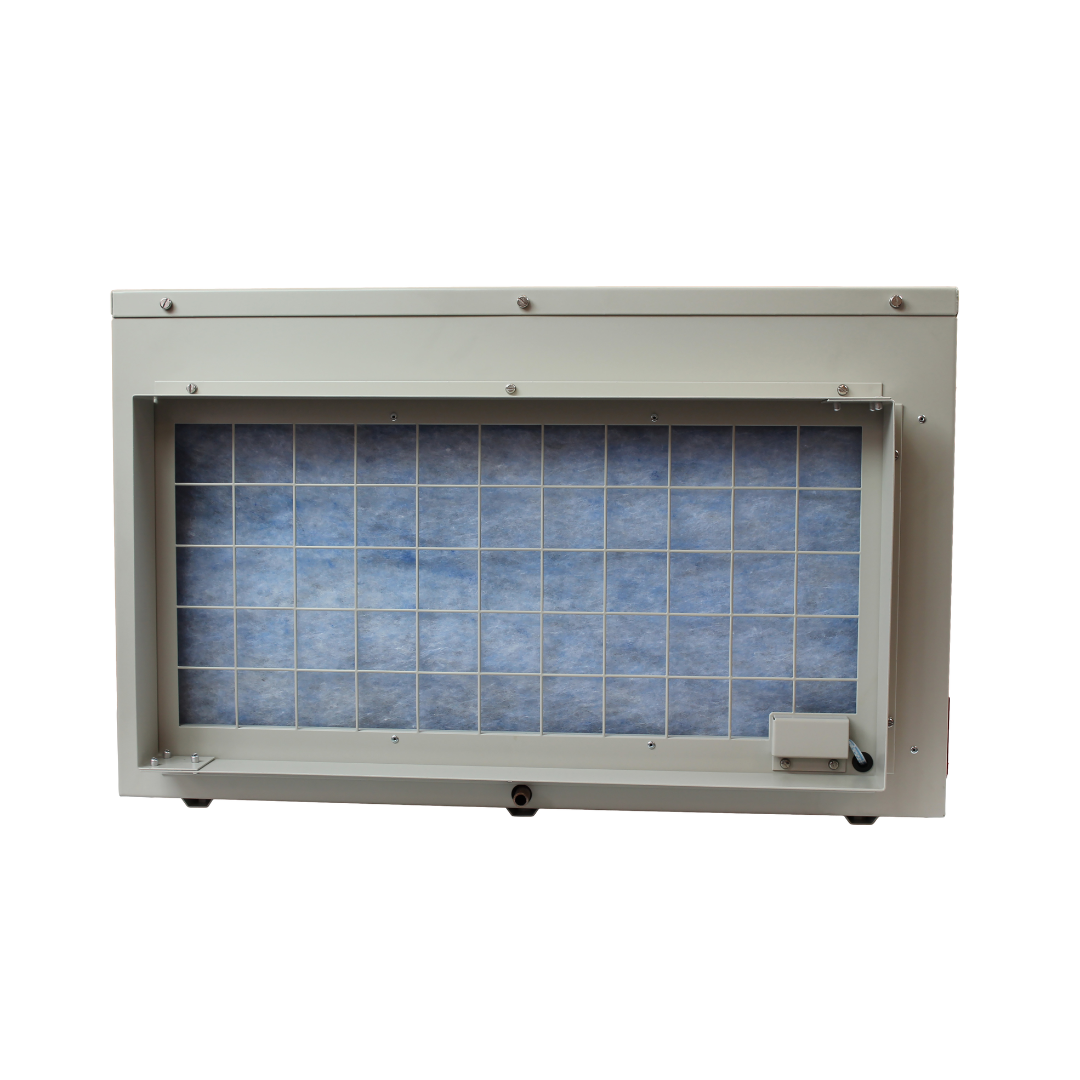

- Easy Access Cartridge Air Filter simplifies maintenance and replacement.
- Integrated Diagnostics Menu and Status Indicators allow quick system monitoring and troubleshooting.
- Gravity Drain Connection with 1/2" outlet supports continuous condensate removal.

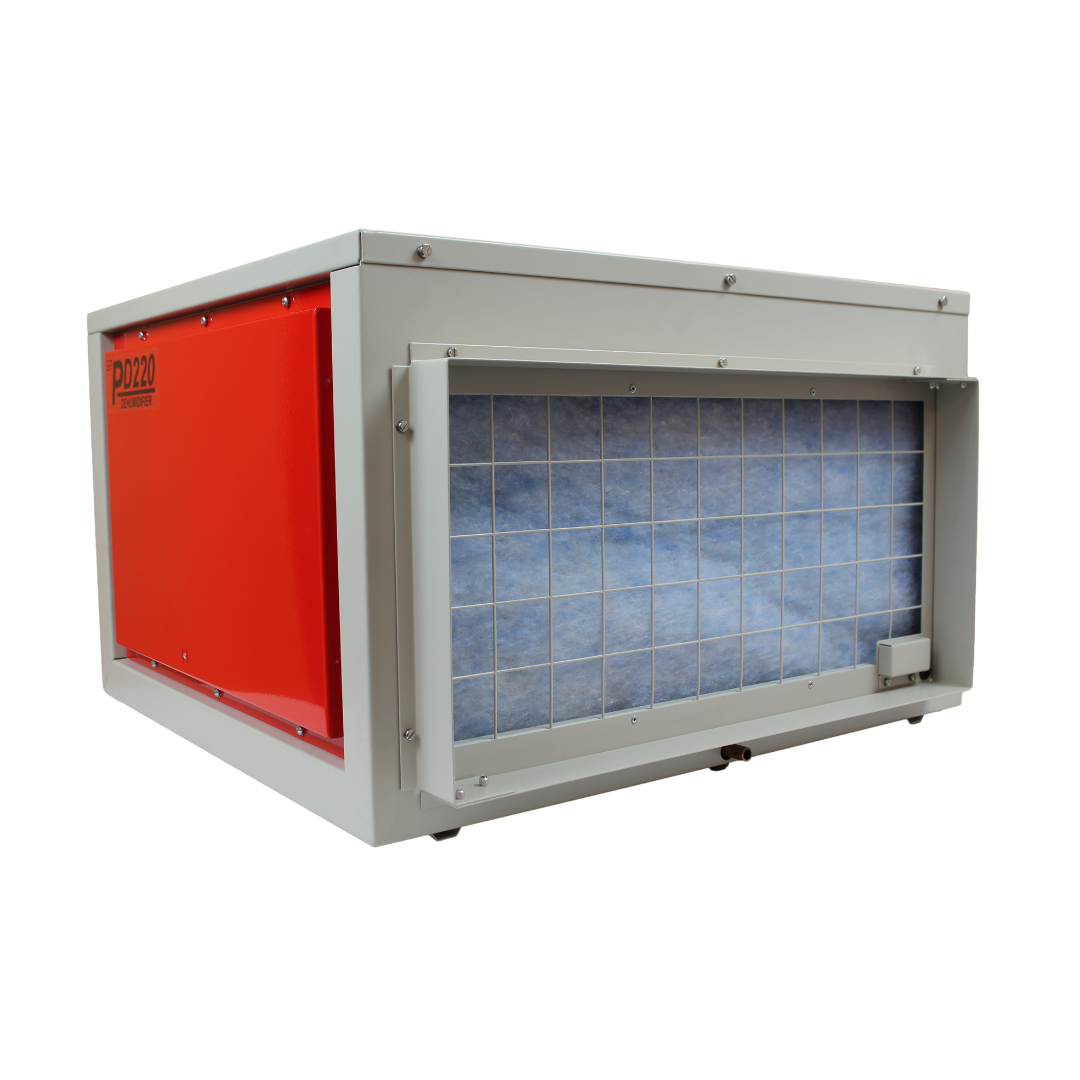

- Duct Flange Compatibility allows installation into ventilation or HVAC duct systems.
Ebac PD220-D Dehumidifier 10157GY-US How the System Works
- Moist air is drawn into the Ebac PD220-D Dehumidifier 10157GY-US by the internal fan.
- The air passes across the cold evaporator coil where it is cooled below its dew point.
- Water vapor condenses on the coil and is collected in the condensate tray.
- The collected condensate drains through the gravity drain tube.
- The dried air then passes through the condenser coil where it is reheated using recovered system energy.
- The discharged air returns to the room approximately 2°C warmer and significantly drier.
- The automatic defrost system activates when necessary to maintain optimal performance.
- The internal humidistat automatically switches the unit off when the desired humidity level is reached.
Ebac PD220-D Dehumidifier 10157GY-US Control & Installation Options
- Internal humidistat allows the unit to operate as a standalone humidity control system.
- Remote humidistat interface supports external humidity management systems.
- Remote touch control panel interface available with integrated humidity sensor.
- Optional external humidity sensor compatibility for advanced monitoring.
- Pre-drilled mounting points and underside runners simplify installation.
- Duct flanges allow the unit to be integrated into ducted HVAC systems.
- Self-contained design enables quick installation and commissioning.
Ebac PD220-D Dehumidifier 10157GY-US Package Contents
- 1 × Ebac PD220-D Dehumidifier 10157GY-US
- 1 × Owner’s Manual
- 1 × 6 Pin Plug
- 1 × 3/8" PVC Drain Tube (3M Length)
- 1 × Jubilee Clip
Why Choose the Ebac PD220-D Dehumidifier 10157GY-US
- High capacity moisture removal up to 190 pints per day.
- Advanced reverse cycle defrost technology for cold temperature operation.
- Durable epoxy-coated steel construction for long service life.
- Quiet two-speed centrifugal fan for efficient airflow.
- Flexible installation with ducting capability.
- Professional humidity control for commercial and industrial environments.
The Ebac PD220-D Dehumidifier 10157GY-US provides powerful moisture removal, advanced humidity control, and durable industrial construction, making it an ideal solution for indoor pools, warehouses, mechanical rooms, and commercial spaces where consistent humidity control is critical.
