Ebac PD150-D Dehumidifier 10156GY-US Applications
- Indoor swimming pools and spa facilities
- Basements and damp interior building areas
- Commercial buildings and HVAC mechanical rooms
- Warehouses and storage environments
- Manufacturing and industrial production areas
- Fitness centers, locker rooms, and wellness facilities
- Ducted humidity control systems
Ideal for environments where excess moisture can cause mold growth, structural damage, corrosion, or poor indoor air quality.
Ebac PD150-D Dehumidifier 10156GY-US Specifications
| Model | PD150-D |
|---|---|
| Part Number | 10156GY-US |
| Voltage Requirements | 220V / 1 Phase / 60 Hz |
| Typical Extraction | 145 PPD |
| Typical Extraction (80°F / 80% RH) | 170 PPD |
| Airflow | 586 – 665 CFM (Two-Speed Fan) |
| Effective Coverage Volume | 15,892 cu. ft |
| Power Consumption | 1900 W |
| Current Draw | 9 A |
| Heat Recovery | 9,350 BTU |
| Noise Level | 69 dBA |
| Operating Temperature Range | 33°F – 95°F |
| Dimensions (H × W × D) | 17.5" × 27.5" × 26" |
| Weight | 146 lbs |
| Refrigerant | R32 |
| Compressor Type | Rotary |
Ebac PD150-D Dehumidifier 10156GY-US Performance & Construction

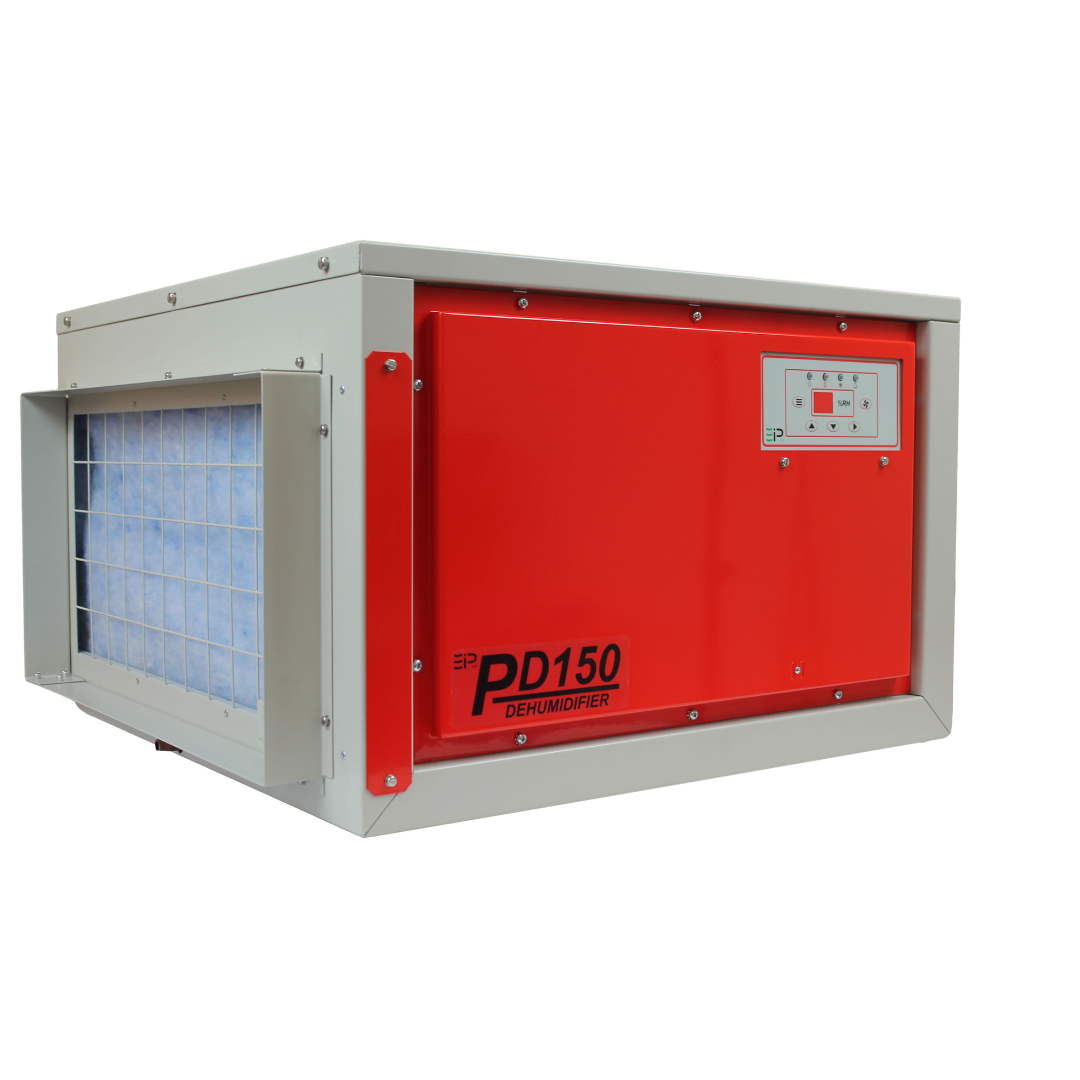

- Adjustable Digital Humidistat allows precise humidity control for maintaining ideal indoor conditions.
- Temperature Sensitive Reverse Cycle Defrost automatically melts frost buildup to maintain full drying performance in low temperature environments.
- Quiet Two-Speed Centrifugal Fan delivers efficient airflow while maintaining low operating noise levels.
- Heavy Gauge Epoxy-Coated Steel Cabinet protects internal components and provides corrosion resistance in humid environments.
- Totally Enclosed Coils ensure reliable operation and protect internal refrigeration components.

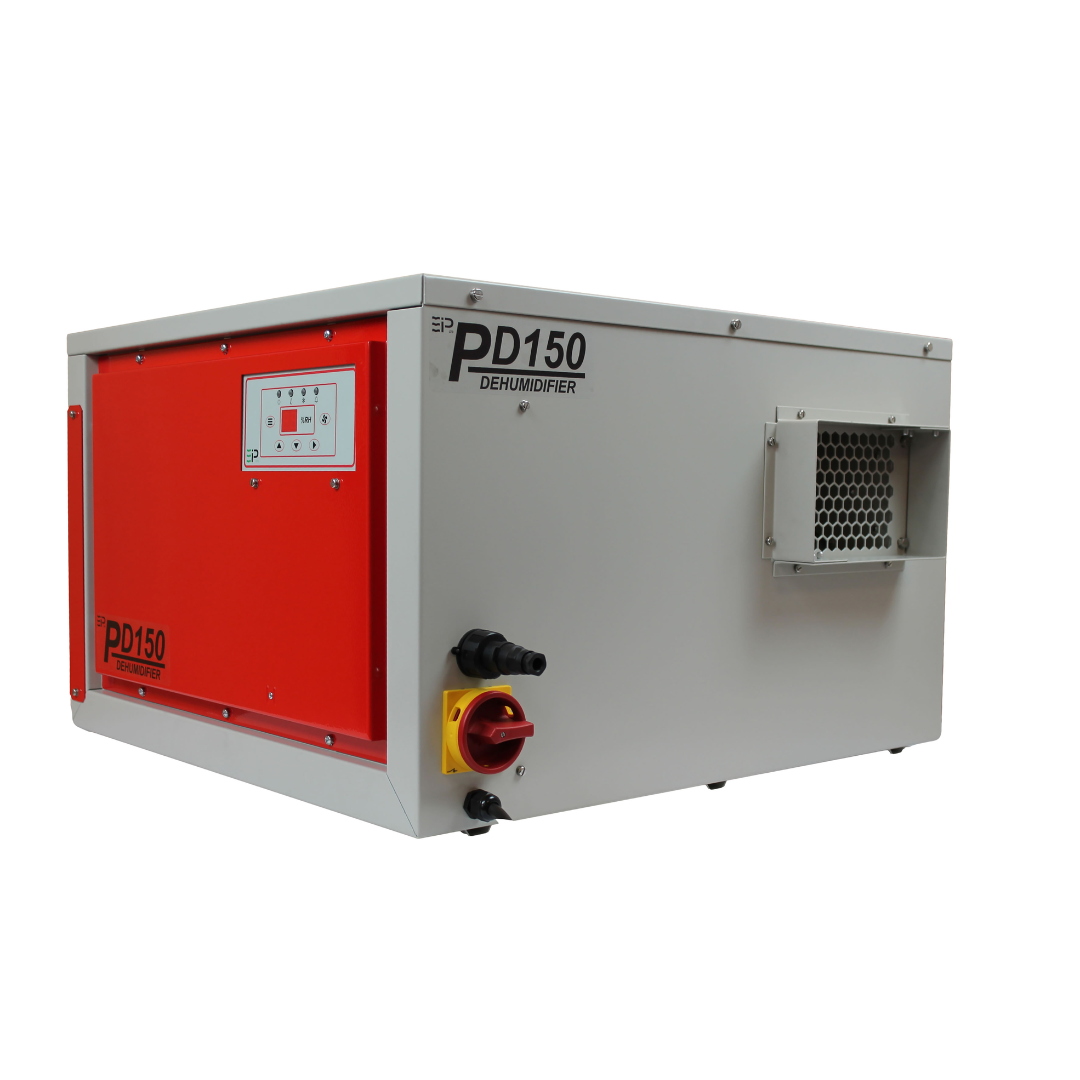

- Ductable Installation Design allows integration into HVAC or ventilation duct systems.

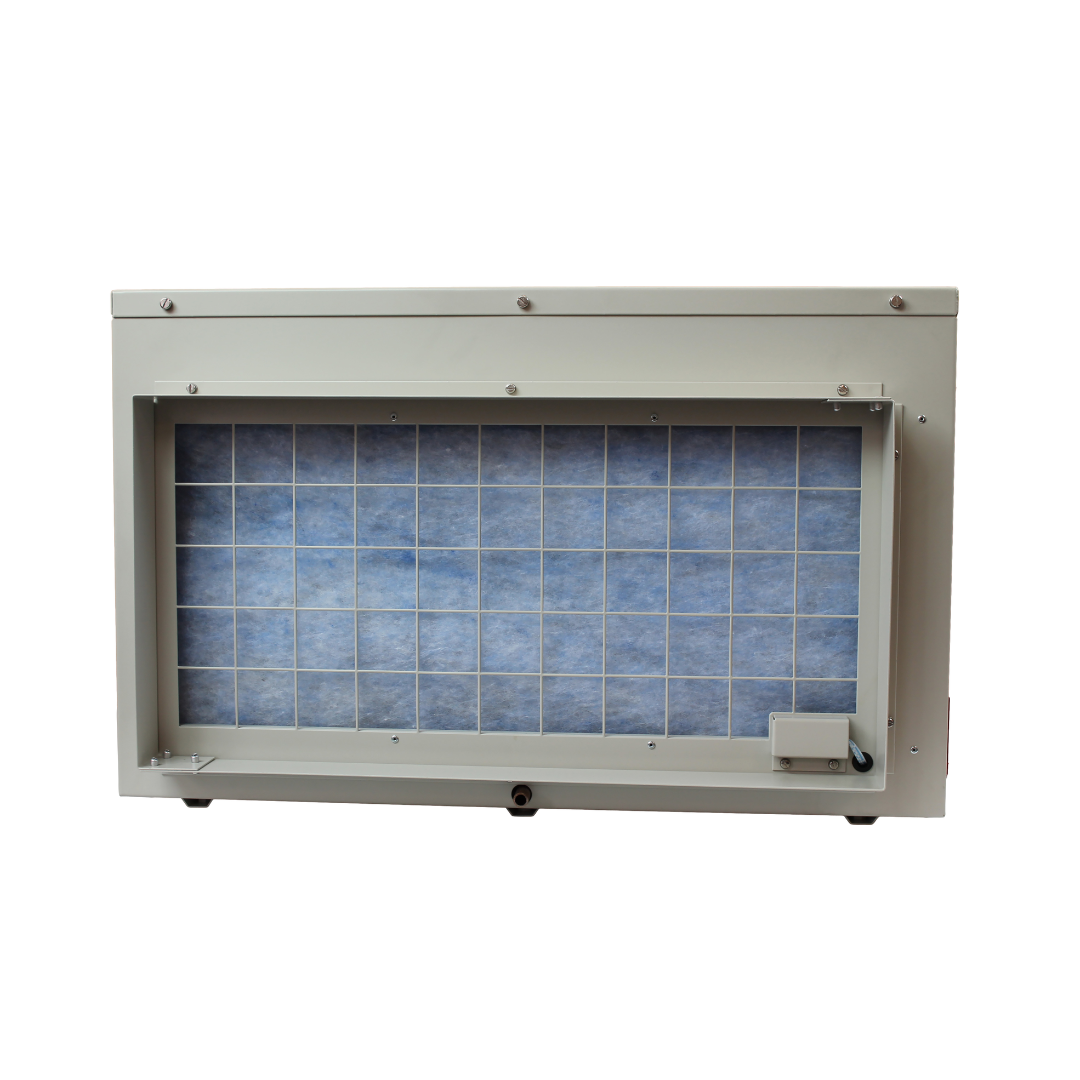

- Easy Access Cartridge Air Filter allows quick replacement and simple maintenance.
- Electronic Defrost Control System maintains optimal performance and protects internal components.
- System Status Indicators and Diagnostics Menu allow easier monitoring and troubleshooting.
- Gravity Drain Outlet with 1/2" O/D connection allows continuous condensate drainage.
Ebac PD150-D Dehumidifier 10156GY-US How the System Works
- Moist air is drawn into the Ebac PD150-D Dehumidifier 10156GY-US by the internal fan.
- The air passes over the evaporator coil where it cools below its dew point.
- Moisture condenses on the coil surface and collects in the condensate tray.
- The condensed water drains through the gravity drain tube.
- The cooled air then passes through the condenser coil where it is reheated using recovered system energy.
- The discharged air returns to the room approximately 2°C warmer and significantly drier.
- The automatic defrost system activates when necessary to maintain efficiency.
- The internal humidistat automatically shuts the unit off once the selected humidity level is reached.
Ebac PD150-D Dehumidifier 10156GY-US Control & Installation Options
- Internal humidistat allows standalone humidity control operation.
- Remote humidistat interface supports external control systems.
- Remote touch control panel interface available with built-in humidity sensor.
- Optional external humidity sensor support for advanced monitoring.
- Underside runners and pre-drilled mounting points simplify installation.
- Duct flanges enable installation into ducted HVAC systems.
- Self-contained system allows fast installation and commissioning.
Ebac PD150-D Dehumidifier 10156GY-US Package Contents
- 1 × Ebac PD150-D Dehumidifier 10156GY-US
- 1 × Owner’s Manual
- 1 × 6 Pin Plug
- 1 × 3/8" PVC Drain Tube (3M Length)
- 1 × Jubilee Clip
Why Choose the Ebac PD150-D Dehumidifier 10156GY-US
- High capacity moisture removal up to 145 pints per day.
- Advanced reverse cycle defrost for reliable operation at lower temperatures.
- Durable industrial steel construction with corrosion-resistant coating.
- Quiet two-speed fan for efficient airflow.
- Flexible installation with ducting capability.
- Professional humidity control for commercial and industrial environments.
The Ebac PD150-D Dehumidifier 10156GY-US provides powerful moisture removal, durable construction, and efficient humidity control, making it an ideal solution for indoor pools, commercial spaces, and industrial environments where reliable humidity management is essential.
