Ebac PD120-D Dehumidifier Applications
- Indoor swimming pools and spa environments
- Basements and damp interior building spaces
- Commercial buildings and mechanical rooms
- Warehouses and storage areas
- Manufacturing facilities and industrial buildings
- Health clubs, locker rooms, and wellness facilities
- Ducted HVAC humidity control systems
Ideal for spaces where high humidity can cause corrosion, mold growth, structural damage, or poor air quality.
Ebac PD120-D Dehumidifier Specifications
| Model | PD120-D |
|---|---|
| Voltage Options | 110V / 220V |
| Typical Extraction (80°F / 60% RH) | 120 PPD |
| Typical Extraction (80°F / 80% RH) | 140 PPD |
| Effective Coverage Volume | 10,594 cu. ft |
| Airflow | 262 – 665 CFM (2 Speed Fan) |
| Power Consumption | 1200 W |
| Current Draw | 10.5A (110V) / 5.5A (220V) |
| Heat Recovery | 9,350 BTU |
| Noise Level | 69 dBA |
| Operating Temperature Range | 33°F – 95°F |
| Dimensions (H × W × D) | 17.5" × 27.5" × 26" |
| Weight | 137 lbs |
| Refrigerant | R454c (110V) / R32 (220V) |
| Compressor Type | Rotary |
Ebac PD120-D Dehumidifier Performance & Construction
- Digital Adjustable Humidistat allows precise control of humidity levels to maintain ideal environmental conditions.
- Reverse Cycle Temperature Sensitive Defrost automatically melts frost buildup to maintain full drying performance even in lower ambient temperatures.
- Two-Speed Centrifugal Fan provides quiet and efficient airflow for consistent moisture removal.
- Heavy Gauge Epoxy-Coated Steel Cabinet protects internal components from corrosion while ensuring long-term durability.
- Totally Enclosed Coils improve system protection and operational reliability.
- Ductable Design allows installation into duct systems for centralized humidity control.

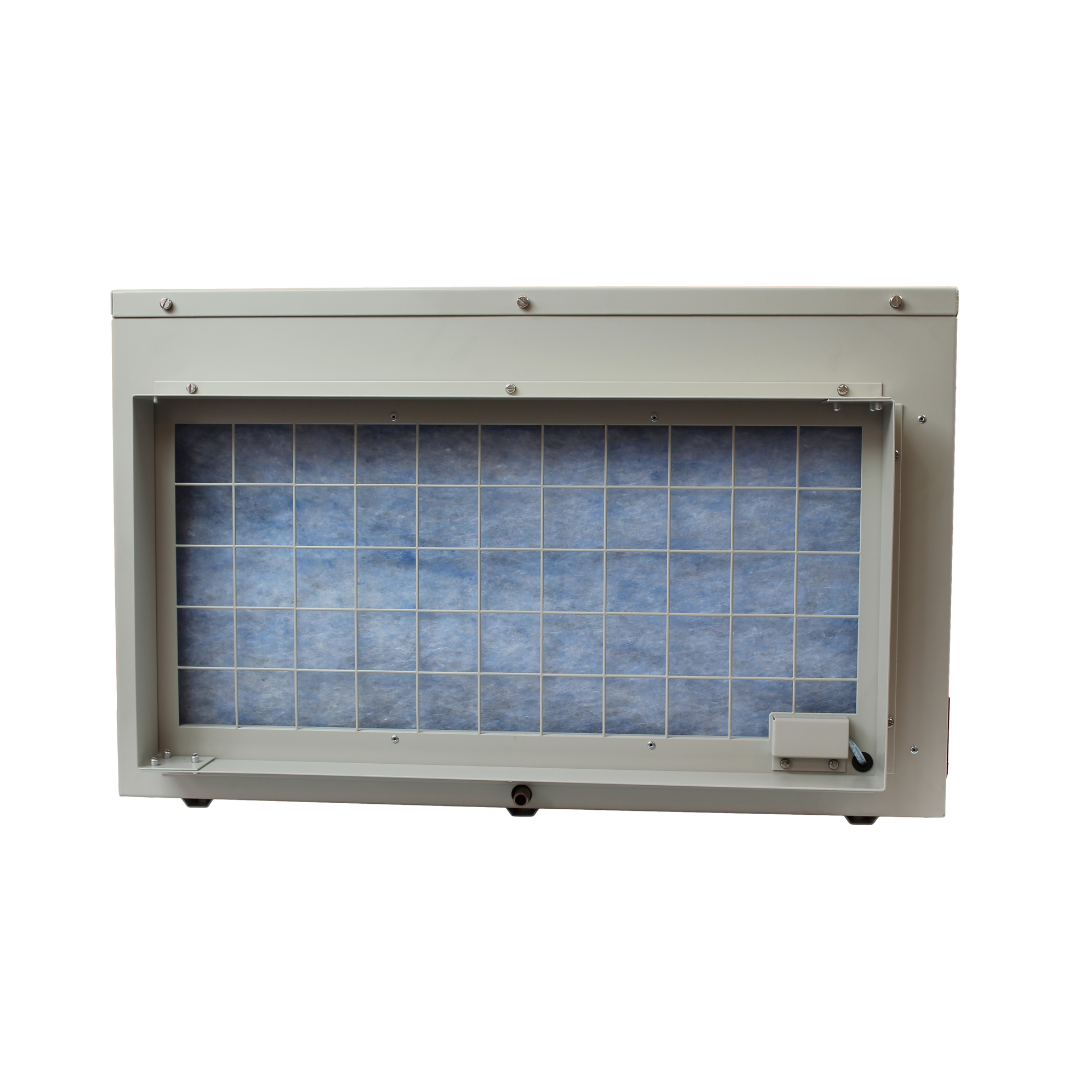

- Cartridge Air Filter ensures easy maintenance and quick replacement.
- Electronic Defrost Control System monitors operating conditions and prevents frost buildup.
- Integrated Diagnostics Menu provides system status indicators and troubleshooting capability.
- Gravity Drain System with 1/2" outlet ensures continuous condensate removal.
Ebac PD120-D Dehumidifier How the System Works
- Moist air is drawn into the Ebac PD120-D Dehumidifier by the internal fan.
- The air passes across the cold evaporator coil where it is cooled below its dew point.
- Water vapor condenses into liquid and is collected in the condensate tray.
- Condensed water drains through the gravity drain outlet.
- The dried air passes over the condenser coil where it is reheated using recovered energy.
- The system returns air to the room approximately 2°C warmer and significantly drier.
- The automatic defrost system activates when required to maintain efficiency.
- The internal humidistat automatically shuts off the unit when the target humidity level is achieved.
Ebac PD120-D Dehumidifier Control & Installation Options
- Internal humidistat allows the unit to operate as a standalone humidity control system.
- Remote humidistat option with voltage-free contacts enables external environmental control.
- Remote touch control panel interface available with integrated humidity sensor.
- Optional external humidity sensor support for advanced monitoring.
- Underside runners with pre-drilled mounting points simplify installation.
- Duct flanges allow easy connection to HVAC or ventilation duct systems.
Ebac PD120-D Dehumidifier Package Contents
PD120-D 110V Package Includes- 1 × Ebac PD120-D 110V Dehumidifier
- 1 × Owner’s Manual
- 1 × 6-Pin Plug
- 1 × 3/8" PVC Drain Tube (3M Length)
- 1 × Jubilee Clip
- 1 × Ebac PD120-D 220V Dehumidifier
- 1 × Owner’s Manual
- 1 × 6-Pin Plug
- 1 × 3/8" PVC Drain Tube (3M Length)
- 1 × Jubilee Clip
Why Choose the Ebac PD120-D Dehumidifier
- High capacity moisture removal up to 120 pints per day.
- Advanced reverse cycle defrost technology for cold temperature operation.
- Energy-efficient heat recovery system.
- Heavy-duty commercial steel construction.
- Quiet operation with a two-speed centrifugal fan.
- Flexible installation with ducting capability.
- Professional humidity control for demanding commercial environments.
The Ebac PD120-D Dehumidifier delivers reliable humidity control, durable construction, and efficient moisture removal, making it an ideal solution for indoor pools, commercial spaces, and industrial environments where maintaining stable humidity levels is critical.
