Ebac Orion Dehumidifier 11270GR-US Applications
- Water damage restoration and flood recovery
- Commercial and industrial humidity control
- Construction and renovation drying projects
- Warehouses and storage facilities
- Basements, crawl spaces, and damp interiors
- Restoration contractor equipment fleets
Designed to remove large volumes of moisture quickly, making it ideal for restoration projects and demanding commercial drying applications.
Ebac Orion Dehumidifier 11270GR-US Specifications
| Model | Orion |
|---|---|
| Part Number | 11270GR-US |
| Voltage Requirements | 115V / 1 Phase / 60 Hz |
| Typical Extraction | 105 PPD |
| Effective Coverage Volume | 32,275 cu. ft (Approx. 914 m³) |
| Airflow | 360 CFM |
| Power Consumption | 900 W |
| Current Draw | 10 A |
| Noise Level | 57 dBA |
| Operating Temperature Range | 33°F – 105°F |
| Dimensions (H × W × D) | 44" × 24" × 22" |
| Weight | 165 lbs |
| Refrigerant | R454c |
| Compressor Type | Rotary |
Ebac Orion Dehumidifier 11270GR-US Performance & Construction
- High Efficiency Rotary Compressor provides powerful moisture extraction with low energy consumption.
- Two Stage Cooling System incorporates an air-to-air heat exchanger for improved efficiency and enhanced moisture removal.
- High Static Backward Curved Fan delivers strong airflow across long distances to maximize drying performance.
- Reverse Cycle Defrost System automatically melts frost buildup, allowing reliable operation at lower temperatures.
- Temperature Sensitive Defrost Control maintains consistent performance across the full operating temperature range.
- Integral Condensate Pump allows continuous unattended drainage during extended drying operations.
- Pump Purge Feature enables the drainage system to empty before moving the unit.
- Washable Air Filter improves airflow efficiency while simplifying maintenance.
- Extra Long Power Cord with GFI Plug provides enhanced jobsite flexibility and electrical safety.

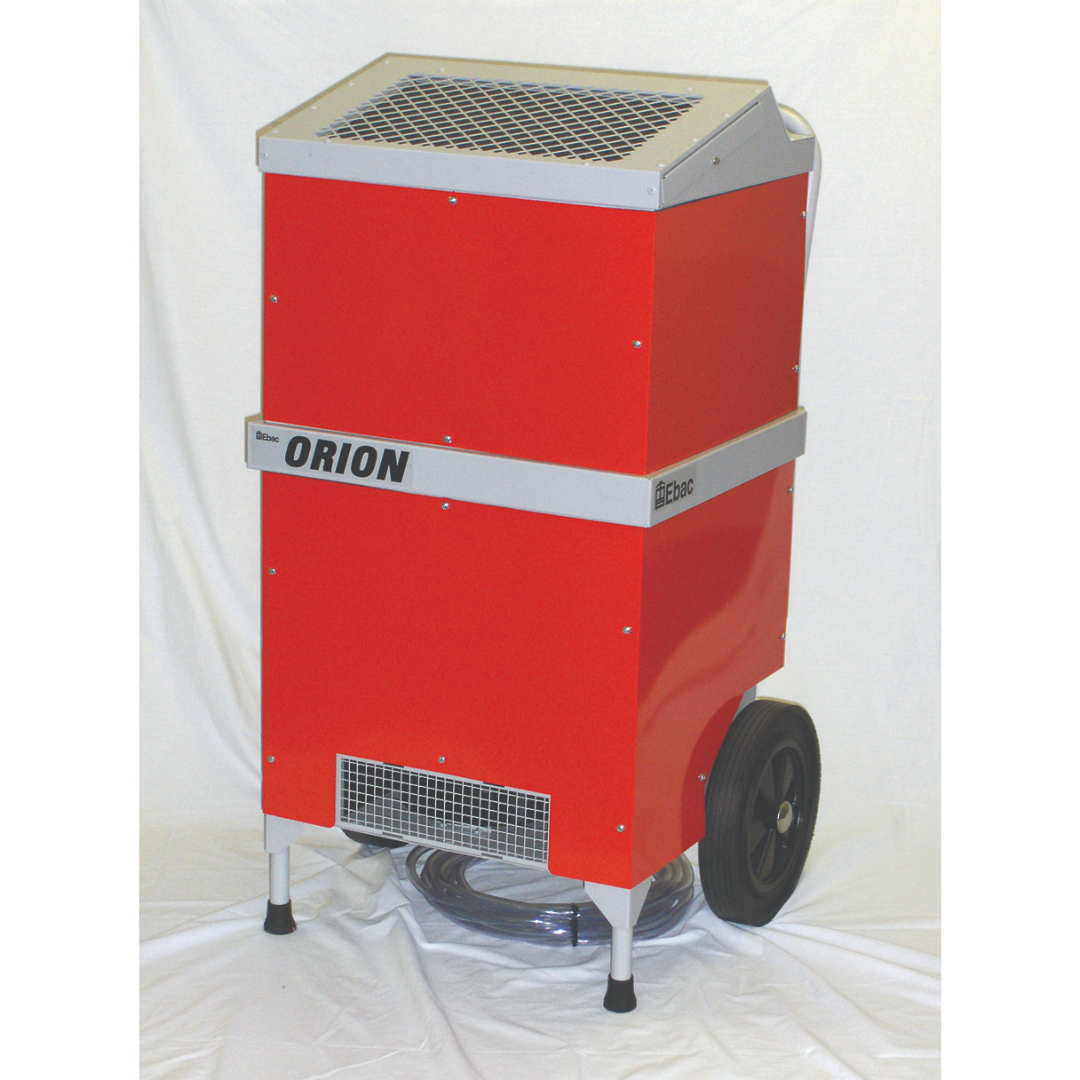

- Rugged Epoxy Powder-Coated Steel Cabinet protects internal components in demanding environments.

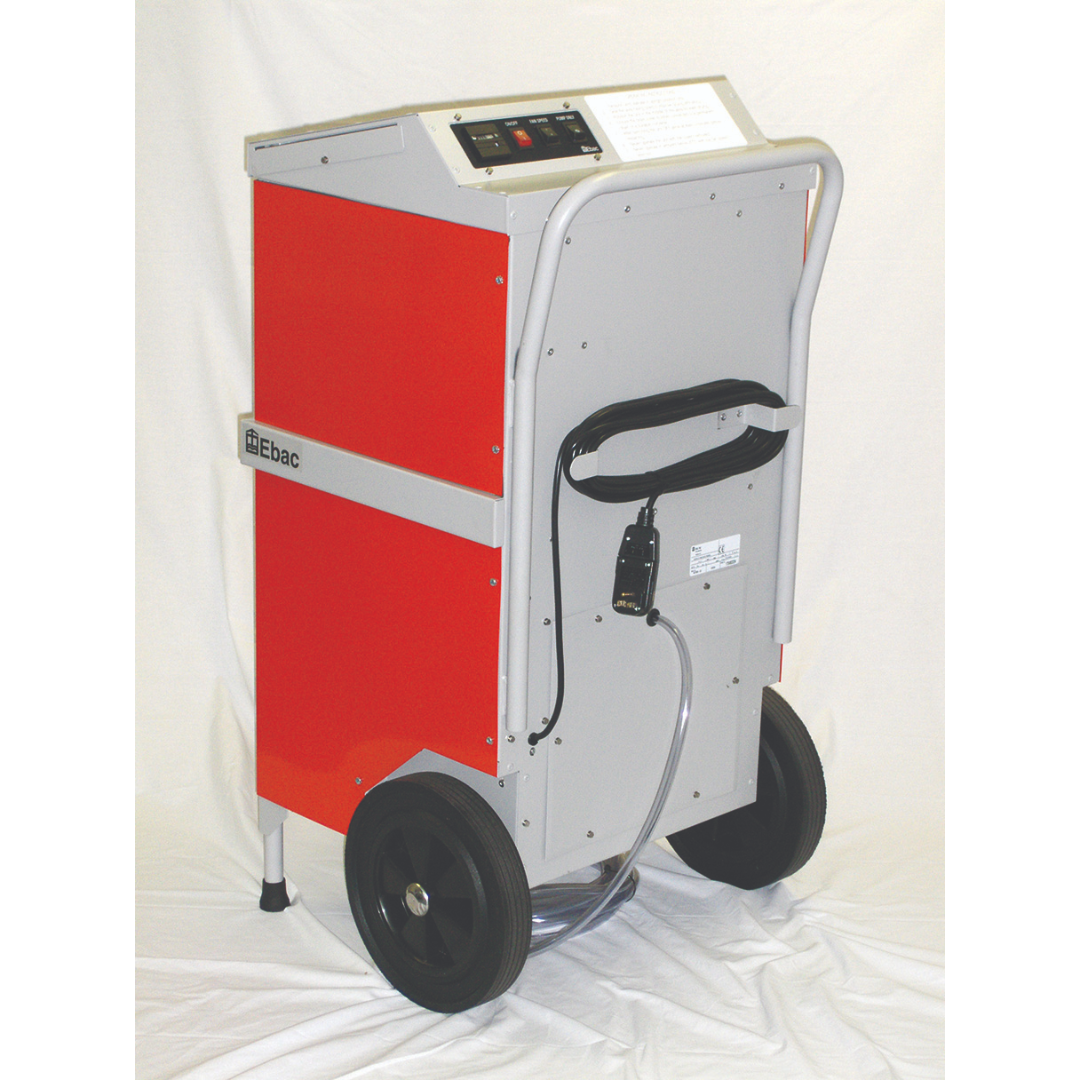

- Heavy Duty Wheels and Transport Handle allow easy mobility across job sites.

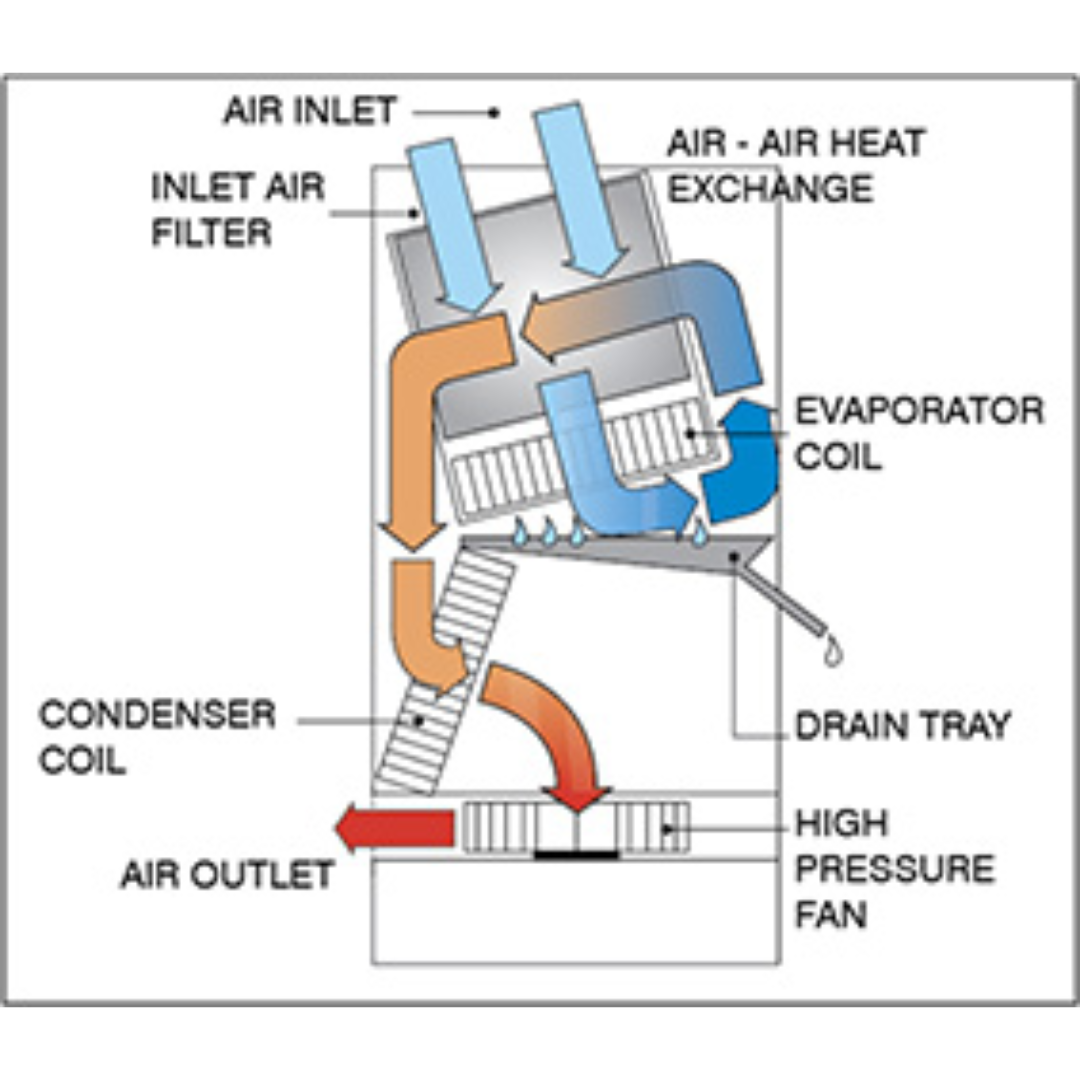

Ebac Orion Dehumidifier 11270GR-US How the System Works
- Moist air is drawn into the Ebac Orion Dehumidifier 11270GR-US by the high-capacity fan.
- The air first passes through an air-to-air heat exchanger where incoming air is pre-cooled.
- The air then moves across the evaporator coil where it cools below its dew point.
- Moisture condenses on the coil and is collected in the condensate tray.
- The integrated pump removes collected water through the drain hose.
- The air then passes through the condenser coil where it is reheated using recovered energy.
- The discharged air returns to the room approximately 2°C warmer and significantly drier.
- Continuous air circulation gradually reduces the humidity within the affected space.
Ebac Orion Dehumidifier 11270GR-US Package Contents
- 1 × Ebac Orion Dehumidifier 11270GR-US
- 1 × Owner’s Manual
- 1 × 3/8" PVC Drain Tube (7.8M Length)
- 1 × Quick Release Hose Coupling
Why Choose the Ebac Orion Dehumidifier 11270GR-US
- High capacity moisture removal up to 105 pints per day.
- Two-stage cooling system improves drying efficiency.
- High airflow fan supports drying across large areas.
- Integrated condensate pump allows continuous operation.
- Durable steel construction designed for demanding restoration environments.
- Reliable performance with energy-efficient rotary compressor technology.
The Ebac Orion Dehumidifier 11270GR-US combines high capacity drying performance, rugged construction, and advanced airflow technology, making it an ideal solution for restoration contractors, industrial facilities, and commercial environments requiring dependable humidity control.
