Ebac LD82 Lumber Dryer 13205BB-US Applications
- Small cabinet making and woodworking shops
- Furniture manufacturing workshops
- Custom woodworking studios
- Hobbyist woodworkers and craft shops
- Small-scale lumber drying operations
- Drying hardwood and softwood boards
- Drying mixed species and mixed thickness lumber loads
- On-demand kiln drying for small lumber inventories
The Ebac LD82 Lumber Dryer 13205BB-US is ideal for woodworkers who want full control over lumber moisture content while eliminating reliance on externally kiln-dried material.
Ebac LD82 Lumber Dryer 13205BB-US Packaged Drying System
The Ebac LD82 Lumber Dryer 13205BB-US is supplied as a complete packaged drying system designed for installation inside a small self-built drying chamber. When paired with the STC1 Controller, the system automatically regulates both drying cycles and heating cycles to maintain consistent drying conditions without requiring additional equipment.
- STC1 proportional timer controls the drying cycle for precise moisture removal.
- Integrated thermostat regulates heating cycles inside the drying chamber.
- Minimal equipment requirements — supplementary heaters or venting units are typically unnecessary.
- Automated operation requires only initial control settings before the drying run begins.
- Moisture-resistant control housing protects electronic components.
- Electric thermometer displays chamber temperature on the controller.
Once configured, the system operates with minimal intervention, allowing operators to focus on production while the dryer maintains consistent environmental conditions.
Ebac LD82 Lumber Dryer 13205BB-US Drying Performance
The Ebac LD82 Lumber Dryer 13205BB-US is engineered to deliver reliable low-temperature kiln drying while protecting lumber from degrade, warping, or checking. Designed to operate up to approximately 45°C (113°F), the system gradually reduces moisture content without "cooking" the wood.
- Capable of drying wood from green or air-dried condition
- Moisture content can be reduced to approximately 6% if required
- Recommended drying rate of 1% moisture reduction per day for 1" hardwood
- Even moisture removal throughout the full lumber stack
- Low-temperature drying minimizes board damage and improves finish quality
- Drying times vary depending on species, thickness, and starting moisture levels
Ebac recommends gradual drying rates to maintain the highest lumber quality and minimize internal stresses within the wood.
Ebac LD82 Lumber Dryer 13205BB-US Features
- Integrated centrifugal airflow fan ensures even air circulation throughout the drying chamber.
- Low-temperature drying technology protects lumber from surface degrade.
- Compact design suitable for small workshop drying chambers.
- Flexible drying capability supports mixed species and mixed board thickness loads.
- Energy-efficient operation typically consuming about 1kW every three hours of continuous operation.
- Independent drying capability allowing users to dry lumber whenever needed.
- Optimized airflow system prevents temperature layering inside the chamber.
- Professional kiln-drying performance in a compact and economical system.

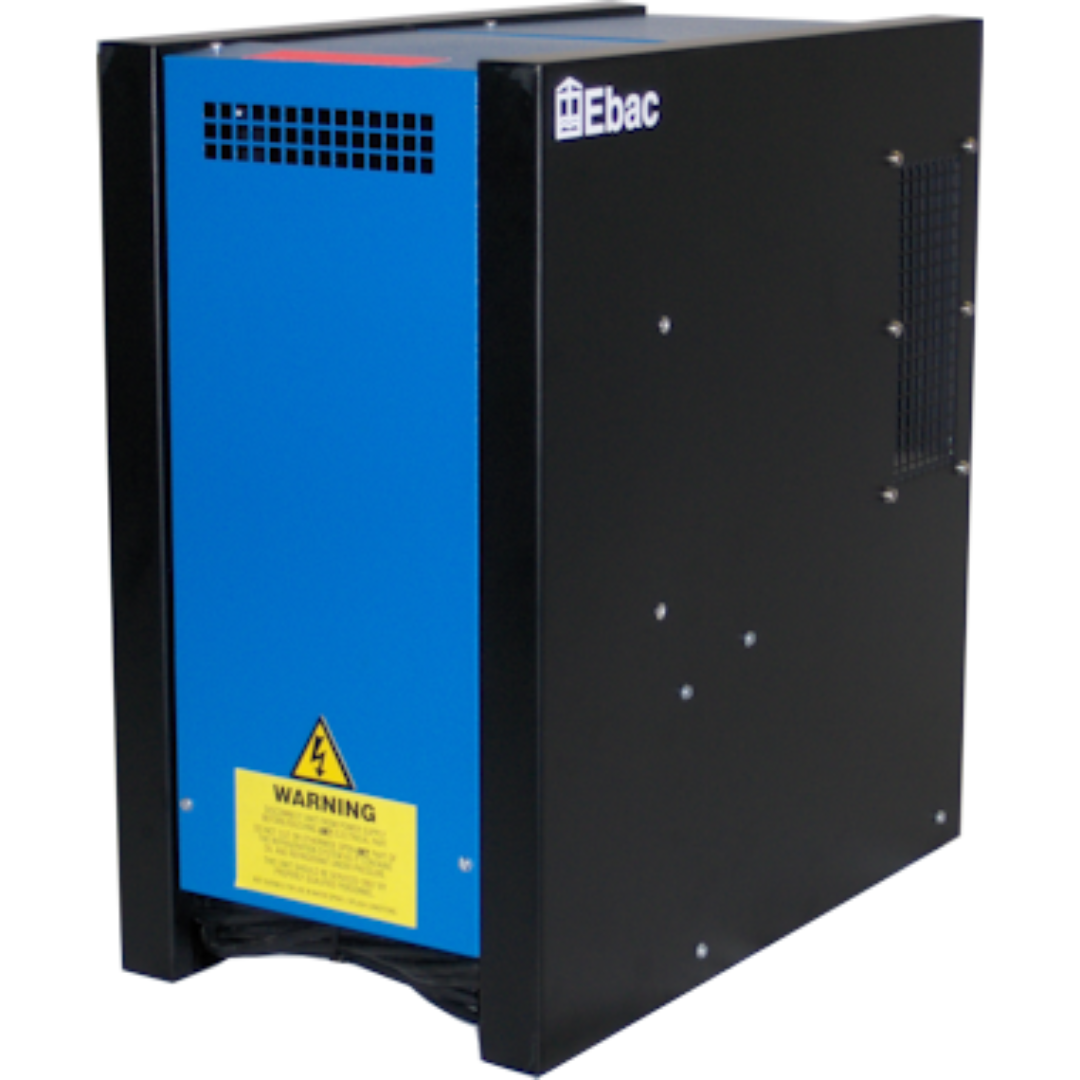

Ebac LD82 Lumber Dryer 13205BB-US Specifications
| Product Name | Ebac LD82 Lumber Dryer 13205BB-US |
|---|---|
| Part Number | 13205BB-US |
| Power Requirements | 110 V / 1 Phase / 60 Hz |
| Dryer Power | 320 W |
| Heater Power | 350 W |
| Airflow | 460 CFM |
| Current | 7 A |
| Maximum Operating Temperature | 113 °F |
| Typical Load Capacity | 3 m³ of lumber |
| Height | 24 in |
| Width | 12 in |
| Depth | 22 in |
| Weight | 82 lbs |
Ebac LD82 Lumber Dryer 13205BB-US Package Contents
- 1 × Ebac LD82 Lumber Dryer 13205BB-US
- 1 × LD82 Owner's Manual
- 1 × PVC Tubing – 16 mm ID – 3 m length
- 1 × Jubilee Clip
Why Choose the Ebac LD82 Lumber Dryer 13205BB-US
- Allows woodworkers to dry their own lumber and significantly reduce material costs.
- Provides full control over moisture content and wood quality.
- Supports flexible drying loads including mixed species and board sizes.
- Energy-efficient drying operation with minimal running costs.
- Compact packaged kiln drying system designed for small shops and craftspeople.
By drying lumber in-house with the Ebac LD82 Lumber Dryer 13205BB-US, users gain greater control over material quality, reduce inventory costs, and recover their equipment investment quickly.
