Ebac Kompact Dehumidifier 11240KP-US Applications
- Water damage restoration and flood cleanup
- Commercial and residential structural drying
- Basements, crawl spaces, and damp interior spaces
- Construction and renovation drying projects
- Warehouses, offices, and storage environments
- Restoration contractor equipment fleets
The compact design allows one-person operation while providing the capacity to dry multiple room-sized areas efficiently.
Ebac Kompact Dehumidifier 11240KP-US Specifications
| Model | Kompact |
|---|---|
| Part Number | 11240KP-US |
| Voltage Requirements | 110V / 1 Phase / 60 Hz |
| Typical Extraction | 56 PPD |
| Effective Coverage Volume | 8,370 cu. ft (Approx. 237 m³) |
| Airflow | 358 CFM |
| Power Consumption | 880 W |
| Current Draw | 7 A |
| Noise Level | 57 dBA |
| Operating Temperature Range | 33°F – 95°F |
| Dimensions (H × W × D) | 24" × 20" × 19" |
| Weight | 78 lbs |
| Refrigerant | R454c |
| Compressor Type | Rotary |
Ebac Kompact Dehumidifier 11240KP-US Performance & Construction
- High Efficiency Rotary Compressor maximizes moisture extraction while maintaining low operating costs.
- Hot Gas Defrost System automatically removes frost buildup to maintain performance in cooler environments.
- Integral Condensate Pump capable of lifting water up to 20 feet vertically for continuous unattended operation.
- Pump Purge Switch allows the system to drain before transport, preventing water spillage.
- Washable Air Filter provides easy maintenance and ensures consistent airflow performance.

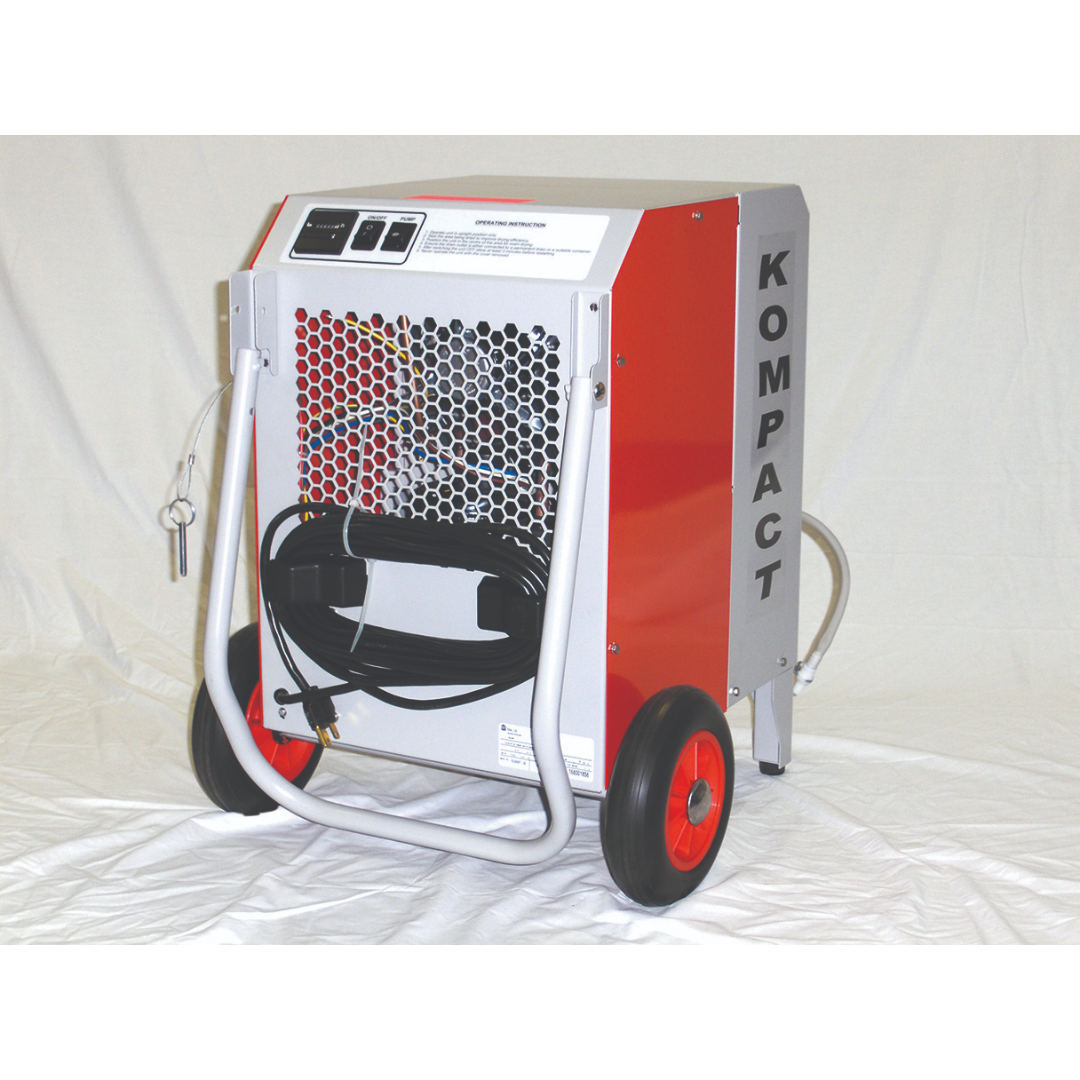

- Semi-Pneumatic Shock Absorbing Wheels allow easy mobility across job sites and uneven surfaces.
- Collapsible Carrying Handles improve transport and storage convenience.
- Hours Run Meter tracks operating time for service scheduling and project documentation.
- Quick Release Hose Coupling simplifies hose connections and drainage setup.
- Extra Long Drain Hose (25 ft) and extended power cord improve jobsite flexibility.
- Rugged Epoxy Powder-Coated Steel Cabinet protects internal components in demanding environments.
Ebac Kompact Dehumidifier 11240KP-US How the System Works
- Moist air is drawn into the Ebac Kompact Dehumidifier 11240KP-US by the internal fan.
- The air passes across the evaporator coil where it cools below its dew point.
- Moisture condenses on the coil and is collected in the condensate tray.
- The integrated condensate pump removes collected water through the drainage hose.
- The cooled air then passes through the condenser coil where it is reheated using recovered energy.
- The discharged air returns to the room approximately 2°C warmer and significantly drier.
- The automatic defrost system activates when required to maintain system efficiency.
- Continuous air circulation gradually reduces the relative humidity within the area.
Ebac Kompact Dehumidifier 11240KP-US Package Contents
- 1 × Ebac Kompact Dehumidifier 11240KP-US
- 1 × Owner’s Manual
- 1 × 3/8" PVC Drain Tube (7.8M Length)
- 1 × Quick Release Hose Coupling
Why Choose the Ebac Kompact Dehumidifier 11240KP-US
- Professional-grade portable dehumidifier for restoration and commercial drying.
- 56 PPD moisture removal capacity for efficient structural drying.
- Integrated condensate pump for continuous unattended operation.
- Hot gas defrost system for reliable performance in low temperatures.
- Durable steel construction built for demanding restoration environments.
- Compact wheeled design allows easy transport between job sites.
The Ebac Kompact Dehumidifier 11240KP-US provides powerful moisture removal, rugged durability, and professional portability, making it an ideal solution for restoration contractors, construction professionals, and facilities requiring dependable humidity control.
