Ebac HM150 / HM150-H Dehumidifier Applications
- Water damage restoration and flood recovery
- Structural drying after storms or plumbing failures
- Commercial buildings and restoration projects
- Construction and renovation drying applications
- Basements, crawl spaces, and damp interior environments
- Professional restoration contractor equipment fleets
Designed to remove large amounts of moisture quickly while remaining portable enough for one-person operation on restoration and drying jobs.
Ebac HM150 / HM150-H Dehumidifier Specifications
| Model | HM150 / HM150-H |
|---|---|
| Part Numbers | 11585RG-US / 11585RH-US |
| Voltage Requirements | 110V / 1 Phase / 60 Hz |
| Typical Extraction | 105 PPD |
| Maximum Extraction | 203 PPD |
| Effective Coverage Volume | 10,594 cu. ft (Approx. 300 m³) |
| Airflow | 412 CFM |
| Power Consumption | 850 W |
| Current Draw | 8 A |
| Noise Level | 68 dBA |
| Operating Temperature Range | 33°F – 95°F |
| Dimensions (H × W × D) | 18.5" × 18.3" × 26.8" |
| Weight | 95 lbs |
| Refrigerant | R454c |
| Compressor Type | Rotary |
Ebac HM150 / HM150-H Dehumidifier Performance & Construction
- High Efficiency Rotary Compressor provides powerful moisture extraction while maintaining energy-efficient operation.
- Thermostatically Controlled Reverse Cycle Defrost automatically melts frost buildup for reliable performance in both low and high ambient temperatures.
- Integral Condensate Pump allows continuous drainage and unattended operation during restoration projects.
- Washable Air Filter simplifies maintenance and ensures efficient airflow.
- Durable Rotational Molded Polyethylene Housing protects internal components from impacts and jobsite conditions.

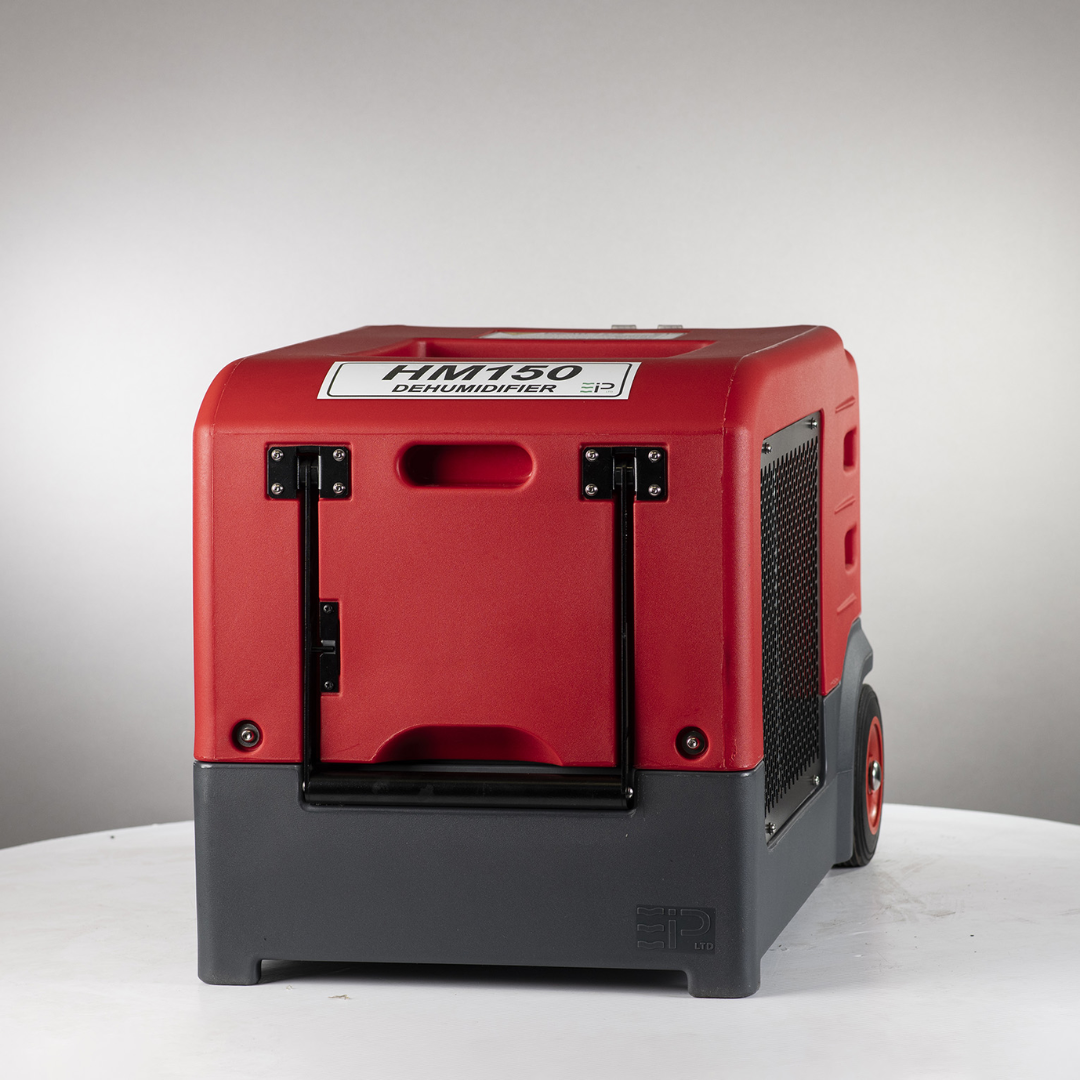

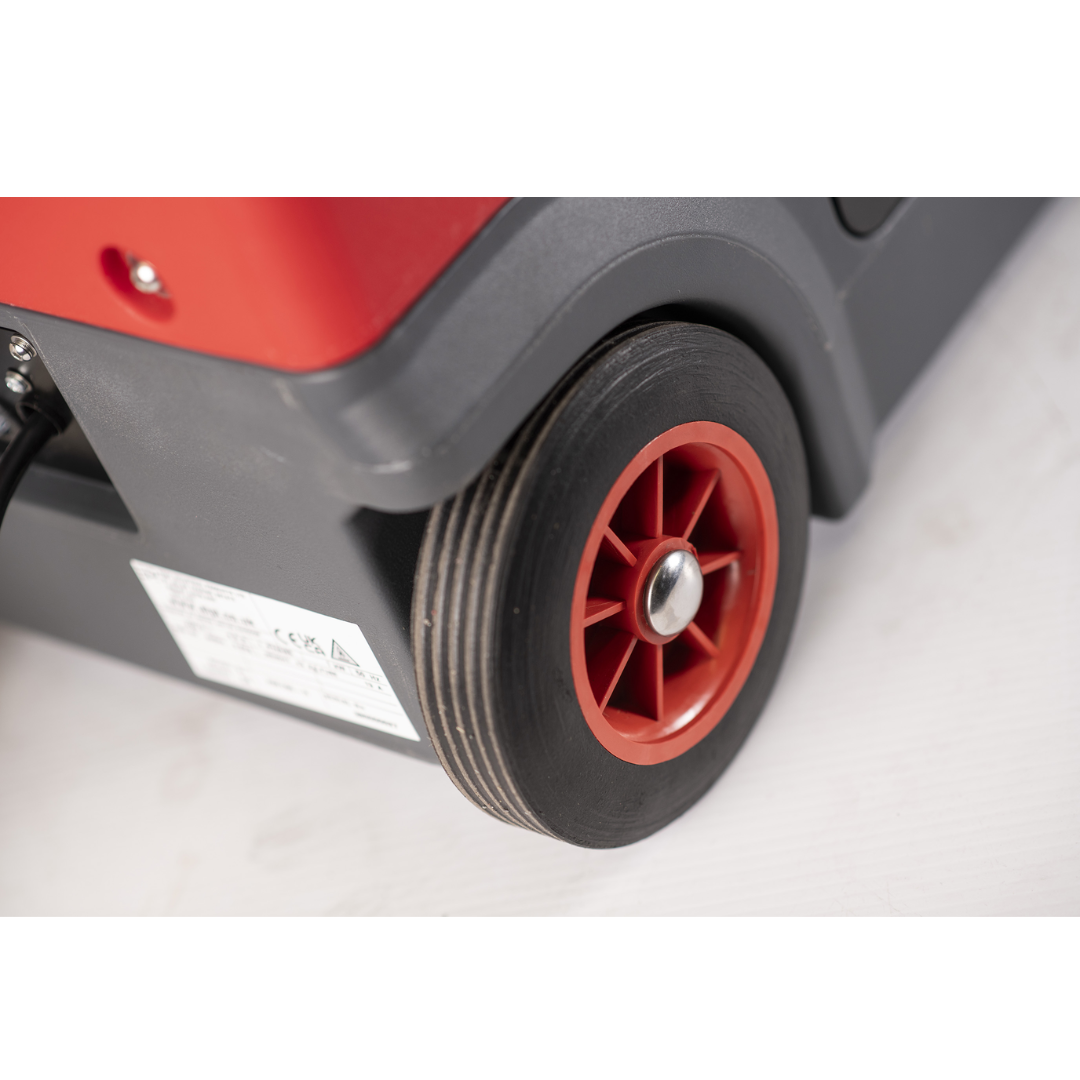

- High Impact Transport Wheels provide easy mobility across restoration job sites.
- Collapsible Transport Handle makes transport and storage more convenient.
- Stackable Housing Design reduces storage space and transportation costs.
- Integrated Pump Safety Cutout protects the unit if the pump reaches a high level.
- Cable and Hose Wrap Storage keeps accessories organized during transport.
Ebac HM150 / HM150-H Dehumidifier Control Options

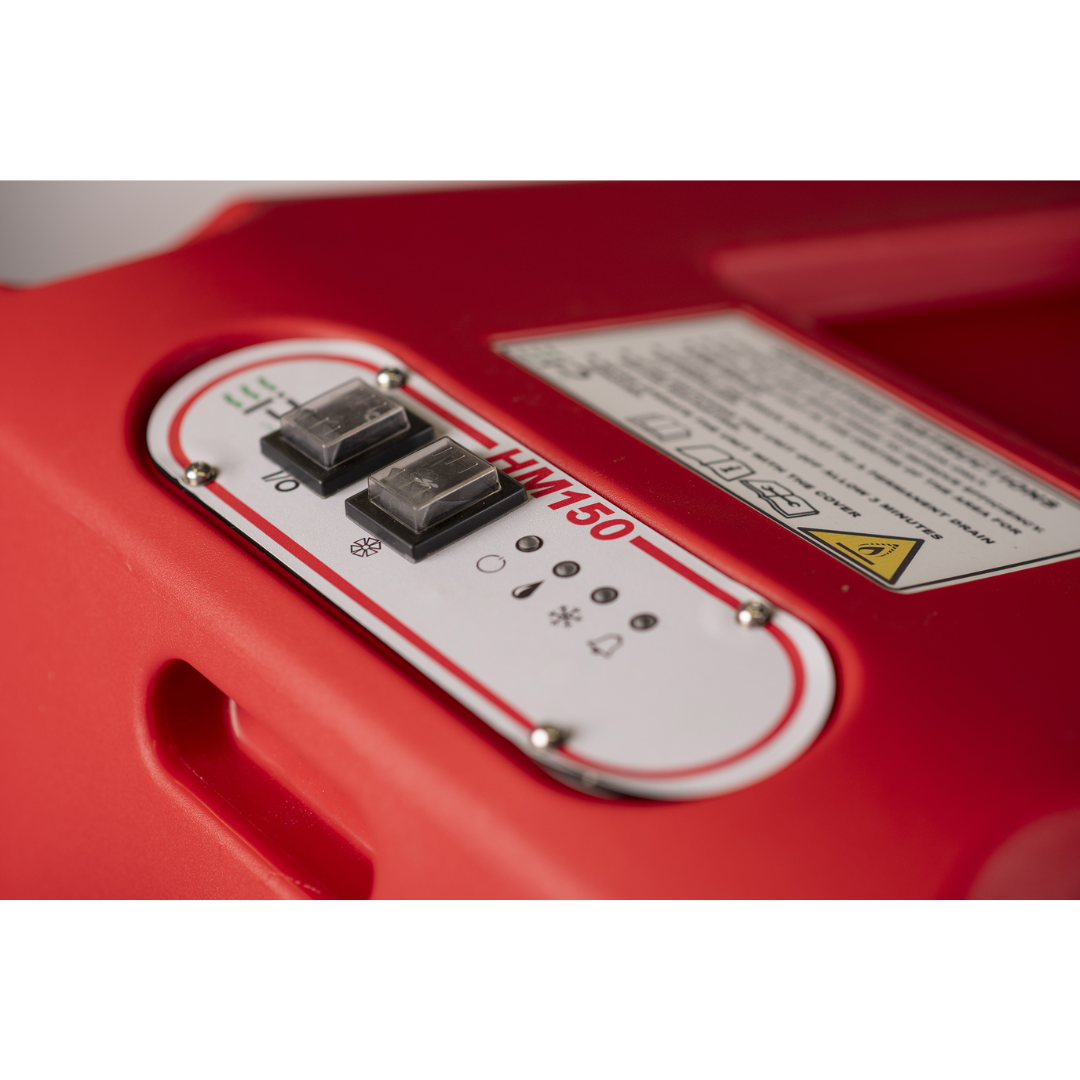

- HM150 Model: Standard operation with system status indicators and manual controls.

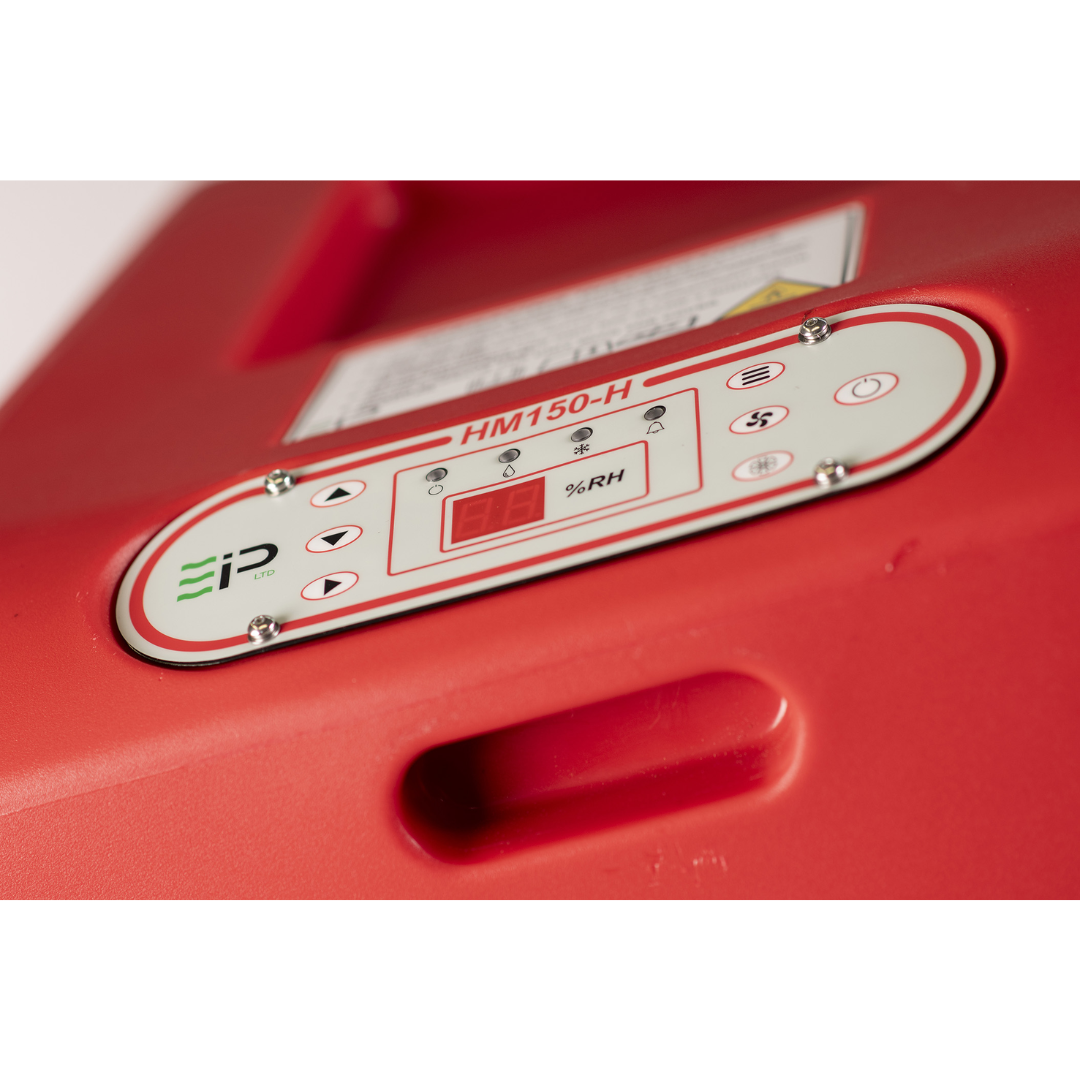

- HM150-H Model: Includes a built-in humidity controller allowing precise humidity setpoints and continuous monitoring of room humidity levels.
The HM150-H provides advanced humidity control for environments requiring accurate humidity management.
Ebac HM150 / HM150-H Dehumidifier How the System Works
- Moist air is drawn into the Ebac HM150/HM150-H Dehumidifier by the internal fan.
- The air passes over the evaporator coil where it cools below its dew point.
- Moisture condenses on the coil and is collected in the condensate tray.
- The integrated pump removes collected water through the drain hose.
- The air then passes across the condenser coil where it is reheated using recovered system energy.
- The discharged air returns to the room approximately 2°C warmer and significantly drier.
- The reverse cycle defrost system activates when necessary to maintain efficient performance.
- Continuous air circulation gradually reduces humidity levels within the area.
Ebac HM150 / HM150-H Dehumidifier Package Contents
HM150 Package Includes- 1 × HM150 Dehumidifier
- 1 × Owner’s Manual
- 1 × 3/8" PVC Drain Tube (7.8M Length)
- 1 × HM150-H Dehumidifier
- 1 × Owner’s Manual
- 1 × 3/8" PVC Drain Tube (7.8M Length)
Why Choose the Ebac HM150 / HM150-H Dehumidifier
- Professional restoration dehumidifier capable of removing up to 105 pints per day.
- Durable rotomolded housing designed for harsh jobsite conditions.
- Integrated condensate pump enables continuous unattended operation.
- Reverse cycle defrost system supports reliable cold-temperature performance.
- Portable wheeled design with collapsible handle for easy transport.
- Stackable design reduces storage and transportation costs.
The Ebac HM150 / HM150-H Dehumidifier combines powerful moisture removal, rugged durability, and professional portability—making it an ideal solution for restoration contractors, construction professionals, and facilities requiring dependable humidity control equipment.
