Ebac FD100 Lumber Dryer 13223BB-US Applications
- Wood retailers producing kiln dried lumber
- Cabinet and furniture manufacturing workshops
- Professional woodworking shops
- Custom furniture builders and millwork shops
- Drying hardwood and softwood lumber
- Small industrial lumber drying operations
- Mixed species and mixed thickness drying loads
- Controlled kiln drying in self-built drying chambers
The Ebac FD100 Lumber Dryer 13223BB-US allows woodworking professionals to produce kiln-dried lumber internally, improving supply reliability and reducing dependence on external drying services.
Ebac FD100 Lumber Dryer 13223BB-US Packaged Drying System
The Ebac FD100 Lumber Dryer 13223BB-US is supplied as a complete drying system designed for installation inside a custom insulated drying chamber. When paired with the STC1 Controller, the system automatically regulates drying and heating cycles to maintain ideal drying conditions throughout the entire lumber stack.
- STC1 proportional timer precisely controls the drying cycle.
- Integrated thermostat control manages heating cycles within the chamber.
- Automated drying operation requiring minimal operator intervention.
- No additional humidification equipment required due to controlled drying speed.
- Moisture-resistant controller housing with transparent hinged cover.
- Electronic thermometer displays drying chamber temperature for monitoring.
Once initial settings are configured according to the drying schedule, the system operates almost entirely automatically, maintaining stable drying conditions and consistent lumber quality.
Ebac FD100 Lumber Dryer 13223BB-US Drying Performance
The Ebac FD100 Lumber Dryer 13223BB-US is designed to extract large volumes of moisture from lumber while maintaining the balance between drying speed and wood stability. Operating at temperatures up to approximately 55°C (122°F), the system provides efficient drying without excessive heat that can cause lumber degrade.
- Capable of drying lumber from green or air-dried condition
- Moisture content can be reduced to approximately 6%
- Recommended drying rate of 1% moisture reduction per day for 1" hardwood
- Supports drying of mixed species and mixed board thicknesses
- Balanced drying speed maintains lumber stability and minimizes defects
- Optimized for consistent moisture removal across the entire load
Ebac recommends gradual drying rates to ensure high lumber quality and minimize internal stresses or surface defects.
Ebac FD100 Lumber Dryer 13223BB-US Features
- High-performance drying unit engineered for efficient moisture extraction.

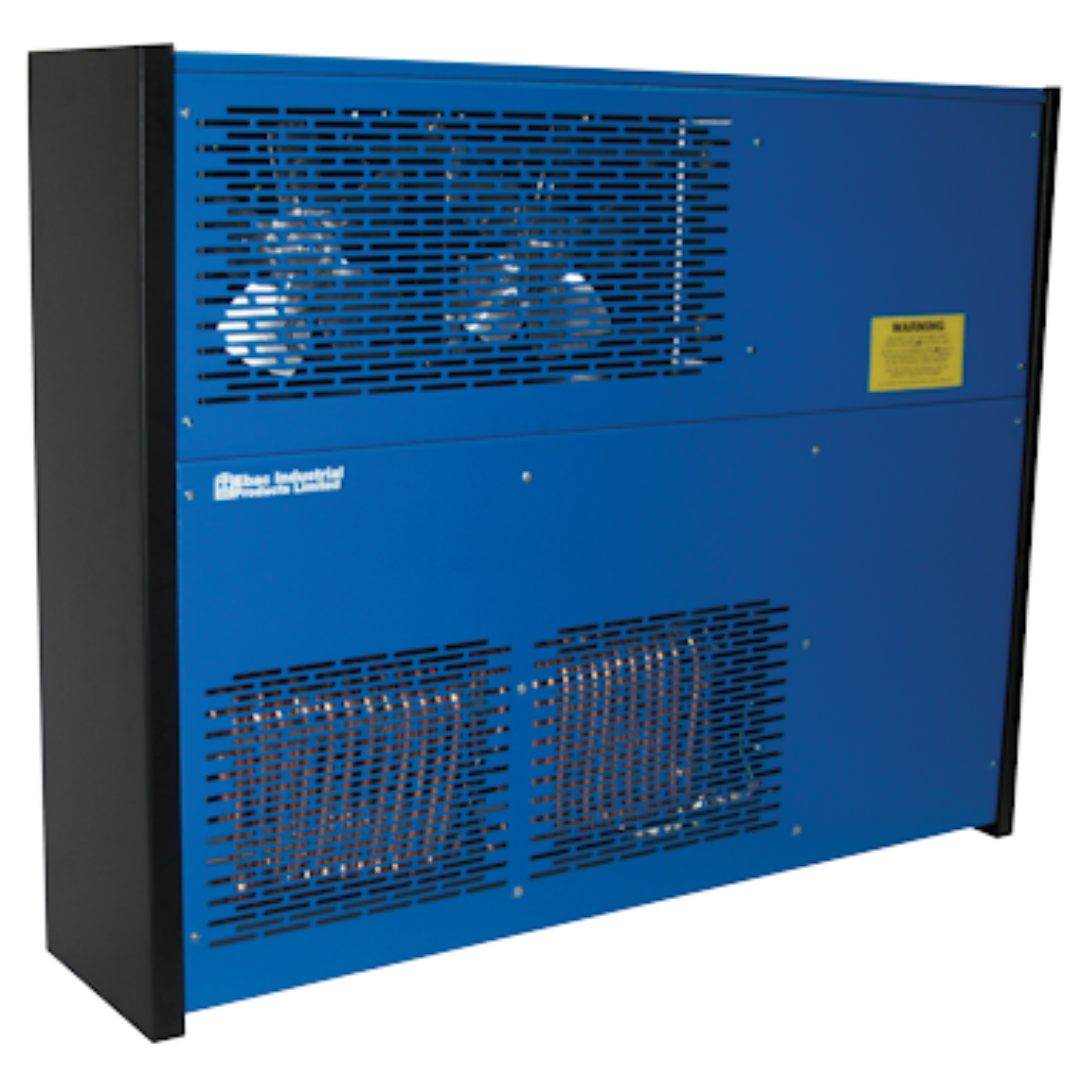

- Dual supplemental fans ensure even airflow across the lumber stack.
- Low humidity drying operation promotes thorough moisture removal.
- Flexible drying capability allows mixed loads of lumber species and board thicknesses.
- Wall-mounted slim design saves valuable drying chamber space.
- Energy-efficient operation typically consuming approximately 1.2 kW per hour during operation.
- Robust industrial construction designed for long service life.
- Complete drying control system using the STC1 controller for simplified operation.
Ebac FD100 Lumber Dryer 13223BB-US Specifications
| Product Name | Ebac FD100 Lumber Dryer 13223BB-US |
|---|---|
| Part Number | 13223BB-US |
| Power Requirements | 220 V / 1 Phase / 60 Hz |
| Dryer Power | 1100 W |
| Heater Power | 1500 W |
| Current | 12 A |
| Maximum Operating Temperature | 122 °F |
| Typical Load Capacity | 7 m³ of lumber |
| Height | 33 in |
| Width | 43 in |
| Depth | 12 in |
| Weight | 167 lbs |
Ebac FD100 Lumber Dryer 13223BB-US Package Contents
- 1 × Ebac FD100 Lumber Dryer 13223BB-US
- 1 × FD100 Owner's Manual
- 1 × PVC Tubing – 16 mm ID – 3 m length
- 1 × Jubilee Clip
Why Choose the Ebac FD100 Lumber Dryer 13223BB-US
- High-capacity drying system suitable for professional woodworking operations.
- Enables businesses to dry lumber in-house and reduce purchasing costs.
- Improves product quality by ensuring consistent lumber moisture levels.
- Supports flexible drying loads including mixed species and board sizes.
- Energy-efficient operation for cost-effective kiln drying.
With the Ebac FD100 Lumber Dryer 13223BB-US, woodworking professionals gain independence from external drying services while maintaining full control over lumber quality, inventory, and drying schedules.
