Ebac DD900 Desiccant Dehumidifier Applications
- Industrial manufacturing facilities requiring controlled humidity
- Warehousing and storage of moisture-sensitive materials
- Packaging and processing operations for hygroscopic products
- Cold climate drying applications where refrigeration units struggle
- Corrosion prevention in equipment rooms and storage spaces
- Pharmaceutical, chemical, and food production environments
Desiccant dehumidifiers excel in environments requiring deep drying, low dew points, or operation in cold temperatures where traditional refrigeration systems are less effective.
Ebac DD900 Desiccant Dehumidifier Specifications
| Model | DD900 |
|---|---|
| Available Voltages | 220V / 3 Phase / 60 Hz or 460V / 3 Phase / 60 Hz |
| Power Consumption | 9.8 kW |
| Typical Extraction | 364 Pints per Day |
| Process Airflow (Dry Air) | 530 CFM |
| Maximum Process Airflow | 883 CFM |
| Regeneration Airflow | 147 CFM |
| Process Air Duct Size | 8" |
| Regeneration Air Duct Size | 6" |
| Rotor Wheel Speed | 13.6 rph |
| Noise Level | 67 dB(A) |
| Minimum Operating Temperature | -4°F |
| Maximum Operating Temperature | 104°F |
| Dimensions (H × W × D) | 48" × 28" × 23" |
| Weight | 198 lbs |
Ebac DD900 Desiccant Dehumidifier Features
- High extraction capacity up to 364 PPD for demanding industrial drying applications
- Dual EC high efficiency fans with variable speed for optimized airflow and installation flexibility
- Energy efficient PTC regeneration heaters delivering stable drying performance
- Advanced silica gel desiccant rotor designed for consistent moisture removal across wide operating ranges

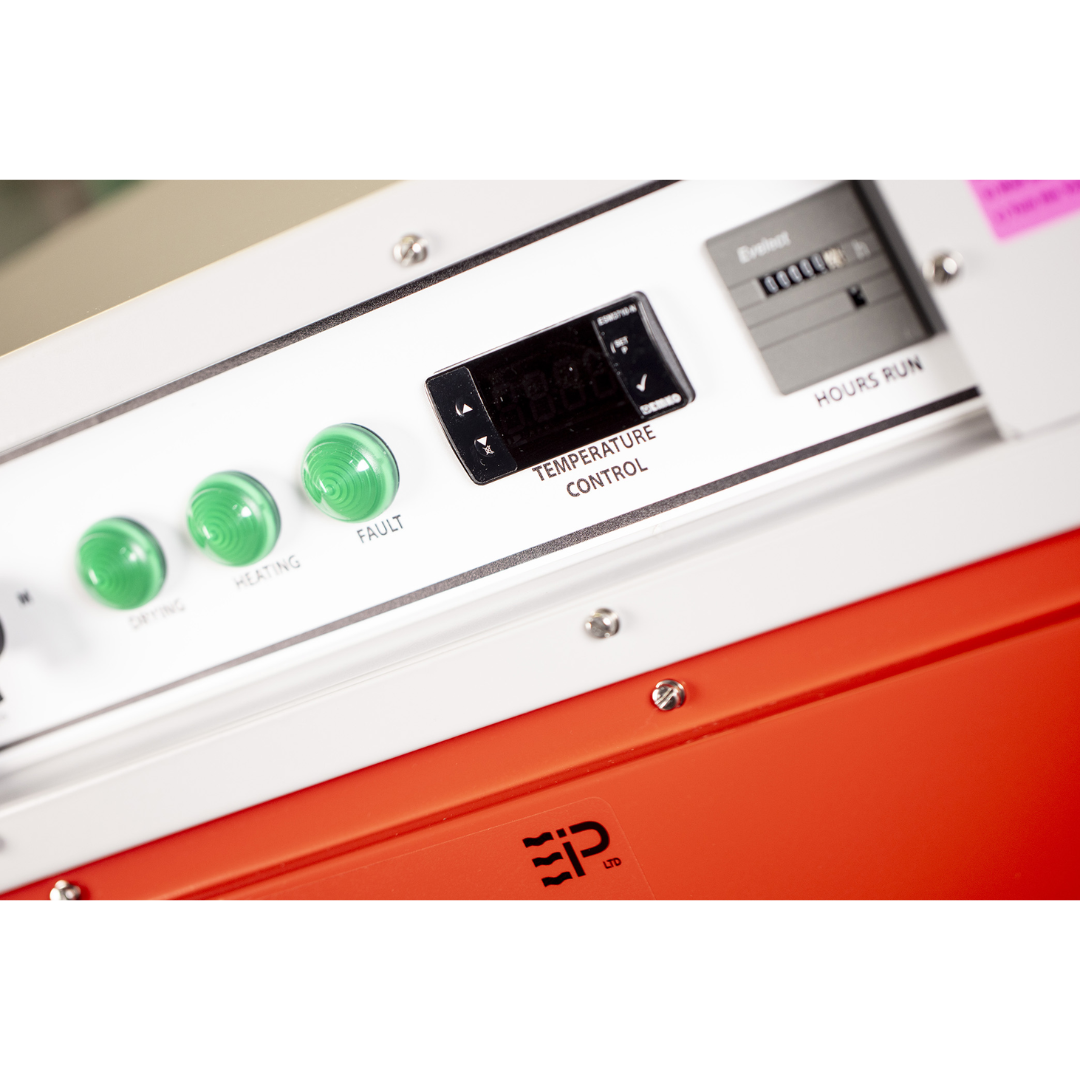

- Adjustable thermostat allowing precise humidity management
- Manual or automatic operating modes for flexible humidity control
- Remote humidity sensor capability allowing external humidistat integration
- Integrated air filtration protecting internal components and maintaining performance

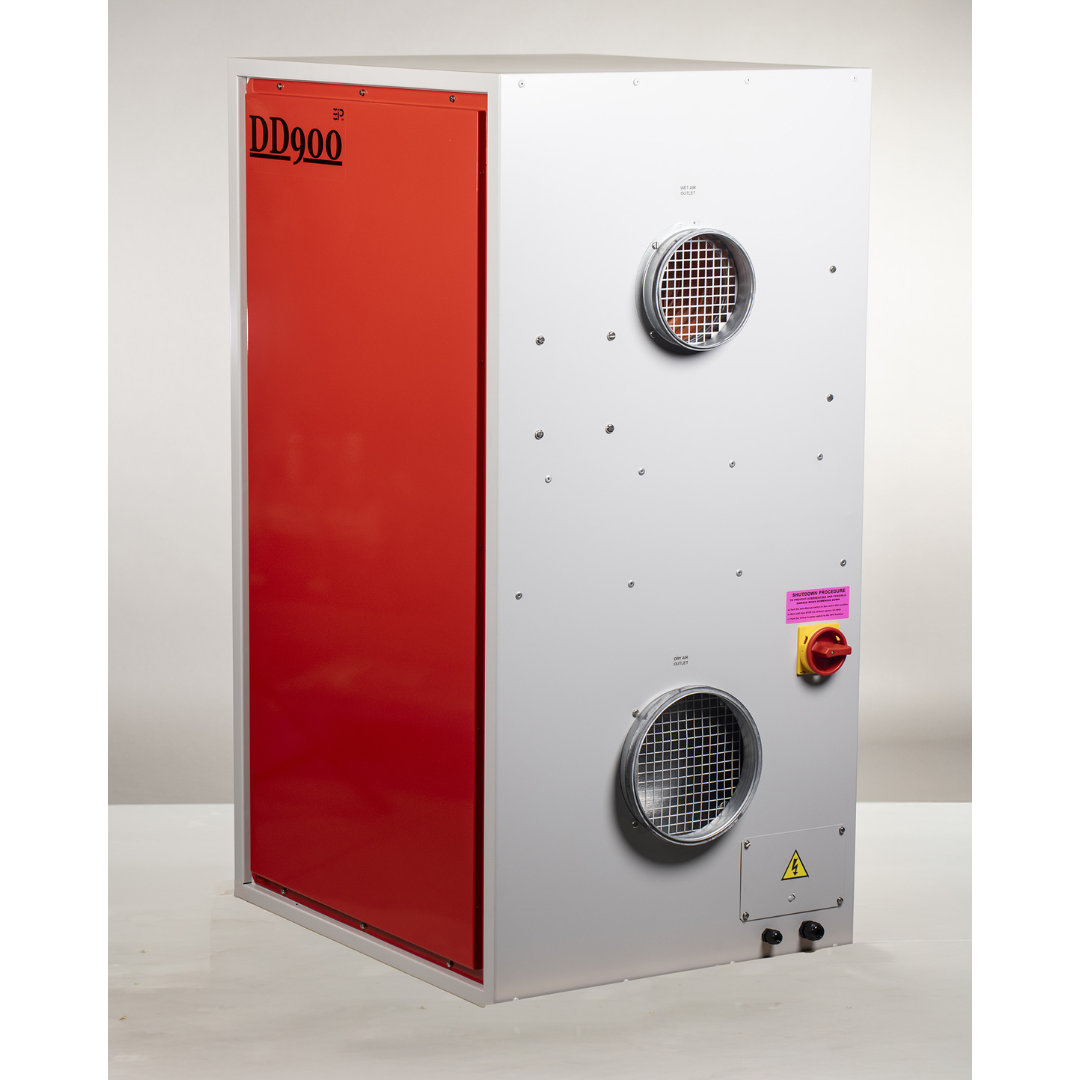

- Dual air inlet design enabling separation of regeneration and process air streams
- High temperature safety cut-outs protecting system components during operation
- Rubber anti-vibration feet ensuring stable and quiet operation

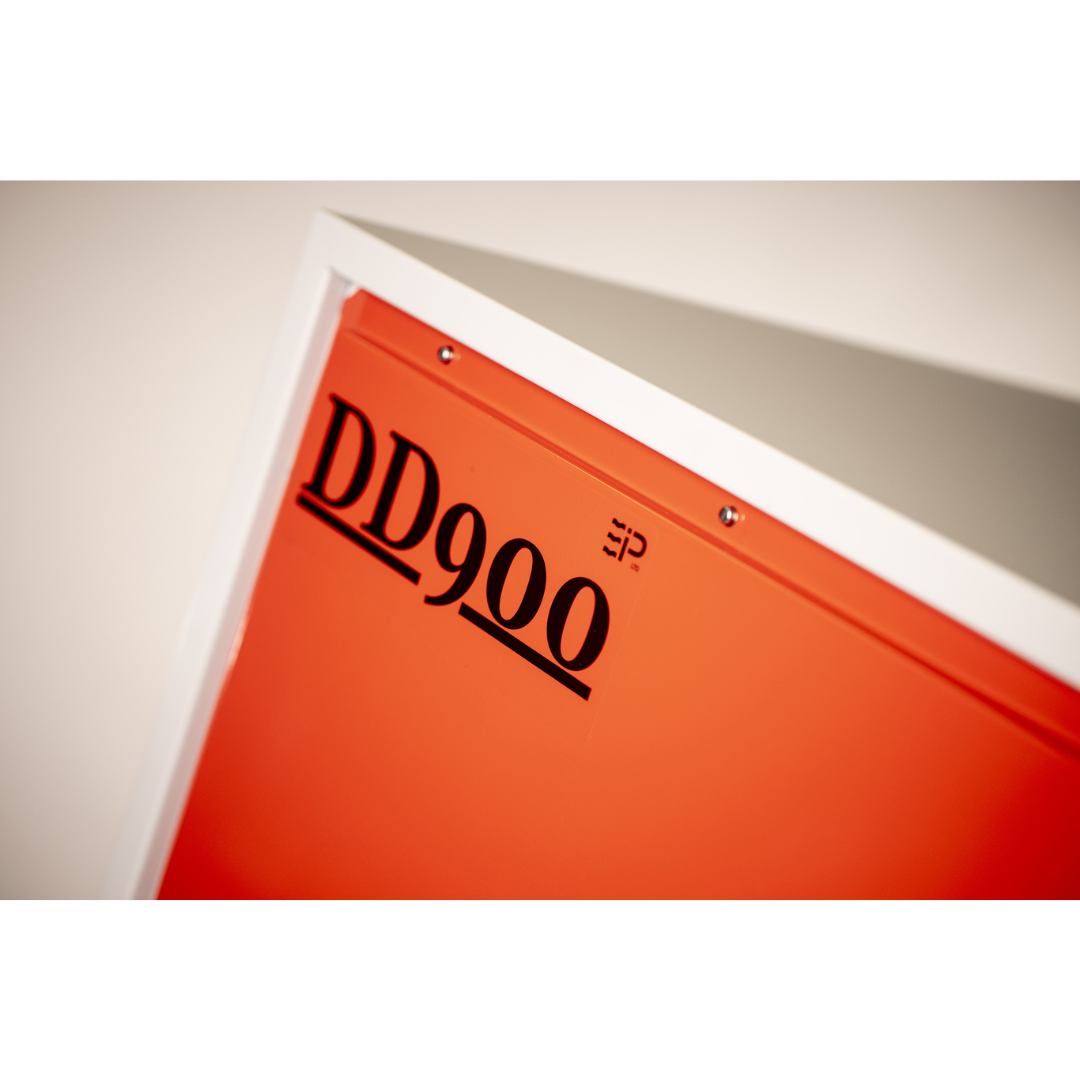

- Self-contained industrial cabinet for reliable long-term performance
How the DD900 Desiccant Dehumidifier Works
- Moist air enters the unit as process air.
- The air passes through a rotating silica gel desiccant rotor.
- The desiccant material absorbs moisture from the air.
- Dry air exits the unit and returns to the controlled environment.
- A separate air stream called regeneration air is heated.
- This heated air removes moisture from the rotor.
- The moist regeneration air is exhausted from the system.
- The rotor slowly rotates to maintain continuous drying performance.
Unlike refrigeration dehumidifiers, desiccant systems maintain efficient drying performance even in sub-zero environments.
What’s Included
- 1 × DD900 220V or 460V Desiccant Dehumidifier
- 1 × DD900 Owner’s Manual
Why Choose the Ebac DD900 Desiccant Dehumidifier
- Powerful industrial moisture removal up to 364 PPD
- Reliable desiccant drying technology for cold environments
- Multiple drying modes including High Extraction, High Efficiency, and Deep Drying
- Energy efficient EC fan system for optimized airflow
- Durable industrial construction backed by decades of EIPL engineering experience
The Ebac DD900 Desiccant Dehumidifier delivers high-capacity moisture control, energy-efficient drying technology, and dependable performance for industrial environments requiring precise humidity management.
