Ebac DD400-S Desiccant Dehumidifier Applications
- Manufacturing and industrial production facilities
- Product packaging and storage of hygroscopic materials
- Cold storage environments and low temperature facilities
- Prevention of condensation and corrosion in equipment rooms
- Laboratories, electronics manufacturing, and pharmaceutical facilities
- Humidity control in warehouses and storage areas
Desiccant technology allows the Ebac DD400-S to operate efficiently even in extremely cold environments where conventional refrigeration dehumidifiers lose performance.
Ebac DD400-S Desiccant Dehumidifier Specifications
| Model | DD400-S |
|---|---|
| Part Number | 10500SU-US |
| Voltage Requirements | 220V / 1 Phase / 60 Hz |
| Typical Extraction | 77.5 PPD |
| Power Consumption | 1.8 kW |
| Current | 8 A |
| Process Airflow (Dry Air) | 271 CFM |
| Regeneration Airflow (Wet Air) | 80 CFM |
| Rotor Wheel Speed | 20 RPH |
| Process Air Duct Size | 5 in |
| Regeneration Air Duct Size | 4 in |
| Noise Level | 67 dBA |
| Operating Temperature Range | -4°F to 104°F |
| Dimensions (H × W × D) | 16.5" × 15.75" × 21.25" |
| Weight | 59.5 lbs |
Ebac DD400-S Desiccant Dehumidifier Performance & Construction
- High Efficiency Silica Gel Rotor removes moisture directly from the air for reliable deep drying performance.
- High Capacity PTC Heater ensures rapid regeneration and consistent moisture removal.
- Dual Air Inlet Design allows separation of regeneration and process air streams for flexible installation.
- Manual or Automatic Mode Selection enables adaptable humidity control depending on application requirements.
- Remote Humidity Sensor Compatibility allows automatic humidity management via external humidistat.

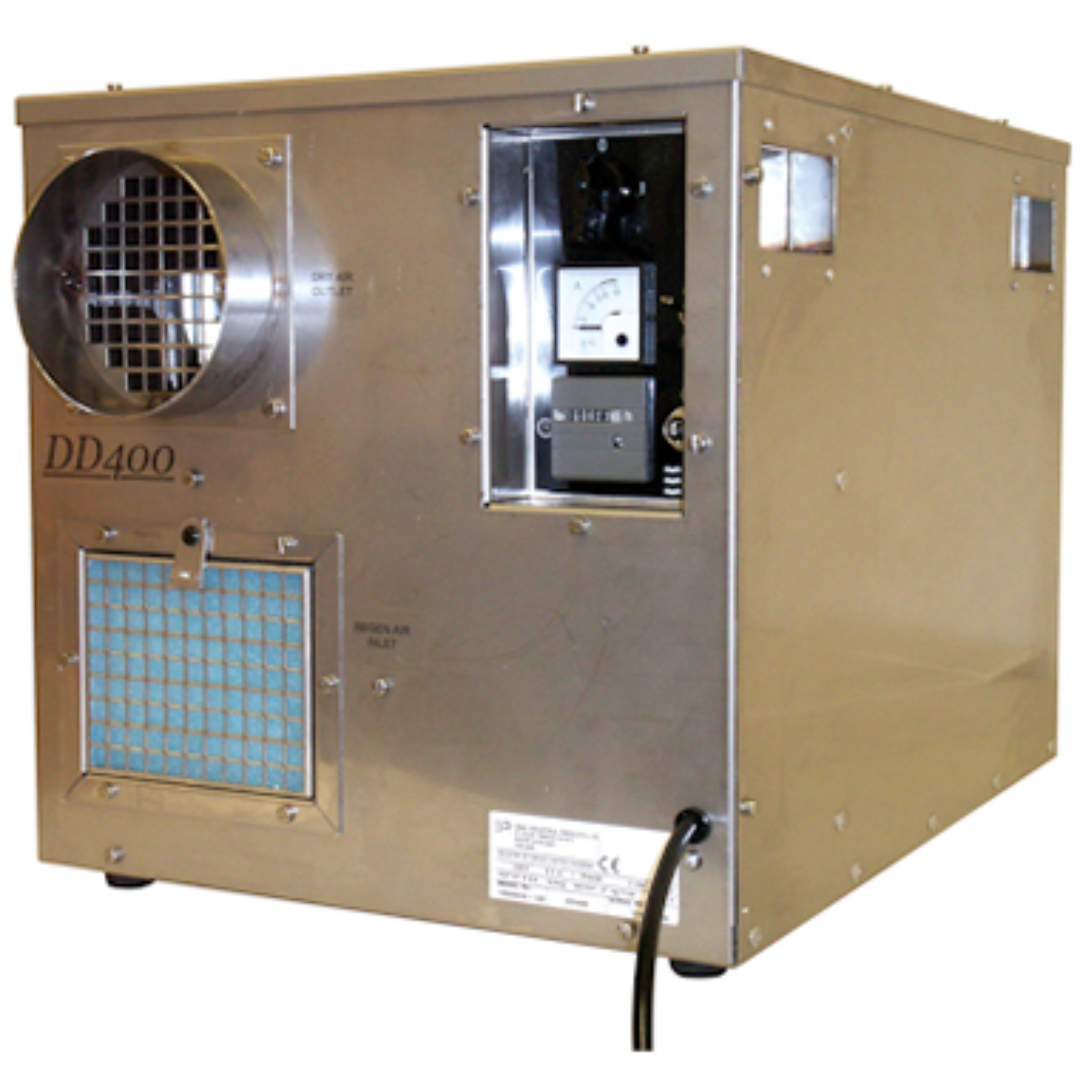

- Integrated Ammeter and Hours Run Meter provide easy monitoring of system performance.
- Process and Regeneration Air Filters protect internal components and maintain optimal airflow.
- Compact Rugged Design enables single-person transport and installation in space-restricted areas.
- High Temperature Safety Cut-Outs protect internal components and ensure safe operation.
Ebac DD400-S Desiccant Dehumidifier How Desiccant Drying Works
- Moist air is drawn into the Ebac DD400-S Desiccant Dehumidifier as process air.
- The air passes across a rotating silica gel rotor which absorbs moisture from the air.
- The dried air exits the unit as warm, low humidity air suitable for controlled environments.
- A separate regeneration air stream is heated before passing over the rotor.
- The heated air removes moisture stored within the rotor and exhausts it outside the drying area.
- The rotor continuously rotates to provide uninterrupted moisture removal.
- This adsorption process allows effective humidity control even in sub-zero environments.
Ebac DD400-S Desiccant Dehumidifier Package Contents
- 1 × DD400-S Desiccant Dehumidifier
- 1 × Owner’s Manual
- 1 × Power Plug
Why Choose the Ebac DD400-S Desiccant Dehumidifier
- Reliable desiccant drying performance for cold environments.
- Compact industrial design for easy installation and transport.
- Advanced silica gel rotor technology ensures long service life.
- Flexible manual and automatic humidity control operation.
- Durable EIPL engineering built for industrial environments.
- Consistent deep drying performance across a wide temperature range.
The Ebac DD400-S Desiccant Dehumidifier provides dependable industrial humidity control for manufacturing, storage, and commercial environments requiring precise low humidity conditions.
